Model Image
Manufacturer

Panasonic

Model Number

BBHCM515A

Description

Pro-line Network Cam

Interactive Exploded View

Parts List

Part Number Description
2SB1218A 2SB1218A 2SB1218A
CR2032U_B CR2032U_B BATTERY
PQBC10495Z PQBC10495Z BUTTON
PQKM10741Z1 PQKM10741Z1 CABINET
ECJ1VB1H681K ECJ1VB1H681K CAP
ECJ0EB0J224K ECJ0EB0J224K CAPACITOR
ECJ1XB1C104K ECJ1XB1C104K CAPACITOR
ECJ1VB1C474K ECJ1VB1C474K CAPACITOR
ECUM1E103KBV ECUM1E103KBV CAPACITOR
ECJ1VB1H102K ECJ1VB1H102K CAPACITOR
ECJ1VB1H122K ECJ1VB1H122K CAPACITOR
ECJ1XC1H121J ECJ1XC1H121J CAPACITOR
ECJ1XC1H331J ECJ1XC1H331J CAPACITOR
ECJ1XF1A105Z ECJ1XF1A105Z CAPACITOR
F1H1C1040004 F1H1C1040004 CAPACITOR
ECJ1VF1E104Z ECJ1VF1E104Z CAPACITOR
ECST0JX336 ECST0JX336 CAPACITOR
ECST0JX476 ECST0JX476 CAPACITOR
ECUE0J105KBQ ECUE0J105KBQ CAPACITOR
ECUE1A104KBQ ECUE1A104KBQ CAPACITOR
ECUE1C104ZFQ ECUE1C104ZFQ CAPACITOR
ECUE1H100DCQ ECUE1H100DCQ CAPACITOR
ECUE1H101JCQ ECUE1H101JCQ CAPACITOR
ECUE1H102KBQ ECUE1H102KBQ CAPACITOR
ECUE1H120JCQ ECUE1H120JCQ CAPACITOR
ECUE1H220JCQ ECUE1H220JCQ CAPACITOR
ECUE1H5R0CCQ ECUE1H5R0CCQ CAPACITOR
ECUE1H6R0CCQ ECUE1H6R0CCQ CAPACITOR
ECUV0J105KBV ECUV0J105KBV CAPACITOR
ECUV1A224KBV ECUV1A224KBV CAPACITOR
ECUZ1C104ZFV ECUZ1C104ZFV CAPACITOR
ECUV1C474KB ECUV1C474KB CAPACITOR
ECUV1C475ZF ECUV1C475ZF CAPACITOR
ECUV1H100JCV ECUV1H100JCV CAPACITOR
ECUV1H101JCV ECUV1H101JCV CAPACITOR
EEEFK1C471P EEEFK1C471P CAPACITOR
EEEFK1K470P EEEFK1K470P CAPACITOR
F1J0J1060006 F1J0J1060006 CAPACITOR
F1J2A471A030 F1J2A471A030 CAPACITOR
F1J2E1020002 F1J2E1020002 CAPACITOR
F1K1E106A059 F1K1E106A059 CAPACITOR
F1L1C476A044 F1L1C476A044 CAPACITOR
F1L2A1050009 F1L2A1050009 CAPACITOR
F1L2A683A006 F1L2A683A006 CAPACITOR
F1L3D1020001 F1L3D1020001 CAPACITOR
F1L3D2220001 F1L3D2220001 CAPACITOR
F2B1C1020005 F2B1C1020005 CAPACITOR
F3F0J4760005 F3F0J4760005 CAPACITOR
PFCX1EY106ZF PFCX1EY106ZF CAPACITOR
PQCUV1A105KB PQCUV1A105KB CAPACITOR
PSCUV2EY104K PSCUV2EY104K CAPACITOR
ECJ1XB1C473K ECJ1XB1C473K CAPACITOR
PQQX15704YCD CD-ROM
PQUA10016Z PQUA10016Z CHASSIS
ERJ8GEYJ750V ERJ8GEYJ750V CHIP
G0B150G00001 G0B150G00001 COIL
G1A220GA0005 G1A220GA0005 COIL
G1C1R0JA0041 G1C1R0JA0041 COIL
G1C3R3MA0072 G1C3R3MA0072 COIL
G1C4R7MA0098 G1C4R7MA0098 COIL
J0JBC0000071 J0JBC0000071 COIL
J0JCC0000079 J0JCC0000079 COIL
J0JCC0000315 J0JCC0000315 COIL
PQLQR1RM121 PQLQR1RM121 COIL
PQLQR1RM601 PQLQR1RM601 COIL
PQLQR1RS102 PQLQR1RS102 COIL
PQLQR1RS241 PQLQR1RS241 COIL
G1C100MA0203 G1C100MA0203 COIL
G0B150G00002 G0B150G00002 COIL (DISCONTINUED)
G1C100K00031 G1C100K00031 COIL (DISCONTINUED)
G1C100M00027 G1C100M00027 COIL (DISCONTINUED)
G1C6R8Z00005 G1C6R8Z00005 COIL (DISCONTINUED)
K1KA02AA0229 K1KA02AA0229 CONNECTOR
K1MN18BA0134 K1MN18BA0134 CONNECTOR
K1MN18BA0160 K1MN18BA0160 CONNECTOR
K1MN27AA0058 K1MN27AA0058 CONNECTOR
K1MN27BA0184 K1MN27BA0184 CONNECTOR
K1MN32BA0153 K1MN32BA0153 CONNECTOR
K1MY04AA0057 K1MY04AA0057 CONNECTOR
K1NA14E00002 K1NA14E00002 CONNECTOR
PQKE10468Z1 PQKE10468Z1 COVER
PQKE10469Z1 PQKE10469Z1 COVER
PQKF10727Y1 PQKF10727Y1 COVER

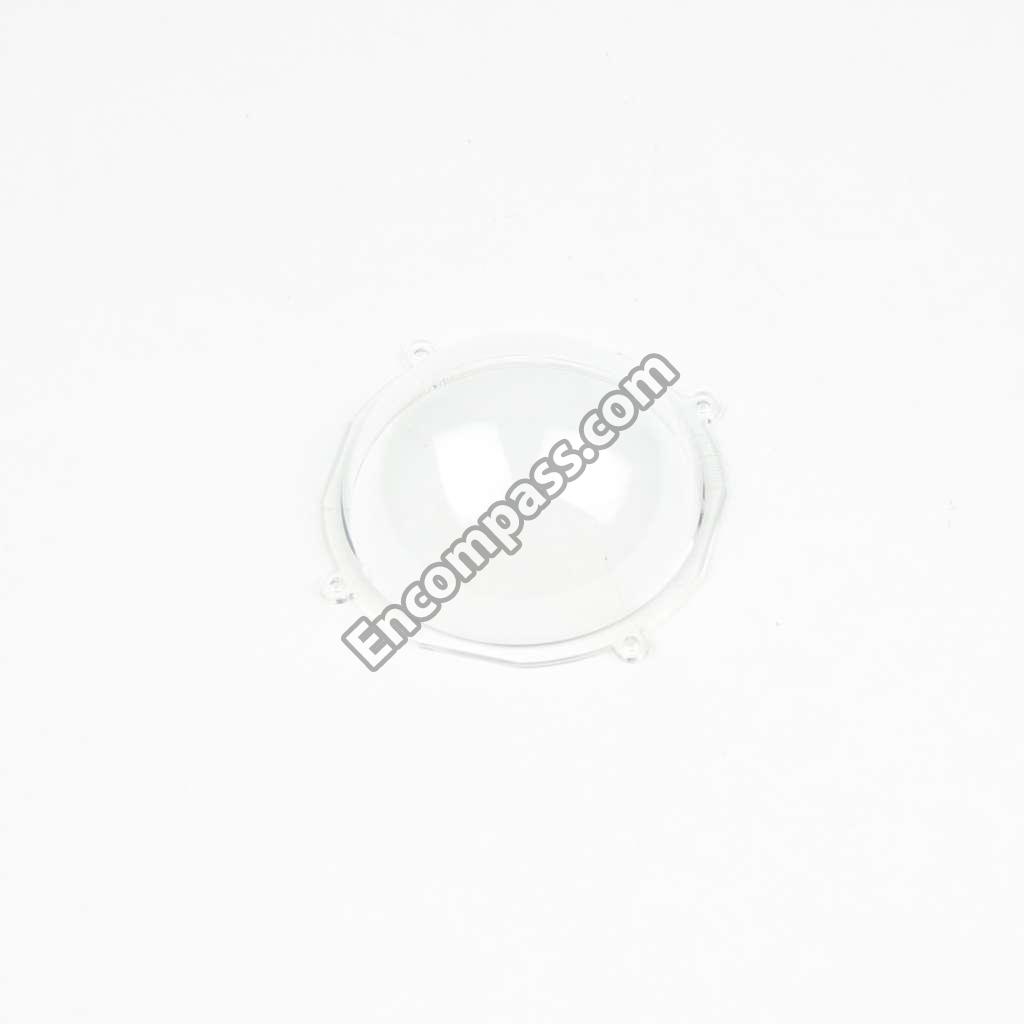

PQKV10062Z PQKV10062Z COVER
PQKV10064Z1 PQKV10064Z1 COVER
PQKV10065Z1 PQKV10065Z1 COVER
XZB20X30A05 XZB20X30A05 COVER (DISCONTINUED)
PQPD10786Z PQPD10786Z CUSHION
PQPD10787Z PQPD10787Z CUSHION
PQPD10865Z PQPD10865Z CUSHION
PSMG1007Z PSMG1007Z CUSHION
B0BC01000014 B0BC01000014 DIODE
B0BC01600022 B0BC01600022 DIODE
B0BC06700001 B0BC06700001 DIODE
B0BC3R700004 B0BC3R700004 DIODE
B0BC4R600016 B0BC4R600016 DIODE
B0BC8R100004 B0BC8R100004 DIODE
B0HCMM000017 B0HCMM000017 DIODE
B0JCCL000004 B0JCCL000004 DIODE
B0JCML000005 B0JCML000005 DIODE
B0JCPG000015 B0JCPG000015 DIODE
B3ABB0000291 B3ABB0000291 DIODE
MA2J1110GL MA2J1110GL DIODE
1A166D048-01 1A166D048-01 DIODE
MA3082 MA3082 DIODE
SFPB-54 SFPB-54 DIODE
MA741WK MA741WK DIODE
ERJ2GEJ151X ERJ2GEJ151X ERJ2GEJ151X
ERJ3GEYJ332V ERJ3GEYJ332V ERJ3GEYG332
ERJ3GEYG473 ERJ3GEYG473 ERJ3GEYG473
ERJ3GEYJ105 ERJ3GEYJ105 ERJ3GEYJ105V
ERJ3GEYG152 ERJ3GEYG152 ERJ3GEYJ152V
J0JAD0000007 J0JAD0000007 FILTER
J0JBC0000082 J0JBC0000082 FILTER
J0JBC0000107 J0JBC0000107 FILTER
J0JCC0000234 J0JCC0000234 FILTER
J0JCC0000250 J0JCC0000250 FILTER
J0JDC0000081 J0JDC0000081 FILTER
J0MAB0000110 J0MAB0000110 FILTER
PQVFCM04RC01 PQVFCM04RC01 FILTER
D4FBR200A003 D4FBR200A003 FUSE
K5H7513A0023 K5H7513A0023 FUSE
K5H7513A0015 K5H7513A0015 FUSE
PQHR11272Z PQHR11272Z GEAR
AN6123MS AN6123MS IC
B3NAA0000003 B3NAA0000003 IC
C0BBBA000044 C0BBBA000044 IC
C0CBCAD00039 C0CBCAD00039 IC
C0DBAFZ00054 C0DBAFZ00054 IC
C0DBBZC00002 C0DBBZC00002 IC
C0DBGYY00198 C0DBGYY00198 IC
C0EBE0000231 C0EBE0000231 IC
C0GBF0000020 C0GBF0000020 IC
C1AB00002139 C1AB00002139 IC
C1AB00002711 C1AB00002711 IC
C1CB00001622 C1CB00001622 IC
C1CB00002237 C1CB00002237 IC
C1CB00002568 C1CB00002568 IC
C1ZBZ0003497 C1ZBZ0003497 IC
C3ABQG000070 C3ABQG000070 IC
MN103SC30EYD MN103SC30EYD IC
RPI-352 RPI-352 IC
G1C6R8MA0203 G1C6R8MA0203 INDUCTOR
PQQX15708Z PQQX15708Z INSTALL MANUAL
PQQW15579Z PQQW15579Z INSTRUCT BOOK
PQQX15702Z PQQX15702Z INSTRUCT BOOK
PQQX15703Z PQQX15703Z INSTRUCT BOOK
B3AKB0000008 B3AKB0000008 LED
PSJM1009Z PSJM1009Z MICROPHONE
PQWQ1HCM515A PQWQ1HCM515A MOTOR
PQWQ2HCM515A PQWQ2HCM515A MOTOR
H0J250500078 H0J250500078 OSCILLATOR
H0J327200193 H0J327200193 OSCILLATOR
H0J480500027 H0J480500027 OSCILLATOR
PQPH10097Z PQPH10097Z PACKAGING
PQPK15623Y PQPK15623Y PACKAGING
PQPN11794Z PQPN11794Z PACKAGING
PQWP1HCM515A PQWP1HCM515A PC BOARD
PQWP2HCM515A PQWP2HCM515A PC BOARD
PQWP3HCM515A PQWP3HCM515A PC BOARD
PQWP4HCM515A PQWP4HCM515A PC BOARD
PQWP5HCM515A PQWP5HCM515A PC BOARD
B3PBA0000297 B3PBA0000297 PHOTOCOUPLER
PQGT19337Z PQGT19337Z PLATE
PQQT23338Z PQQT23338Z PLATE
PQQT23342Z PQQT23342Z PLATE
D1BFR0680001 D1BFR0680001 RESISTOR
D1H84724A024 D1H84724A024 RESISTOR
ECJ0EC1H100C ECJ0EC1H100C RESISTOR
ERJ12YJ150 ERJ12YJ150 RESISTOR
ERJ14YJ184 ERJ14YJ184 RESISTOR
ERJ2GEJ101X ERJ2GEJ101X RESISTOR
ERJ2GEJ102X ERJ2GEJ102X RESISTOR
ERJ2GEJ103X ERJ2GEJ103X RESISTOR
ERJ2GEJ104 ERJ2GEJ104 RESISTOR
ERJ2GEJ105X ERJ2GEJ105X RESISTOR
ERJ2RHD272 ERJ2RHD272 RESISTOR
ERJ2GEJ470 ERJ2GEJ470 RESISTOR
ERJ2GEJ561 ERJ2GEJ561 RESISTOR
ERJ2GE0R00X ERJ2GE0R00X RESISTOR
ERJ2RKF1210 ERJ2RKF1210 RESISTOR
ERJ2RKF3302 ERJ2RKF3302 RESISTOR
ERJ2RKF4871 ERJ2RKF4871 RESISTOR
ERJ2RKF6801 ERJ2RKF6801 RESISTOR
ERJ3EKF1803 ERJ3EKF1803 RESISTOR
ERJ3EKF2002 ERJ3EKF2002 RESISTOR
ERJ3EKF45R3 ERJ3EKF45R3 RESISTOR
ERJ3EKF4702 ERJ3EKF4702 RESISTOR
ERJ3EKF49R9 ERJ3EKF49R9 RESISTOR
ERJ3GEYJ100 ERJ3GEYJ100 RESISTOR
ERJ3GEYJ101 ERJ3GEYJ101 RESISTOR
ERJ3GEYJ104V ERJ3GEYJ104V RESISTOR
ERJ3GEYJ154 ERJ3GEYJ154 RESISTOR
ERJ3GEYJ203V ERJ3GEYJ203V RESISTOR
ERJ3GEYJ222 ERJ3GEYJ222 RESISTOR
ERJ3GEYJ272 ERJ3GEYJ272 RESISTOR
ERJ3GEYJ331 ERJ3GEYJ331 RESISTOR
ERJ3GEYJ470 ERJ3GEYJ470 RESISTOR
ERJ3GEYJ680V ERJ3GEYJ680V RESISTOR
ERJ3GEYJ682 ERJ3GEYJ682 RESISTOR
ERJ3GEJ750V ERJ3GEJ750V RESISTOR
ERJ3GEYJ820V ERJ3GEYJ820V RESISTOR
ERJ3GEY0R00 ERJ3GEY0R00 RESISTOR
D1H84704A024 D1H84704A024 RESISTOR
PQ4R10XJ224 PQ4R10XJ224 RESISTOR
PQ4R18XJ100 PQ4R18XJ100 RESISTOR
ERJ2GEJ101 ERJ2GEJ101 RESISTOR
ERJ3GEYJ561V ERJ3GEYJ561V RESISTOR
ERJ6GEY0R00A ERJ6GEY0R00A RESISTOR
ERJ3GEYJ122 ERJ3GEYJ122 RN4B2AY122J
PQHG10740Z PQHG10740Z RUBBER
PQHV2610PJ65 PQHV2610PJ65 SCREW
XTB2_6GFJ XTB2_6GFJ SCREW
XTB4_20AFJ XTB4_20AFJ SCREW
PQQW15975Z PQQW15975Z SHEET
K2HC103B0061 K2HC103B0061 SOCKET
K2LC108B0046 K2LC108B0046 SOCKET
K4BC06B00047 K4BC06B00047 SOCKET
PFJJ1B01Z PFJJ1B01Z SOCKET
PQJJ1D010Z PQJJ1D010Z SOCKET
PQHR11269Z PQHR11269Z SPACER
PQHR11270Z PQHR11270Z SPACER
PQHR11273Z PQHR11273Z SPACER
PQHR11295Z PQHR11295Z SPACER
PQHX11471Z PQHX11471Z SPACER
PQHX11472Z PQHX11472Z SPACER
PQNPA062095 PQNPA062095 SPACER
PNZMHCM515A PNZMHCM515A STAND
EVQPSM02K EVQPSM02K SWITCH (DISCONTINUED)
G5BZC0000014 G5BZC0000014 TRANSFORMER
G5DYB0000013 G5DYB0000013 TRANSFORMER
B1ABBL000006 B1ABBL000006 TRANSISTOR
B1ABCF000103 B1ABCF000103 TRANSISTOR
B1CFMM000001 B1CFMM000001 TRANSISTOR
B1CFND000007 B1CFND000007 TRANSISTOR
B1DHCD000018 B1DHCD000018 TRANSISTOR
B1GBGFCJ0002 B1GBGFCJ0002 TRANSISTOR
PQVTDTA143EU PQVTDTA143EU TRANSISTOR
PQVTDTC143E PQVTDTC143E TRANSISTOR
ERJ3GEYJ103V ERJ3GEYJ103V VRESAL8J103
XWG26D12VW XWG26D12VW WASHER
XWG4F16VW XWG4F16VW WASHER
PQJE10180X PQJE10180X WIRE
PQJE10181X PQJE10181X WIRE
PQME10080Z PQME10080Z WIRE
