Model Image
Manufacturer

Panasonic

Model Number

CS11

Description

No description available

Interactive Exploded View

Parts List

Part Number Description

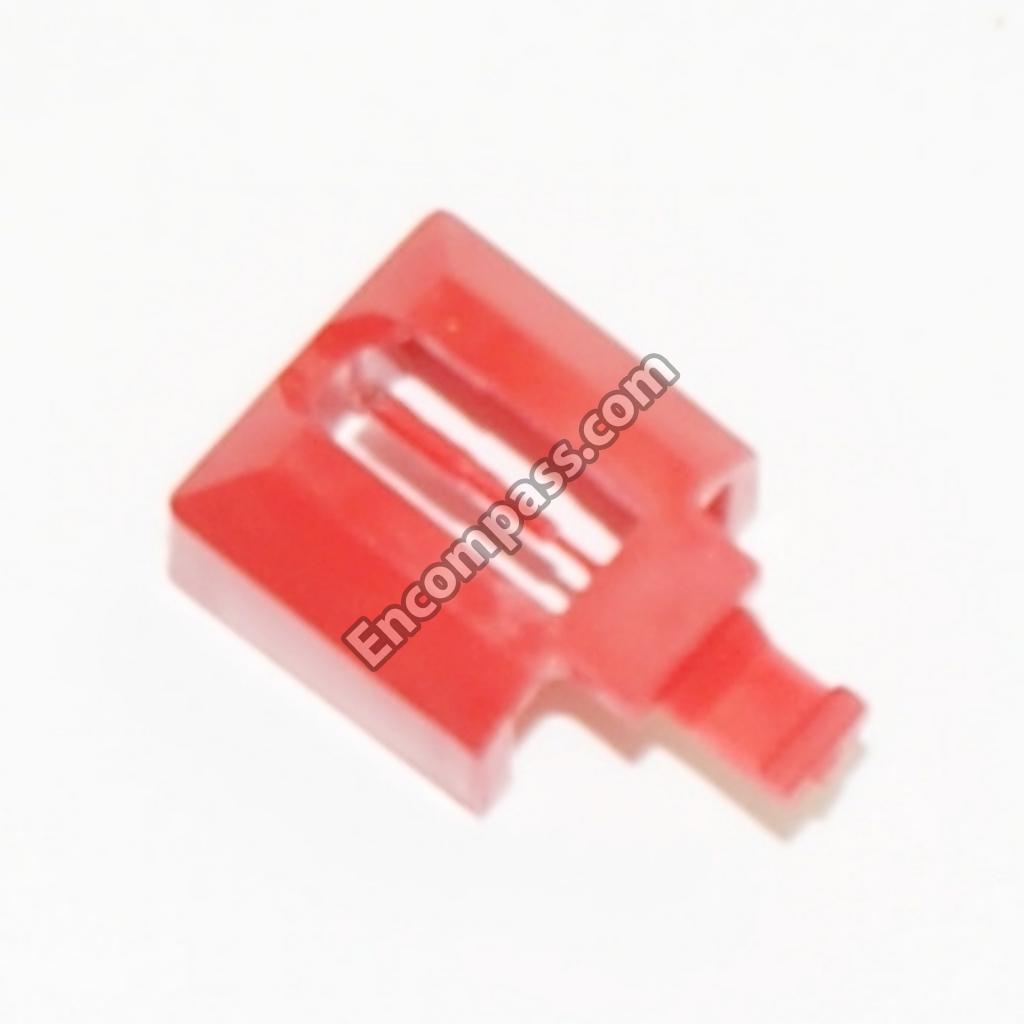

RGU0538-K RGU0538-K *NLA* BUTTON
EECF5R5U105 EECF5R5U105 1.0 Farad 5.5VDC
2SA1127-S 2SA1127-S 2SA1127-S
2SA933QRSTA 2SA933QRSTA 2SA933STA
B1AACF000063 B1AACF000063 2SC1740STA
2SD592ANCQ 2SD592ANCQ 2SC2001L1
2SD1273Q 2SD1273Q 2SD1273-QP
2SK381DE 2SK381DE 2SK381BCDTA
AN78M05LB AN78M05LB AN78M05LB
SJY90456 SJY90456 ANGLE
RMQ0235 RMQ0235 ANGLE
RML0116 RML0116 ANGLE
RMA0122 RMA0122 ANGLE
RMA0121 RMA0121 ANGLE
RMA0109 RMA0109 ANGLE
RMR0149 RMR0149 BASE
RMQ0384 RMQ0384 BASE
RMQ0383 RMQ0383 BASE
RMA0696 RMA0696 BASE
RMA0107-1 RMA0107-1 BASE
RFKRGHM09LEK RFKRGHM09LEK BASE
RBD248WAA-0 RBD248WAA-0 BASSTREBLE KNOB
RKK0008-KE RKK0008-KE BATTERY COVER
RKM0164-K RKM0164-K BOARD
RKM0163-K RKM0163-K BOARD
RMR0410 RMR0410 BRACKET
SBN1132 SBN1132 BUTTON
RGU0575-K RGU0575-K BUTTON
RGU0574-K RGU0574-K BUTTON
RGU0573-K RGU0573-K BUTTON
RGU0342 RGU0342 BUTTON
RWJ3811250KQ RWJ3811250KQ CABLE
RWJ3804150KQ RWJ3804150KQ CABLE
RWJ1805300KQ RWJ1805300KQ CABLE
RWJ1702360DK RWJ1702360DK CABLE
RWJ0109300KQ RWJ0109300KQ CABLE
RWJ0108280KQ RWJ0108280KQ CABLE
RWJ0107280KQ RWJ0107280KQ CABLE
RWJ0107140KQ RWJ0107140KQ CABLE
RWJ0106290KQ RWJ0106290KQ CABLE
RWJ0102120KK RWJ0102120KK CABLE
RWJ0102100KK RWJ0102100KK CABLE
REZ0244 REZ0244 CABLE
REX0321 REX0321 CABLE
REX0320-1 REX0320-1 CABLE
REX0319-1 REX0319-1 CABLE
REX0299 REX0299 CABLE
REX0189 REX0189 CABLE
SJY5221 SJY5221 CAM
SHG9246-1 SHG9246-1 CAP
ECEA1US221 ECEA1US221 CAPACITOR
RCV10AF1T-S RCV10AF1T-S CAPACITOR
ECQV1H473JZ3 ECQV1H473JZ3 CAPACITOR
ECQP2A391JZT ECQP2A391JZT CAPACITOR
ECQP2A102JZT ECQP2A102JZT CAPACITOR
ECQP1222J ECQP1222J CAPACITOR
ECKT1H682MD ECKT1H682MD CAPACITOR
ECKR1H103MD5 ECKR1H103MD5 CAPACITOR
ECFR1E272KR ECFR1E272KR CAPACITOR
ECFR1C473MR ECFR1C473MR CAPACITOR
ECFR1C392JR ECFR1C392JR CAPACITOR
ECFR1C333MR ECFR1C333MR CAPACITOR
ECFR1C333KR ECFR1C333KR CAPACITOR
ECFR1C223MR ECFR1C223MR CAPACITOR
ECFR1C183JR ECFR1C183JR CAPACITOR
ECFR1C103MR ECFR1C103MR CAPACITOR
ECEA50Z3R3E ECEA50Z3R3E CAPACITOR
ECEA50N010 ECEA50N010 CAPACITOR
ECEA1HU0R1 ECEA1HU0R1 CAPACITOR
ECEA25Z4R7 ECEA25Z4R7 CAPACITOR
ECEA25V220 ECEA25V220 CAPACITOR
ECEA1CU471B ECEA1CU471B CAPACITOR
ECEAICKS470 ECEAICKS470 CAPACITOR
ECEA1CU330I ECEA1CU330I CAPACITOR
ECEA1CK220 ECEA1CK220 CAPACITOR
ECEA1CU101 ECEA1CU101 CAPACITOR
ECEA0JU102 ECEA0JU102 CAPACITOR
ECCR1H120KC5 ECCR1H120KC5 CAPACITOR
ECBT1H8R2CC5 ECBT1H8R2CC5 CAPACITOR
ECBT1H6R8KC5 ECBT1H6R8KC5 CAPACITOR
ECBT1H561KB5 ECBT1H561KB5 CAPACITOR
ECBT1H3R9KY ECBT1H3R9KY CAPACITOR
ECBT1H181KB5 ECBT1H181KB5 CAPACITOR
ERD50TJ1R0S ERD50TJ1R0S CAPACITOR
ECBT1H102KB5 ECBT1H102KB5 CAPACITOR
ERD50FJ332 ERD50FJ332 CAPACITOR
ECBT1H100JC5 ECBT1H100JC5 CAPACITOR
ECBT1C332MR5 ECBT1C332MR5 CAPACITOR
ECBT1C152MR5 ECBT1C152MR5 CAPACITOR
ECBT1C122MR5 ECBT1C122MR5 CAPACITOR
ECBT0J153MSB ECBT0J153MSB CAPACITOR
RDV0021-2 RDV0021-2 CAPSTAN BELT 1
RDV0009-3 RDV0009-3 CAPSTAN BELT 2
RPG0950 RPG0950 CARTON
RSC0169 RSC0169 CASE
RFKLAHM32QAK RFKLAHM32QAK CASSETTE HOLDER-TAPE 1
RFKLAHM32QBK RFKLAHM32QBK CASSETTE HOLDER-TAPE 2
RFKPXDT610PK RFKPXDT610PK CASSETTE MOTOR
RMK0125-1 RMK0125-1 CHASSIS
SL09C27-M SL09C27-M COIL
SLQX303-1KT SLQX303-1KT COIL
SLQX303-1KS SLQX303-1KS COIL
RL02B126-M RL02B126-M COIL
RLQZP2R2KT-Y RLQZP2R2KT-Y COIL
RLQZP101KT-Y RLQZP101KT-Y COIL
RLQZP1R2JT-Y RLQZP1R2JT-Y COIL
RLQY30S4W RLQY30S4W COIL
RLFFETWNA01L RLFFETWNA01L COIL
RLY4Y002-E RLY4Y002-E COIL
SJT3909 SJT3909 CONNECTOR
SJT30843-V SJT30843-V CONNECTOR
SJT30744-H SJT30744-H CONNECTOR
SJS50978JQ SJS50978JQ CONNECTOR
SJS50778JQ SJS50778JQ CONNECTOR
SJS50378JQ SJS50378JQ CONNECTOR
RJT003K008-1 RJT003K008-1 CONNECTOR
RJS1A1101 RJS1A1101 CONNECTOR
RRN6B05B24TA RRN6B05B24TA CONTROL
RVNCC15B1T-A RVNCC15B1T-A CONTROL
EWATK2C95G15 EWATK2C95G15 CONTROL
EWATA2C95G54 EWATA2C95G54 CONTROL
EVNDXAA00B23 EVNDXAA00B23 CONTROL
EVNDXAA00B14 EVNDXAA00B14 CONTROL
EVNDXAA00B13 EVNDXAA00B13 CONTROL
RQT1131-Y RQT1131-Y CS11IB
RMG0088 RMG0088 CUSHION
MA29WA MA29WA DIODE
1SV147T4MATU 1SV147T4MATU DIODE
SLR33VC70F08 SLR33VC70F08 DIODE
RVD1SR35TR RVD1SR35TR DIODE
RVDSVC321 RVDSVC321 DIODE
RVDMTZ5R6CTA RVDMTZ5R6CTA DIODE
RVDMTZ5R6BTA RVDMTZ5R6BTA DIODE
MTZ12BT77 MTZ12BT77 DIODE
RVDMTZ10BTA RVDMTZ10BTA DIODE
MA2C70000F MA2C70000F DIODE
YEADGMB01 YEADGMB01 DIODE
RSL5042-L RSL5042-L DISPLAY
RME0077-1 RME0077-1 DOOR SPRING DECKII
DTA144ES DTA144ES DTA144ES
DTC114ESTA DTC114ESTA DTC114ESTP
ECBT1C103MS5 ECBT1C103MS5 ECBT1C103MS
ERD50FJ562 ERD50FJ562 ECBT1H150J
ECBA1H681KB5 ECBA1H681KB5 ECBT1H681KB5
ECUV1H820JM ECUV1H820JM ECCF1H820KC
ECEA1CKS101B ECEA1CKS101B ECEA0JU101
ECEA1AU101 ECEA1AU101 ECEA10V100L
F2A1H100B005 F2A1H100B005 ECEA1CK100
ECEA1EU332E ECEA1EU332E ECEA1EU332
ECEA50Z2R2K ECEA50Z2R2K ECEA1HN2R2S
ECKW1H103ZF5 ECKW1H103ZF5 ECKF1H103ZF
ECQP1183JZ ECQP1183JZ ECQP1183JZ
ECQP2A472JZT ECQP2A472JZT ECQP1472JZ
ECQV1H224JZ ECQV1H224JZ ECQV1H224JZ
711-D7 711-D7 EPS41ST
ERDS2TJ471 ERDS2TJ471 ERD16TJ471
ERDS2TJ101 ERDS2TJ101 ERD25FJ101
ERDS2TJ105 ERDS2TJ105 ERD25FJ105
ERDS2EJ121 ERDS2EJ121 ERD25FJ121K
ERDSTJ151 ERDSTJ151 ERD25FJ151K
ERDS2TJ183 ERDS2TJ183 ERD25FJ183K
ERDS2TJ1R0T ERDS2TJ1R0T ERD25FJ1R0
ERDS2TJ392 ERDS2TJ392 ERD25FJ392
ERDS2FJ392 ERDS2FJ392 ERD25FJ392
RC07-330K5 RC07-330K5 ERD25TJ334U
ERDS2TJ473 ERDS2TJ473 ERD25TJ473
ERDS2TJ563 ERDS2TJ563 ERD25TJ563
ERDS1FJ681 ERDS1FJ681 ERD25TJ681V
ERDS2FJ821 ERDS2FJ821 ERD25TJ821
ERD25TJ822 ERD25TJ822 ERD25TJ822
ERDS2TJ472TD ERDS2TJ472TD ERD25TLJ472
ERDS1FJ100P ERDS1FJ100P ERDS1FJ100
ERDS1FJ221 ERDS1FJ221 ERDS1FJ221
ERDS1VJ4R7 ERDS1VJ4R7 ERDS1FJ4R7
ERDS1TJ335 ERDS1TJ335 ERDS1TJ335
ERDS2FJ123 ERDS2FJ123 ERDS2FJ123
ERD25TJ221B ERD25TJ221B ERDS2FJ221
ERDS2FJ224 ERDS2FJ224 ERDS2FJ224
ERD25FJ330S ERD25FJ330S ERDS2FJ330
ERDS2FJ103 ERDS2FJ103 ERDS2TJ103T
ERDS2TJ104 ERDS2TJ104 ERDS2TJ104T
ERDS2FJ152 ERDS2FJ152 ERDS2TJ152
ERDS2TJ153TD ERDS2TJ153TD ERDS2TJ153T
ERDS2TJ222TD ERDS2TJ222TD ERDS2TJ222TD
ERD10TLJ332 ERD10TLJ332 ERDS2TJ332T
ERDS2TJ470 ERDS2TJ470 ERDS2TJ470
ERDS2FJ474 ERDS2FJ474 ERDS2TJ474T
ERDS2TJ682T ERDS2TJ682T ERDS2TJ682
SHS3276 SHS3276 FOOT
RFKGGHM22PQK RFKGGHM22PQK FRONT PANEL
SJYGD16-KM SJYGD16-KM GEAR
RDG0059 RDG0059 GEAR
RMR0159 RMR0159 GUIDE
RXQX0017 RXQX0017 HEAD
RBR4CM001-M RBR4CM001-M HEAD
SJT345 SJT345 HOLDER
RMR0404 RMR0404 HOLDER
RMR0368 RMR0368 HOLDER
RMR0247 RMR0247 HOLDER
RVIBA1332L RVIBA1332L IC
LM7001R LM7001R IC
SVIBA6218 SVIBA6218 IC
RVIBA3822LS RVIBA3822LS IC
BA3310N BA3310N IC
AN7273A AN7273A IC
AN6610 AN6610 IC
UPD75306G182 UPD75306G182 IC201
SJJ138 SJJ138 JACK
RJJ33TR01 RJJ33TR01 JACK
SHR9094 SHR9094 LATCH
RMQ0242 RMQ0242 LENS
SJY90455 SJY90455 LEVER
SJY5222 SJY5222 LEVER
RML0085 RML0085 LEVER
RML0082 RML0082 LEVER
RML0078 RML0078 LEVER
RML0076 RML0076 LEVER
RML0075 RML0075 LEVER
RML0073-1 RML0073-1 LEVER
SZZ0L23 SZZ0L23 LUBRICANT
RZZ0L05 RZZ0L05 LUBRICANT
1SS254 1SS254 MA165
XNS7B XNS7B NUT
SGL270-1 SGL270-1 ORNAMENT
RSXY4M19M03T RSXY4M19M03T OSCILLATOR
CS11_EX CS11_EX OTC AUDIO
SPB1061 SPB1061 PACKING
RPN0502 RPN0502 PACKING PART
RPN0460 RPN0460 PACKING PART
RPN0371 RPN0371 PACKING PART
RGR0120B-H RGR0120B-H PANEL
RFKRACH46GCK RFKRACH46GCK PANEL
RFKJCT090P-K RFKJCT090P-K PANEL
REP1034A REP1034A PC BOARD
REP1031B REP1031B PC BOARD
RXP0015 RXP0015 PINCH ROLLER DECK 1R
SNE1004-1 SNE1004-1 PLATE
SKM7860 SKM7860 PLATE
SJY5223 SJY5223 PLATE
SJYGH10-KP SJYGH10-KP PLATE
RJP6G17ZA RJP6G17ZA PLUG
RJP4G17ZA RJP4G17ZA PLUG
RJP3G9Y RJP3G9Y PLUG
RJP2G9YA RJP2G9YA PLUG
RJP2G4Y RJP2G4Y PLUG
RJP2G18ZA RJP2G18ZA PLUG
SJT3711 SJT3711 POST
LA4108R LA4108R POWER AMP IC
K2CB2CB00022 K2CB2CB00022 POWER CORD
RGU0536-K RGU0536-K POWER KNOB
RXP0014 RXP0014 PULLEY
RBR2CG002-S RBR2CG002-S RBR2CG002-S
RC20-22-5 RC20-22-5 RC20-22-5
ERD50TJ470 ERD50TJ470 RC20-47-5
RDG0057 RDG0057 RDG0057-1
RDG0129-1 RDG0129-1 RDG0129-1
RDK0005-1 RDK0005-1 RDK0005-1
RXR0005 RXR0005 REEL
RXR0004 RXR0004 REEL
SJYGW7CD-KN2 SJYGW7CD-KN2 REEL TABLE
RSY0005-1C RSY0005-1C RELAY/RLY801
ERDS2TJ561A ERDS2TJ561A RESISTOR
ERDS2FJ331 ERDS2FJ331 RESISTOR
ERJ8GCJ271 ERJ8GCJ271 RESISTOR
ERDS2TJ102 ERDS2TJ102 RESISTOR
ERD25FVJ1R0T ERD25FVJ1R0T RESISTOR
ERG1ANJ151 ERG1ANJ151 RESISTOR
ERDS2TJ824TR ERDS2TJ824TR RESISTOR
ERD25TJ683V ERD25TJ683V RESISTOR
ERDS2TJ562TD ERDS2TJ562TD RESISTOR
ERDS2TJ394 ERDS2TJ394 RESISTOR
ERD25FJ391 ERD25FJ391 RESISTOR
ERDS2TJ333T ERDS2TJ333T RESISTOR
ERDS2TJ303T ERDS2TJ303T RESISTOR
ERDS2TJ225T ERDS2TJ225T RESISTOR
ERDS2TJ223 ERDS2TJ223 RESISTOR
ERDS2TJ122T ERDS2TJ122T RESISTOR
ERDS2TJ100 ERDS2TJ100 RESISTOR
ERDS1FJ330 ERDS1FJ330 RESISTOR
ECEA1HSR47 ECEA1HSR47 RESISTOR
ERJ6GEJ472V ERJ6GEJ472V RESISTOR
ERD50TJ393S ERD50TJ393S RESISTOR
ECBT1H331KB5E ECBT1H331KB5E RESISTOR
ERD50TJ101 ERD50TJ101 RESISTOR
ERD50FJ512 ERD50FJ512 RESISTOR
ERD50FJ5R6P ERD50FJ5R6P RESISTOR
ERDS2TJ155 ERDS2TJ155 RESISTOR (Z)
SJY5218 SJY5218 REST
RDV0006-1 RDV0006-1 REWIND BELT DECK 1
RFKRCT090P-K RFKRCT090P-K RFU189ZA
SHR417 SHR417 RIVET
RLA4Y001-E RLA4Y001-E RLA4Y001-E
RLI4B153 RLI4B153 RLI4B153-T
RMB0045 RMB0045 RMB0045-1
RMB0048 RMB0048 RMB0048-1
RML0071 RML0071 RML0071-1
RML0072 RML0072 RML0072-1
RML0074-1 RML0074-1 RML0074-1
RML0077-1 RML0077-1 RML0077-1
RML0081-2 RML0081-2 RML0081-2
RMM0023-1 RMM0023-1 RMM0023-1
RMM0029-1 RMM0029-1 RMM0029-1
RMN0114 RMN0114 RMN0114-1
RMN0116 RMN0116 RMN0116-1
RMR0211 RMR0211 RMR0211-1
RMS0055-1 RMS0055-1 RMS0055-1
RMM0028 RMM0028 ROD
RMM0027 RMM0027 ROD
RMM0026 RMM0026 ROD
RMM0025 RMM0025 ROD
RMM0024 RMM0024 ROD
RXF0012-1 RXF0012-1 RXF0012-1
XTW3_12T XTW3_12T SCREW
XTW26_8L XTW26_8L SCREW
XTWS3_8T XTWS3_8T SCREW
XTWS3_10Q XTWS3_10Q SCREW
XTB2_8FFZ XTB2_8FFZ SCREW
XTN2_6J XTN2_6J SCREW
XTN2_45F XTN2_45F SCREW
XTN2_16GFZ XTN2_16GFZ SCREW
XTN2_12F XTN2_12F SCREW
XTB3_20J XTB3_20J SCREW
XTB3_12JFR XTB3_12JFR SCREW
XTB3_10GFJK XTB3_10GFJK SCREW
XTB2_7F XTB2_7F SCREW
RHD26046-J RHD26046-J SCREW
RHD26002 RHD26002 SCREW
RHD20003 RHD20003 SCREW
XTB3_10J XTB3_10J SCREW (1/10)
SUX102 SUX102 SHAFT
SJY5220 SJY5220 SJY5220-1
SJT30943-V SJT30943-V SOCKET
SJT30543-V SJT30543-V SOCKET
SJSD16-1 SJSD16-1 SOCKET
RJU003K008M1 RJU003K008M1 SOCKET
SHR9809 SHR9809 SPACER
SHE187-3 SHE187-3 SPACER
RMR0406 RMR0406 SPACER
RMG0131 RMG0131 SPACER
RMG0102 RMG0102 SPACER
SUS786 SUS786 SPRING
SJY90406 SJY90406 SPRING
RMK0048 RMK0048 SPRING
RMC0061 RMC0061 SPRING
RMB0125 RMB0125 SPRING
RMB0109-1 RMB0109-1 SPRING
RMB0059 RMB0059 SPRING
RMB0053 RMB0053 SPRING
RMB0049 RMB0049 SPRING
RMB0047 RMB0047 SPRING
RMB0046-1 RMB0046-1 SPRING
RMB0044 RMB0044 SPRING
RMB0043-1 RMB0043-1 SPRING
RMR0227 RMR0227 STOP
RMR0403 RMR0403 SUPPORT
RMR0231 RMR0231 SUPPORT
SVQ49U722-S SVQ49U722-S SVQ49U722-D
SSP66 SSP66 SWITCH
RSS2A67ZA-H RSS2A67ZA-H SWITCH
RSP2B012-J RSP2B012-J SWITCH
RSH1A013-2I RSH1A013-2I SWITCH
RSH1A004-1 RSH1A004-1 SWITCH
EVQ21409K EVQ21409K SWITCH
SJT31143-V SJT31143-V TERMINAL
SJT30740LX-V SJT30740LX-V TERMINAL
SJT30640LX-V SJT30640LX-V TERMINAL
SJF5406 SJF5406 TERMINAL
SJF3069N SJF3069N TERMINAL
RRT103-U RRT103-U TERMINAL
RJR0033 RJR0033 TERMINAL
RJH5202 RJH5202 TERMINAL
RAC0003 RAC0003 TONE ARM
2SK544F-AC 2SK544F-AC TRANSISTOR
2SC829D 2SC829D TRANSISTOR
2SC3311R-TA 2SC3311R-TA TRANSISTOR
2SC2786MTA 2SC2786MTA TRANSISTOR
2SC2785FTA 2SC2785FTA TRANSISTOR
2SC2784EFTA 2SC2784EFTA TRANSISTOR
2SA933SQR 2SA933SQR TRANSISTOR
BN1L3NTA BN1L3NTA TRANSISTOR
VCESA1HR33 VCESA1HR33 VCESA1HR33
VCYR1C104MX VCYR1C104MX VCYSDRC104MX
XWE8D14 XWE8D14 WASHER
RHW21008 RHW21008 WASHER
RHW16009 RHW16009 WASHER
SLI4B524-Z SLI4B524-Z XFMR
SLI2B101-M SLI2B101-M XFMR
XTB4_12JFZ XTB4_12JFZ XTB4+12AFN
Main Menu x
