Model Image
Manufacturer

Panasonic

Model Number

CSME5RKUA

Description

Air Conditioner

Interactive Exploded View

Parts List

Part Number Description
CWH82C2030 CWH82C2030 ADAPTER
CWE261251 CWE261251 BAR
CWA28C2357 CWA28C2357 BOARD
CWH64K1006 CWH64K1006 BUSHING
CWH521227 CWH521227 CAP
CWH521259 CWH521259 CAP
CWH102605A CWH102605A CASING
CWD933233B CWD933233B CHASSIS
CWD50C1633 CWD50C1633 CHASSIS
CWA746769 CWA746769 COMPARATOR
CWH13C1333 CWH13C1333 COVER
CWH131467 CWH131467 COVER
CWE14C1131 CWE14C1131 DOOR
CWA745791 CWA745791 ECO SENSOR
CWB30C3504 CWB30C3504 EVAPORATOR
ACXH02C00200 ACXH02C00200 FAN
ACXD00C00460 ACXD00C00460 FILTER
CWD001279 CWD001279 FILTER
CWH621131 CWH621131 FULCRUM

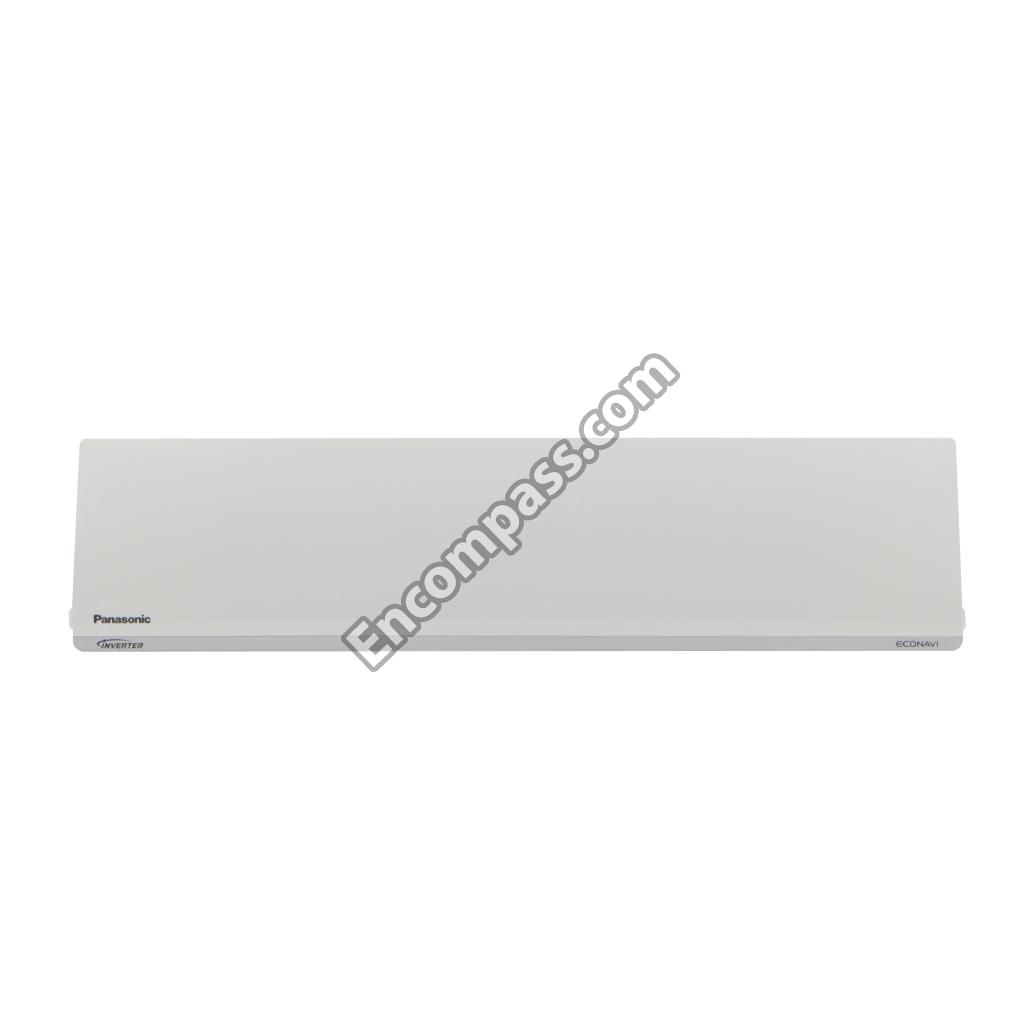

CWE22C1946 CWE22C1946 GRILLE
CWE20C3495 CWE20C3495 GRILLE

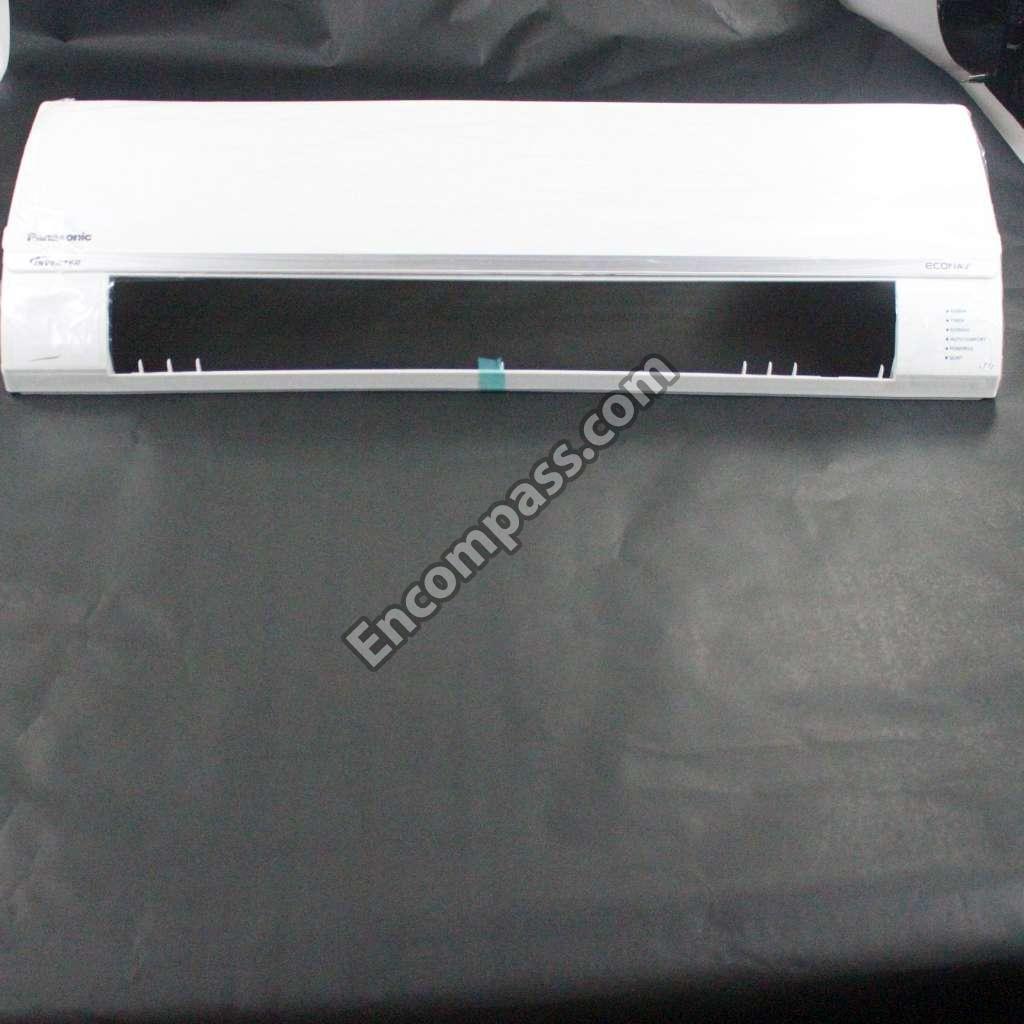

CWE11C5960 CWE11C5960 GRILLE
CWH361078 CWH361078 HOLDER
CWD933406 CWD933406 HOLDER
CWH851173 CWH851173 HOSE
CWA748158 CWA748158 INDICATOR
CWH82C1705 CWH82C1705 KIT
CWA67C9786 CWA67C9786 LEADWIRE

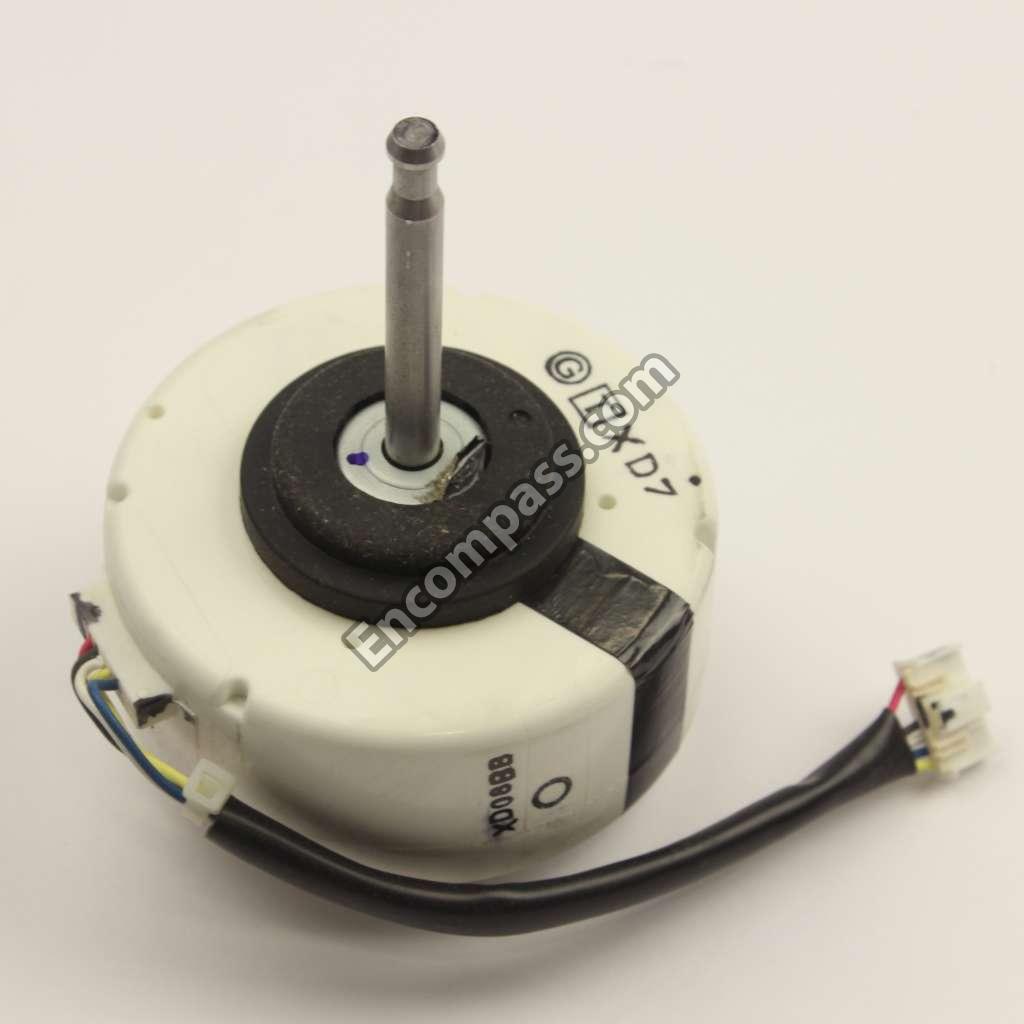

L6CBYYYL0055 L6CBYYYL0055 MOTOR
CWA981264 CWA981264 MOTOR
CWT251031 CWT251031 NUT
CWT251030 CWT251030 NUT
CWA73C9301 CWA73C9301 PC BOARD
CWH361134 CWH361134 PLATE
CWA75C4567 CWA75C4567 REMOTE CONTROL
XTT4_16CFJ XTT4_16CFJ SCREW
CWH551146 CWH551146 SCREW
CWA50C2820 CWA50C2820 SENSOR
CWA50C2800 CWA50C2800 SENSOR
CWE24C1385 CWE24C1385 VANE
CWE241374 CWE241374 VANE
