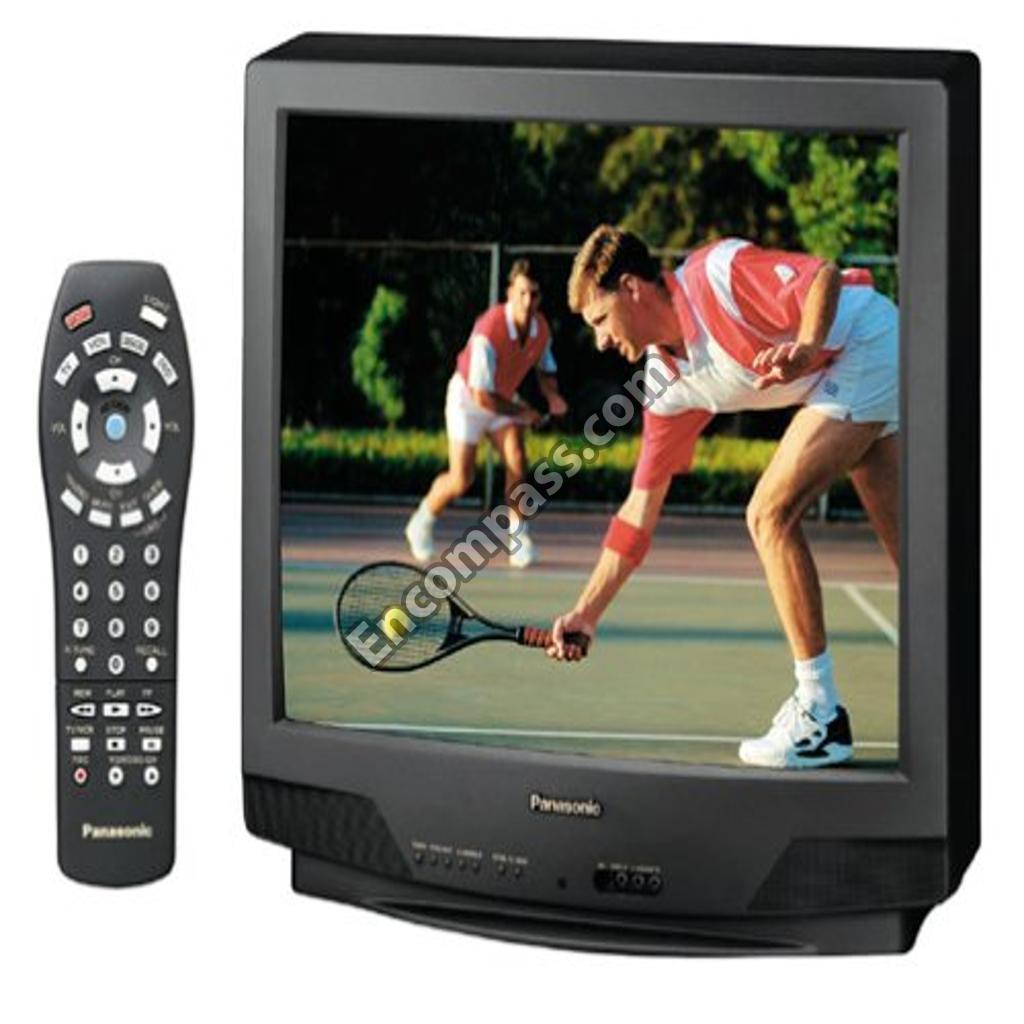

Model Image
Manufacturer

Panasonic

Model Number

CT27D10B

Description

27" Color Tv

Interactive Exploded View

Parts List

Part Number Description
MSB709RT1 MSB709RT1 2SB709A-RTX
TBM173029-1 TBM173029-1 BADGE
TSC925-4 TSC925-4 BEAD
TACFV2E474J TACFV2E474J CAPACITOR
TACCW331T50V TACCW331T50V CAPACITOR
EEANA1E100B EEANA1E100B CAPACITOR
EEANA1E1R0B EEANA1E1R0B CAPACITOR
EC0S2DG151D4 EC0S2DG151D4 CAPACITOR
EC0S2DA221BB EC0S2DA221BB CAPACITOR
ECWH12H822JR ECWH12H822JR CAPACITOR
ECWH12H272JS ECWH12H272JS CAPACITOR
ECQU2A224MVA ECQU2A224MVA CAPACITOR
ECQU2A153MVA ECQU2A153MVA CAPACITOR
ECQM2274JZW ECQM2274JZW CAPACITOR
ECQM1104JZW ECQM1104JZW CAPACITOR
ECQB1H473JM3 ECQB1H473JM3 CAPACITOR
ECQB1H223JM ECQB1H223JM CAPACITOR
ECQB1H222JF3 ECQB1H222JF3 CAPACITOR
ECQV1H104JZ3M ECQV1H104JZ3M CAPACITOR
ECKW3D122JBP ECKW3D122JBP CAPACITOR
ECKD3D102KB4 ECKD3D102KB4 CAPACITOR
ECKW3A821KBP ECKW3A821KBP CAPACITOR
ECKW3A471KBP ECKW3A471KBP CAPACITOR
ECKW3A331KBP ECKW3A331KBP CAPACITOR
ECKWAE472ZED ECKWAE472ZED CAPACITOR
ECKR2H821KB2 ECKR2H821KB2 CAPACITOR
ECKR2H561KB5 ECKR2H561KB5 CAPACITOR
F1B2H102A034 F1B2H102A034 CAPACITOR
ECKR2H101KB5 ECKR2H101KB5 CAPACITOR
ECJ2XF1H104Z ECJ2XF1H104Z CAPACITOR
ECJ2VC1H680J ECJ2VC1H680J CAPACITOR
ECJ2VC1H391J ECJ2VC1H391J CAPACITOR
ECJ2VC1H390J ECJ2VC1H390J CAPACITOR
ECJ2VC1H270J ECJ2VC1H270J CAPACITOR
ECJ2VC1H222J ECJ2VC1H222J CAPACITOR
ECJ2VC1H221J ECJ2VC1H221J CAPACITOR
ECJ2VC1H180J ECJ2VC1H180J CAPACITOR
ECJ2VC1H151J ECJ2VC1H151J CAPACITOR
ECJ2VC1H120J ECJ2VC1H120J CAPACITOR
TCJ2VC1H102J TCJ2VC1H102J CAPACITOR
ECJ2VC1H101J ECJ2VC1H101J CAPACITOR
ECJ2XB1H472K ECJ2XB1H472K CAPACITOR
ECJ2XB1H223K ECJ2XB1H223K CAPACITOR
ECUX1H103KBV ECUX1H103KBV CAPACITOR
ECJ2VB1C104K ECJ2VB1C104K CAPACITOR
ECEA1HN2R2UB ECEA1HN2R2UB CAPACITOR
ECEA1HN010U ECEA1HN010U CAPACITOR
ECCR2H100D5 ECCR2H100D5 CAPACITOR
ECCR1H020CC5 ECCR1H020CC5 CAPACITOR
ECA2EM220E ECA2EM220E CAPACITOR
ECA160V33UE ECA160V33UE CAPACITOR
ECA1VM471B ECA1VM471B CAPACITOR
ERJ6GEYJ5R1V ERJ6GEYJ5R1V CAPACITOR
ECA1VM222E ECA1VM222E CAPACITOR
ECA1VM102E ECA1VM102E CAPACITOR
ECA1JHG100B ECA1JHG100B CAPACITOR
ECA1HM3R3 ECA1HM3R3 CAPACITOR
ECA1HM2R2 ECA1HM2R2 CAPACITOR
ECA1HM100 ECA1HM100 CAPACITOR
ECA1HM010B ECA1HM010B CAPACITOR
ECA1HM0R1B ECA1HM0R1B CAPACITOR
ECA1HMR47 ECA1HMR47 CAPACITOR
ECA1HMR22B ECA1HMR22B CAPACITOR
ECA1EM221B ECA1EM221B CAPACITOR
ECA1EM220 ECA1EM220 CAPACITOR
ECA1EM101B ECA1EM101B CAPACITOR
ECA1EM100B ECA1EM100B CAPACITOR
ECA1EHG101B ECA1EHG101B CAPACITOR
ECA1CM470B ECA1CM470B CAPACITOR
ECA1CM331 ECA1CM331 CAPACITOR
F2A1E101A599 F2A1E101A599 CAPACITOR
ECA1CM100B ECA1CM100B CAPACITOR
ECA1AM470B ECA1AM470B CAPACITOR
ECA1AM101B ECA1AM101B CAPACITOR
ECA0JM331B ECA0JM331B CAPACITOR
ECSF16E3R3 ECSF16E3R3 CAPACITOR
ECSZ16EF10M ECSZ16EF10M CAPACITOR
ECQB1H222JM3 ECQB1H222JM3 CAPACITOR
ECSF16E10VB ECSF16E10VB CAPACITOR
ECEA1CU102E ECEA1CU102E CAPACITOR
YFUGAC221BJ YFUGAC221BJ CAPACITOR
ECEA1CU471B ECEA1CU471B CAPACITOR
ECEA1EU471E ECEA1EU471E CAPACITOR
NCEA1HGE4R7B NCEA1HGE4R7B CAPACITOR
ECEA1VU331 ECEA1VU331 CAPACITOR
F2A1V2210038 F2A1V2210038 CAPACITOR
ECUX1H103ZFN ECUX1H103ZFN CAPACITOR
ECKD3D181JBN ECKD3D181JBN CAPACITOR
ECSF25E1VB ECSF25E1VB CAPACITOR
A338MS A338MS CHASSIS
0LK19045A 0LK19045A COIL
TLTABTA470K TLTABTA470K COIL
TLTABT2R2K TLTABT2R2K COIL
TLTABTA120K TLTABTA120K COIL
G0C101KA0021 G0C101KA0021 COIL
ELH5L7103 ELH5L7103 COIL
ELF20N020A ELF20N020A COIL
ELESN330KA ELESN330KA COIL
ELESN330JA ELESN330JA COIL
ELESN3R3KA ELESN3R3KA COIL
ELESN150KA ELESN150KA COIL
EXCELDR35V EXCELDR35V COMBINATION
EXCELSA39E EXCELSA39E CORE
M68LGL061XA M68LGL061XA CRT
TVSSR2KLV TVSSR2KLV D825
B0HAMP000039 B0HAMP000039 DIODE
B0HANV000008 B0HANV000008 DIODE
RL30A RL30A DIODE
MA4110M MA4110M DIODE
MA4062LTVTA MA4062LTVTA DIODE
MA4047MTA MA4047MTA DIODE
TVS1N4148V TVS1N4148V DIODE
MAZ43600HF MAZ43600HF DIODE
MA4330HTA MA4330HTA DIODE
MAZ40560MF MAZ40560MF DIODE
GP15KL-042 GP15KL-042 DIODE
ERA15-01V3 ERA15-01V3 DIODE
EU2V1 EU2V1 DIODE
ERA22-04 ERA22-04 DIODE
EU02V1 EU02V1 DIODE
MA4270M MA4270M DIODE
ECA0JM101GB ECA0JM101GB ECA0JM101GB
ECEA0JU102 ECEA0JU102 ECEA0JU102
ECQB1H823JZ ECQB1H823JZ ECQB1H823JZ
M24C08-WBN6 M24C08-WBN6 EEPROM
ERDS2EJ121 ERDS2EJ121 ERD25FJ121K
ERDS2FJ123 ERDS2FJ123 ERD25FJ123
ERDS2FJ331 ERDS2FJ331 ERD25FJ331
ERDS2TJ470 ERDS2TJ470 ERD25FJ470T
ERDS2FJ821 ERDS2FJ821 ERD25TJ821
ERDS2FJ823 ERDS2FJ823 ERD25TJ823V
ERDS1FJ1R8 ERDS1FJ1R8 ERD50FJ1R8V
ERDS1TJ181T ERDS1TJ181T ERD50TJ181
ERDS1FVJ1R0P ERDS1FVJ1R0P ERDS1FJ1R0
ERDS2TJ102 ERDS2TJ102 ERDS2FJ102
ERD25FJ181K ERD25FJ181K ERDS2FJ181
ERDS2TJ101 ERDS2TJ101 ERDS2TJ101
ERDS2TJ222TD ERDS2TJ222TD ERDS2TJ222TD
ERDS2TJ274T ERDS2TJ274T ERDS2TJ274
ERD25TJ683V ERD25TJ683V ERDS2TJ683
ERJ6GEYJ102Z ERJ6GEYJ102Z ERJ6GEYF102
ERJ6GEYK4R7V ERJ6GEYK4R7V ERJ6GEYF393
ECEA1VU102 ECEA1VU102 ERJ6GEYF472
ERJ6GEYG222 ERJ6GEYG222 ERJ6GEYG103
ERJ6GEYG151 ERJ6GEYG151 ERJ6GEYG151
ERJ6GEYJ330 ERJ6GEYJ330 ERJ6GEYG330
ERJ6GEYJ332 ERJ6GEYJ332 ERJ6GEYG332
ERJ6GEYG391 ERJ6GEYG391 ERJ6GEYG391
ERJ6GEYG750 ERJ6GEYG750 ERJ6GEYG750
ERJ6GEYJ223 ERJ6GEYJ223 ERJ6GEYJ223
ERJ6GEYJ271 ERJ6GEYJ271 ERJ6GEYJ271
ERJ6GEYJ392V ERJ6GEYJ392V ERJ6GEYJ392
ERJ6GEYF473 ERJ6GEYF473 ERJ6GEYJ473
ERJ6GEYJ561V ERJ6GEYJ561V ERJ6GEYJ561
ERJ6GEYG681 ERJ6GEYG681 ERJ6GEYJ681
ERJ6GEYJ682V ERJ6GEYJ682V ERJ6GEYJ682
ERJ6GEYJ822V ERJ6GEYJ822V ERJ6GEYJ822
ERJ6GEYJ563V ERJ6GEYJ563V ERJ6RBD563
ERQ14AJ6R8P ERQ14AJ6R8P ERQ14AJ6R8
ETS29AK3L5NC ETS29AK3L5NC ETS29AK3L5NC
EU02V0 EU02V0 EU02A
EXCELSA24B EXCELSA24B EXCELSA24B
ELF17N007A ELF17N007A FILTER
TLF2AA002 TLF2AA002 FLYBACK TRANSFORMER
TXFKY15BSER TXFKY15BSER FRONT CABINET
XBA2A00101 XBA2A00101 FUSE
ERQ12HJR56 ERQ12HJR56 FUSE RESISTOR
ERQ1CKPR22S ERQ1CKPR22S FUSE RESISTOR
TXF3A01ZER TXF3A01ZER GROUND
TKX2AA00401 TKX2AA00401 GUIDE
TP00351-51 TP00351-51 HOLDER
PC817X2 PC817X2 IC
TA1310BM TA1310BM IC
STR58041A STR58041A IC
0N3111 0N3111 IC
M52790SP M52790SP IC
MN82840 MN82840 IC
C1AA00000688 C1AA00000688 IC
CXA2021S CXA2021S IC
AN7805LB AN7805LB IC
AN78M09 AN78M09 IC
AN5849S-E1V AN5849S-E1V IC
PQ1R33 PQ1R33 IC
B3RAB0000009 B3RAB0000009 IC
MN101C46FTA3 MN101C46FTA3 IC001
EXCELSA35T EXCELSA35T INDUCTOR
TQB2AA7078 TQB2AA7078 INSTRUCT BOOK
TQB2AA7058 TQB2AA7058 INSTRUCT BOOK
TXFBX05BSER TXFBX05BSER KNOB (S) POWER
MA4091MTA MA4091MTA MA4091-M
MA4270MTA MA4270MTA MA4270M
TSM2AA001 TSM2AA001 MAGNET
MN1280R MN1280R MN1280R
TSS2AA001 TSS2AA001 OSCILLATOR
TSSA092 TSSA092 OSCILLATOR
CT27D10B_1ST CT27D10B_1ST OTC TELEVISION
CT27D10B_EX CT27D10B_EX OTC TELEVISION
IB-CT32D10B IB-CT32D10B OWNERS MANUAL (CT27/32D10)
TNP2AA047APS TNP2AA047APS PC BOARD
TSX2AA0411-1 TSX2AA0411-1 POWER CORD
TSE2AD001 TSE2AD001 POWER SWITCH
TXFKU36BSER TXFKU36BSER REAR CABINET
UR51EC975 UR51EC975 REMOTE BATTERY COVER
ER0S2TKF4321 ER0S2TKF4321 RESISTOR
ER0S2TKF1471 ER0S2TKF1471 RESISTOR
ERW12PK1R8C ERW12PK1R8C RESISTOR
ERQ2CJP1R0S ERQ2CJP1R0S RESISTOR
ERJ6GEYJ752V ERJ6GEYJ752V RESISTOR
ERJ6GEYJ751 ERJ6GEYJ751 RESISTOR
ERJ6GEYJ680V ERJ6GEYJ680V RESISTOR
ERJ6GEYJ622V ERJ6GEYJ622V RESISTOR
ERJ6GEYJ562V ERJ6GEYJ562V RESISTOR
ERJ6GEYJ474V ERJ6GEYJ474V RESISTOR
ERJ6GEYJ471V ERJ6GEYJ471V RESISTOR
ERJ6GEYJ362V ERJ6GEYJ362V RESISTOR
ERJ6GEYF333 ERJ6GEYF333 RESISTOR
ERJ6GEYJ331V ERJ6GEYJ331V RESISTOR
ERJ6GEYJ301V ERJ6GEYJ301V RESISTOR
ERJ6GEYG273 ERJ6GEYG273 RESISTOR
ERJ6GEYG272 ERJ6GEYG272 RESISTOR
ERJ6GEYJ224Z ERJ6GEYJ224Z RESISTOR
ERJ6GMYG221 ERJ6GMYG221 RESISTOR
ERJ6GEYJ182V ERJ6GEYJ182V RESISTOR
ERJ6GEYJ181V ERJ6GEYJ181V RESISTOR
ERJ6GEYJ153V ERJ6GEYJ153V RESISTOR
ERJ6GEYJ152V ERJ6GEYJ152V RESISTOR
ERJ6GEYF124 ERJ6GEYF124 RESISTOR
ERJ6GEYJ123V ERJ6GEYJ123V RESISTOR
ERJ6GEYJ122V ERJ6GEYJ122V RESISTOR
ERJ6GEYJ105V ERJ6GEYJ105V RESISTOR
ERJ6GEYG104 ERJ6GEYG104 RESISTOR
ERJ6ENF6801V ERJ6ENF6801V RESISTOR
ERJ6ENF5602 ERJ6ENF5602 RESISTOR
ERJ6ENF2102V ERJ6ENF2102V RESISTOR
ERJ6ENF1271V ERJ6ENF1271V RESISTOR
ERJ6ENF1002 ERJ6ENF1002 RESISTOR
ERG3FJ470H ERG3FJ470H RESISTOR
ERG3FJ390H ERG3FJ390H RESISTOR
ERG3FJ362H ERG3FJ362H RESISTOR
ERG3FJ270H ERG3FJ270H RESISTOR
ERG3FJ151H ERG3FJ151H RESISTOR
ERG2FJ683H ERG2FJ683H RESISTOR
ERG2FJ392H ERG2FJ392H RESISTOR
ERG2FJ270H ERG2FJ270H RESISTOR
ERG2FJ123H ERG2FJ123H RESISTOR
ERG2FJ102H ERG2FJ102H RESISTOR
ERF7ZK1R5 ERF7ZK1R5 RESISTOR
ERF2AKR22P ERF2AKR22P RESISTOR
ERD25FJ180T ERD25FJ180T RESISTOR
ERD10TLJ332 ERD10TLJ332 RESISTOR
ERDS1TJ272T ERDS1TJ272T RESISTOR
ERDS1TJ183T ERDS1TJ183T RESISTOR
ERDS1TJ122T ERDS1TJ122T RESISTOR
ERDS1FJ561P ERDS1FJ561P RESISTOR
ERDS1FJ272 ERDS1FJ272 RESISTOR
ERDS1FVJ2R7T ERDS1FVJ2R7T RESISTOR
ERDS1FJ1R5P ERDS1FJ1R5P RESISTOR
ERDS2TJ122T ERDS2TJ122T RESISTOR
ERC12ZGM825D ERC12ZGM825D RESISTOR
ERD50FJ474 ERD50FJ474 RESISTOR
ERJ6GEYJ101V ERJ6GEYJ101V RESISTOR
ERJ6GEYJ181 ERJ6GEYJ181 RESISTOR
ERJ6GMYJ183 ERJ6GMYJ183 RESISTOR
TAFCSB503F30 TAFCSB503F30 RESONATOR
B0HANL000004 B0HANL000004 RU3YX-M
TJSC00300 TJSC00300 SOCKET
EAS12D123JE3 EAS12D123JE3 SPEAKER
TAS2AA0015 TAS2AA0015 SPEAKER
TP00842-51 TP00842-51 TERMINAL
TJB2AA0211 TJB2AA0211 TERMINAL BOARD
TJB2AA0171 TJB2AA0171 TERMINAL BOARD
TJB2AA0046 TJB2AA0046 TERMINAL BOARD
TRPW5B0M050D TRPW5B0M050D THERMISTER
TLH15452 TLH15452 TRANSFORMER
ETS29AK3L5N ETS29AK3L5N TRANSFORMER
ETE19Z30AY ETE19Z30AY TRANSFORMER
2SD601-RS 2SD601-RS TRANSISTOR
2SC4212HLB 2SC4212HLB TRANSISTOR
2SC3063 2SC3063 TRANSISTOR
2SC3311A 2SC3311A TRANSISTOR
2SC4212H 2SC4212H TRANSISTOR
2SD2539LBMA 2SD2539LBMA TRANSISTOR
2SD601ARTX 2SD601ARTX TRANSISTOR
ENG36604GS ENG36604GS TUNER
TMM2A30702 TMM2A30702 WEDGE
TLY2AA006 TLY2AA006 YOKE
ETC33X82NA ETC33X82NA YOKE
