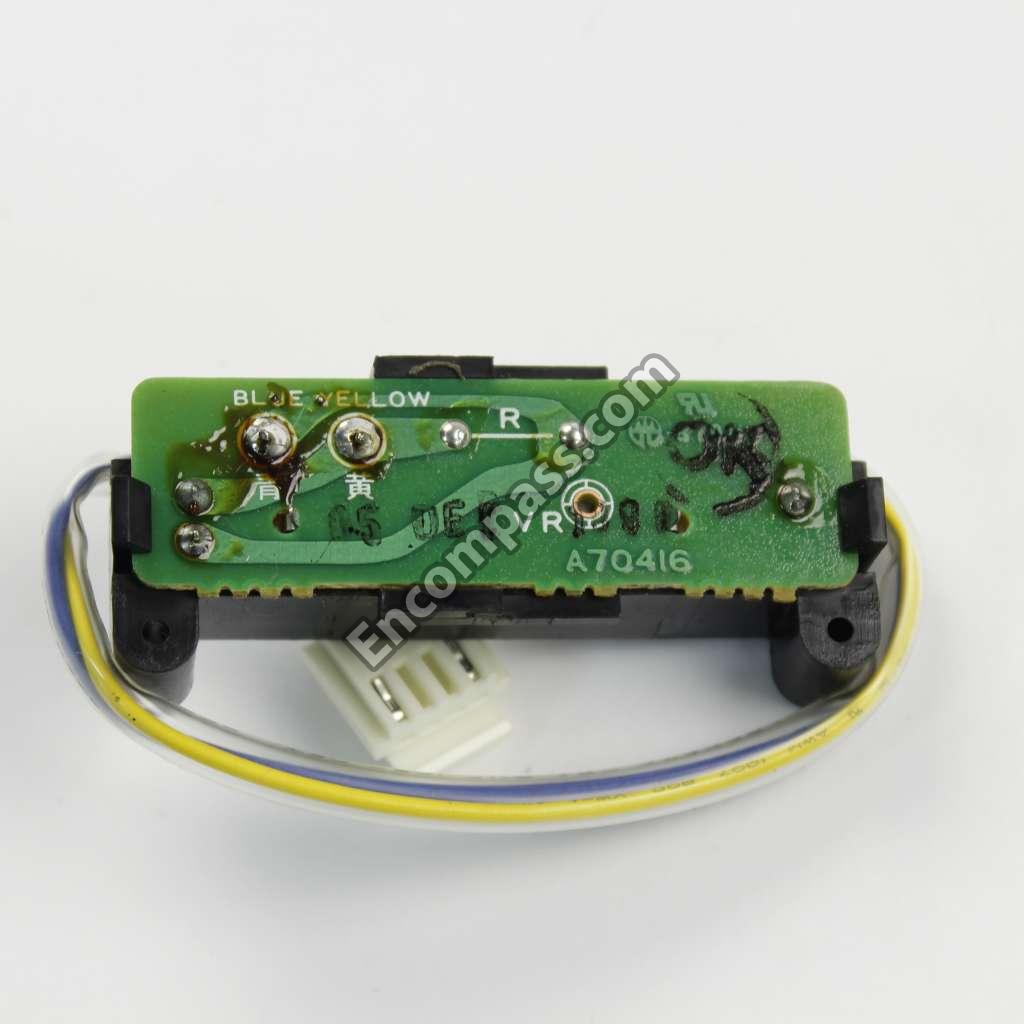

Model Image
Manufacturer

Panasonic

Model Number

CW1001FU

Description

Air Conditioner

Interactive Exploded View

Parts List

Part Number Description
CWH36C024 CWH36C024 AUX MATERIAL INSTALLATION
CWE26091 CWE26091 BAR
CWE26092 CWE26092 BAR
CWH01K052 CWH01K052 BLOWER WHEEL
CWD90593A CWD90593A BOTTOM ANGLE
CWD54121 CWD54121 BRACKET
CWH50055 CWH50055 BUSHING
CWA31270 CWA31270 CAPACITOR
CWA31410 CWA31410 CAPACITOR
ECUV1H180KC9 ECUV1H180KC9 CAPACITOR
ECUV1H182KCM ECUV1H182KCM CAPACITOR
ECUV1H681JCN ECUV1H681JCN CAPACITOR
ECUV1H821JCN ECUV1H821JCN CAPACITOR
ECUX1E820JRN ECUX1E820JRN CAPACITOR
ECUX1H153ZF ECUX1H153ZF CAPACITOR
CWG53088 CWG53088 CARTON
CWB30C006 CWB30C006 COIL
2P15S3R126B1C 2P15S3R126B1C COMPRESSOR
CWB09354 CWB09354 COMPRESSOR
CWD93362 CWD93362 CONTROL
ECUX1H391JN ECUX1H391JN COVER
CWA05013 CWA05013 CWA05013
CWA05024 CWA05024 CWA05024
CWA4711013L CWA4711013L CWA4711013
CWA4711023 CWA4711023 CWA4711022
CWA98K052 CWA98K052 CWA98K052
CWD90600 CWD90600 DOOR
CWE14064 CWE14064 DOOR
CWH21010 CWH21010 DOOR
CWH40077L-1 CWH40077L-1 DRAIN PAN
CWG86C733 CWG86C733 DRAIN PAN SCREW
ECKF1H391KB ECKF1H391KB ECKF1H391KB
CWH36C031 CWH36C031 EXPANDABLE PANEL LEFT
CWH36C032 CWH36C032 EXPANDABLE PANEL RIGHT
CWA95186 CWA95186 FAN MOTOR
CWH10585 CWH10585 FRAME
CWG50C249 CWG50C249 FRONT GRILL
CWB811008 CWB811008 GASKET
CWD31064 CWD31064 GUIDE
CWD32085 CWD32085 GUIDE
CWD32086 CWD32086 GUIDE
CWH30081 CWH30081 HOLDER
CWH32065 CWH32065 HOLDER
CW7041200L CW7041200L HOLDER
RAC89010001C1IB RAC89010001C1IB INSTRUCT BOOK
CWE17162 CWE17162 KNOB
CW4582065L CW4582065L NUT
CW4582065JL CW4582065JL NUT
CWH56033 CWH56033 NUT
CWH7080300 CWH7080300 NUT
CWA121126J CWA121126J OVERLOAD PROTECTOR
CWD52K172A CWD52K172A PAN
CWD53K076 CWD53K076 PANEL
CWE26093 CWE26093 PANEL
CWD90595 CWD90595 PLATE
CWD93412 CWD93412 PLATE
CWH4611062L CWH4611062L PLUG
CWA20C239 CWA20C239 POWER CORD
CWG86C718 CWG86C718 SCREW
CWH4580326 CWH4580326 SCREW
CWH4580345 CWH4580345 SCREW
CWH55139 CWH55139 SCREW
CWG86C732 CWG86C732 SCREW TYPE A
CWG86C853 CWG86C853 SCREW TYPE B
CWH4580211 CWH4580211 SCREW TYPE C
CWD60220A CWD60220A SIDE ANGLE
CWB4056403 CWB4056403 STRAINER
CWA44C042 CWA44C042 SWITCH
CWA09033 CWA09033 TIMER
CWD62131A CWD62131A TOP ANGLE
CWG15302 CWG15302 TUBE
CWE24151 CWE24151 VANE
CWE24152 CWE24152 VANE
CWE24153 CWE24153 VANE
CWD90K075 CWD90K075 VENTILATION
