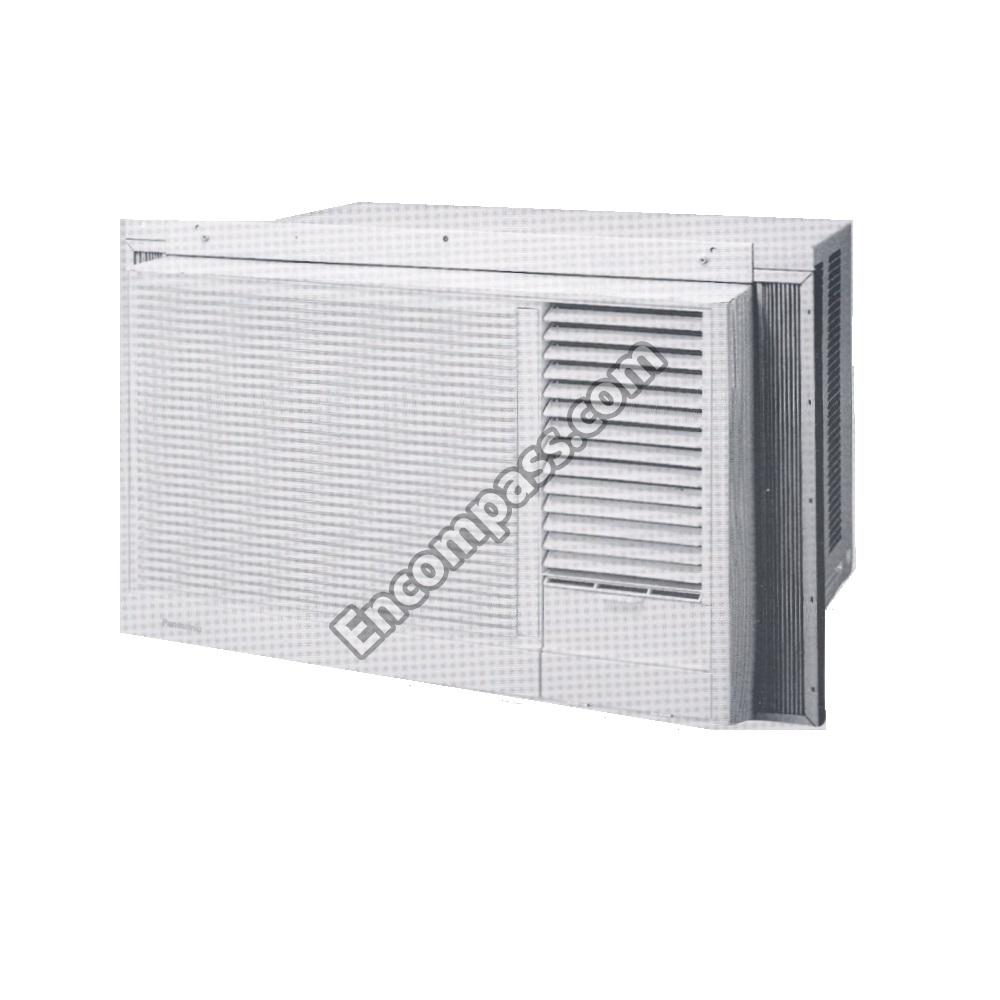

Model Image
Manufacturer

Panasonic

Model Number

CW1406BU

Description

Air Conditioner

Interactive Exploded View

Parts List

Part Number Description
CWA05024 CWA05024 AIR SWING SWITCH
CWH36C024 CWH36C024 AUX MATERIAL INSTALLATION
CWH01K052 CWH01K052 BLOWER WHEEL
CWD90403AD CWD90403AD BOTTOM ANGLE
CWD54091 CWD54091 BRACKET
CWD53K094 CWD53K094 BULKHEAD
CWH50055 CWH50055 BUSHING
CWE00C125 CWE00C125 CABINET
CWA31306 CWA31306 CAPACITOR
CWA31414 CWA31414 CAPACITOR
ECUV1H220JC9 ECUV1H220JC9 CAPACITOR
ECUV1H391KN ECUV1H391KN CAPACITOR
ECUV1H470KCM ECUV1H470KCM CAPACITOR
ECUV1H681JCX ECUV1H681JCX CAPACITOR
ECUV1H682MBN ECUV1H682MBN CAPACITOR
ECUV1H683KBH ECUV1H683KBH CAPACITOR
ECUV1H820KCV ECUV1H820KCV CAPACITOR
ECUX1H181JCN ECUX1H181JCN CAPACITOR
CWG551891 CWG551891 CARTON
CWB09359 CWB09359 COMPRESSOR
CWB32C296 CWB32C296 CONDENSER
CWD93362 CWD93362 CONTROL
ECUX1H181JCV ECUX1H181JCV CONTROL BOARD AUX 2
CWH7070206 CWH7070206 COVER
CWE14K046 CWE14K046 DOOR
CWH40077L-1 CWH40077L-1 DRAIN PAN
CWG86C733 CWG86C733 DRAIN PAN SCREW
ECKF1H391KB ECKF1H391KB ECKF1H391KB
CWE311088 CWE311088 ESCUTCHEON
CWB30C049 CWB30C049 EVAPORATOR
CWH40167 CWH40167 EVAPORATOR
CWH36C023 CWH36C023 EXPANDABLE PANEL RIGHT
F561157 F561157 F561157
CWA95265 CWA95265 FAN MOTOR
CWE11C649 CWE11C649 FRONT GRILL
XBA2C50NU1 XBA2C50NU1 FUSE
CWB811008 CWB811008 GASKET
CWH30102 CWH30102 HOLDER
CWH32085 CWH32085 HOLDER
XCSCW011 XCSCW011 HOLDER
CWG87C969 CWG87C969 INSTALLATION SCREW KIT
CWF561157 CWF561157 INSTRUCTION
CWF61407 CWF61407 INSTRUCTION
CWD91021 CWD91021 LEVER
CWE26136 CWE26136 LINK
CWD91029A CWD91029A LOUVER
CWA07042 CWA07042 MAIN SWITCH
CWA98K068 CWA98K068 MOTOR
CW4582065L CW4582065L NUT
CW4582065JL CW4582065JL NUT
CWH56033 CWH56033 NUT
CWH7080300 CWH7080300 NUT
CW1406BU_EX CW1406BU_EX OTC APPLIANCE
CWD52K231A CWD52K231A PAN
CWD21009 CWD21009 PLATE
CWH4611062L CWH4611062L PLUG
CWA20C322 CWA20C322 POWER CORD
XTT4D10ES XTT4D10ES SCREW
CWH4580326 CWH4580326 SCREW
CWH4580345 CWH4580345 SCREW
CWH55039 CWH55039 SCREW
CWH82C107 CWH82C107 SCREW
XTWFA4_12T XTWFA4_12T SCREW
XTT4D10CS XTT4D10CS SCREW
XTN5D25A XTN5D25A SCREW
CWG86C732 CWG86C732 SCREW TYPE A
CWG86C734 CWG86C734 SCREW TYPE B
CWH4580211 CWH4580211 SCREW TYPE C
CWD60229A CWD60229A SIDE ANGLE
CWB11025 CWB11025 STRAINER
CWA05013 CWA05013 SWITCH
CWA44C042 CWA44C042 SWITCH
CWE17090E CWE17090E TEMP KNOB
CWA4711060 CWA4711060 TERMINAL
CWA09033 CWA09033 TIMER
CWD4925135B CWD4925135B TOP ANGLE
CWE24301D CWE24301D VANE
CWE24314 CWE24314 VANE
CWE26139 CWE26139 VANE
CWH22007 CWH22007 VENT
CWD32126A CWD32126A WHEEL
XTT4X10E XTT4X10E XTT4D10CS
CWXYE6_F10 CWXYE6_F10 XYE6+F10
