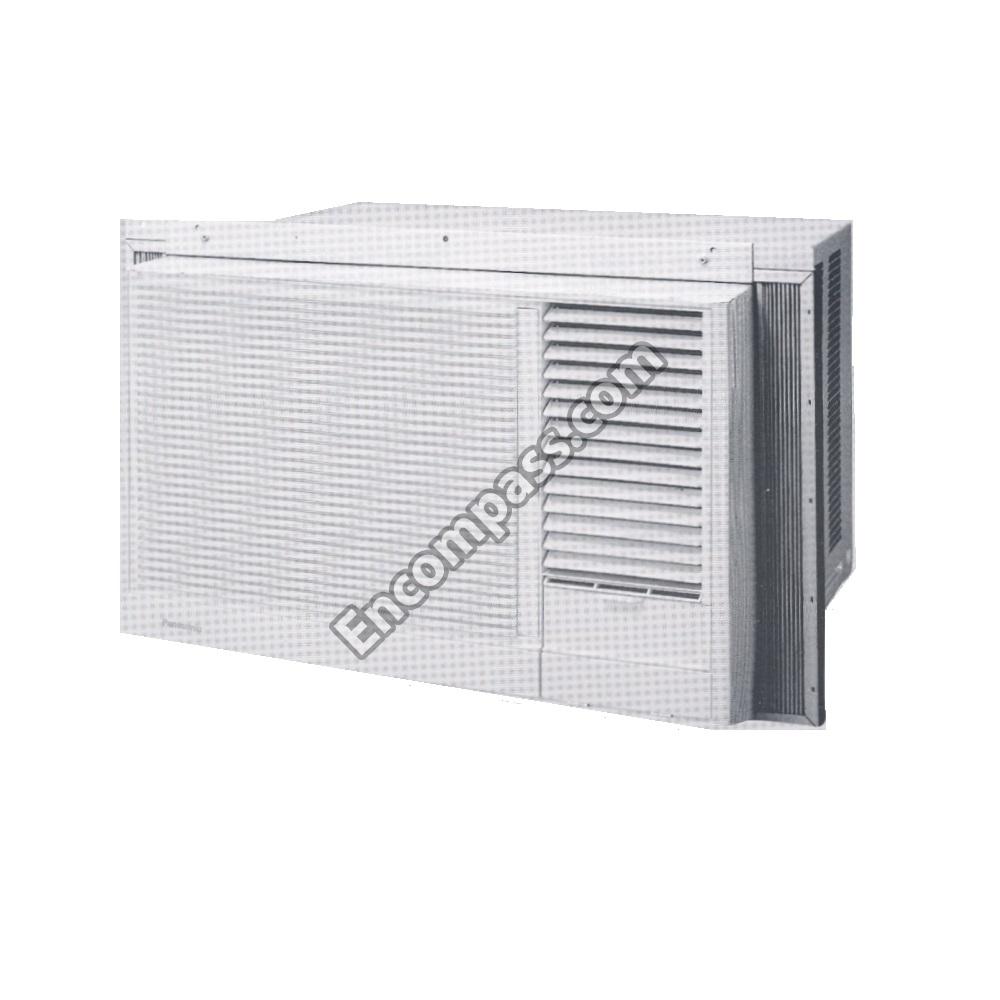

Model Image
Manufacturer

Panasonic

Model Number

CW2000QU

Description

Air Conditioner

Interactive Exploded View

Parts List

Part Number Description
CWH36C024 CWH36C024 AUX MATERIAL INSTALLATION
CWE26106 CWE26106 BAR
CWH01K1006L CWH01K1006L BLOWER WHEEL
CWH10603 CWH10603 BOARD
CWH4660137 CWH4660137 BOLT
CWD90403AD CWD90403AD BOTTOM ANGLE
CWD54142 CWD54142 BRACKET
CWD53K082 CWD53K082 BULKHEAD
CWB15562 CWB15562 CAPACITOR
ECUV1H470JG ECUV1H470JG CAPACITOR
ECUV1H470JM ECUV1H470JM CAPACITOR
ECUV1H820KCV ECUV1H820KCV CAPACITOR
CWG53134 CWG53134 CARTON
2K30S3R236A6A 2K30S3R236A6A COMPRESSOR
CWB09363 CWB09363 COMPRESSOR
CWD11029 CWD11029 COVER
CW1400QUIB CW1400QUIB CW1400QUIB
CWA4711023 CWA4711023 CWA4711022
CWB30C004 CWB30C004 CWB30C004
CWH21012 CWH21012 DOOR
CWH40077L-1 CWH40077L-1 DRAIN PAN
CWG86C733 CWG86C733 DRAIN PAN SCREW
CWH36C023 CWH36C023 EXPANDABLE PANEL RIGHT
CWA92120 CWA92120 FAN MOTOR
CWE10C686 CWE10C686 FRONT GRILL
CWD31K037 CWD31K037 GUIDE
CWH30101 CWH30101 HOLDER
CWH30102 CWH30102 HOLDER
CWG87C969 CWG87C969 INSTALLATION SCREW KIT
CWH22004 CWH22004 LEVER
CWD52K177A CWD52K177A PAN
CWH10602 CWH10602 PC BOARD
CWD64157 CWD64157 PLATE
CWD66156 CWD66156 PLATE
CWA20C273 CWA20C273 POWER CORD
CWG86C732 CWG86C732 SCREW TYPE A
CWG86C734 CWG86C734 SCREW TYPE B
CWH4580211 CWH4580211 SCREW TYPE C
CWD60229A CWD60229A SIDE ANGLE
CWD4925135B CWD4925135B TOP ANGLE
CWE24210 CWE24210 VANE
