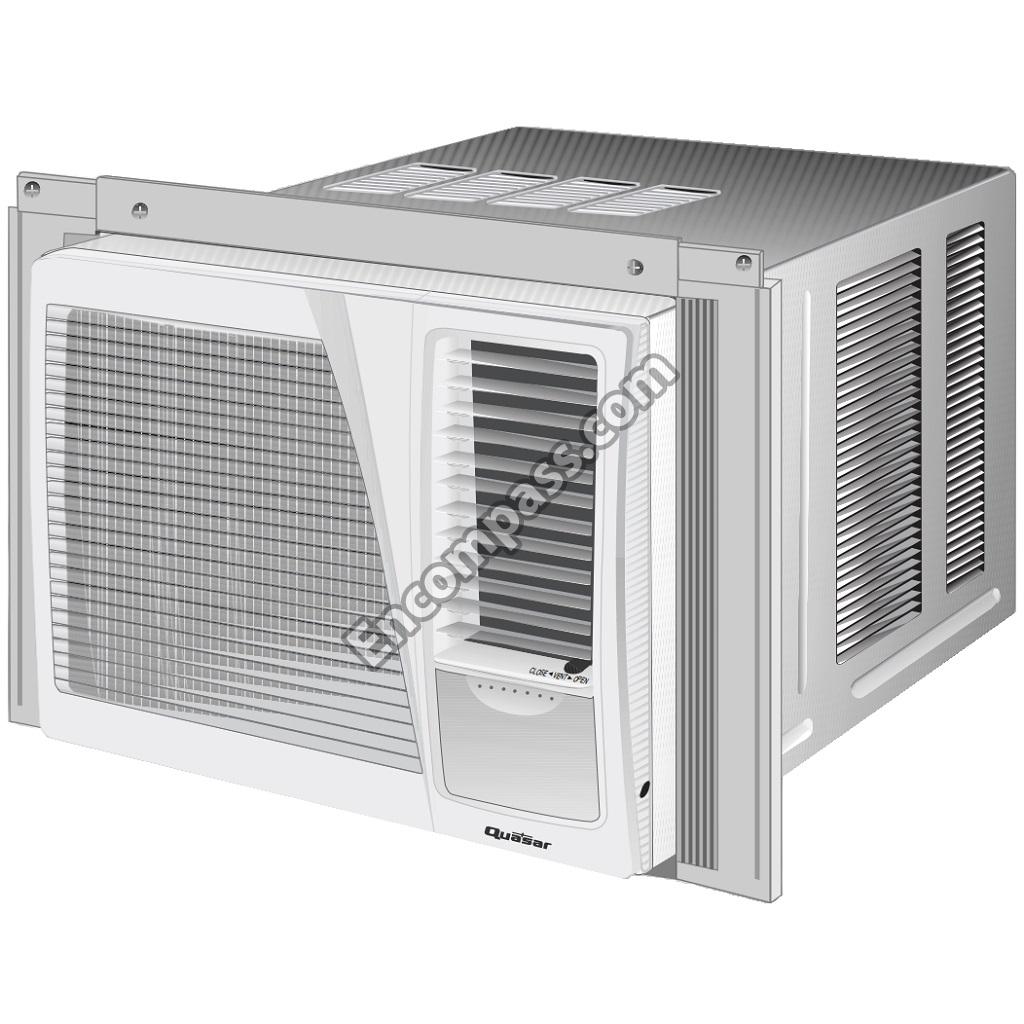

Model Image
Manufacturer

Panasonic

Model Number

CW61A126U

Description

Air Conditioner

Interactive Exploded View

Parts List

Part Number Description
CWH01K040 CWH01K040 BLOWER WHEEL
CWD54066 CWD54066 BRACKET
CWH24020 CWH24020 CABLE
ECUX1H330JUN ECUX1H330JUN CAPACITOR
ECUX1H152MBN ECUX1H152MBN CAPACITOR
ECUX1E473KR ECUX1E473KR CAPACITOR
ECUV1H471MD ECUV1H471MD CAPACITOR
ECUV1H392MBV ECUV1H392MBV CAPACITOR
ECUV1H390KCN ECUV1H390KCN CAPACITOR
CWA31267M CWA31267M CAPACITOR
2R10B3R126C6A 2R10B3R126C6A COMPRESSOR
R10B3R126C6A R10B3R126C6A COMPRESSOR
CWB32230 CWB32230 CONDENSER
CWE17C012 CWE17C012 CONTROL KNOB
CWD12006 CWD12006 COVER
CWD10006 CWD10006 COVER
CWA62046 CWA62046 CWA62046
CWE00K127A CWE00K127A CWE00K127A
CWE10C380 CWE10C380 CWE10C380
CWE14019 CWE14019 DOOR
ECKF1H391KB ECKF1H391KB ECKF1H391KB
CWB30245 CWB30245 EVAPORATOR
CWH36C004 CWH36C004 EXPANDABLE PANEL LEFT
CWH36C005 CWH36C005 EXPANDABLE PANEL RIGHT
CWA95106 CWA95106 FAN MOTOR
U5A15-1200 U5A15-1200 FOAM
ECUX1C154ZFN ECUX1C154ZFN FRONT GRILL
CWE24078 CWE24078 GRILLE
CWE20044 CWE20044 GRILLE
CWE10031 CWE10031 GRILLE
CWE16014 CWE16014 HANDLE
CWG50C073 CWG50C073 KIT
CWA07009 CWA07009 MAIN SWITCH
CWD04047 CWD04047 NET
ECUV1H040CC9 ECUV1H040CC9 OVERLOAD PROTECTOR
ECUV1H060DCN ECUV1H060DCN POWER CORD
CWH00K018 CWH00K018 PROPELLER FAN
U40N40-100 U40N40-100 RIBBON
XTT4D8A XTT4D8A SCREW
CWXTTN5D25AS CWXTTN5D25AS SCREW
CWH4580172 CWH4580172 SCREW TYPE A
CWG86C734 CWG86C734 SCREW TYPE B
CWH4580211 CWH4580211 SCREW TYPE C
CWD60144A CWD60144A SIDE ANGLE
CWH72020 CWH72020 SPRING
CWH40079 CWH40079 TRAY
CWB5890208 CWB5890208 TUBE
CWE24079 CWE24079 VANE
XTV4_8A XTV4_8A XTV4+8A
