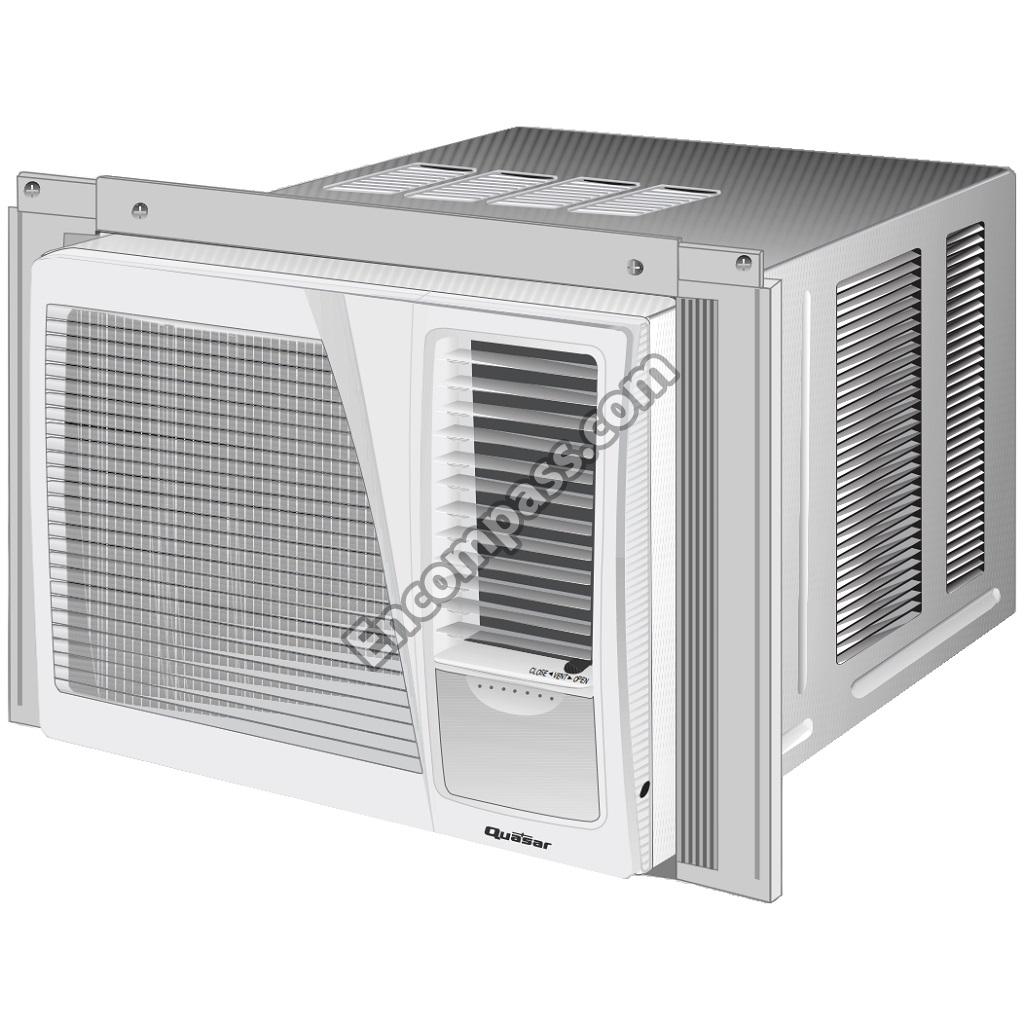

Model Image
Manufacturer

Panasonic

Model Number

CW700RU

Description

Air Conditioner

Interactive Exploded View

Parts List

Part Number Description
CWH36C046 CWH36C046 AUX MATERIAL INSTALLATION
CWD50039 CWD50039 BASE
CWH10699 CWH10699 BOARD
CWH55201 CWH55201 BOLT
CWG87C025 CWG87C025 BRACKET
CWD53071 CWD53071 BULKHEAD
CWH50072 CWH50072 BUSHING
ECJ2XB1H331K ECJ2XB1H331K BUSHING
CWA31526 CWA31526 CAPACITOR
ECUV1H220JCG ECUV1H220JCG CAPACITOR
ECUV1H391KM ECUV1H391KM CAPACITOR
ECUX1H180KCN ECUX1H180KCN CAPACITOR
CWH7070222U CWH7070222U CAPACITOR
CWB09462 CWB09462 COMPRESSOR
CWB32444 CWB32444 CONDENSER
CWB32447 CWB32447 CONDENSER
CWD90827 CWD90827 COVER
ECKF1H391KB ECKF1H391KB ECKF1H391KB
ECUX1H181KM ECUX1H181KM ECUM1H181KN
CWB30452 CWB30452 EVAPORATOR
CWH36C050 CWH36C050 EXPANDABLE PANEL LEFT
F56368 F56368 F56368
CWH00021 CWH00021 FAN
CWA92159 CWA92159 FAN MOTOR
CWB811008 CWB811008 GASKET
CWE20C298 CWE20C298 GRILLE
CW7041200L CW7041200L HOLDER
CWG87C430 CWG87C430 INSTALLATION SCREW KIT
SWYM-90041 SWYM-90041 JIG
CWA07018 CWA07018 MAIN SWITCH
CWH56032J CWH56032J NUT
CWH7080300 CWH7080300 NUT
ECUV1H030DCN ECUV1H030DCN OVERLOAD PROTECTOR
CWA20C239 CWA20C239 POWER CORD
CWH4580326 CWH4580326 SCREW
CWH55027 CWH55027 SCREW
CWH55206 CWH55206 SCREW
XTB5_14C XTB5_14C SCREW
CWB11025 CWB11025 STRAINER
CWA15118 CWA15118 THERMOSTAT
CWE24235A CWE24235A VENT
CWE24260 CWE24260 VENT
