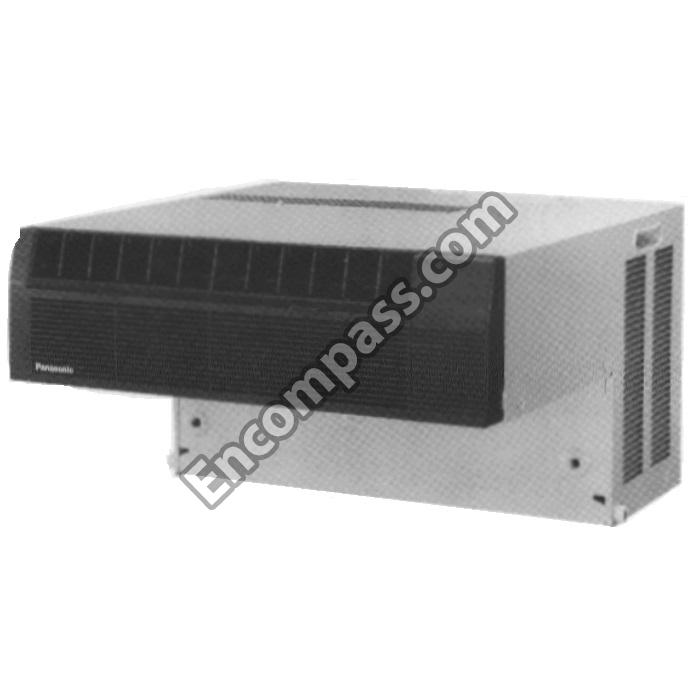

Model Image
Manufacturer

Panasonic

Model Number

CW802HU

Description

Air Conditioner

Interactive Exploded View

Parts List

Part Number Description
2P14S3R126B1B 2P14S3R126B1B 2P14S3R126B1B
CWD20K006A CWD20K006A ASSEMBLY
ECUX1H104ZFM ECUX1H104ZFM AUX MATERIAL INSTALLATION
CWH64K1006 CWH64K1006 BEARING
CWH02K058 CWH02K058 BLOWER WHEEL
CWH55K000 CWH55K000 BOLT
CWD90K122A CWD90K122A BOTTOM ANGLE
CWD54146 CWD54146 BRACKET
CWD54147 CWD54147 BRACKET
CWD90768 CWD90768 BRACKET
CWH50072 CWH50072 BUSHING
ECJ2XB1H331K ECJ2XB1H331K BUSHING
CWD60K010A CWD60K010A CABINET
CWE00K223A CWE00K223A CABINET
CWH52102 CWH52102 CAP
CWA31309 CWA31309 CAPACITOR
CWA31322 CWA31322 CAPACITOR
CWA31410 CWA31410 CAPACITOR
ECUV1H180KCV ECUV1H180KCV CAPACITOR
ECUV1H180KN ECUV1H180KN CAPACITOR
ECUV1H220DN ECUV1H220DN CAPACITOR
NCUV1H271KBN NCUV1H271KBN CAPACITOR
ECUV1H390KC9 ECUV1H390KC9 CAPACITOR
ECUV1H390KN ECUV1H390KN CAPACITOR
ECUV1H391JCN ECUV1H391JCN CAPACITOR
ECUX1E120JC ECUX1E120JC CAPACITOR
ECUX1H331KC ECUX1H331KC CAPACITOR
CWG55005 CWG55005 CARTON
CWH53002 CWH53002 CASTER
CWB32388 CWB32388 CONDENSER
ECUX1H391JN ECUX1H391JN COVER
CWD20K005A CWD20K005A COVER
CWA15130 CWA15130 CWA15131
CWA4711023 CWA4711023 CWA4711022
CWD52K217A CWD52K217A CWD52K188A
CWF56520 CWF56520 CWF56520
CWE14103 CWE14103 DOOR
ECKF1H391KB ECKF1H391KB ECKF1H391KB
ECUX1H180JCV ECUX1H180JCV ECUX1H180JCV
CWE31363 CWE31363 ESCUTCHEON
CWB30413 CWB30413 EVAPORATOR
CWH36C044 CWH36C044 EXPANDABLE PANEL LEFT
CWH00018 CWH00018 FAN BLADE
CWD60324 CWD60324 FLANGE
CWD96068A CWD96068A FRAME
CWB811008 CWB811008 GASKET
CWE10C834 CWE10C834 GRILLE, FRONT
CWD04105A CWD04105A GUARD
CWH4520061A CWH4520061A HANDLE
CWH61025A CWH61025A HINGE
CWH30060 CWH30060 HOLDER
CW7041200L CW7041200L HOLDER
CWG87C144 CWG87C144 INSTALLATION SCREW KIT
CWE26110 CWE26110 LINK
CW802HUIM CW802HUIM MANUAL
CWA92128 CWA92128 MOTOR
CWA95218 CWA95218 MOTOR
CWH56000 CWH56000 NUT
CWH56032J CWH56032J NUT
CWH7080300 CWH7080300 NUT
CWA12124 CWA12124 OVERLOAD PROTECTOR
CWB5A15-1200 CWB5A15-1200 PACKING
CWD90K121A CWD90K121A PLATFORM
CWH4611062L CWH4611062L PLUG
CWA20C239 CWA20C239 POWER CORD
CWA00138 CWA00138 RELAY
CWG87C152 CWG87C152 SCREW
CWH4580211 CWH4580211 SCREW
CWH551146 CWH551146 SCREW
CWH55027 CWH55027 SCREW
CWH55101 CWH55101 SCREW
CWH55185 CWH55185 SCREW
075-601-1 075-601-1 SCREW
XSN5_8S XSN5_8S SCREW (20)
CWH41001 CWH41001 SOCKET
CWB11025 CWB11025 STRAINER
CWA15118 CWA15118 THERMOSTAT
CWD62C004 CWD62C004 TOP ANGLE
CWH40144 CWH40144 TRAY
CWE24215 CWE24215 VANE
CWE24216 CWE24216 VANE
