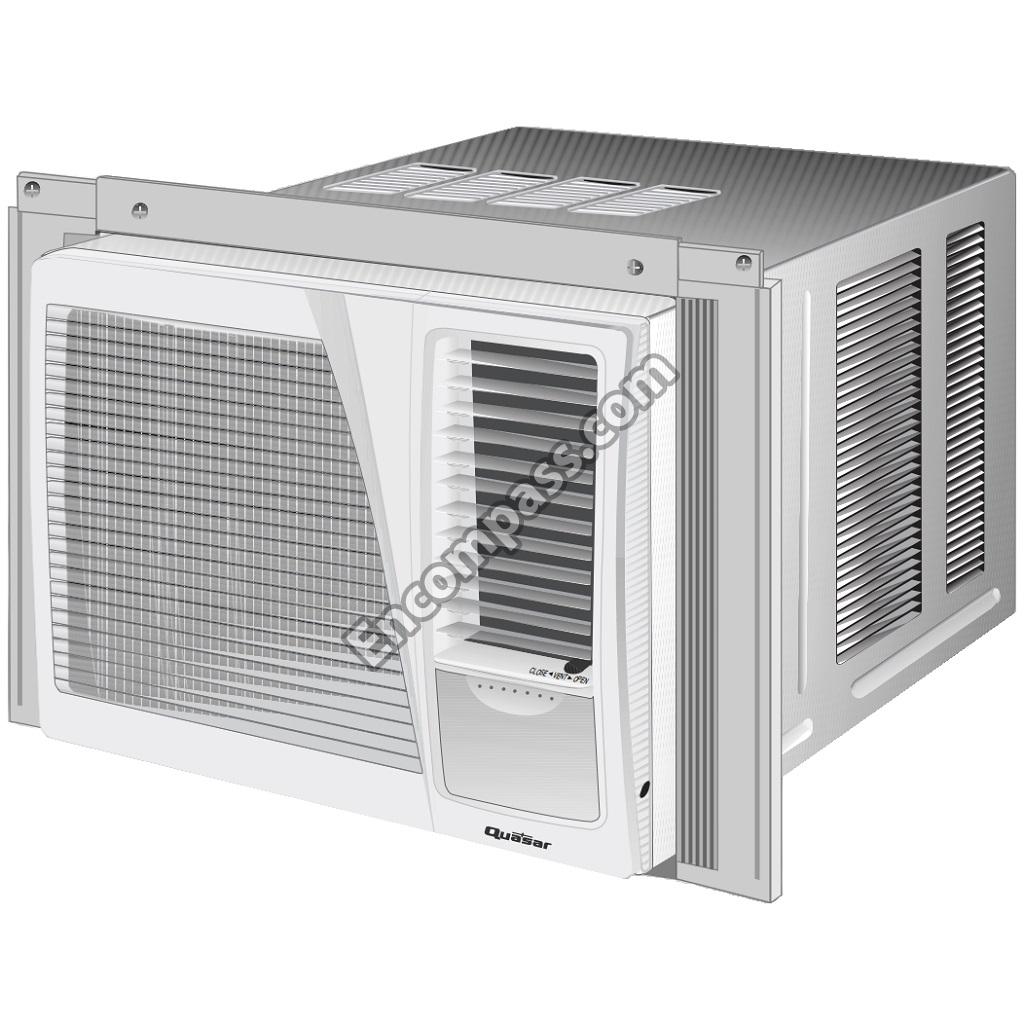

Model Image
Manufacturer

Panasonic

Model Number

CW80JS126U

Description

Air Conditioner

Interactive Exploded View

Parts List

Part Number Description
CWD52K144A CWD52K144A BASE
CWH01K052 CWH01K052 BLOWER WHEEL
CWD90593A CWD90593A BOTTOM ANGLE
CWA31270 CWA31270 CAPACITOR
ECUV1H181KC9 ECUV1H181KC9 CAPACITOR
ECUV1H221KCG ECUV1H221KCG CAPACITOR
ECUX1E562KB ECUX1E562KB CAPACITOR
ECUX1H153MR9 ECUX1H153MR9 CAPACITOR
2P14C3R126A1F 2P14C3R126A1F COMPRESSOR (DISCONTINUED)
CWB32292 CWB32292 CONDENSER
CWH40077L-1 CWH40077L-1 DRAIN PAN
CWG86C733 CWG86C733 DRAIN PAN SCREW
CWH36C031 CWH36C031 EXPANDABLE PANEL LEFT
CWH36C032 CWH36C032 EXPANDABLE PANEL RIGHT
F55693 F55693 F55693
CWA95145 CWA95145 FAN MOTOR
CWG50C250 CWG50C250 FRONT GRILL
CWD32085 CWD32085 GUIDE
CWG86C853 CWG86C853 INSTALLATION SCREW KIT
CWA12124 CWA12124 OVERLOAD PROTECTOR
ECUV1H060DCN ECUV1H060DCN POWER CORD
CWH4580211 CWH4580211 SCREW TYPE A
CWH4580345 CWH4580345 SCREW TYPE B
XTT4D10C XTT4D10C SCREW TYPE C
CWD60220A CWD60220A SIDE ANGLE
CWE17C044 CWE17C044 TEMP KNOB
CWD62131A CWD62131A TOP ANGLE
