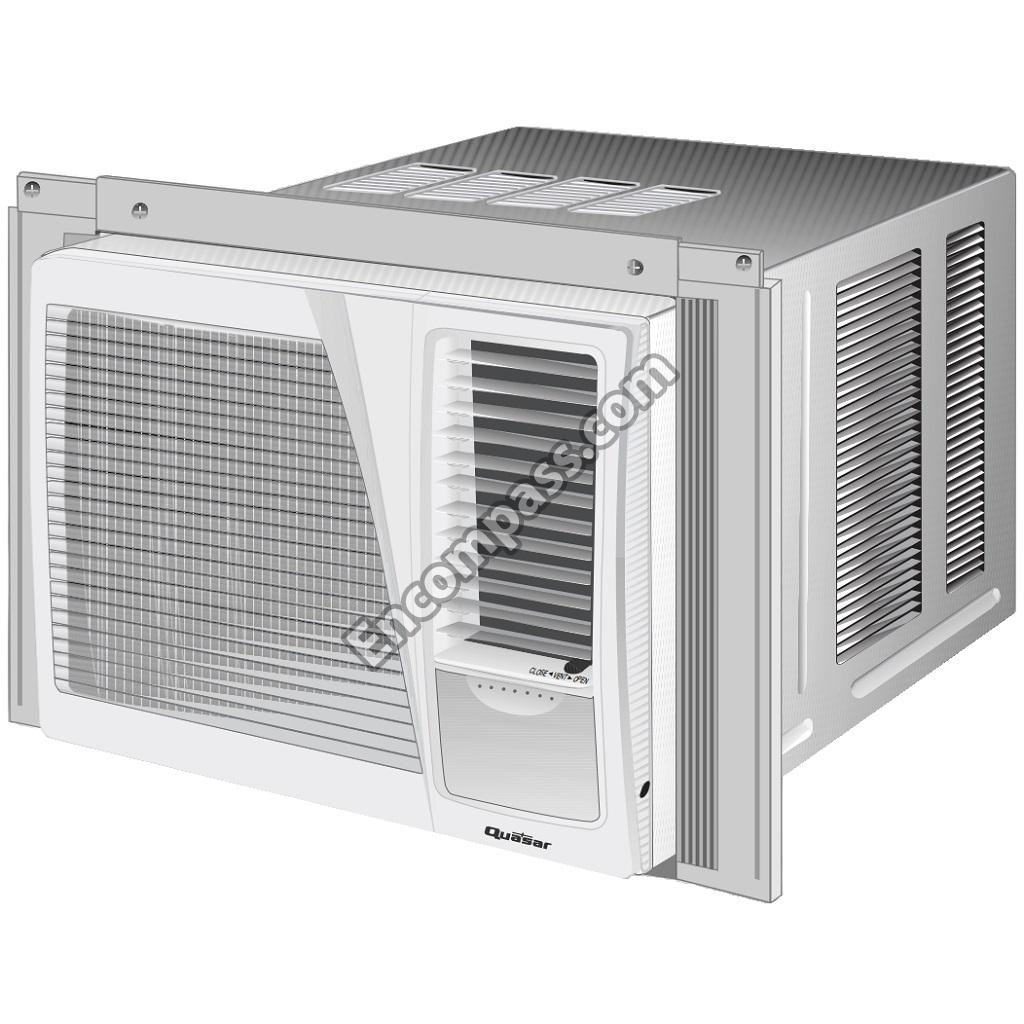

Model Image
Manufacturer

Panasonic

Model Number

CW80V126U

Description

Air Conditioner

Interactive Exploded View

Parts List

Part Number Description
CWD00C011 CWD00C011 AIR FILTER
CWD4925135B CWD4925135B ANGLE
CWH01K045 CWH01K045 BLOWER WHEEL
CWD54070 CWD54070 BRACKET
ECUV1H101KV ECUV1H101KV CAPACITOR
ECUX1E472MB ECUX1E472MB CAPACITOR
ECUX1H020CC9 ECUX1H020CC9 CAPACITOR
ECUX1H222MD ECUX1H222MD CAPACITOR
ECUX1H390JCV ECUX1H390JCV CAPACITOR
CWH7070222U CWH7070222U CAPACITOR
CWB09108 CWB09108 COMPRESSOR (DISCONTINUED)
CWH4210091 CWH4210091 CONTROL KNOB
CWA4711023 CWA4711023 CWA4711022
CWB4056403 CWB4056403 CWB4056403
CWH21003 CWH21003 DOOR
CWH21004 CWH21004 DOOR
CWB81007 CWB81007 DRAIN
CWH5850080 CWH5850080 DRAIN ELBOW
CWH36C013 CWH36C013 EXPANDABLE PANEL LEFT
CWH36C014 CWH36C014 EXPANDABLE PANEL RIGHT
F60314 F60314 F60314
CWA95083 CWA95083 FAN MOTOR
CWE10C296 CWE10C296 FRONT GRILL
CWH4830055 CWH4830055 HOLDER
CW7041200L CW7041200L HOLDER
AN6713 AN6713 IC
CWH4690128 CWH4690128 LEVER
CWA07016 CWA07016 MAIN SWITCH
CW4582065L CW4582065L NUT
CW4582065JL CW4582065JL NUT
CWH7080300 CWH7080300 NUT
ECUV1H040CCM ECUV1H040CCM OVERLOAD PROTECTOR
CWA20C239 CWA20C239 POWER CORD
CWH00K002 CWH00K002 PROPELLER FAN
CWH4580172 CWH4580172 SCREW
CWH4580212 CWH4580212 SCREW
CWH4580222 CWH4580222 SCREW
CWH4580355 CWH4580355 SCREW
CWH4580391 CWH4580391 SCREW
CWH55017 CWH55017 SCREW
CWH55054 CWH55054 SCREW
CWH55058 CWH55058 SCREW
XSN3D6S XSN3D6S SCREW
XTB3_8BFVC XTB3_8BFVC SCREW
CWH4580211 CWH4580211 SCREW TYPE A
CWD60205A CWD60205A SIDE ANGLE
CWH71046 CWH71046 SPRING
CWA04029 CWA04029 SWITCH
CWE17C012 CWE17C012 TEMP KNOB
