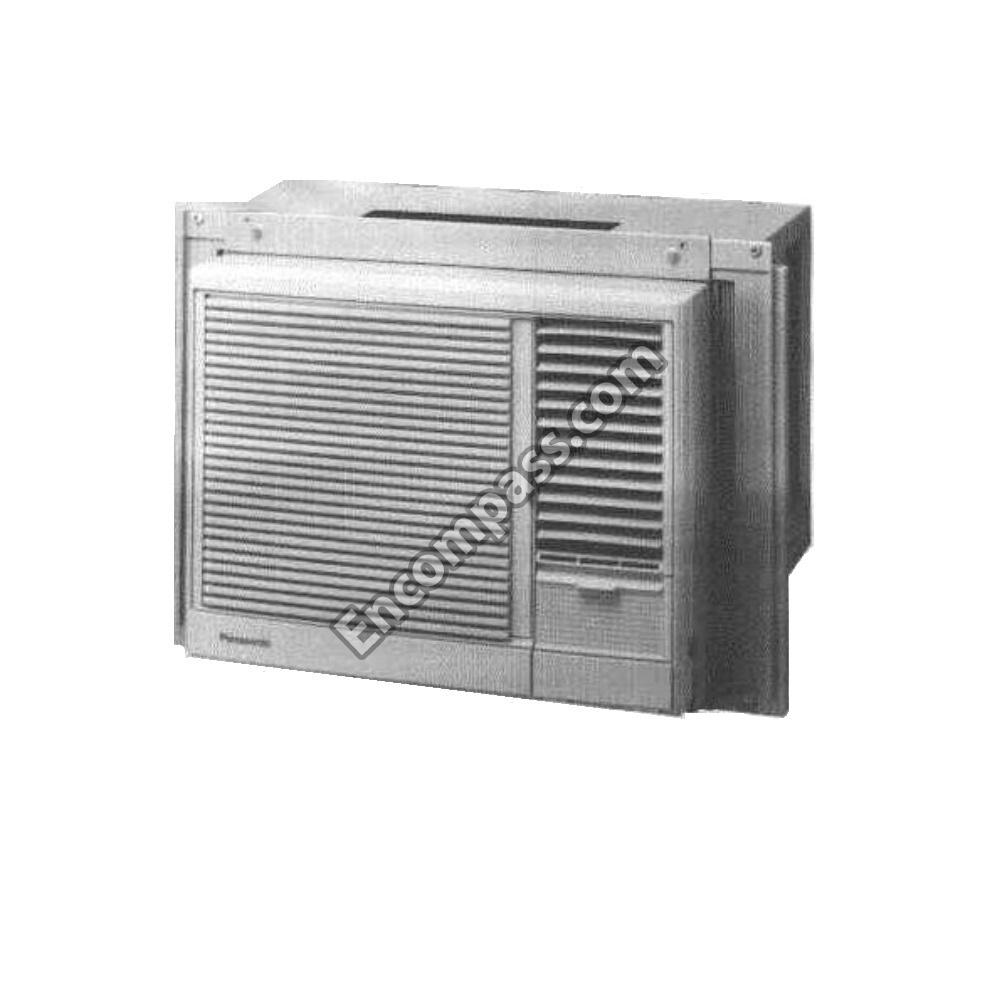

Model Image
Manufacturer

Panasonic

Model Number

CWC100MU

Description

Air Conditioner

Interactive Exploded View

Parts List

Part Number Description
CWD62209A CWD62209A ANGLE
CWA4711012 CWA4711012 BOARD
CWH10910 CWH10910 BOARD
CWD541046 CWD541046 BRACKET
CWD93898 CWD93898 BRACKET
CWD53100 CWD53100 BULKHEAD
CWH50037 CWH50037 BUSHING
CWH50055 CWH50055 BUSHING
CWH51071D CWH51071D BUSHING
CWE00C1049 CWE00C1049 CABINET
CWE00C132 CWE00C132 CABINET
CWA312066 CWA312066 CAPACITOR
CWA31371 CWA31371 CAPACITOR
CWA31410 CWA31410 CAPACITOR
ECUX1H391K ECUX1H391K CAPACITOR
CWB15594 CWB15594 CAPILLARY TUBE
CWB09623 CWB09623 COMPRESSOR
CWB32C1621L CWB32C1621L CONDENSER
CWB32C245 CWB32C245 CONDENSER
CWH7070222U CWH7070222U COVER
CWE141065 CWE141065 DOOR
CWH40077L-1 CWH40077L-1 DRAIN PAN
CWG86C733 CWG86C733 DRAIN PAN SCREW
ECKF1H391KB ECKF1H391KB ECKF1H391KB
CWB30C1180 CWB30C1180 EVAPORATOR
CWB30621 CWB30621 EVAPORATOR
CWH36C032 CWH36C032 EXPANDABLE PANEL LEFT
CWH36C031 CWH36C031 EXPANDABLE PANEL RIGHT
F561240 F561240 F561240
CWH001011 CWH001011 FAN
CWH00046 CWH00046 FAN
CWD001111L CWD001111L FILTER
XBA2C35NU1 XBA2C35NU1 FUSE
CWB811008 CWB811008 GASKET
CWE11C3195L CWE11C3195L GRILLE
CWE20C528 CWE20C528 GRILLE
CWE20210 CWE20210 GRILLE
CWE11C726 CWE11C726 GRILLE, FRONT
CWD321040 CWD321040 GUIDE
CWD311015 CWD311015 GUIDE
CWD32157 CWD32157 GUIDE
CWD531010 CWD531010 HEAD
CWH30133 CWH30133 HOLDER
CWH30172 CWH30172 HOLDER
CWH32085 CWH32085 HOLDER
CW7041200L CW7041200L HOLDER
XCSCW011 XCSCW011 HOLDER
ECUX1H104ZFM ECUX1H104ZFM INSTALL AUX MATERIAL
CWH82C201 CWH82C201 INSTALLATION SCREW KIT
CWF563494 CWF563494 INSTRUCT BOOK
CWE17C1003 CWE17C1003 KNOB
CWH221005L CWH221005L LEVER
CWH22029 CWH22029 LEVER
CWA981062 CWA981062 MOTOR
CW4582065L CW4582065L NUT
CW4582065JL CW4582065JL NUT
CWH56032J CWH56032J NUT
CWH7080300 CWH7080300 NUT
CWC100MU_EX CWC100MU_EX OTC AIR COND
CWA121126J CWA121126J OVERLOAD PROTECTOR
CWD52K1132L CWD52K1132L PAN
CWD52K270A CWD52K270A PAN
CWH36C1012 CWH36C1012 PANEL
CWH36C1011 CWH36C1011 PANEL
CWE312182 CWE312182 PANEL
CWD93901 CWD93901 PANEL
CWH102138 CWH102138 PLATE
CWH4611062L CWH4611062L PLUG
CWA20C322 CWA20C322 POWER CORD
CWH82C1118 CWH82C1118 SCREW
CWH82C1117 CWH82C1117 SCREW
CWH55101 CWH55101 SCREW
CWH55027 CWH55027 SCREW
CWH82C202 CWH82C202 SCREW KIT
XTN5D25A XTN5D25A SCREW TYPE A
CWH4580211 CWH4580211 SCREW TYPE B
XTT4D10C XTT4D10C SCREW TYPE C
CWD60220A CWD60220A SIDE ANGLE
DFE001 DFE001 SPACER
CWB11101 CWB11101 STRAINER
CWA07095 CWA07095 SWITCH
CWA051002 CWA051002 SWITCH
CWA151023 CWA151023 THERMOSTAT
CWD62C030 CWD62C030 TOP ANGLE
CWH40200 CWH40200 TRAY
CWB152155 CWB152155 TUBE
CWE241139L CWE241139L VANE
CWE241138L CWE241138L VANE
CWE24405 CWE24405 VANE
CWE24407 CWE24407 VANE
