Model Image
Manufacturer

Panasonic

Model Number

CWC120AU

Description

Air Conditioner

Interactive Exploded View

Parts List

Part Number Description
CWD321008 CWD321008 AIR GUIDE
CWD321007A CWD321007A AIR GUIDE
CWD311005 CWD311005 AIR GUIDE
CWD52K1016A CWD52K1016A BASE PAN
CWH01K1002 CWH01K1002 BLOWER WHEEL
CWD932055 CWD932055 BRACKET
CWD541006 CWD541006 BRACKET
CWD531006 CWD531006 BULKHEAD
CWH50072 CWH50072 BUSHING
ECJ2XB1H331K ECJ2XB1H331K BUSHING
CWE00C1010 CWE00C1010 CABINET
CWH7070222U CWH7070222U CAPACITOR
ECUX1H104ZFM ECUX1H104ZFM CAPACITOR
CWA31410 CWA31410 CAPACITOR
CWA31371 CWA31371 CAPACITOR
CWB15K1009 CWB15K1009 CAPILLARY TUBE
CWB15K1006 CWB15K1006 CAPILLARY TUBE
2P16S126B1M 2P16S126B1M COMPRESSOR
2P14S126B1Q 2P14S126B1Q COMPRESSOR
CWB32C1036 CWB32C1036 CONDENSER
CWB32C1394L CWB32C1394L CONDENSER COMPLETE
CWH102067 CWH102067 CONTROL
CWF563173 CWF563173 CWF563173
CWE141004 CWE141004 DOOR
CWH40175 CWH40175 DRAIN PAN
CWB30C1019 CWB30C1019 EVAPORATOR
CWH001011 CWH001011 FAN

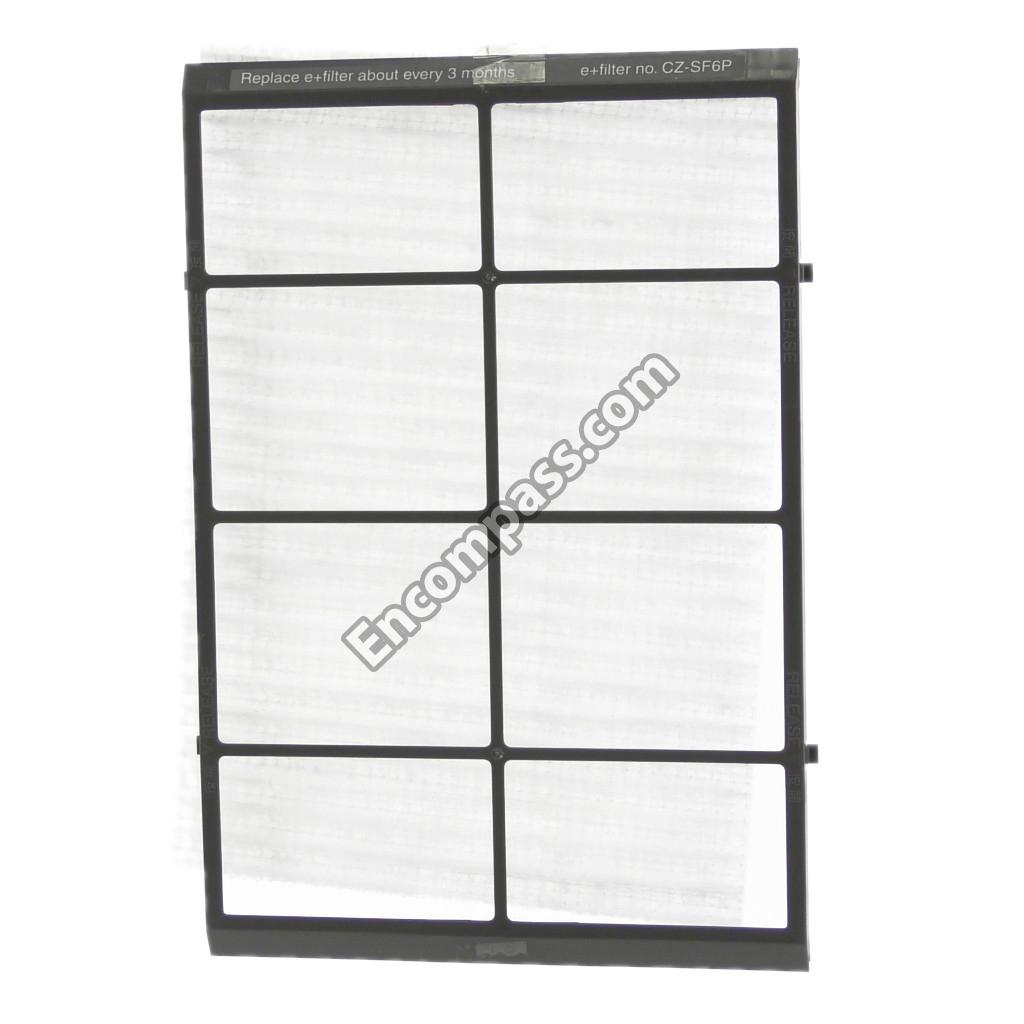

CZ-SF6P CZ-SF6P FILTER

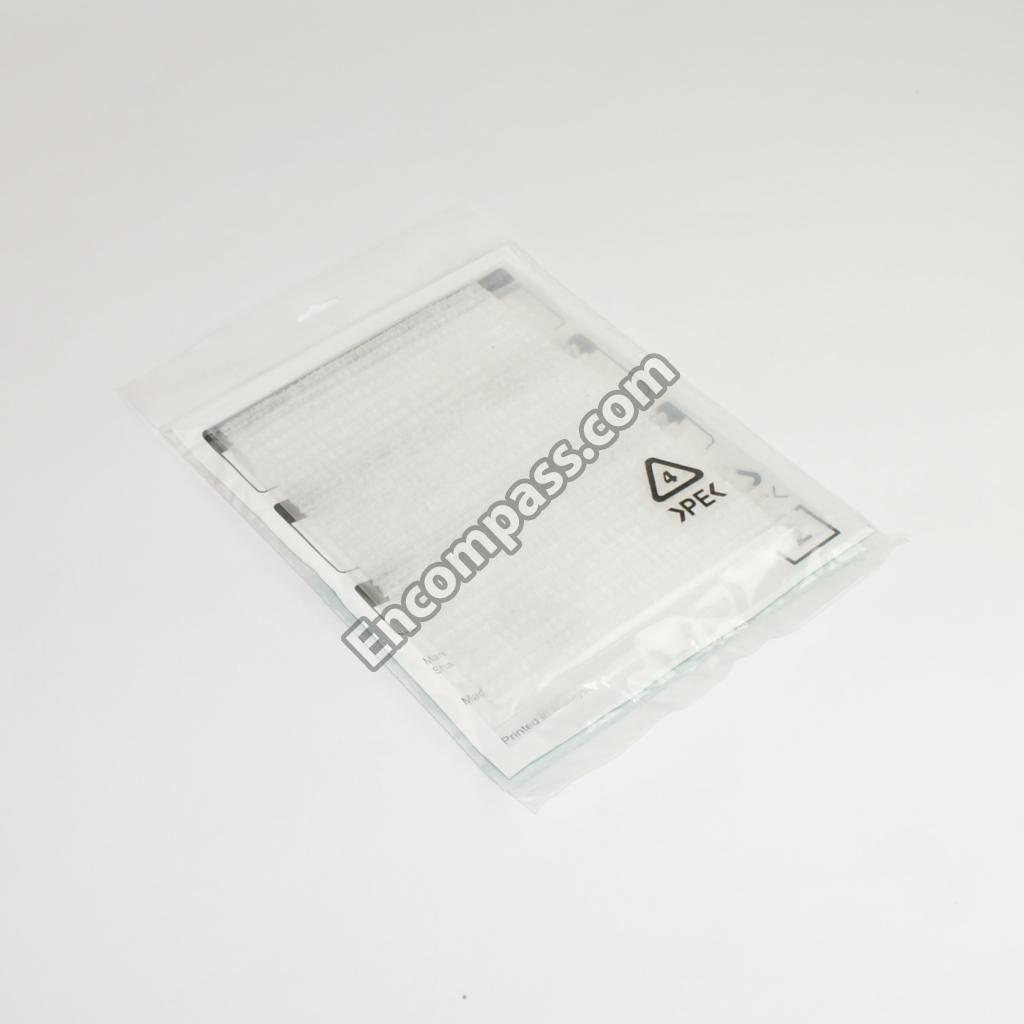

CZ-SFW6P CZ-SFW6P FILTER
XBACW067 XBACW067 FUSE
CWB811008 CWB811008 GASKET
CWE11C2091 CWE11C2091 GRILLE
XCSCW011 XCSCW011 HOLDER
CW7041200L CW7041200L HOLDER
CWH32085 CWH32085 HOLDER
CWH30102 CWH30102 HOLDER
CWD911188 CWD911188 HOLDER
CWD911024 CWD911024 HOLDER
CWE17C1003 CWE17C1003 KNOB
CWH221001 CWH221001 LEVER
CWE261004 CWE261004 LINK
CWA981029 CWA981029 MOTOR
CWA951044 CWA951044 MOTOR
CW4582065L CW4582065L NUT
CWH7080300 CWH7080300 NUT
CWH56032J CWH56032J NUT
CW4582065JL CW4582065JL NUT
CWC120AU_EX CWC120AU_EX OTC AIR COND
CWH36C032 CWH36C032 PANEL
CWH36C031 CWH36C031 PANEL
CWE312078 CWE312078 PANEL
CWD60220A CWD60220A PANEL
CWD64C1004 CWD64C1004 PLATE
CWD62C030 CWD62C030 PLATE
CWH4611062L CWH4611062L PLUG
CWA20C2101 CWA20C2101 POWER CORD
CWA121037 CWA121037 PROTECTOR
CWA121036 CWA121036 PROTECTOR
XTT4_8J XTT4_8J SCREW
CWH55101 CWH55101 SCREW
CWH4580326 CWH4580326 SCREW
CWG86C733 CWG86C733 SCREW
CWH82C1027 CWH82C1027 SCREW (6)
CWH82C201 CWH82C201 SCREW KIT
CWB11025 CWB11025 STRAINER
CWD932038 CWD932038 SUPPORT
CWA051002 CWA051002 SWITCH
CWA4711013L CWA4711013L TERMINAL
CWH401006A CWH401006A TRAY
CWE241007 CWE241007 VANE
CWE241006 CWE241006 VANE
