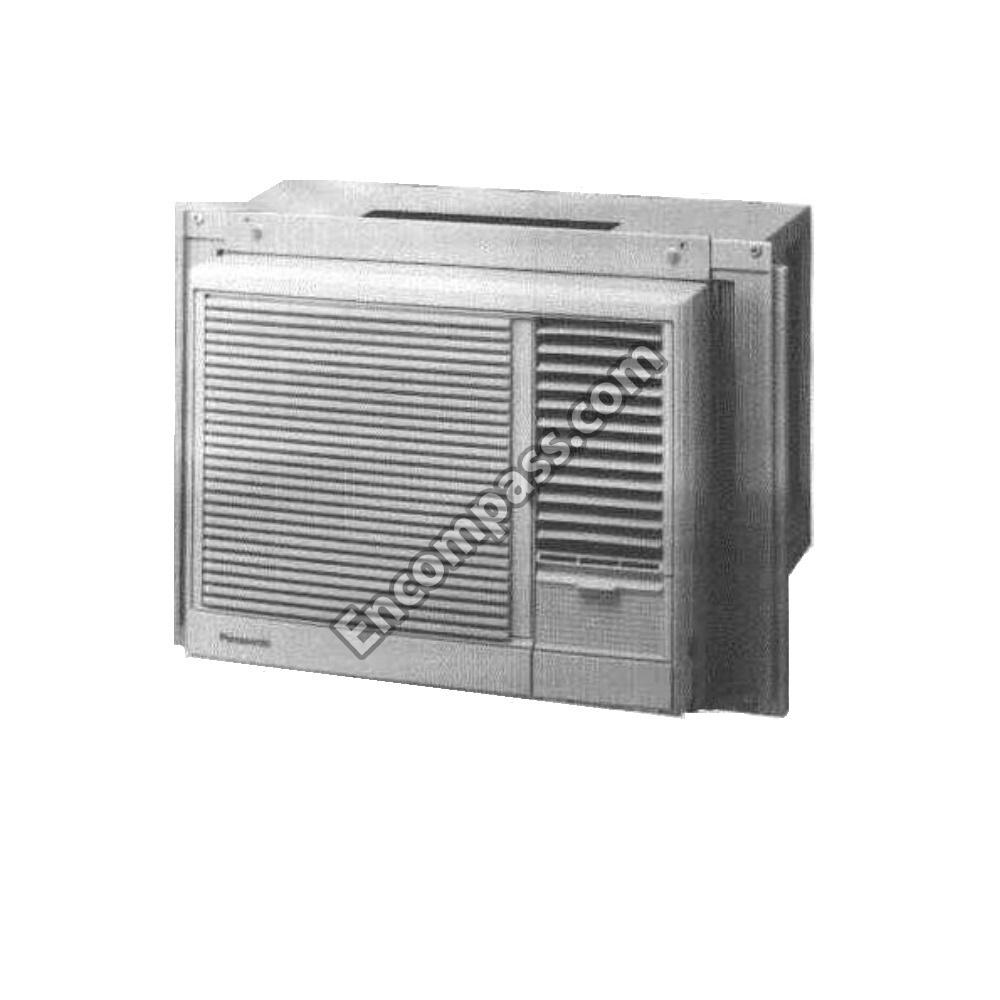

Model Image
Manufacturer

Panasonic

Model Number

CWC140NU

Description

Air Conditioner

Interactive Exploded View

Parts List

Part Number Description
CWD00233 CWD00233 AIR FILTER
CWD31136 CWD31136 AIR GUIDE
CWH36C024 CWH36C024 AUX MATERIAL INSTALLATION
CWE26199 CWE26199 BAR
CWD52K286A CWD52K286A BASE PAN
CWH01K052 CWH01K052 BLOWER WHEEL
CWA4711012 CWA4711012 BOARD
CWH4660137 CWH4660137 BOLT
CWH4800042 CWH4800042 BOLT
CWD90403AD CWD90403AD BOTTOM ANGLE
CWD54346 CWD54346 BRACKET
CWH4821044F CWH4821044F BRACKET
CWH4926034E CWH4926034E BRACKET
CWH4926035E CWH4926035E BRACKET
CWD53K120 CWD53K120 BULKHEAD
CWH50055 CWH50055 BUSHING
CWE00C152 CWE00C152 CABINET
CWA31371 CWA31371 CAPACITOR
CWA31414 CWA31414 CAPACITOR
ECUV1H820KCV ECUV1H820KCV CAPACITOR
ECUX1H104ZFM ECUX1H104ZFM CAPACITOR
CWB15512 CWB15512 CAPILLARY TUBE
2K20S126A6F 2K20S126A6F COMPRESSOR
CWB32C283 CWB32C283 CONDENSER
CWH7070206 CWH7070206 COVER
CWF561602 CWF561602 CWF561602
CWH4580211 CWH4580211 CWH4580211
CWH4580345 CWH4580345 CWH4580211
CWH40077L-1 CWH40077L-1 DRAIN PAN
CWG86C733 CWG86C733 DRAIN PAN SCREW
ECKF1H391KB ECKF1H391KB ECKF1H391KB
CWB30C270 CWB30C270 EVAPORATOR
CWH36C023 CWH36C023 EXPANDABLE PANEL RIGHT
CWA95373 CWA95373 FAN MOTOR
CWE11C959 CWE11C959 FRONT GRILL
XBA2C50NU1 XBA2C50NU1 FUSE
CWB811008 CWB811008 GASKET
CWE20C625 CWE20C625 GRILLE
CWD32161B CWD32161B GUIDE
CWH30172 CWH30172 HOLDER
CWH32085 CWH32085 HOLDER
XCSCW011 XCSCW011 HOLDER
CWG87C969 CWG87C969 INSTALLATION SCREW KIT
CWH22030 CWH22030 LEVER
CWH56033 CWH56033 NUT
CWH7080300 CWH7080300 NUT
CWC140NU_EX CWC140NU_EX OTC AIR COND
CWG553372 CWG553372 PACKAGING
CWE311192 CWE311192 PANEL
CWD64249X CWD64249X PLATE
CWD90765 CWD90765 PLATE
CWH10945 CWH10945 PLATE
CWH4611062L CWH4611062L PLUG
CWH00046 CWH00046 PROPELLAR FAN BLADE
CWH00047 CWH00047 PROPELLER FAN
CWH69080 CWH69080 RAIL
CWH4580326 CWH4580326 SCREW
XSN6_10S XSN6_10S SCREW
CWXYE6_F10 CWXYE6_F10 SCREW
CWH82C202 CWH82C202 SCREW KIT
XTN5D25A XTN5D25A SCREW TYPE A
CWD60229A CWD60229A SIDE ANGLE
CWB11025 CWB11025 STRAINER
CWE17C117 CWE17C117 TEMP KNOB
CWD4925135B CWD4925135B TOP ANGLE
CWH40208A CWH40208A TRAY
CWE24445 CWE24445 VANE
CWE24446 CWE24446 VANE
CWE24464 CWE24464 VANE
CWH57095 CWH57095 WASHER
XNG8FS XNG8FS XNG8FS
XTT4X10E XTT4X10E XTT4D10CS
