Model Image
Manufacturer

Panasonic

Model Number

DCZS80K

Description

Lumix Zs80 20.3mp Digital Camera

Interactive Exploded View

Parts List

Part Number Description
VXP3972 VXP3972 1ST LENS FRAME UNIT
VXP3977 VXP3977 2ND LENS FRAME UNIT
VXP3978 VXP3978 3RD LENS FRAME UNIT

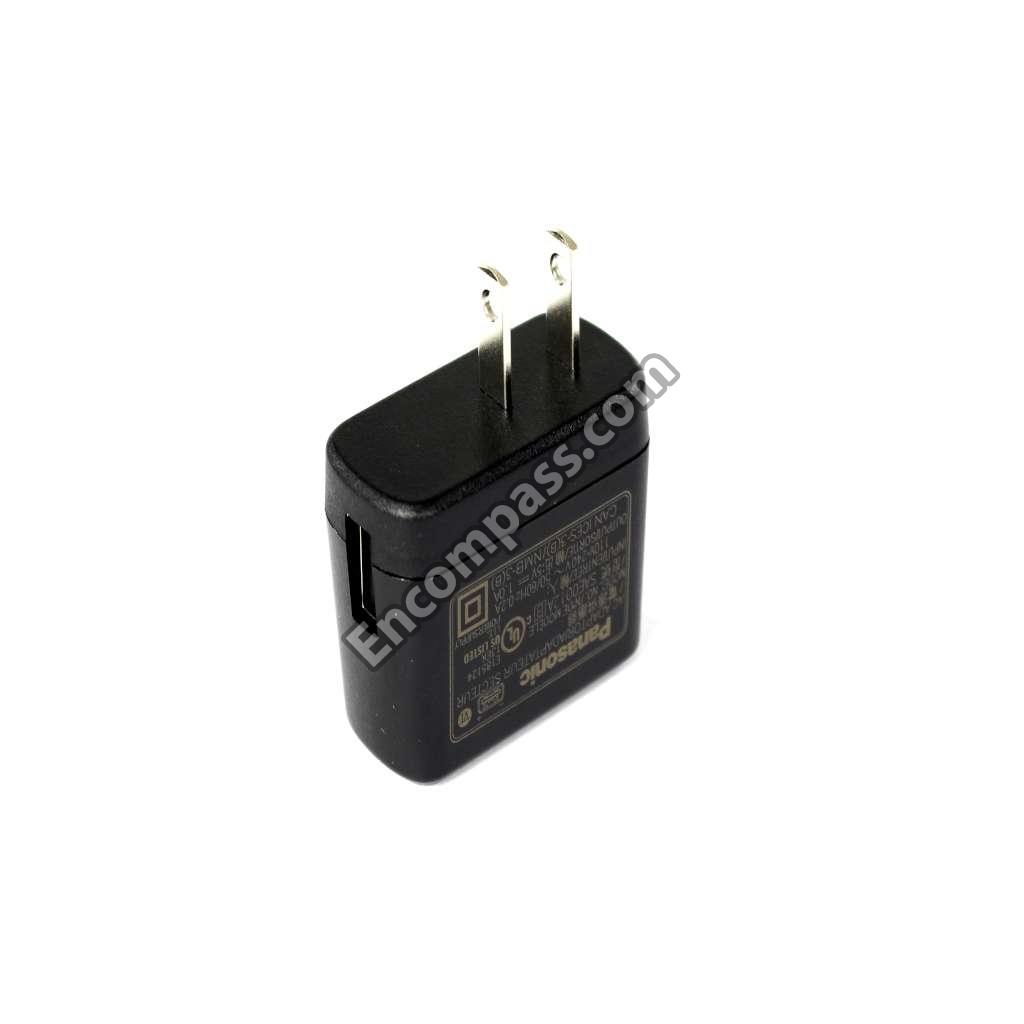

SAE0012AC SAE0012AC AC ADAPTER
VGL1365 VGL1365 AF PANEL LIGHT
SMP0236 SMP0236 BATTERY CASE
VMS8342 VMS8342 BATTERY DOOR SHAFT
VMB4767 VMB4767 BATTERY DOOR SPRING

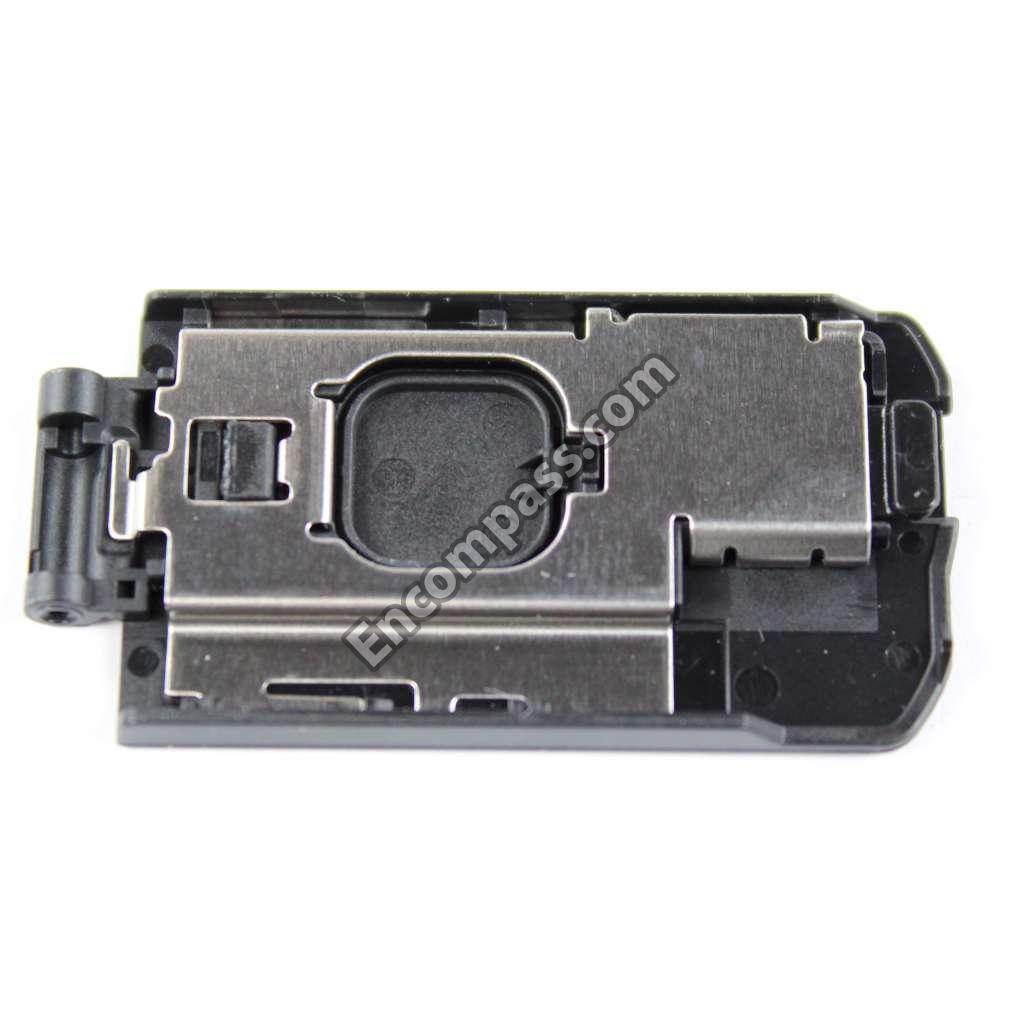

1KK1CTZ90K 1KK1CTZ90K BATTERY DOOR UNIT
STJ0174 STJ0174 BATTERY FPC
VMB4851 VMB4851 BATTERY OUT SPRING
SXW0063 SXW0063 BOTH SIDE CUM FRAME
3GE6DCTZ95K 3GE6DCTZ95K CASE
1UB1DCTZ95K 1UB1DCTZ95K CASE
1UB4DCTZ95K 1UB4DCTZ95K CASE
VMB4601 VMB4601 CMOS TILT SPRING
K1MY23BA0738 K1MY23BA0738 CONNECTOR
K1MY13BA0585 K1MY13BA0585 CONNECTOR 13P
K1MY18BA0633 K1MY18BA0633 CONNECTOR 18P
K1MY25BA0556 K1MY25BA0556 CONNECTOR 25P
K1MY39BA0556 K1MY39BA0556 CONNECTOR 39P
K1MY41BA0667 K1MY41BA0667 CONNECTOR 41P
K1MY45BA0667 K1MY45BA0667 CONNECTOR 45P
K1MY51BA0667 K1MY51BA0667 CONNECTOR 51P
K1MY05BA0557 K1MY05BA0557 CONNECTOR 5P
K1MY06BA0557 K1MY06BA0557 CONNECTOR 6P
1KE1CTZ95K 1KE1CTZ95K CONTROL RING
1GE5DC2901Z 1GE5DC2901Z COVER
2GE1DCTZ95K 2GE1DCTZ95K COVER
2UB5DCTZ95K 2UB5DCTZ95K COVER
DVKV1064Z_K DVKV1064Z_K COVER
SGS0084 SGS0084 CU PROTECT SHEET
5KM1CTZ95K 5KM1CTZ95K DISPLAY
F2A2F8200003 F2A2F8200003 E.CAPACITOR
SMB0189 SMB0189 EARTH SPRING
DVHX1098Z DVHX1098Z EYE SENSOR SHEET
SXW0065 SXW0065 FIX FRAME UNIT
EFN-AMFH9ZD EFN-AMFH9ZD FLASH UNIT
1PB1DVLD1228Z 1PB1DVLD1228Z FPC
DVLD1227Z DVLD1227Z FPC
1GE4DC2901Z 1GE4DC2901Z FRAME
SMP0290 SMP0290 FRONT EARTH PLATE
ERBRD0R75X ERBRD0R75X FUSE
ERBRD2R00X ERBRD2R00X FUSE 32V 2.0A
K5H1512A0024 K5H1512A0024 FUSE 50V 0.15A
VFC4297-C VFC4297-C HAND STRAP
SJD0034 SJD0034 HEAT RADIATION PAD
SZT0250 SZT0250 HEAT RADIATION SHEET
1GE3DC2901Z 1GE3DC2901Z HOLDER
C1CB00004574 C1CB00004574 IC
C0DBGYY06860 C0DBGYY06860 IC
C0DBGYY06834 C0DBGYY06834 IC
C0DBGYY02983 C0DBGYY02983 IC
C0DBAYY02449 C0DBAYY02449 IC
SUBF000022 SUBF000022 IC
L2EE00000038 L2EE00000038 IC
C1ZBZ0005562 C1ZBZ0005562 IC
C0JBAU000226 C0JBAU000226 IC
C0DBGYY06854 C0DBGYY06854 IC
C0DBGYY06666 C0DBGYY06666 IC
C0DBAYY02385 C0DBAYY02385 IC
C0DBAYY02318 C0DBAYY02318 IC
1SL1DVLB1219Z 1SL1DVLB1219Z IC
C0DBGYY07754 C0DBGYY07754 IC
1VL1DVLB1434Z 1VL1DVLB1434Z IC
C1ZBZ0004906 C1ZBZ0004906 IC, LINEAR
C1AB00003449 C1AB00003449 IC, LINEAR
C0DBGYY02523 C0DBGYY02523 IC, LINEAR
C0DBGYY02368 C0DBGYY02368 IC, LINEAR
C0JBAF000785 C0JBAF000785 IC, LOGIC (OTHER)
1GE7DC2901Z 1GE7DC2901Z KNOB
SMP0240 SMP0240 LENS FIX PLATE
SEQ0132 SEQ0132 LENS FPC UNIT
SZT0247 SZT0247 LENS TAPE

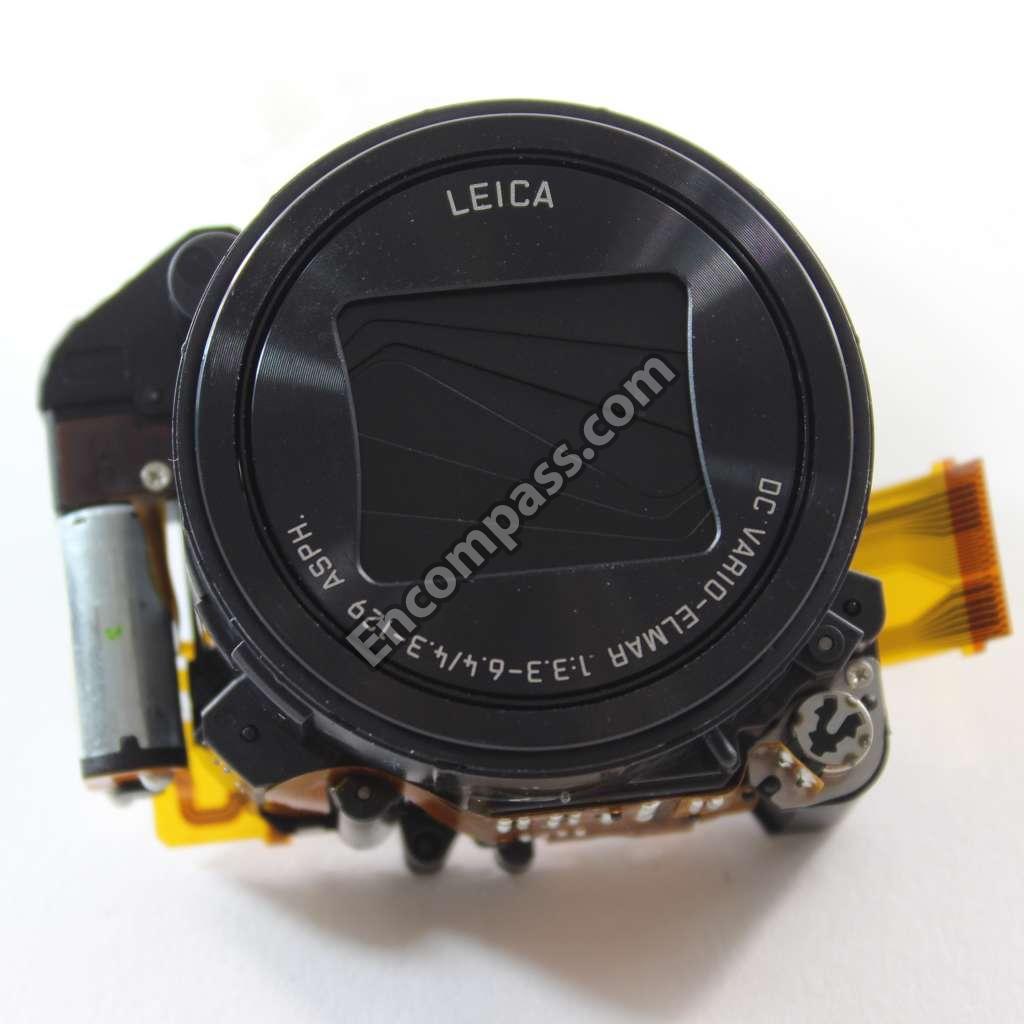

SXW0317 SXW0317 LENS UNIT (W/O MOS)
ML-421S_DB ML-421S_DB LITHIUM COIN BATTERY
C0DBGYY00779 C0DBGYY00779 LOGIC IC
1SE1DCTZ95K 1SE1DCTZ95K LVF
SXQ0667 SXQ0667 MASTER FLANGE UNIT
VMT2027 VMT2027 MIC CUSHION
DVHX1065Z DVHX1065Z MIC SPACER
SEP0752AB SEP0752AB MIC UNIT
1SE1Z191K3Z 1SE1Z191K3Z MOS UNIT
B4ZZ00000031 B4ZZ00000031 MR SENSOR
3GE4DCTZ95 3GE4DCTZ95 PC BOARD
3KE2CTZ95K 3KE2CTZ95K PC BOARD
1PB1DVLB1434Z 1PB1DVLB1434Z PC BOARD
1PB1DV1074Z 1PB1DV1074Z PC BOARD, BATTERY
SGQ0682 SGQ0682 PCB SPACER
DVGE1275Z DVGE1275Z PLATE
DVME1308Z DVME1308Z PLATE
STJ0175 STJ0175 REAR OPERATION FPC
VHD2515 VHD2515 SCREW
VHD2492 VHD2492 SCREW
VHD2457 VHD2457 SCREW
VHD2451 VHD2451 SCREW
VHD2390 VHD2390 SCREW
VHD2388 VHD2388 SCREW
VHD2371 VHD2371 SCREW
VHD2369 VHD2369 SCREW
VHD2240 VHD2240 SCREW
VHD2239 VHD2239 SCREW
DVHD1040Z DVHD1040Z SCREW
VHD2409 VHD2409 SCREW SILVER
K1NA09E00166 K1NA09E00166 SD CARD CONNECTOR
RSC0997 RSC0997 SHEET
DVGE1685Z DVGE1685Z SHEET
1GE6DC2901Z 1GE6DC2901Z SPACER
L0AA01A00182 L0AA01A00182 SPEAKER
SYK1383 SYK1383 SPEAKER FIX PLATE UNIT
VMB4304 VMB4304 SPRING
DVKV1008Z DVKV1008Z STRAP COVER (L)
DVKV1009Z DVKV1009Z STRAP COVER (R)
DVME1058Z DVME1058Z STRAP PLATE (L)
DVME1059Z DVME1059Z STRAP PLATE (R)
VMP0H67 VMP0H67 TOP EARTH PLATE
SMP0289 SMP0289 TOP EARTH PLATE B
STJ0173 STJ0173 TOP FPC
VGQ1S23 VGQ1S23 TRIPOD
K1HY04YY0106 K1HY04YY0106 USB CABLE
