Model Image
Manufacturer

Panasonic

Model Number

DMCFH5K

Description

Digital Still Camera

Interactive Exploded View

Parts List

Part Number Description
DE-A91BA_SX DE-A91BA_SX BATTERY CHARGER
VGU0H60 VGU0H60 BUTTON
VGU0H59 VGU0H59 BUTTON
VGU0H52 VGU0H52 BUTTON
K1HY08YY0016 K1HY08YY0016 CABLE
K1HY08YY0031 K1HY08YY0031 CABLE
F2A2F4000003 F2A2F4000003 CAPACITOR
VYK4Q80 VYK4Q80 CASE
VYK4Q66 VYK4Q66 CASE
VYK4Q31 VYK4Q31 CASE
VYK4P55 VYK4P55 CASE
VMP9889 VMP9889 CASE
VEK0R39 VEK0R39 CCD
G5F1A0000026 G5F1A0000026 COIL
K4ZZ01000292 K4ZZ01000292 CONNECTOR
K1MY14BA0370 K1MY14BA0370 CONNECTOR
K1KY16AA0749 K1KY16AA0749 CONNECTOR
VGQ0W04 VGQ0W04 CUSHION
VYK5C93 VYK5C93 DISPLAY
VYK4P98 VYK4P98 DOOR
VKF4813 VKF4813 DOOR
VMT2137 VMT2137 DUMPER
VMT2136 VMT2136 DUMPER
J0JCC0000415 J0JCC0000415 FILTER
EFN-AMCJ5ZD EFN-AMCJ5ZD FLASH
VWJ2251 VWJ2251 FPC
VMP9888 VMP9888 FRAME
C0ZBZ0001817 C0ZBZ0001817 IC
VGU0H63 VGU0H63 KNOB
VGU0H61 VGU0H61 KNOB
B3ADB0000170 B3ADB0000170 LED

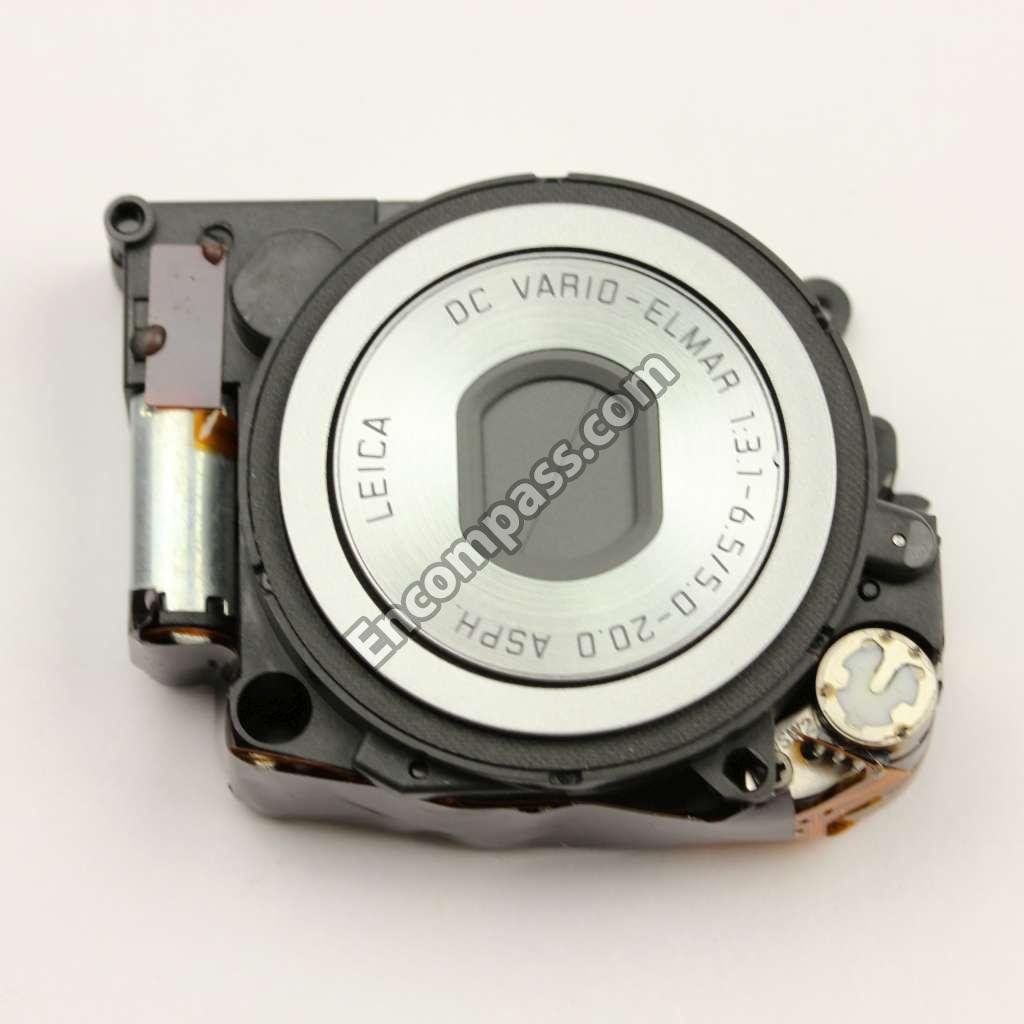

VXW1249 VXW1249 LENS
VXW1209 VXW1209 LENS
VGL1365 VGL1365 LIGHT
L0CBAY000093 L0CBAY000093 MIC
VGK3738 VGK3738 ORNAMENT
VGK3726 VGK3726 ORNAMENT
VPN7174 VPN7174 PACKAGING
VPF1372-A VPF1372-A PACKAGING
VYP9332 VYP9332 PANEL
VEP58151A VEP58151A PC BOARD
VEP58150A VEP58150A PC BOARD
VEP56127A VEP56127A PC BOARD
VMP9890 VMP9890 PLATE
VMP9887 VMP9887 PLATE
VHD2302 VHD2302 SCREW
VHD2300 VHD2300 SCREW
VHD2210 VHD2210 SCREW
VHD2206 VHD2206 SCREW
VHD2205 VHD2205 SCREW
VHD2004 VHD2004 SCREW
VHD1871 VHD1871 SCREW
VHD1759 VHD1759 SCREW
VMS7863 VMS7863 SHAFT
VGQ0V91 VGQ0V91 SHEET
VGQ0V90 VGQ0V90 SHEET
VGQ0V71 VGQ0V71 SHEET
VGQ0U65 VGQ0U65 SHEET
VGQ0T93 VGQ0T93 SHEET
VGQ0S42 VGQ0S42 SHEET
VGQ0S04 VGQ0S04 SPACER
L0AA01A00102 L0AA01A00102 SPEAKER
VMB4452 VMB4452 SPRING
VMB4450 VMB4450 SPRING
VMB4152 VMB4152 SPRING
VMB4143 VMB4143 SPRING
VFC4297-B VFC4297-B STRAP
K0L1CB000003 K0L1CB000003 SWITCH
K0F212A00003 K0F212A00003 SWITCH
K0F111A00541 K0F111A00541 SWITCH
K0D112B00145 K0D112B00145 SWITCH
B1JBLP000030 B1JBLP000030 TRANSISTOR
