Model Image
Manufacturer

Panasonic

Model Number

DMCFZ2000

Description

Lumix Super Zoom Bridge Camera

Interactive Exploded View

Parts List

Part Number Description
1OU1FZH1L1Z 1OU1FZH1L1Z 1ST LENS FRAME UNIT
1OU1FZH1L2Z 1OU1FZH1L2Z 2ND-INNER FRAME UNIT
SXP0155 SXP0155 3G SHUTTER UNIT
SXP0156 SXP0156 4TH-5TH LENS FRAME UNIT
K2CJ2YY00052 K2CJ2YY00052 AC CORD W/PLUG GN
VPF1542 VPF1542 BAG, POLYETHYLENE
4KM2MCFZH1Z 4KM2MCFZH1Z BATTERY CASE UNIT
DE-A79BB DE-A79BB BATTERY CHARGER P,PP
VMS8026 VMS8026 BATTERY DOOR SHAFT
SMB0038 SMB0038 BATTERY DOOR SPRING
3KK1MCFZH1Z 3KK1MCFZH1Z BATTERY DOOR UNIT
SMP0344 SMP0344 BATTERY EARTH
SMP0342 SMP0342 BATTERY PLATE
ML-421S_DB ML-421S_DB BUTTON BATTERY (B8001)
SXQ0757 SXQ0757 CAM FRAME UNIT
SPF0081 SPF0081 CAMERA BAG
SGQ0832 SGQ0832 CAPACITOR COVER
SGQ0285 SGQ0285 CAPACITOR TAPE
SKF0155K SKF0155K COUPLER COVER
SPN0556 SPN0556 CUSHION
F9Z000000038 F9Z000000038 E.CAPACITOR (C8003)
SMA0413 SMA0413 EARTH PLATE

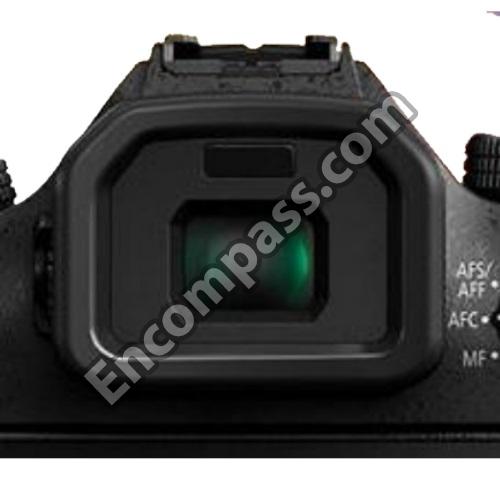

1KE1MCFZH1Z 1KE1MCFZH1Z EYE CUP UNIT
SKK0439K SKK0439K FLASH CASE TOP
SMP0341 SMP0341 FLASH EARTH PLATE
SGU0021 SGU0021 FLASH LOCK KNOB
2SE1MCFZH1Z 2SE1MCFZH1Z FLASH P.C.B. UNIT

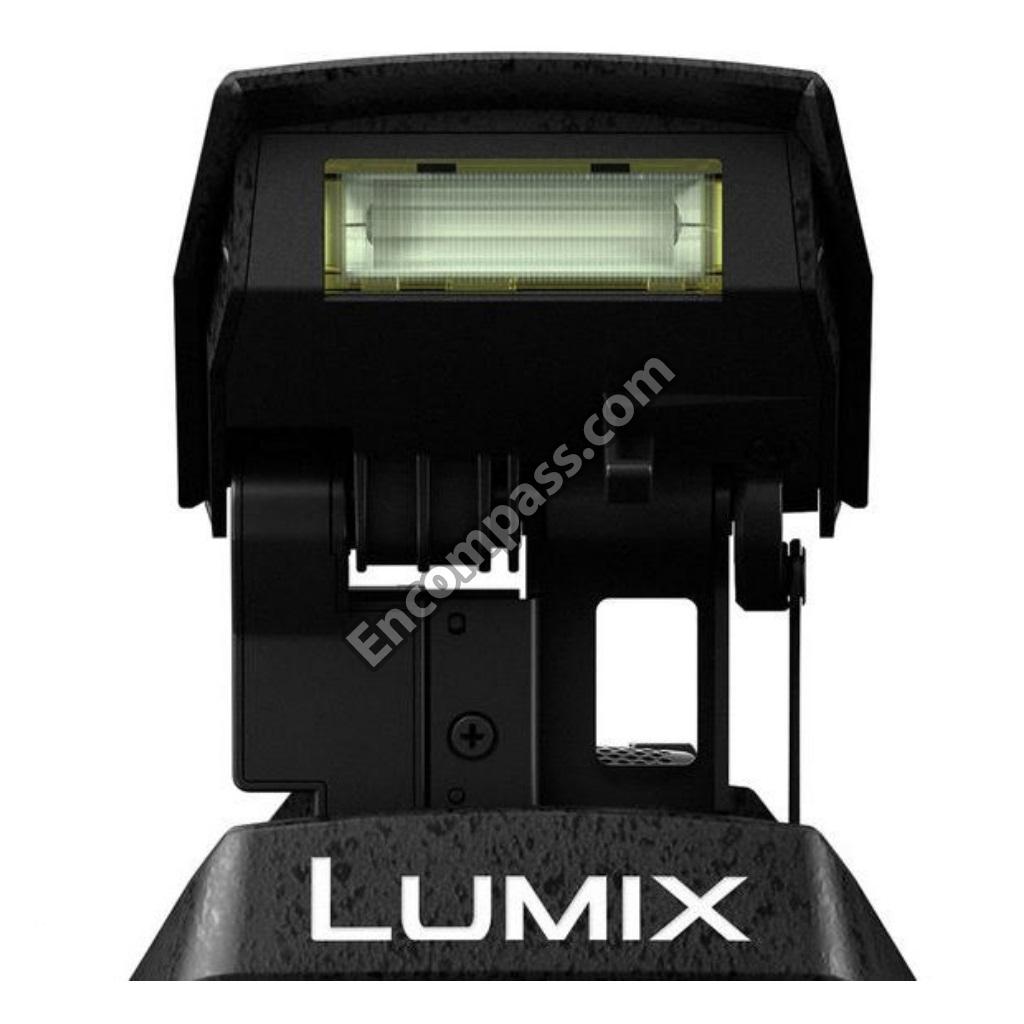

2KE1MCFZH1Z 2KE1MCFZH1Z FLASH UNIT
VGQ1U00 VGQ1U00 FPC TAPE
1KM2MCFZH1Z 1KM2MCFZH1Z FRONT CASE UNIT
SGQ0823 SGQ0823 FRONT GRIP
DVMC1028Z DVMC1028Z GASKET
DVMC1023Z DVMC1023Z GASKET
DVMC1019Z DVMC1019Z GASKET
VQL2J61 VQL2J61 GD LABEL GD

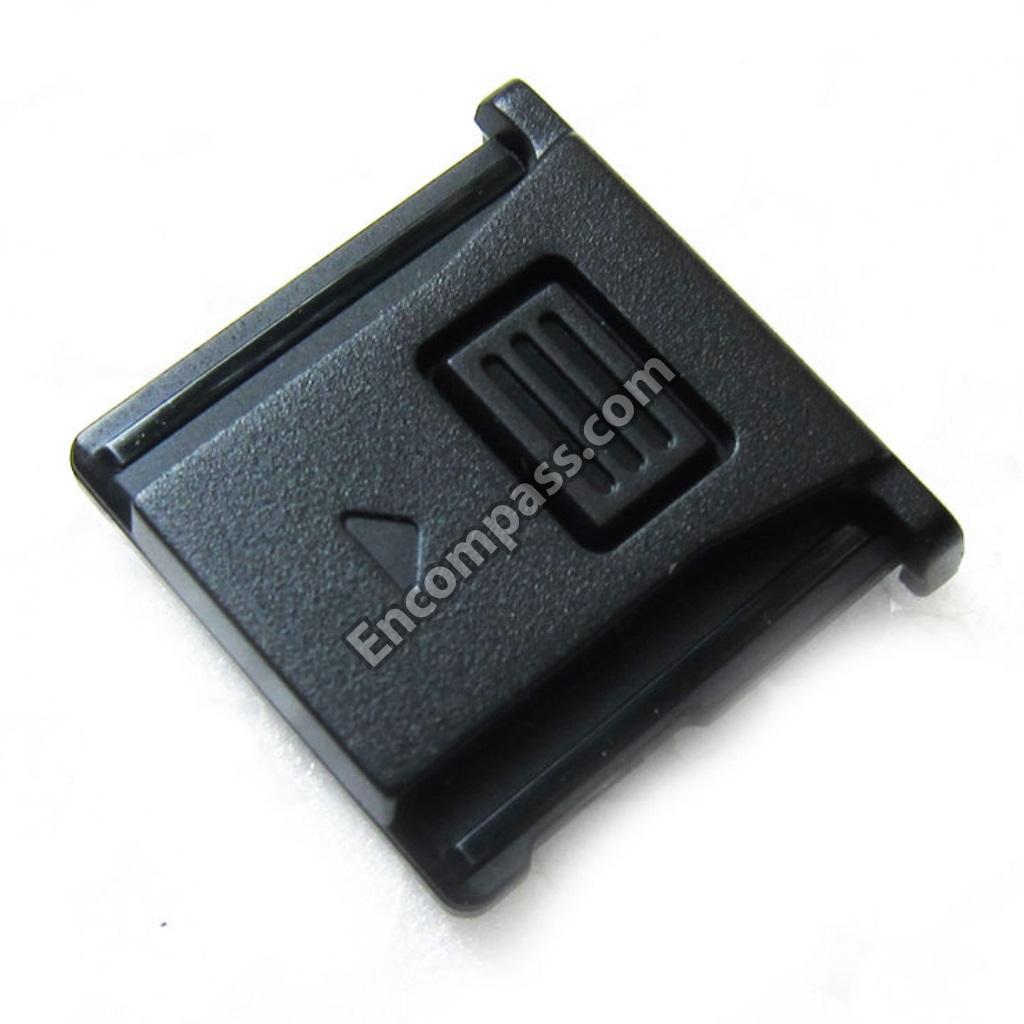

VYF3522 VYF3522 HOT SHOE COVER
SMP0340 SMP0340 HOT SHOE PLATE
VEK0U23-M VEK0U23-M HOT SHOE UNIT
1KK1MCFZH1Z 1KK1MCFZH1Z JACK HOLDER UNIT
SMP0205 SMP0205 LCD BEZEL
SGQ0627 SGQ0627 LCD BEZEL SHEET
SKK0310K SKK0310K LCD CASE BOTTOM
VMP0D70 VMP0D70 LCD EARTH PLATE
SEP0849AA SEP0849AA LCD IF P.C.B.
3GE2MCFZH1Z 3GE2MCFZH1Z LCD TOP CASE UNIT

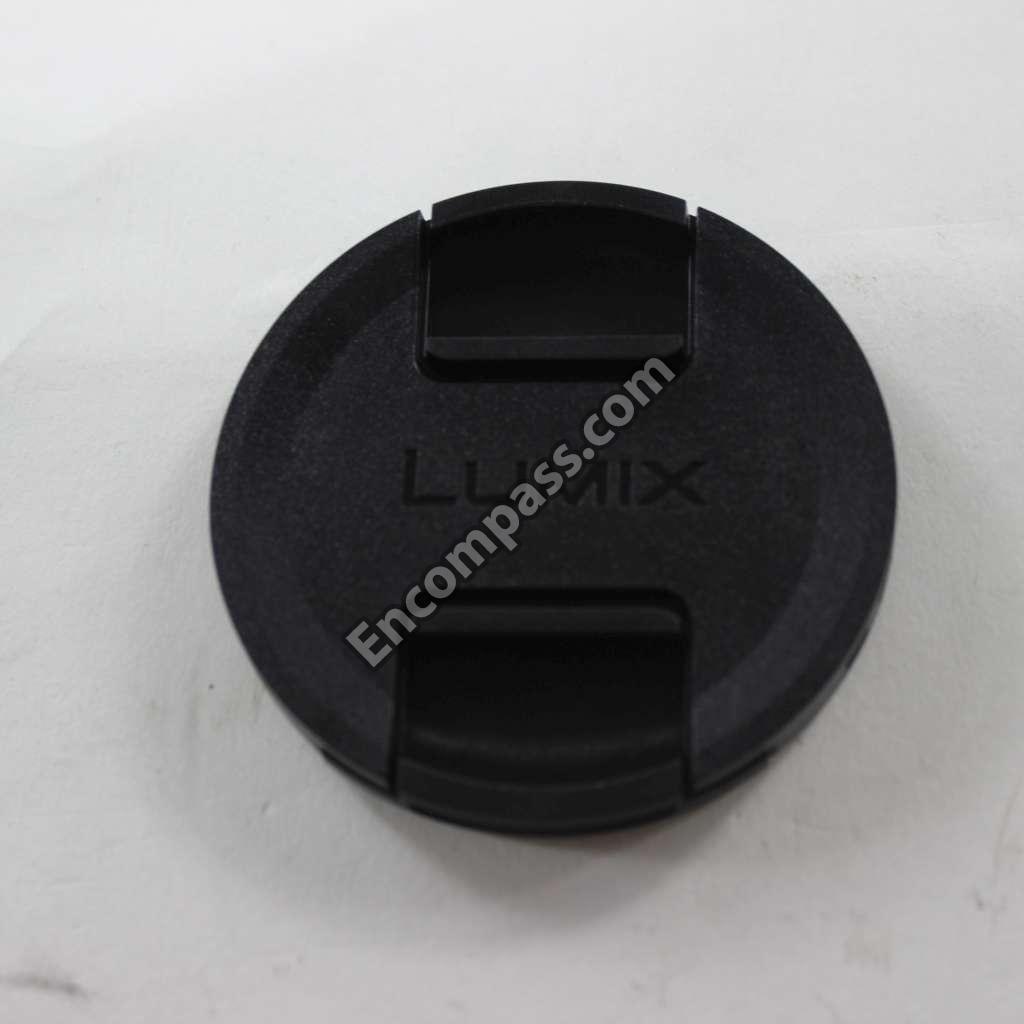

SYQ0862 SYQ0862 LENS CAP
1OU1FZH1L3Z 1OU1FZH1L3Z LENS EXTERIOR UNIT
1SE1FZH1Z 1SE1FZH1Z LENS FPC UNIT
SYQ0847 SYQ0847 LENS HOOD
SMP0336 SMP0336 LENS PLATE
SDW0421K SDW0421K LENS RING FOOT
SMP0337 SMP0337 LENS TOP PLATE
1OU1FZH1L4Z 1OU1FZH1L4Z LENS UNIT(W/O MOS)
4SE1MCFZH1Z 4SE1MCFZH1Z LVF UNIT
SEP0881AA SEP0881AA MAIN P.C.B. (RTL) E.S.D.
SGQ0072 SGQ0072 MIC CUSHION TOP
DVGM1001Z DVGM1001Z MIC NET
SGQ0066 SGQ0066 MIC NET B
VGQ8918-B VGQ8918-B MICROPHONE TAPE
1SE1FZH1L4Z 1SE1FZH1L4Z MOS UNIT
SEP0433AA SEP0433AA MR SW FPC
SEP0886AA SEP0886AA MULTI FPC
SPK0229 SPK0229 PACKING CASE P,PP,GA,GC,GH,GN,GD
SPN0557 SPN0557 PAD
SZT0318 SZT0318 RADIATION SHEET
1KM1DC2610Z 1KM1DC2610Z REAR CASE UNIT
SGQ0824 SGQ0824 REAR GRIP
SDW0423K SDW0423K REAR RING
2KK1MCFZH1Z 2KK1MCFZH1Z REMOTE COVER UNIT
VHD2351 VHD2351 SCREW
VHD1974 VHD1974 SCREW
VHD2296 VHD2296 SCREW
VHD2476 VHD2476 SCREW
XQN16_BJ65FC XQN16_BJ65FC SCREW
XQN16_BJ4FN XQN16_BJ4FN SCREW
XQN14_BJ4FNK XQN14_BJ4FNK SCREW
VHD2471 VHD2471 SCREW
VHD2438 VHD2438 SCREW
VHD2325 VHD2325 SCREW
VHD2301-A VHD2301-A SCREW
VHD2247-A VHD2247-A SCREW
VHD2178 VHD2178 SCREW
VHD2337 VHD2337 SCREW
VHD2206 VHD2206 SCREW
XQN16_BJ5FN XQN16_BJ5FN SCREW
VHD2457 VHD2457 SCREW
VHD2200 VHD2200 SCREW
XTV2_8JFN XTV2_8JFN SCREW
VMC2111 VMC2111 SHOE SPRING
DVPW1002Z DVPW1002Z SHOULDER STRAP
SYU0085 SYU0085 SIDE OPERATION UNIT
VGQ0P93 VGQ0P93 TAPE
SGQ0212 SGQ0212 THERMAL SHEET
VMB4541 VMB4541 TILT SPRING
2KM2MCFZH1Z 2KM2MCFZH1Z TOP CASE UNIT

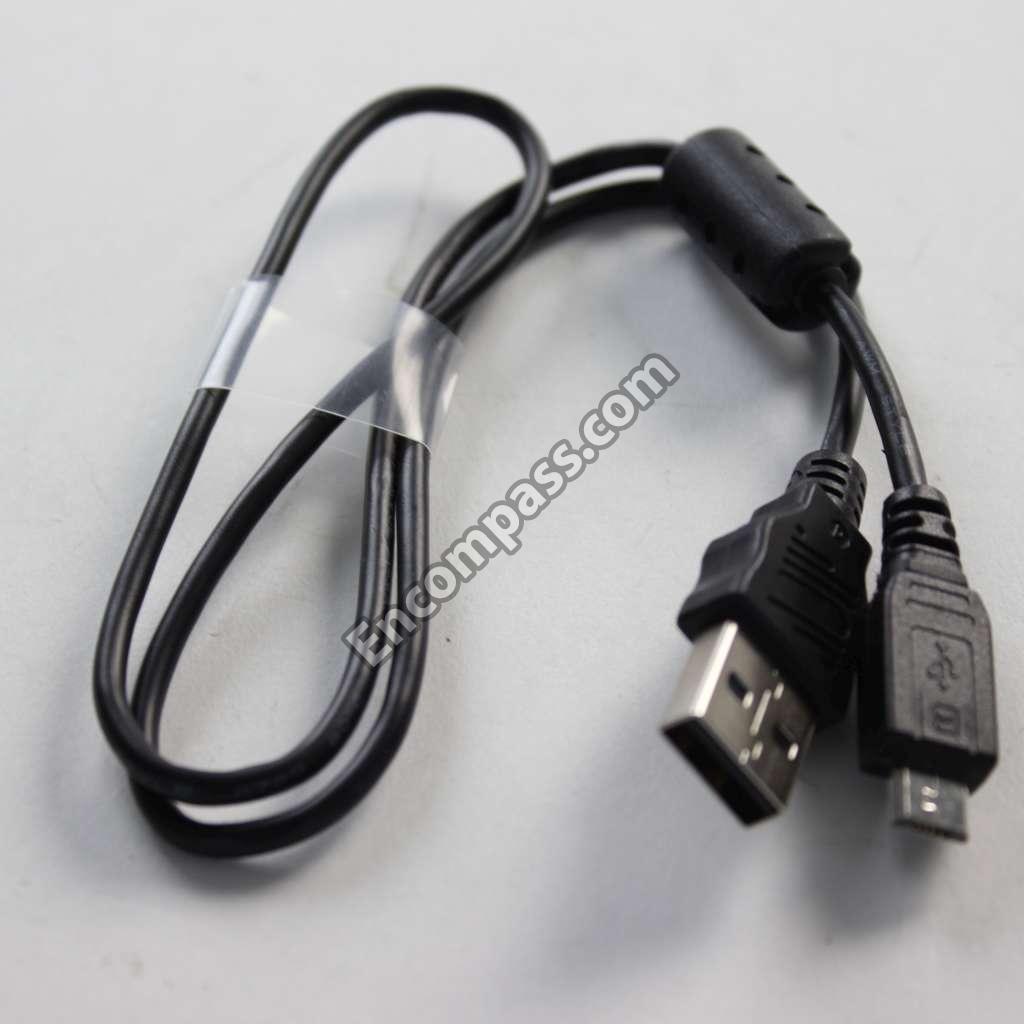

K1HY04YY0106 K1HY04YY0106 USB CABLE W/PLUG
SMQ1098 SMQ1098 USB JACK HOLDER
SMC0092 SMC0092 WAVE WASHER
L6DBYYYE0001 L6DBYYYE0001 ZOOM MOTOR
