Model Image
Manufacturer

Panasonic

Model Number

DMCGX85WK

Description

Lumix Gx85 4k Mirrorless Camera

Interactive Exploded View

Parts List

Part Number Description
K1MY16BA0641 K1MY16BA0641 16P CONNECTOR
SAE0012AC SAE0012AC AC ADAPTER
VMS8262-A VMS8262-A BATTERY DOOR SHAFT
VMB4767 VMB4767 BATTERY DOOR SPRING
SGU0069 SGU0069 BATTERY LOCK KNOB - K
VMB4516 VMB4516 BATTERY-OUT SPRING
F1H0J1060009 F1H0J1060009 C.CAPACITOR CH 6.3V 10U
F1H1A105A025 F1H1A105A025 CAPACITOR
F1G1H4710004 F1G1H4710004 CAPACITOR
F1G1H470A557 F1G1H470A557 CAPACITOR CERAMIC CHIP
F1J1A106A043 F1J1A106A043 CER CAPACITOR 10U 10V
F1G0J1050007 F1G0J1050007 CERAMIC CAPACITOR
F1G1E102A086 F1G1E102A086 CERAMIC CAPACITOR MULTI
F1G1C1030008 F1G1C1030008 CERAMIC CAPACITOR MULTI
F1G1A104A001 F1G1A104A001 CERAMIC CAPACITOR MULTI
F1K2E4730005 F1K2E4730005 CERAMIC CAPACITOR MULTI L
F1J1C106A059 F1J1C106A059 CERAMIC CAPACITOR MULTI L
ECJ1VB0J475K ECJ1VB0J475K CHIP CAPACITOR 16V 4 7UF
D0GA183JA023 D0GA183JA023 CHIP RESISTOR
J0JGC0000038 J0JGC0000038 COIL
K1MY61BA0556 K1MY61BA0556 CONNECTOR
K1MY10BA0557 K1MY10BA0557 CONNECTOR 10P
K1MY25BA0556 K1MY25BA0556 CONNECTOR 25P
K4ZZ04000064 K4ZZ04000064 CONNECTOR 4P
K1MY04BA0370 K1MY04BA0370 CONNECTOR 4P
K1MY61BA0647 K1MY61BA0647 CONNECTOR 61P
K1MY06BA0557 K1MY06BA0557 CONNECTOR 6P
K1NA09E00151 K1NA09E00151 CONNECTOR 9P
VGH5307 VGH5307 DECORATION RING
VYC1134 VYC1134 DECORATION RING UNIT
B3ADB0000244 B3ADB0000244 DIODE
B2ABAP000007 B2ABAP000007 DIODE
B3ABB0000331 B3ABB0000331 DIODE SI
VMF0608 VMF0608 DUST PROOF RING
SEP0153AA SEP0153AA EYE SENSOR FPC
VDW2510 VDW2510 FILTER RING
VMG2117 VMG2117 FLOATING RUBBER
VMG1855 VMG1855 FLOATING RUBBER
VYF3201 VYF3201 FRONT LENS CAP
ERBRD1R50X ERBRD1R50X FUSE
ERBRD2R00X ERBRD2R00X FUSE 32V 2.0A
ERBRE2R50V ERBRE2R50V FUSE 32V 2.5A
K5H1512A0024 K5H1512A0024 FUSE 50V 0.15A
VKF5259 VKF5259 HOT SHOE COVER
SUBF000022 SUBF000022 IC
C1ZBZ0005562 C1ZBZ0005562 IC
C0ZBZ0002264 C0ZBZ0002264 IC
C0DBZYY00721 C0DBZYY00721 IC
C0DBGYY06165 C0DBGYY06165 IC
C0DBGYY05590 C0DBGYY05590 IC
C0DBGYY05584 C0DBGYY05584 IC
C0DBGYY05582 C0DBGYY05582 IC
C0DBAYY02385 C0DBAYY02385 IC
C0BBAA000116 C0BBAA000116 IC
B3NBB0000009 B3NBB0000009 IC
C1ZBZ0004906 C1ZBZ0004906 IC, LINEAR
C0ZBZ0002095 C0ZBZ0002095 IC, LINEAR
C0ZBZ0001817 C0ZBZ0001817 IC, LINEAR
C0DBGYY03644 C0DBGYY03644 IC, LINEAR
C0DBGYY03640 C0DBGYY03640 IC, LINEAR
C0DBGYY03614 C0DBGYY03614 IC, LINEAR
C0DBGYY02368 C0DBGYY02368 IC, LINEAR
C0DBAYY01798 C0DBAYY01798 IC, LINEAR
C0ABGA000035 C0ABGA000035 IC, LINEAR
VUEALLPT053 VUEALLPT053 IC,DIGITAL ACCELEROMETER
K1FY119E0057 K1FY119E0057 JACK, HDMI
K1FY105E0014 K1FY105E0014 JACK, USB
VXQ2283 VXQ2283 L MOUNT UNIT
B3AAB0000343 B3AAB0000343 LED

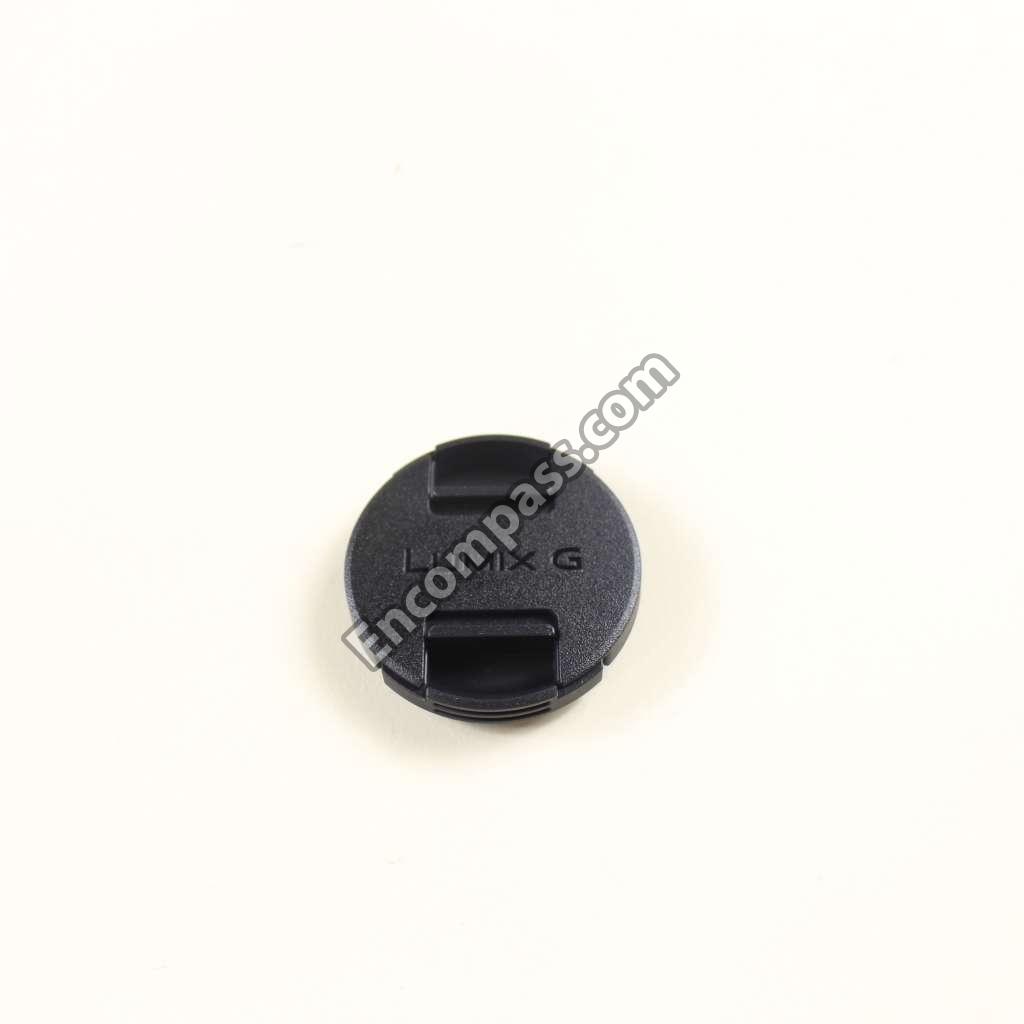

SYF0059-M SYF0059-M LENS CAP
VYC1090 VYC1090 LENS HOOD UNIT
VEJ2333 VEJ2333 LENS MOUNT CONTACT UNIT
VFC4605 VFC4605 LENS REAR CAP
SXW0203 SXW0203 LENS UNIT
ML-421S_DN ML-421S_DN LITHIUM COIN BATTERY
C0DBGYY00779 C0DBGYY00779 LOGIC IC
STJ0059 STJ0059 LVF FPC

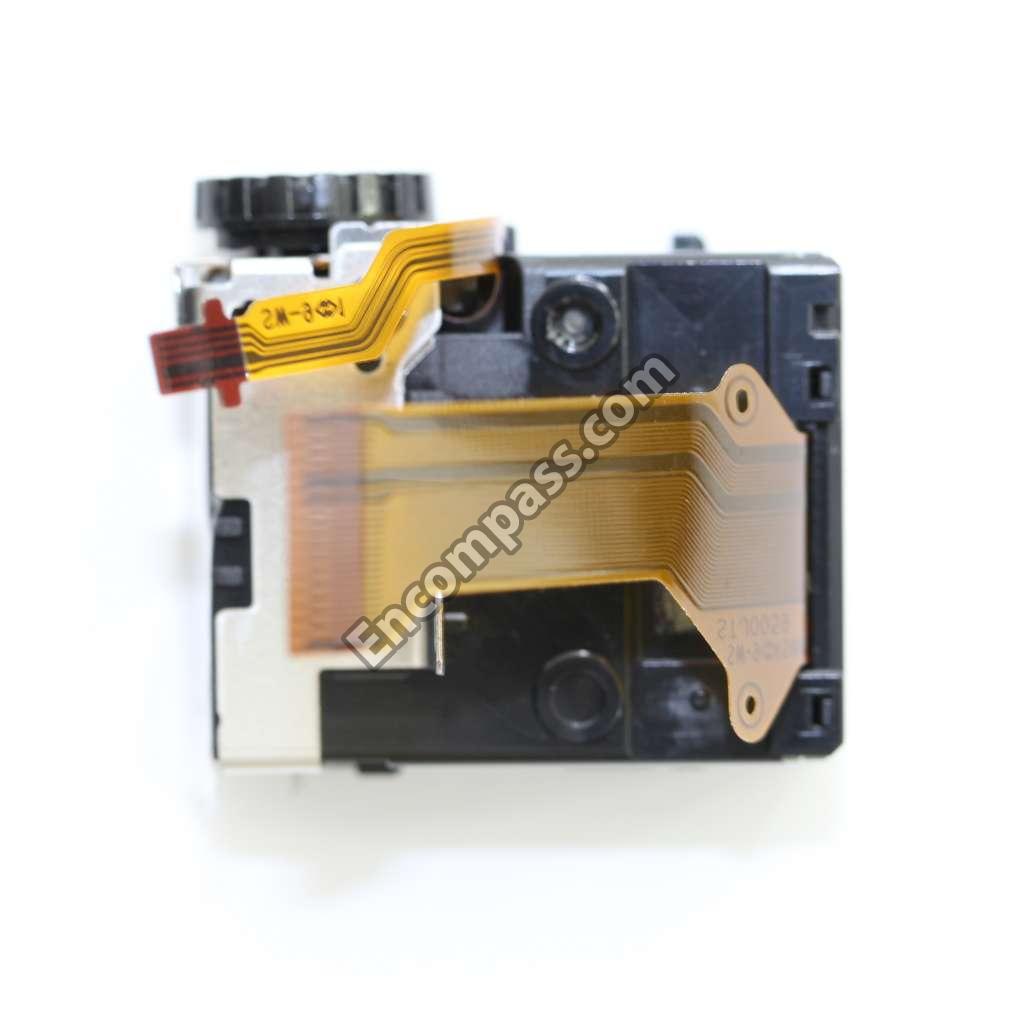

L5EDDYY00516 L5EDDYY00516 LVF MODULE
SYK1191 SYK1191 LVF UNIT
D1BA5601A022 D1BA5601A022 M.RESISTOR CH 1/16W 5.6K
D0GB121JA065 D0GB121JA065 METAL GLAZE FILM RESISTOR
D0GB104JA065 D0GB104JA065 METAL GLAZE RESISTOR
D0GA681JA023 D0GA681JA023 METAL GLAZE RESISTOR 0 06
D0GA680JA023 D0GA680JA023 METAL GLAZE RESISTOR 0 06
D0GA473JA023 D0GA473JA023 METAL GLAZE RESISTOR 0 06
D0GA472JA023 D0GA472JA023 METAL GLAZE RESISTOR 0 06
D0GA223JA023 D0GA223JA023 METAL GLAZE RESISTOR 0 06
D0GA222JA023 D0GA222JA023 METAL GLAZE RESISTOR 0 06
D0GA151JA023 D0GA151JA023 METAL GLAZE RESISTOR 0 06
D0GA103JA023 D0GA103JA023 METAL GLAZE RESISTOR 0 06
D0GA102JA023 D0GA102JA023 METAL GLAZE RESISTOR 0 06
D0GA101JA023 D0GA101JA023 METAL GLAZE RESISTOR 0 06
VMT2027 VMT2027 MIC CUSHION
VEK0U87 VEK0U87 MOUNT CONTAT UNIT
D1H86804A042 D1H86804A042 NETWORK RESISTER
VDW2714 VDW2714 PC BOARD FRAME
VXW1724 VXW1724 REAR FRAME UNIT - K
D1BD4703A119 D1BD4703A119 RESISTOR
D1BA1621A022 D1BA1621A022 RESISTOR
D0GD514JA052 D0GD514JA052 RESISTOR
D0GD106JA052 D0GD106JA052 RESISTOR
D0GA822JA023 D0GA822JA023 RESISTOR
D1BA1001A022 D1BA1001A022 RESISTOR 1K 1/16W
K0G199A00010 K0G199A00010 ROTARY SWITCH
VHD2480 VHD2480 SCREW
VHD2457 VHD2457 SCREW
VHD2431 VHD2431 SCREW
VHD2416 VHD2416 SCREW
VHD2384 VHD2384 SCREW
VHD2337 VHD2337 SCREW
VHD2300 VHD2300 SCREW
VHD2296 VHD2296 SCREW
VHD2291 VHD2291 SCREW
VHD2246 VHD2246 SCREW
VHD2240 VHD2240 SCREW
VHD2239 VHD2239 SCREW
VHD2190 VHD2190 SCREW
VHD2096 VHD2096 SCREW
VHD1997 VHD1997 SCREW
VHD1868 VHD1868 SCREW
VHD1681 VHD1681 SCREW STEEL
VDW2511 VDW2511 SHADING FRAME
VMC2111 VMC2111 SHOE SPRING
VFC5167 VFC5167 SHOULDER STRAP
VMB4304 VMB4304 SPRING
K0L1BA000152 K0L1BA000152 SWITCH
K0F212A00006 K0F212A00006 SWITCH
DA2SF650EL DA2SF650EL SWITCHING DIODES
G5DYA0000152 G5DYA0000152 TRANSFORMER
FK3503010L FK3503010L TRANSISTOR
B1JBLP000030 B1JBLP000030 TRANSISTOR
B1GKCFJN0008 B1GKCFJN0008 TRANSISTOR RESISTOR
K1HY04YY0106 K1HY04YY0106 USB CABLE
D4ED18R00008 D4ED18R00008 VARISTOR
DZ2J082M0L DZ2J082M0L ZENER DIODE
