Model Image
Manufacturer

Matsushita

Model Number

DMCTS20

Description

Digital Still Camera

Interactive Exploded View

Parts List

Part Number Description
VQT4B00 ADVANCED OWNERS MANUAL
K1HY08YY0026 K1HY08YY0026 AV CABLE

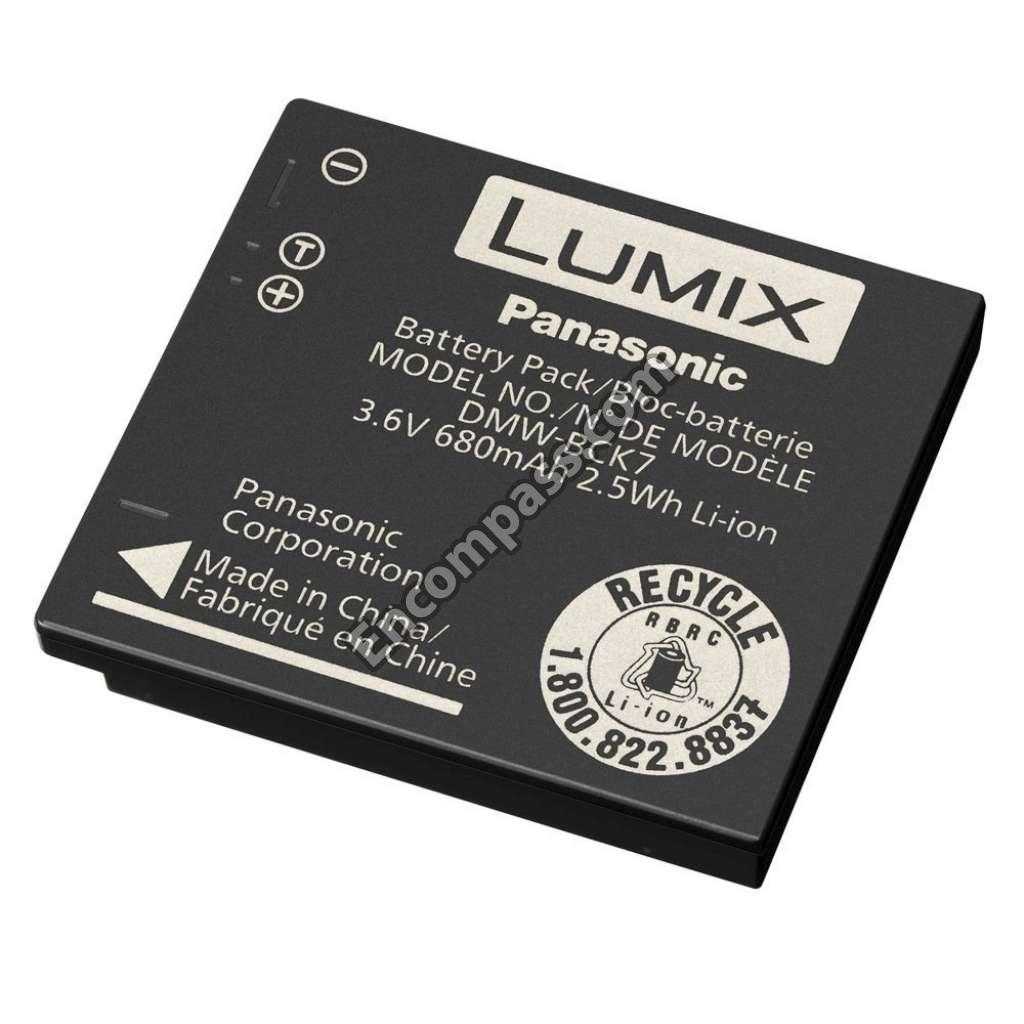

DMW-BCK7 DMW-BCK7 BATTERY
VGU0L08 VGU0L08 BUTTON
VGU0L07 VGU0L07 BUTTON
VGU0L06 VGU0L06 BUTTON
VGU0L05 VGU0L05 BUTTON
VGU0L04 VGU0L04 BUTTON
VGU0L03 VGU0L03 BUTTON
VGU0L02 VGU0L02 BUTTON
DMW-USBC1 DMW-USBC1 CABLE
F2A2F7500001 F2A2F7500001 CAPACITOR
VYK5V84 VYK5V84 CASE
VYK5R91 VYK5R91 CASE
VYK5R90 VYK5R90 CASE
VYK5R89 VYK5R89 CASE
VYK5R86 VYK5R86 CASE
VYK5R43 VYK5R43 CASE
VMP0B94 VMP0B94 CASE
VKM9859 VKM9859 CASE
VKM9858 VKM9858 CASE
VKM9857 VKM9857 CASE
VKM9856 VKM9856 CASE
VKM9725 VKM9725 CASE
VFF0960-S VFF0960-S CD ROM

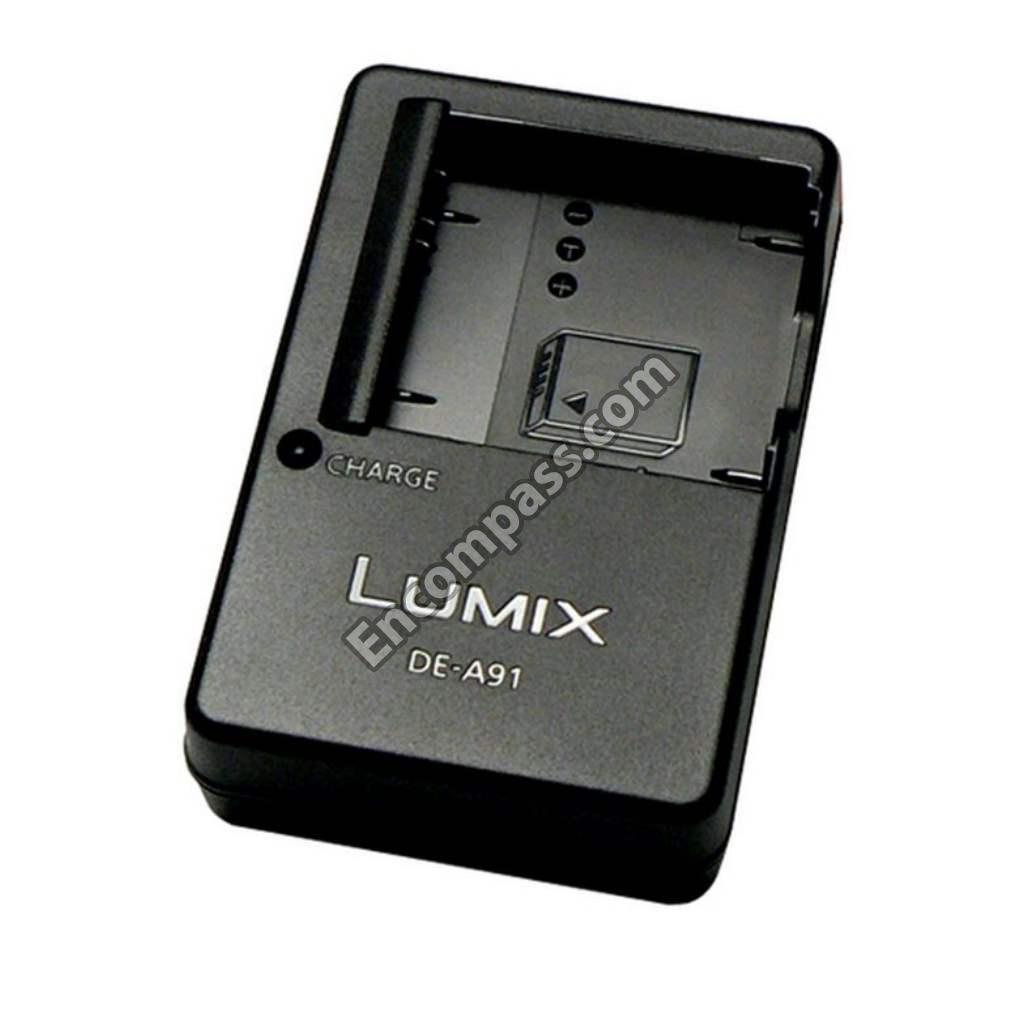

DE-A91BA DE-A91BA CHARGER
K4ZZ04000059 K4ZZ04000059 CONNECTOR
RFKZ0591 RFKZ0591 DIFFUSER
DB3S406F0L DB3S406F0L DIODE
B0ADDH000014 B0ADDH000014 DIODE
VYK6R72 VYK6R72 DISPLAY
VYF3474 VYF3474 DOOR
RFZF0245 RFZF0245 FLASH
VWJ2316 VWJ2316 FPC
VWJ2312 VWJ2312 FPC
K5H202Y00007 K5H202Y00007 FUSE
RS10542 RS10542 IC
C1ZBZ0004597 C1ZBZ0004597 IC
C1AB00003797 C1AB00003797 IC
C1AB00003785 C1AB00003785 IC
RFKZ0528 RFKZ0528 KIT
VXW1426 VXW1426 LENS
ML-421S_DN ML-421S_DN LITHIUM BATTERY
VKM9729 VKM9729 ORNAMENT
VYQ7503 VYQ7503 PACKAGING
VYQ7497 VYQ7497 PACKAGING
VYQ7489 VYQ7489 PACKAGING
VYQ7483 VYQ7483 PACKAGING
VXK2017 VXK2017 PC BOARD
VEP58163A VEP58163A PC BOARD
VEP56146A VEP56146A PC BOARD
VEP51030A VEP51030A PC BOARD
VEP50095A VEP50095A PC BOARD
VXK2016 VXK2016 PLATE
VXK2007 VXK2007 PLATE
VMP0C00 VMP0C00 PLATE
ERGSJ102 ERGSJ102 RESISTOR
D1BA1R00A079 D1BA1R00A079 RESISTOR
D0GA824JA023 D0GA824JA023 RESISTOR
VHD2378 VHD2378 SCREW
RP-SDU64GE1K RP-SDU64GE1K SD CARD
RP-SDU32GU1K RP-SDU32GU1K SD CARD
RP-SDU16GU1K RP-SDU16GU1K SD CARD
RP-SDU04GU1K RP-SDU04GU1K SD CARD
RP-SDL02GU1K RP-SDL02GU1K SD CARD
EWTS9PSL1A EWTS9PSL1A SENSOR
VMS8228 VMS8228 SHAFT
VMZ3929 VMZ3929 SHEET
VMZ3924 VMZ3924 SHEET
VGQ1D17 VGQ1D17 SHEET
VGQ1A58 VGQ1A58 SHEET
VGQ0X00 VGQ0X00 SHEET
L0AA01A00125 L0AA01A00125 SPEAKER
VMB4574 VMB4574 SPRING
VMB4567 VMB4567 SPRING
YTU93072M YTU93072M TEST TOOL
VFK1164TCM03 VFK1164TCM03 TEST TOOL
RFKZ0542 RFKZ0542 TEST TOOL
RFKZ0537 RFKZ0537 TEST TOOL
RFKZ0536 RFKZ0536 TEST TOOL
RFKZ0533 RFKZ0533 TEST TOOL
RFKZ0523 RFKZ0523 TEST TOOL
RFKZ0513 RFKZ0513 TEST TOOL
RFKZ0605 RFKZ0605 TEST TOOL
RFKZ0443 RFKZ0443 TEST TOOL
RFKZ0422 RFKZ0422 TEST TOOL
K1HY08YY0025 K1HY08YY0025 USB CABLE
VUMG2032 VUMG2032 WATERPROOF KIT
