Panasonic

Model Number

DMCTS30A

Description

Lumix Dmc-ts30 Waterproof Digital Camera

Interactive Exploded View

Parts List

Part Number Description
VGU0L02 VGU0L02 BUTTON
VGU0L03 VGU0L03 BUTTON
VGU0L04 VGU0L04 BUTTON
VGU0L05 VGU0L05 BUTTON
VGU0L06 VGU0L06 BUTTON
VGU0L07 VGU0L07 BUTTON
VGU0L08 VGU0L08 BUTTON
F1G0J1050007 F1G0J1050007 CAPACITOR
F1G1A104A001 F1G1A104A001 CAPACITOR
F1G1C1030008 F1G1C1030008 CAPACITOR
F1G1C104A077 F1G1C104A077 CAPACITOR
F1G1E102A086 F1G1E102A086 CAPACITOR
F1G1H100A834 F1G1H100A834 CAPACITOR
F1G1H101A834 F1G1H101A834 CAPACITOR
F1G1H120A834 F1G1H120A834 CAPACITOR
F1G1H122A830 F1G1H122A830 CAPACITOR
F1G1H150A834 F1G1H150A834 CAPACITOR
F1G1H470A834 F1G1H470A834 CAPACITOR
F1H0J1050013 F1H0J1050013 CAPACITOR
F1H0J1060009 F1H0J1060009 CAPACITOR
ECJ1VB0J475K ECJ1VB0J475K CAPACITOR
F1H1A225A025 F1H1A225A025 CAPACITOR
F1H1A4750004 F1H1A4750004 CAPACITOR
F1H1C105A097 F1H1C105A097 CAPACITOR
F1H1C105A167 F1H1C105A167 CAPACITOR
F1H1E105A144 F1H1E105A144 CAPACITOR
F1H1H104A913 F1H1H104A913 CAPACITOR
F1H1H105B027 F1H1H105B027 CAPACITOR
F1J1A106A043 F1J1A106A043 CAPACITOR
F1J1C106A059 F1J1C106A059 CAPACITOR
F1J1C475A059 F1J1C475A059 CAPACITOR
F1J1E4750002 F1J1E4750002 CAPACITOR
F1K2E4730005 F1K2E4730005 CAPACITOR
F2A2F7500001 F2A2F7500001 CAPACITOR
F3Z0E1070001 F3Z0E1070001 CAPACITOR
F5A84103A020 F5A84103A020 CAPACITOR
VKM0K12 VKM0K12 CASE
VMP0B94 VMP0B94 CASE
VYK5R43 VYK5R43 CASE
VYK6H98 VYK6H98 CASE
VYK6U47 VYK6U47 CASE
SFM0075 SFM0075 CD ROM
SAE0012AKT SAE0012AKT CHARGER

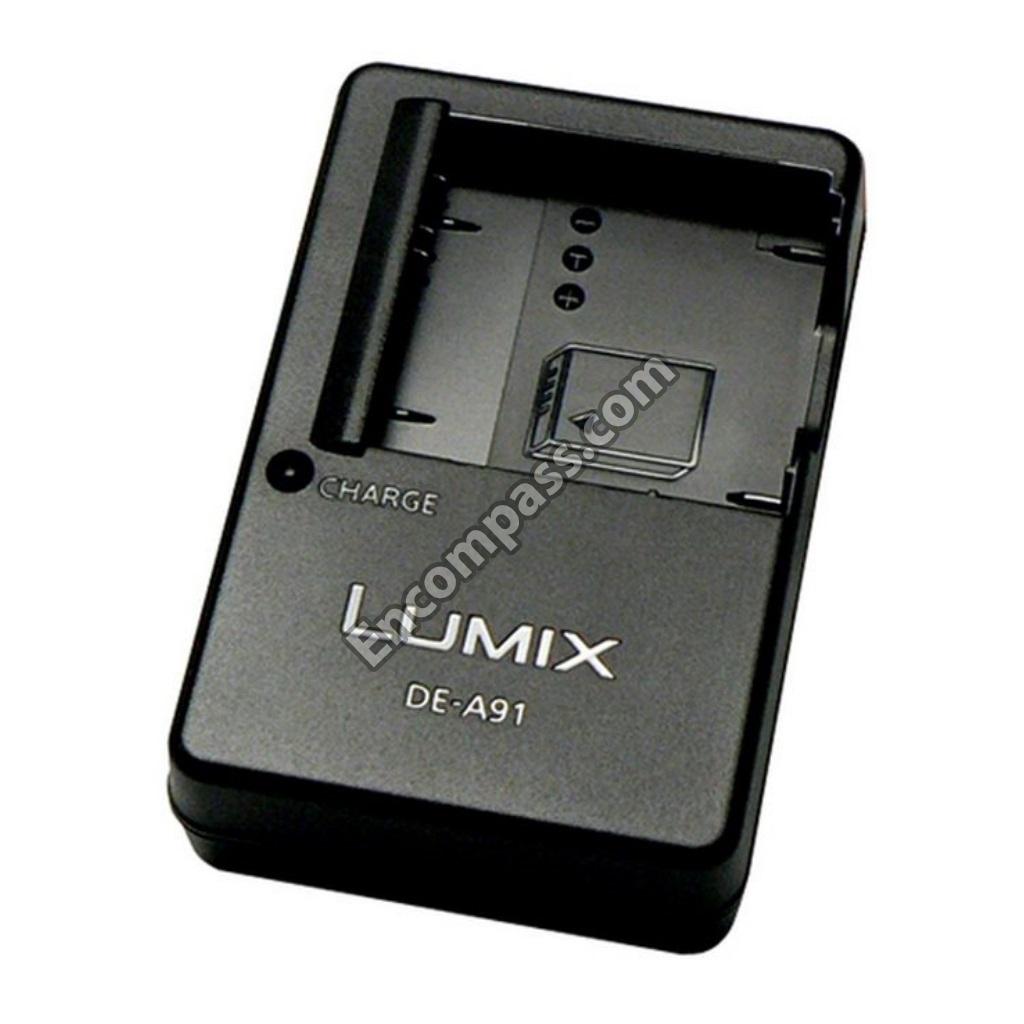

DE-A91BA_SXP DE-A91BA_SXP CHARGER
G1C6R8MA0392 G1C6R8MA0392 COIL
G5F1A0000026 G5F1A0000026 COIL
K1KA02ZA0001 K1KA02ZA0001 CONNECTOR
K1MY10BA0370 K1MY10BA0370 CONNECTOR
K1MY14BA0370 K1MY14BA0370 CONNECTOR
K1MY15BA0575 K1MY15BA0575 CONNECTOR
K1MY41BA0667 K1MY41BA0667 CONNECTOR
K1MY45BA0667 K1MY45BA0667 CONNECTOR
K1NA09E00098 K1NA09E00098 CONNECTOR
K4ZZ04000059 K4ZZ04000059 CONNECTOR
B0ADDH000014 B0ADDH000014 DIODE
B0ECFR000003 B0ECFR000003 DIODE
B0JCFC000003 B0JCFC000003 DIODE
B0JDDD000017 B0JDDD000017 DIODE
DA2S10100L DA2S10100L DIODE
VYK6E26 VYK6E26 DISPLAY
VYF3512 VYF3512 DOOR
J0JCC0000317 J0JCC0000317 FILTER
J0JCC0000397 J0JCC0000397 FILTER
J0JCC0000408 J0JCC0000408 FILTER
J0JCC0000412 J0JCC0000412 FILTER
J0JCC0000415 J0JCC0000415 FILTER
J0JYC0000108 J0JYC0000108 FILTER
J0ZZB0000142 J0ZZB0000142 FILTER
VEK0R44 VEK0R44 FLASH
VWJ2312 VWJ2312 FPC
VWJ2316 VWJ2316 FPC
ERBRE1R25V ERBRE1R25V FUSE
K5H202Y00007 K5H202Y00007 FUSE
C0DBGYY00779 C0DBGYY00779 IC
C0DBGYY01180 C0DBGYY01180 IC
C0DBGYY02557 C0DBGYY02557 IC
C0ZBZ0001938 C0ZBZ0001938 IC
C1AB00003785 C1AB00003785 IC
C1AB00003797 C1AB00003797 IC
C1ZBZ0004597 C1ZBZ0004597 IC
EWTS9PDL1A EWTS9PDL1A IC
MN89513 MN89513 IC
RS10760 RS10760 IC
G1C100KA0115 G1C100KA0115 INDUCTOR
G1C100KA0148 G1C100KA0148 INDUCTOR
G1C100MA0495 G1C100MA0495 INDUCTOR
G1C3R3MA0392 G1C3R3MA0392 INDUCTOR
G1C3R3MA0478 G1C3R3MA0478 INDUCTOR
G1C4R7MA0392 G1C4R7MA0392 INDUCTOR
G1C4R7MA0478 G1C4R7MA0478 INDUCTOR
B3AFB0000328 B3AFB0000328 LED
VXW1652 VXW1652 LENS
VKM0D30 VKM0D30 ORNAMENT
H0J240500068 H0J240500068 OSCILLATOR
H0J327200225 H0J327200225 OSCILLATOR
SPK0049 SPK0049 PACKAGING
VPF1458 VPF1458 PACKAGING
VPF1547 VPF1547 PACKAGING
VEP50095A VEP50095A PC BOARD
VEP51030A VEP51030A PC BOARD
VEP56146D VEP56146D PC BOARD
VEP58163A VEP58163A PC BOARD
VXK2017 VXK2017 PC BOARD
VMP0C00 VMP0C00 PLATE
VXK2007 VXK2007 PLATE
VXK2016 VXK2016 PLATE
K5H1522A0018 K5H1522A0018 PROTECTOR
D0GA100JA023 D0GA100JA023 RESISTOR
D0GA101JA023 D0GA101JA023 RESISTOR
D0GA102JA023 D0GA102JA023 RESISTOR
D0GA103JA023 D0GA103JA023 RESISTOR
D0GA104JA023 D0GA104JA023 RESISTOR
D0GA105JA023 D0GA105JA023 RESISTOR
D0GA220JA023 D0GA220JA023 RESISTOR
D0GA221JA023 D0GA221JA023 RESISTOR
D0GA222JA023 D0GA222JA023 RESISTOR
D0GA223JA023 D0GA223JA023 RESISTOR
D0GA273JA023 D0GA273JA023 RESISTOR
D0GA303JA023 D0GA303JA023 RESISTOR
D0GA330JA023 D0GA330JA023 RESISTOR
D0GA331JA023 D0GA331JA023 RESISTOR
D0GA334JA023 D0GA334JA023 RESISTOR
D0GA472JA023 D0GA472JA023 RESISTOR
D0GA473JA023 D0GA473JA023 RESISTOR
D0GA512JA023 D0GA512JA023 RESISTOR
D0GA561JA023 D0GA561JA023 RESISTOR
D0GA681JA023 D0GA681JA023 RESISTOR
D0GA682JA023 D0GA682JA023 RESISTOR
D0GA750JA023 D0GA750JA023 RESISTOR
D0GA824JA023 D0GA824JA023 RESISTOR
D0GAR00J0005 D0GAR00J0005 RESISTOR
D0GB510JA065 D0GB510JA065 RESISTOR
D0GB620JA065 D0GB620JA065 RESISTOR
D1BA1003A022 D1BA1003A022 RESISTOR
D1BA1183A023 D1BA1183A023 RESISTOR
D1BA1201A022 D1BA1201A022 RESISTOR
D1BA1203A022 D1BA1203A022 RESISTOR
D1BA1621A022 D1BA1621A022 RESISTOR
D1BA1802A022 D1BA1802A022 RESISTOR
D1BA1R00A079 D1BA1R00A079 RESISTOR
D1BA2002A022 D1BA2002A022 RESISTOR
D1BA2201A022 D1BA2201A022 RESISTOR
D1BA2202A022 D1BA2202A022 RESISTOR
D1BA2403A022 D1BA2403A022 RESISTOR
D1BA4702A022 D1BA4702A022 RESISTOR
D1BA5600A022 D1BA5600A022 RESISTOR
D1BA5901A023 D1BA5901A023 RESISTOR
D1BA68R0A022 D1BA68R0A022 RESISTOR
D1BA8201A022 D1BA8201A022 RESISTOR
D1BD4703A119 D1BD4703A119 RESISTOR
D1H81034A042 D1H81034A042 RESISTOR
D1H82214A042 D1H82214A042 RESISTOR
D1H84704A042 D1H84704A042 RESISTOR
D1H84734A042 D1H84734A042 RESISTOR
ERJ2RKD120X ERJ2RKD120X RESISTOR
ERJ6GEYJ514V ERJ6GEYJ514V RESISTOR
VHD1909 VHD1909 SCREW
VHD2019 VHD2019 SCREW
VHD2235 VHD2235 SCREW
VHD2322 VHD2322 SCREW
VHD2378 VHD2378 SCREW
XQN14_BJ4FJK XQN14_BJ4FJK SCREW
VMS8228 VMS8228 SHAFT
VGQ0S42 VGQ0S42 SHEET
VGQ0X00 VGQ0X00 SHEET
VGQ1A58 VGQ1A58 SHEET
VGQ1D17 VGQ1D17 SHEET
VMZ3924 VMZ3924 SHEET
VMZ3929 VMZ3929 SHEET
K1FB108E0008 K1FB108E0008 SOCKET
L0AA01A00175 L0AA01A00175 SPEAKER
VMB4567 VMB4567 SPRING
VMB4574 VMB4574 SPRING
VFC4297-C VFC4297-C STRAP
K0F111A00581 K0F111A00581 SWITCH
K4ZZ01000208 K4ZZ01000208 TERMINAL
G5DYA0000135 G5DYA0000135 TRANSFORMER
B1JBLP000038 B1JBLP000038 TRANSISTOR
DRC3144W0L DRC3144W0L TRANSISTOR
K1HY08YY0031 K1HY08YY0031 USB CABLE
VUMG2032 VUMG2032 WATERPROOF KIT
