Model Image
Manufacturer

Panasonic

Model Number

DMCTZ4

Description

Digital Still Camera

Interactive Exploded View

Parts List

Part Number Description

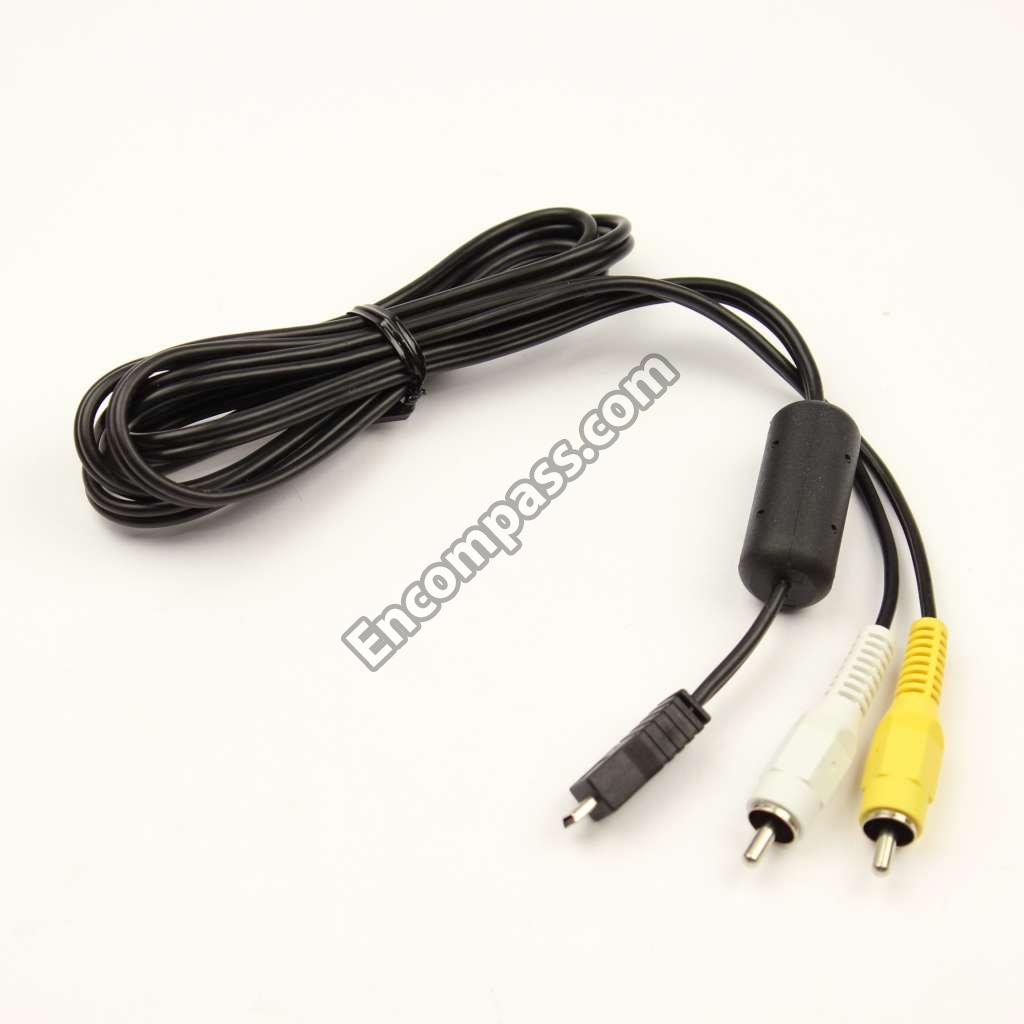

K1HA08CD0020 K1HA08CD0020 A/V CABLE
DMW-AC5 DMW-AC5 AC ADAPTOR
ERJ2GE0R00X ERJ2GE0R00X BEAD
RFZN0583 RFZN0583 BULK LENS
RFZF0142 RFZF0142 BULK PCB
RFZF0143 RFZF0143 BULK PCB
VGU0B04 VGU0B04 BUTTON
VGU0C33 VGU0C33 BUTTON
VYK2N05 VYK2N05 CABINET
VYK2N15 VYK2N15 CABINET
VYK2R53 VYK2R53 CABINET
VYK2R54 VYK2R54 CABINET
ECJ0EB1A473K ECJ0EB1A473K CAPACITOR
ECJ0EB1C103K ECJ0EB1C103K CAPACITOR
ECJ0EB1C153K ECJ0EB1C153K CAPACITOR
ECJ0EB1E152K ECJ0EB1E152K CAPACITOR
ECJ0EB1E472K ECJ0EB1E472K CAPACITOR
ECJ0EC1H080D ECJ0EC1H080D CAPACITOR
ECJ0EC1H090D ECJ0EC1H090D CAPACITOR
ECJ0EC1H100D ECJ0EC1H100D CAPACITOR
ECJ0EC1H101J ECJ0EC1H101J CAPACITOR
F1G1H120A451 F1G1H120A451 CAPACITOR
ECJ1VB0J105K ECJ1VB0J105K CAPACITOR
F1H1A105A025 F1H1A105A025 CAPACITOR
F1H1C105A118 F1H1C105A118 CAPACITOR
ECJ1VB1H104K ECJ1VB1H104K CAPACITOR
ECJ1XB1C104K ECJ1XB1C104K CAPACITOR
ECJ2FB0J106M ECJ2FB0J106M CAPACITOR
F1G0J1050007 F1G0J1050007 CAPACITOR
F1G0J334A001 F1G0J334A001 CAPACITOR
F1G1A104A001 F1G1A104A001 CAPACITOR
F1G1A104A012 F1G1A104A012 CAPACITOR
F1H0J106A009 F1H0J106A009 CAPACITOR
F1H0J475A010 F1H0J475A010 CAPACITOR
F1H1A225A051 F1H1A225A051 CAPACITOR
F1J0J1060009 F1J0J1060009 CAPACITOR
F1J0J226A014 F1J0J226A014 CAPACITOR
F1J1A106A023 F1J1A106A023 CAPACITOR
F1J1A106A024 F1J1A106A024 CAPACITOR
F1J1A475A034 F1J1A475A034 CAPACITOR
F1J1C225A144 F1J1C225A144 CAPACITOR
F1J1C475A059 F1J1C475A059 CAPACITOR
F1J1E4750002 F1J1E4750002 CAPACITOR
F1K2J102A010 F1K2J102A010 CAPACITOR
F1K2J333A031 F1K2J333A031 CAPACITOR
F1L1E103A065 F1L1E103A065 CAPACITOR
F2A2F9500003 F2A2F9500003 CAPACITOR
F3E0J476A014 F3E0J476A014 CAPACITOR
DMW-MCTZ5 DMW-MCTZ5 CASE
VEK0L99 VEK0L99 CCD
VFF0400-S VFF0400-S CD-ROM
G1C100MA0190 G1C100MA0190 COIL
G5F1A0000024 G5F1A0000024 COIL
K1KAA0AA0712 K1KAA0AA0712 CONNECTOR
K1KBA0AA0224 K1KBA0AA0224 CONNECTOR
K1MN04BA0208 K1MN04BA0208 CONNECTOR
K1MN16BA0209 K1MN16BA0209 CONNECTOR
K1MN19BA0209 K1MN19BA0209 CONNECTOR
K1MY37BA0235 K1MY37BA0235 CONNECTOR
K1MY39BA0235 K1MY39BA0235 CONNECTOR
K1MY41BA0235 K1MY41BA0235 CONNECTOR
K1NA09E00038 K1NA09E00038 CONNECTOR
K3ZZ00200042 K3ZZ00200042 CONNECTOR
B3NAA0000132 B3NAA0000132 COUPLER
VGQ9761 VGQ9761 COVER
VMX3650-B VMX3650-B CUSHION
B0EDAT000002 B0EDAT000002 DIODE
B0JDCE000013 B0JDCE000013 DIODE
MA21D382GL MA21D382GL DIODE
MA2S11100L MA2S11100L DIODE
MA2ZD1800L MA2ZD1800L DIODE
MAZ81000LL MAZ81000LL DIODE
VKF4299 VKF4299 DOOR
VKF4303 VKF4303 DOOR
VYF3178 VYF3178 DOOR
J0JCC0000317 J0JCC0000317 FILTER
J0JCC0000415 J0JCC0000415 FILTER
J0JYC0000059 J0JYC0000059 FILTER
J0MAB0000200 J0MAB0000200 FILTER
VDL2073 VDL2073 FILTER
100DMCTZ4 100DMCTZ4 FIRMWARE
VXQ1576 VXQ1576 FLANGE
VEK0L84 VEK0L84 FLASH
VDW1412 VDW1412 FRAME
VXP2746 VXP2746 FRAME
VXP2830 VXP2830 FRAME
VXP2912 VXP2912 FRAME
VXP2918 VXP2918 FRAME
VYQ4283 VYQ4283 FRAME
VYQ4284 VYQ4284 FRAME
ERBSE1R25U ERBSE1R25U FUSE
ERBSE1R50U ERBSE1R50U FUSE
VGK3409 VGK3409 GRIP
VGQ9765 VGQ9765 GUIDE
DMW-HDC2 DMW-HDC2 HD COMPONENT CABLE
VGK3414 VGK3414 HOLDER
C0CBCBC00236 C0CBCBC00236 IC
C0JBAA000393 C0JBAA000393 IC
C0ZBZ0000914 C0ZBZ0000914 IC
C1AB00002917 C1AB00002917 IC
C9ZB00000576 C9ZB00000576 IC
EWTS98LA1A EWTS98LA1A IC
MN89510RF MN89510RF IC
NN41922A-BB NN41922A-BB IC
RS10091 RS10091 IC
VUEALLPT016 VUEALLPT016 IC
G1C100KA0124 G1C100KA0124 INDUCTOR
G1C100MA0328 G1C100MA0328 INDUCTOR
G1C220KA0055 G1C220KA0055 INDUCTOR
G1C220KA0124 G1C220KA0124 INDUCTOR
G1C3R3ZA0103 G1C3R3ZA0103 INDUCTOR
G1C4R7ZA0104 G1C4R7ZA0104 INDUCTOR
G1C6R8ZA0097 G1C6R8ZA0097 INDUCTOR
G1C6R8ZA0104 G1C6R8ZA0104 INDUCTOR
G1CR10GA0003 G1CR10GA0003 INDUCTOR
VQT1P79-1 INSTRUCTION BOOK/OWNER'S MANUAL (ENGLISH)
K2HZ110B0001 K2HZ110B0001 JACK
K2YZ02000039 K2YZ02000039 JACK
VML3972 VML3972 KNOB
VYK2M38 VYK2M38 LCD DISPLAY
B3ABB0000150 B3ABB0000150 LED
B3ADB0000120 B3ADB0000120 LED
VGL1230 VGL1230 LIGHT
ML-421S_ZTK ML-421S_ZTK LITHIUM BATTERY
L6DABCGD0003 L6DABCGD0003 MOTOR
L6HA86ND0002 L6HA86ND0002 MOTOR
VGQ9317 VGQ9317 MOUNT
VGK3412 VGK3412 ORNAMENT
VGQ9758 VGQ9758 ORNAMENT
H0J240500026 H0J240500026 OSCILLATOR
H0J327200085 H0J327200085 OSCILLATOR
VPF1137 VPF1137 PACKAGING
VPF1294 VPF1294 PACKAGING
VPK3450 VPK3450 PACKAGING
VPK3512 VPK3512 PACKAGING
VGL1274 VGL1274 PANEL
VEK0L98 VEK0L98 PC BOARD
VEP51020B VEP51020B PC BOARD
VEP56063B VEP56063B PC BOARD
VEP56063BR VEP56063BR PC BOARD
VEP58055A VEP58055A PC BOARD
VEP58055AR VEP58055AR PC BOARD
VEP59052A VEP59052A PC BOARD
VEP59052AR VEP59052AR PC BOARD
VWJ2035 VWJ2035 PC BOARD
VWJ2036 VWJ2036 PC BOARD
VMC2056 VMC2056 PLATE
VXW0934R VXW0934R REBUILT LENS
D4CC11030026 D4CC11030026 RESISTOR
ERGSJ102 ERGSJ102 RESISTOR
ERJ2GEJ100X ERJ2GEJ100X RESISTOR
ERJ2GEJ101 ERJ2GEJ101 RESISTOR
ERJ2GEJ102X ERJ2GEJ102X RESISTOR
ERJ2GEJ103X ERJ2GEJ103X RESISTOR
ERJ2GEJ104 ERJ2GEJ104 RESISTOR
ERJ2GEJ105 ERJ2GEJ105 RESISTOR
ERJ2GEJ123 ERJ2GEJ123 RESISTOR
ERJ2GEJ133 ERJ2GEJ133 RESISTOR
ERJ2GEJ151X ERJ2GEJ151X RESISTOR
ERJ2GEJ152 ERJ2GEJ152 RESISTOR
ERJ2GEJ153 ERJ2GEJ153 RESISTOR
ERJ2GEJ154 ERJ2GEJ154 RESISTOR
ECEA0JKS220I ECEA0JKS220I RESISTOR
ECEA0JKA221 ECEA0JKA221 RESISTOR
ERJ2GEJ223 ERJ2GEJ223 RESISTOR
ERJ2GEJ224 ERJ2GEJ224 RESISTOR
ERJ2GEJ242 ERJ2GEJ242 RESISTOR
ERJ2GEJ2R2X ERJ2GEJ2R2X RESISTOR
ERJ2GEJ332 ERJ2GEJ332 RESISTOR
ERJ2GEJ333 ERJ2GEJ333 RESISTOR
ERJ2GEJ362 ERJ2GEJ362 RESISTOR
ERJ2GEJ390 ERJ2GEJ390 RESISTOR
ERJ2GEJ470 ERJ2GEJ470 RESISTOR
ERJ2GEJ473 ERJ2GEJ473 RESISTOR
ERJ2GEJ561 ERJ2GEJ561 RESISTOR
ERJ2GEJ562X ERJ2GEJ562X RESISTOR
ERJ2GEJ680 ERJ2GEJ680 RESISTOR
ERJ2GEJ681 ERJ2GEJ681 RESISTOR
ERJ2GEJ750 ERJ2GEJ750 RESISTOR
ERJ2RHD104 ERJ2RHD104 RESISTOR
ERJ2RHD104X ERJ2RHD104X RESISTOR
ERJ2RHD122 ERJ2RHD122 RESISTOR
ERJ2RHD122X ERJ2RHD122X RESISTOR
ERJ2RHD133 ERJ2RHD133 RESISTOR
ERJ2RHD153X ERJ2RHD153X RESISTOR
ERJ2RHD183 ERJ2RHD183 RESISTOR
ERJ2RHD183X ERJ2RHD183X RESISTOR
ERJ2RHD222 ERJ2RHD222 RESISTOR
ERJ2RHD222X ERJ2RHD222X RESISTOR
ERJ2RHD223 ERJ2RHD223 RESISTOR
ERJ2RHD273 ERJ2RHD273 RESISTOR
ERJ2RHD303 ERJ2RHD303 RESISTOR
ERJ2RHD333X ERJ2RHD333X RESISTOR
ERJ2RHD363 ERJ2RHD363 RESISTOR
ERJ2RHD473 ERJ2RHD473 RESISTOR
ERJ2RHD563X ERJ2RHD563X RESISTOR
ERJ2RHD682X ERJ2RHD682X RESISTOR
ERJ2RHD9101 ERJ2RHD9101 RESISTOR
ERJ2RKD154 ERJ2RKD154 RESISTOR
ERJ2RKD240 ERJ2RKD240 RESISTOR
ERJ2RKD274 ERJ2RKD274 RESISTOR
ERJ2RKD304 ERJ2RKD304 RESISTOR
ERJ2GEJ330X ERJ2GEJ330X RESISTOR
ERJ2RKD750 ERJ2RKD750 RESISTOR
ERJ2RKD820 ERJ2RKD820 RESISTOR
ERJ2RKF5901 ERJ2RKF5901 RESISTOR
ERJ3BQF1R1 ERJ3BQF1R1 RESISTOR
ERJ3GEY0R00 ERJ3GEY0R00 RESISTOR
ERJ3GEYJ100 ERJ3GEYJ100 RESISTOR
ERJ3GEYJ104V ERJ3GEYJ104V RESISTOR
ERJ3GEYJ681 ERJ3GEYJ681 RESISTOR
ERJ3GEYJ820V ERJ3GEYJ820V RESISTOR
ERJ6GEY0R00A ERJ6GEY0R00A RESISTOR
ERJ6GEYJ512V ERJ6GEYJ512V RESISTOR
ERJ6RED105 ERJ6RED105 RESISTOR
ERJ8GEYJ105V ERJ8GEYJ105V RESISTOR
EXB28VR000X EXB28VR000X RESISTOR
EXBN8V103J EXBN8V103J RESISTOR
EXBN8V302J EXBN8V302J RESISTOR
EXBN8V473J EXBN8V473J RESISTOR
J0JAC0000028 J0JAC0000028 RESISTOR
VHD1652 VHD1652 SCREW
VHD1693 VHD1693 SCREW
VHD1803 VHD1803 SCREW
VHD1853 VHD1853 SCREW
VHD1871 VHD1871 SCREW
VHD1921 VHD1921 SCREW
VHD1924 VHD1924 SCREW
VHD1926 VHD1926 SCREW
VHD1954 VHD1954 SCREW
VHD1956 VHD1956 SCREW
VHD1957 VHD1957 SCREW
VHD1958 VHD1958 SCREW
VHD2031 VHD2031 SCREW
XQN14_CJ4FN XQN14_CJ4FN SCREW
XQN16_BJ3FN XQN16_BJ3FN SCREW
RP-SDV04GU1K RP-SDV04GU1K SD MEMORY CARD
RP-SDW16GU1K RP-SDW16GU1K SD MEMORY CARD
VMS7822 VMS7822 SHAFT
VMS7893 VMS7893 SHAFT
VEK0M51 VEK0M51 SHEET
VGQ9911 VGQ9911 SHEET
K1FB108E0008 K1FB108E0008 SOCKET
RFKZ03D01KS RFKZ03D01KS SOLDER
RFKZ06D01KS RFKZ06D01KS SOLDER
RFKZ10D01KS RFKZ10D01KS SOLDER
VGQ9760 VGQ9760 SPACER
L0AA01A00032 L0AA01A00032 SPEAKER
VMB4024 VMB4024 SPRING
VMB4169 VMB4169 SPRING
VFC4297-B VFC4297-B STRAP
EVQPQ6B55 EVQPQ6B55 SWITCH
K0D112B00145 K0D112B00145 SWITCH
K0G166A00004 K0G166A00004 SWITCH
K0MZ26000001 K0MZ26000001 SWITCH
VGQ9162 VGQ9162 TAPE
K4AC01D00001 K4AC01D00001 TERMINAL
RFKZ0354 RFKZ0354 TEST TOOL
RFKZ0363 RFKZ0363 TEST TOOL
RFKZ0416 RFKZ0416 TEST TOOL
RFKZ0443 RFKZ0443 TEST TOOL
RFKZ0445 RFKZ0445 TEST TOOL
RFKZ0472 RFKZ0472 TEST TOOL
RFKZ0523 RFKZ0523 TEST TOOL
VFK1164TCM03 VFK1164TCM03 TEST TOOL
YTU93072M YTU93072M TEST TOOL
VFK1175 VFK1175 TEST TOOL
VFK1951 VFK1951 TEST TOOL
VFK1974 VFK1974 TEST TOOL
G5D1A0000061 G5D1A0000061 TRANSFORMER
2SD2216J0L 2SD2216J0L TRANSISTOR
B1DFCG000020 B1DFCG000020 TRANSISTOR
B1GBCFNJ0014 B1GBCFNJ0014 TRANSISTOR
B1GFCFGN0011 B1GFCFGN0011 TRANSISTOR
B1JBLP000016 B1JBLP000016 TRANSISTOR
MTM232230L MTM232230L TRANSISTOR
MTM866270L MTM866270L TRANSISTOR
UNR32AE00L UNR32AE00L TRANSISTOR
UNR9211J0L UNR9211J0L TRANSISTOR
UP05C8B00L UP05C8B00L TRANSISTOR
K1HY08YY0040 K1HY08YY0040 USB CABLE
