Model Image
Manufacturer

Panasonic

Model Number

DMCZS100K

Description

Lumix 4k Digital Camera

Interactive Exploded View

Parts List

Part Number Description
F1G1H101A834 F1G1H101A834 100PF 50V CAPACITOR
SXP0118 SXP0118 1ST LENS FRAME UNIT
D1BA2202A022 D1BA2202A022 22K 1/16W

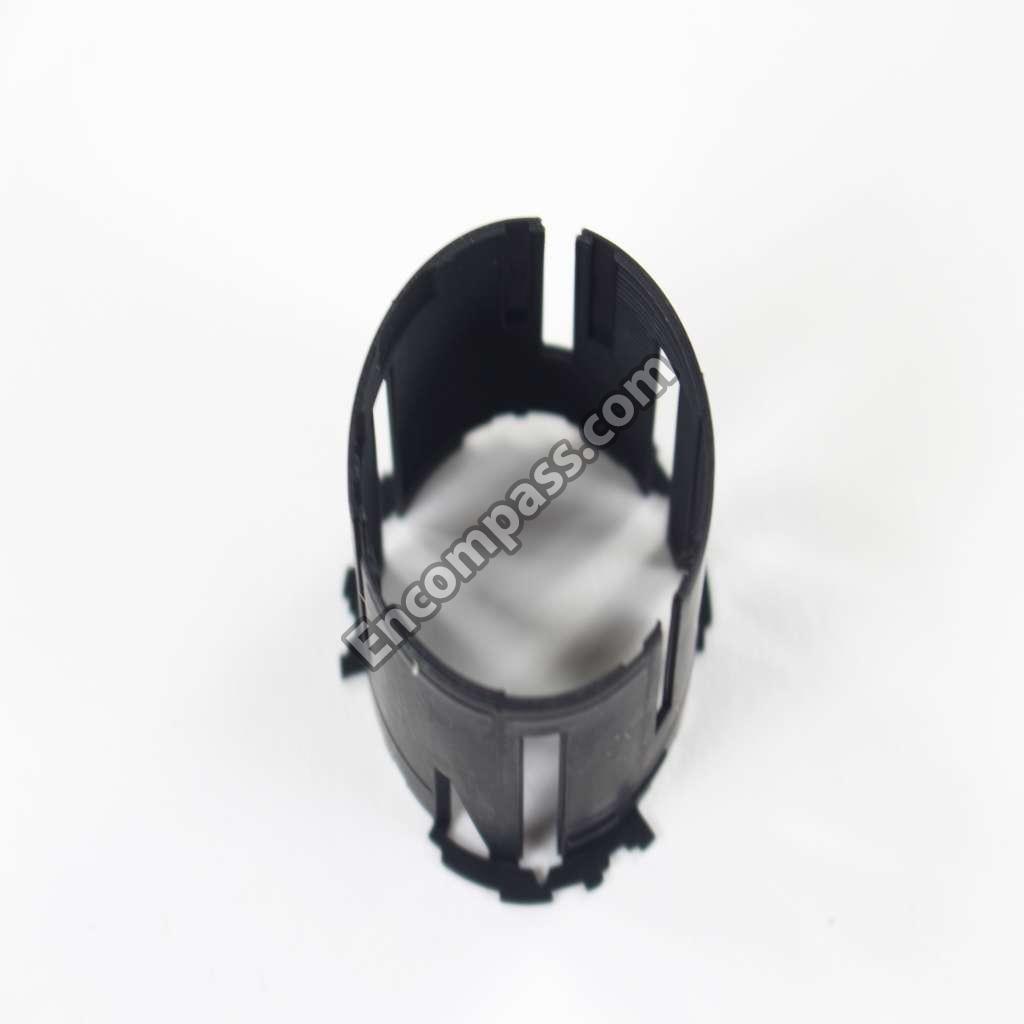

SXP0119 SXP0119 2ND LENS FRAME UNIT

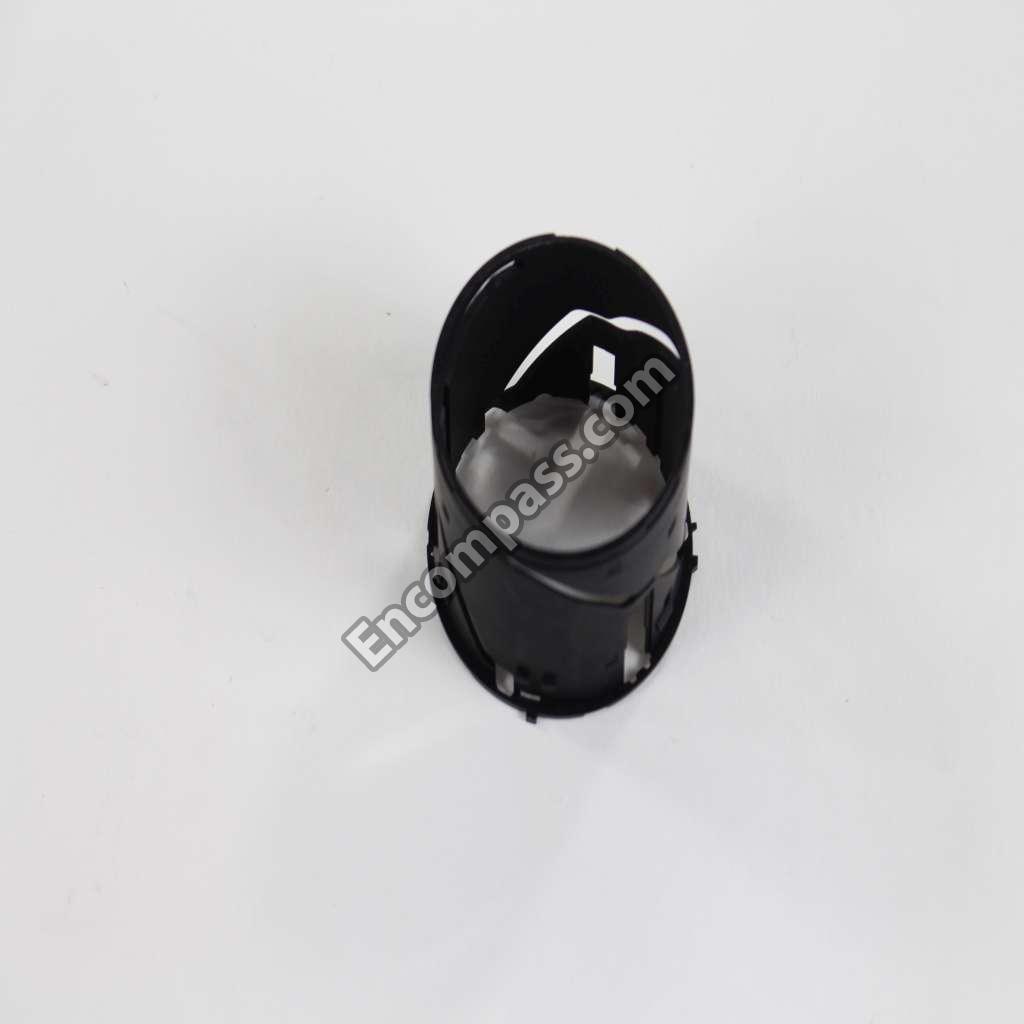

SXP0120 SXP0120 3RD LENS FRAME UNIT
D1BA4701A022 D1BA4701A022 4.7K 1/16W

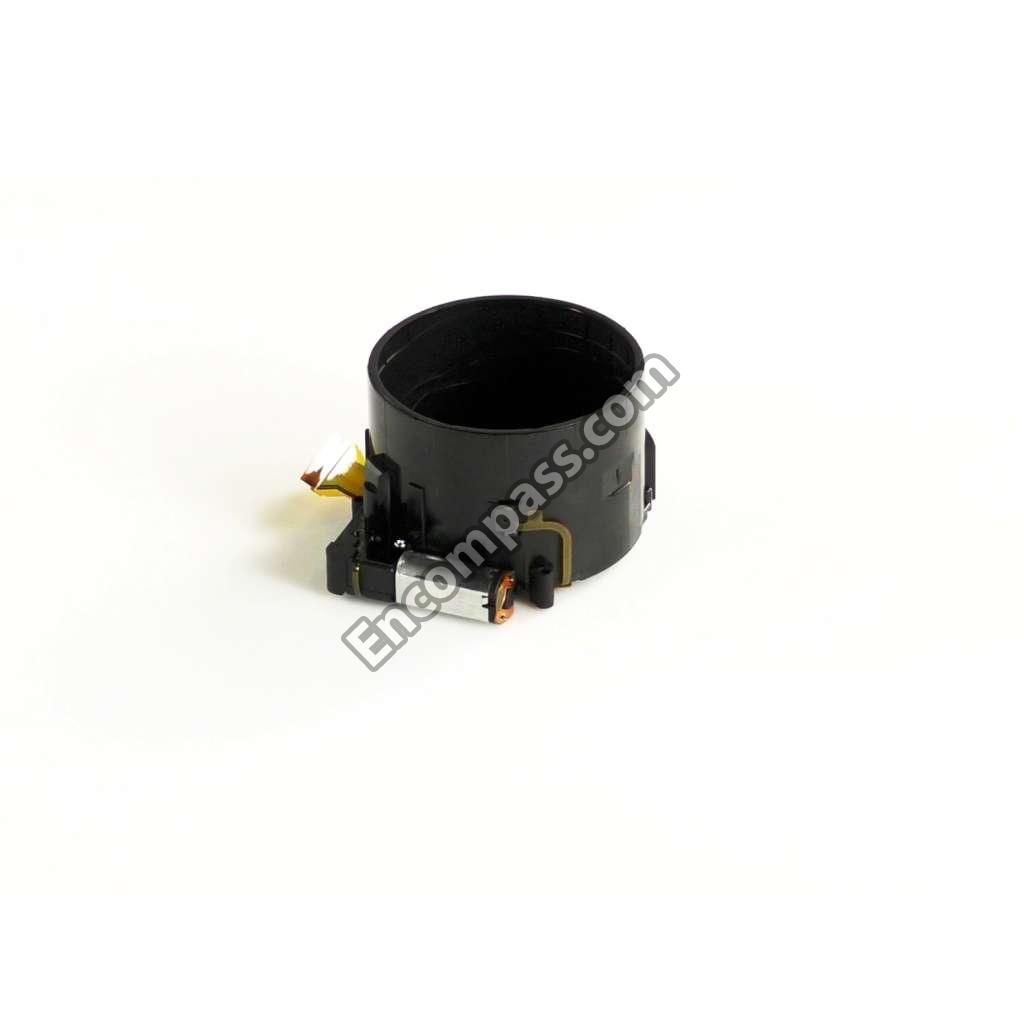

SXP0130 SXP0130 4TH LENS FRAME UNIT
SXP0122 SXP0122 5TH LENS FRAME UNIT
SAE0012AA SAE0012AA AC ADAPTER
EWTS9RCL1A EWTS9RCL1A ANGULAR RATE SENSOR

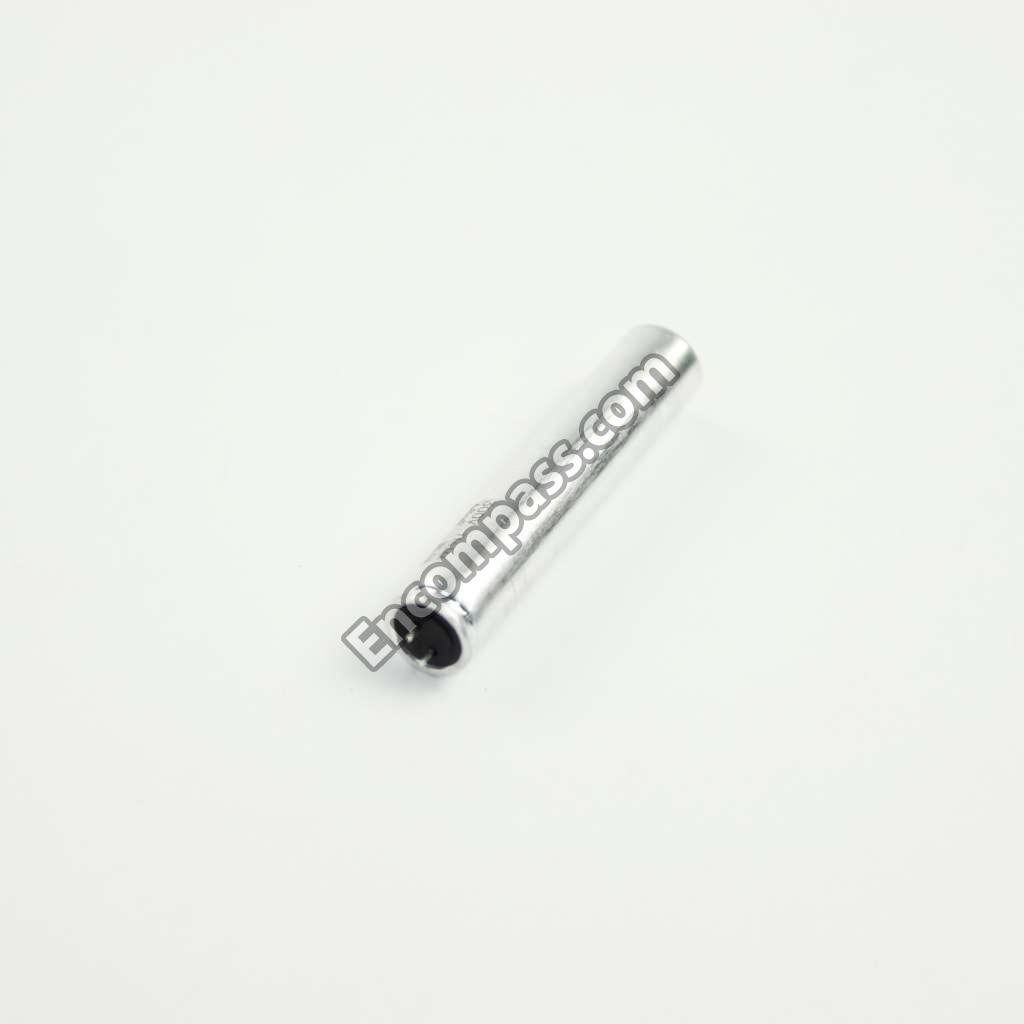

VMS8262-A VMS8262-A BATTERY DOOR SHAFT
VMB4767 VMB4767 BATTERY DOOR SPRING
SYK1417 SYK1417 BATTERY DOOR UNIT
STJ0179 STJ0179 BATTERY FPC

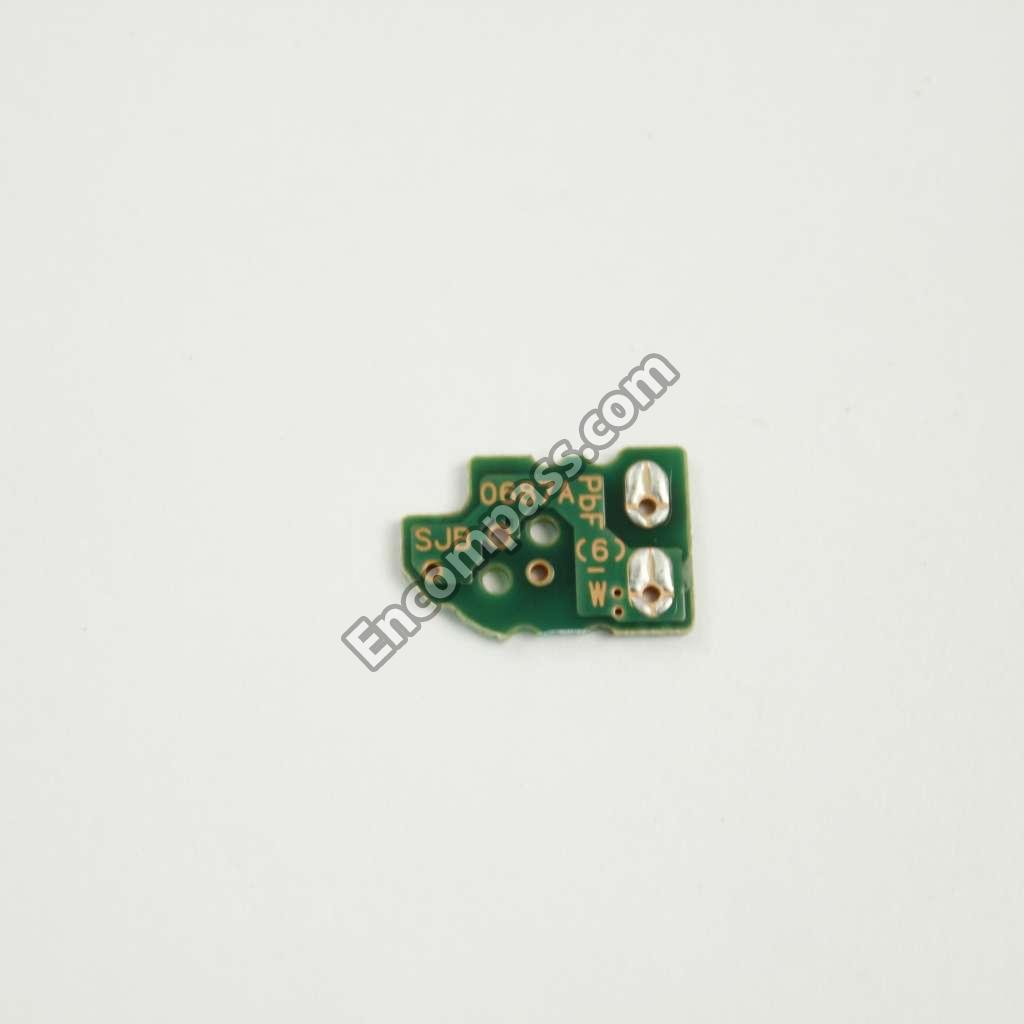

SEP0689AA SEP0689AA BATTERY PC BOARD
SDW0376K SDW0376K BOTH SIDE CUM FRAME
SXP0124 SXP0124 BOTH SIDE CUM FRAMEUNIT
F1G1H5R0A831 F1G1H5R0A831 C 5PF 50V, CAPACITOR
F1J1E225A157 F1J1E225A157 C CAPACITOR
F1G1H8R0A723 F1G1H8R0A723 C.CAPACITOR CH 50V 8P
F1G1H9R0A723 F1G1H9R0A723 C.CAPACITOR CH 50V 9P
SGS0077 SGS0077 CABLE FIX SHEET
F1H1A4750004 F1H1A4750004 CAPACITOR
F1H1A105A025 F1H1A105A025 CAPACITOR
F1G1H4710004 F1G1H4710004 CAPACITOR
F1G1H330A834 F1G1H330A834 CAPACITOR
F1G1H270A834 F1G1H270A834 CAPACITOR
F1G0J225A034 F1G0J225A034 CAPACITOR
SEP0687AA SEP0687AA CAPACITOR PC BOARD
F1G1A473A032 F1G1A473A032 CER CAPACITOR 0 047U 10V
F1J1A106A043 F1J1A106A043 CER CAPACITOR 10U 10V
F1H0J4750004 F1H0J4750004 CER CAPACITOR 4.7U 6.3V
F1H1C105A167 F1H1C105A167 CERAMIC CAPACITOR
F1G1H680A834 F1G1H680A834 CERAMIC CAPACITOR
F1G1H392A571 F1G1H392A571 CERAMIC CAPACITOR
F1G1C104A146 F1G1C104A146 CERAMIC CAPACITOR
F1G0J1050007 F1G0J1050007 CERAMIC CAPACITOR
F1G1A2240008 F1G1A2240008 CERAMIC CAPACITOR 0 22UF
F1J0J2260004 F1J0J2260004 CERAMIC CAPACITOR MULTI
F1G1E222A086 F1G1E222A086 CERAMIC CAPACITOR MULTI
F1G1E102A086 F1G1E102A086 CERAMIC CAPACITOR MULTI
F1G1C1030008 F1G1C1030008 CERAMIC CAPACITOR MULTI
F1G1A104A001 F1G1A104A001 CERAMIC CAPACITOR MULTI
F1J1V1050001 F1J1V1050001 CERAMIC CAPACITOR MULTI L
F1H1E105A116 F1H1E105A116 CERAMIC CAPACITOR MULTI L
F1G1H100A723 F1G1H100A723 CERAMIC CAPACITOR MULTI L
F1H0J1060006 F1H0J1060006 CERAMIC CAPACITOR MULTIL
F1G1C223A081 F1G1C223A081 CERAMIC, 0.0225F 16WV
ECJ1VB0J475K ECJ1VB0J475K CHIP CAPACITOR 16V 4 7UF
G1C2R2MA0477 G1C2R2MA0477 CHIP COIL
G1C100MA0392 G1C100MA0392 CHIP INDUCTOR
G1C1R5MA0577 G1C1R5MA0577 CHIP INDUCTOR 1.5UH
G1C150MA0477 G1C150MA0477 CHIP INDUCTOR 15UH
G1C2R2MA0392 G1C2R2MA0392 CHIP INDUCTOR 2.2UH
G1C4R7MA0584 G1C4R7MA0584 CHIP INDUCTOR 4.7UH
D1H84734A042 D1H84734A042 CHIP RESISTOR
D0GA183JA023 D0GA183JA023 CHIP RESISTOR
D0GA122JA023 D0GA122JA023 CHIP RESISTOR
VMB4601 VMB4601 CMOS TILT SPRING
EXC24CE900U EXC24CE900U COIL CAPACITOR
SMP0260 SMP0260 CONDENSER FRAME
SGS0074 SGS0074 CONDENSER SHEET
K1MY13BA0585 K1MY13BA0585 CONNECTOR 13P
K1MY15BA0585 K1MY15BA0585 CONNECTOR 15P
K1MY18BA0633 K1MY18BA0633 CONNECTOR 18P
K1MY25BA0556 K1MY25BA0556 CONNECTOR 25P
K1MY33BA0556 K1MY33BA0556 CONNECTOR 33P
K4ZZ04000064 K4ZZ04000064 CONNECTOR 4P
K1MY51BA0667 K1MY51BA0667 CONNECTOR 51P
K1MY05BA0557 K1MY05BA0557 CONNECTOR 5P
K1MY61BA0667 K1MY61BA0667 CONNECTOR 61P
K1MY06BA0557 K1MY06BA0557 CONNECTOR 6P
K1MY08BA0557 K1MY08BA0557 CONNECTOR 8P

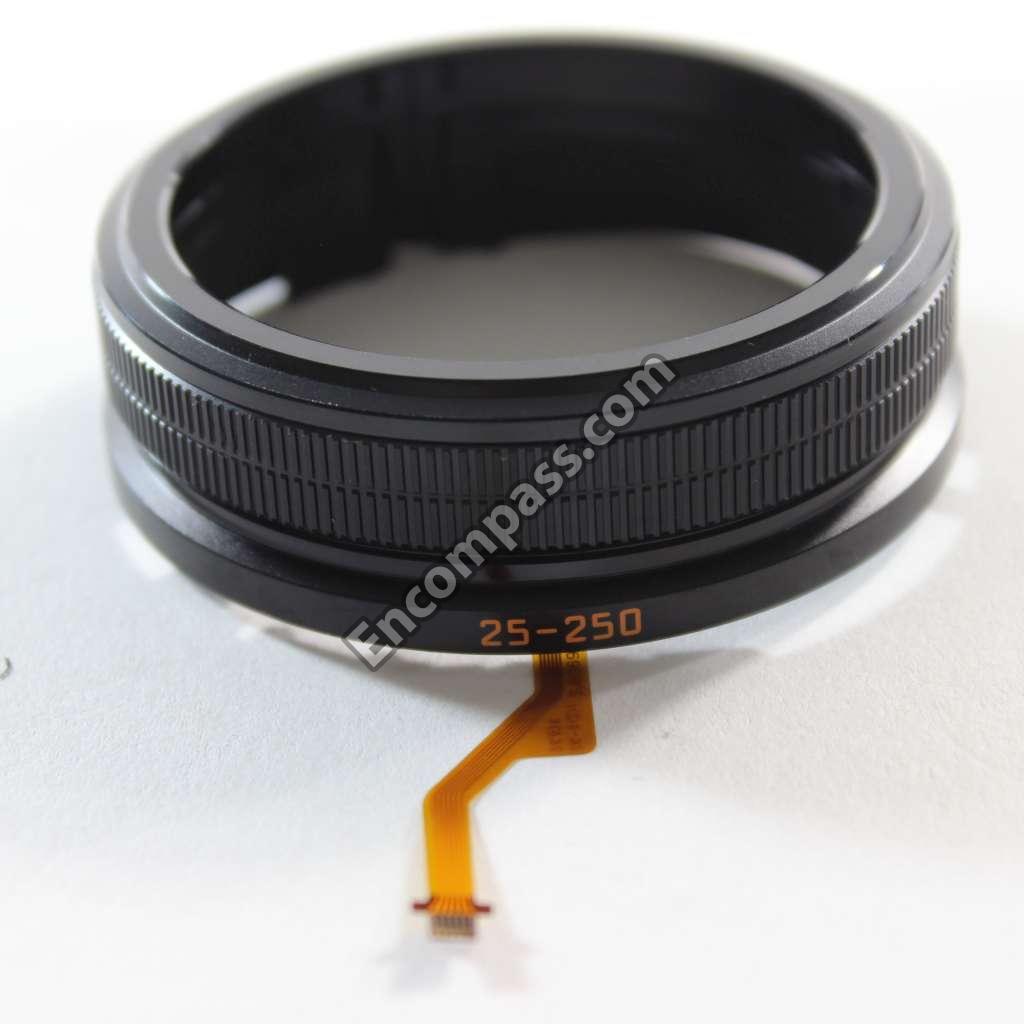

SYQ0691 SYQ0691 CONTROL RING UNIT
H0J327200230 H0J327200230 CRYSTAL OSCILLATOR
H0J240500048 H0J240500048 CRYSTAL OSCILLATOR
B1GBCFYY0217 B1GBCFYY0217 DIGITAL TRANSISTOR
B0JCDD000019 B0JCDD000019 DIODE
SXQ0573 SXQ0573 DRIVE FRAME UNIT

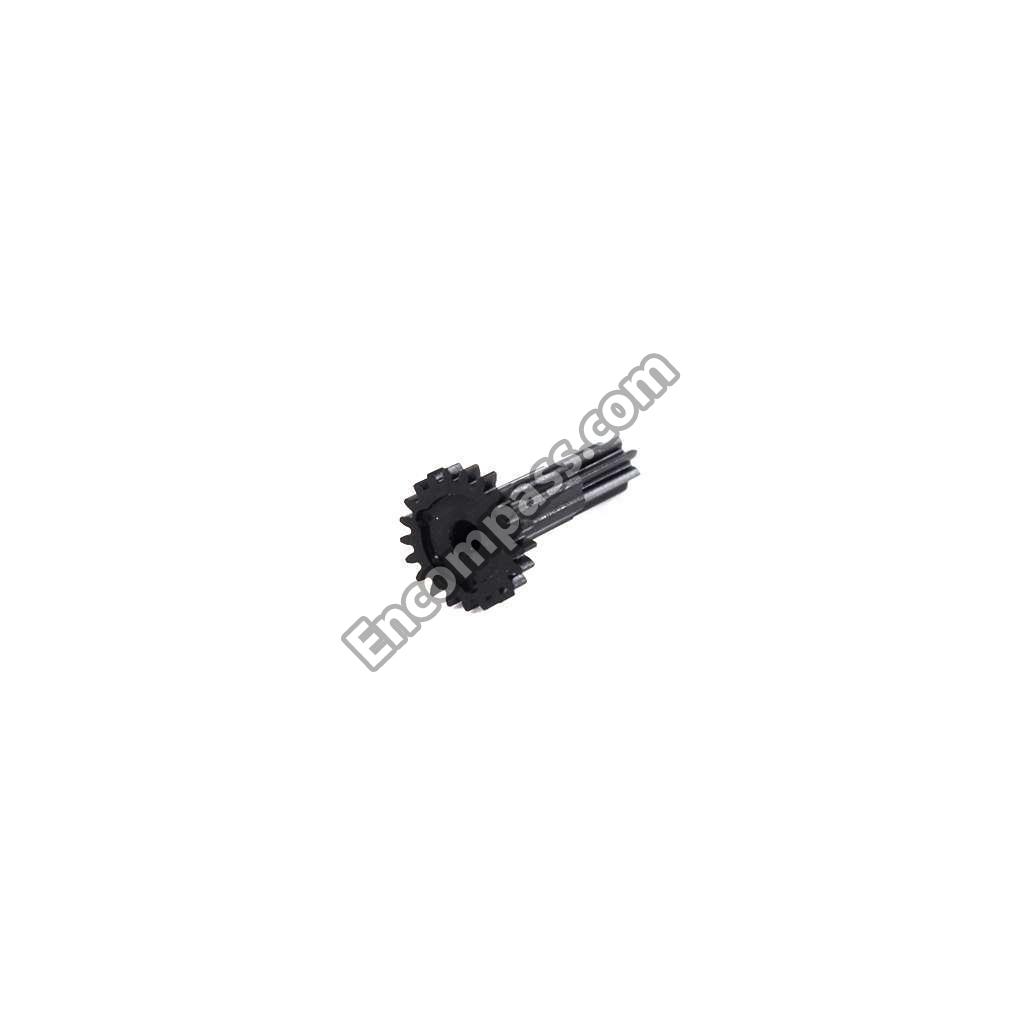

SMD0066 SMD0066 DRIVE GEAR
F2A2F6800001 F2A2F6800001 E.CAPACITOR
SMB0180 SMB0180 EARTH SPRING
J0JCC0000415 J0JCC0000415 EMI FILTER
SEP0732AA SEP0732AA EYE SENSOR FPC
B1CFJD000007 B1CFJD000007 FIELD EFFECT TRANSISTORS
EXC28CH900U EXC28CH900U FILTER
SXQ0671 SXQ0671 FIX FRAME UNIT
SGS0076 SGS0076 FPC TAPE
SZT0240 SZT0240 FPC TAPE A
SZT0241 SZT0241 FPC TAPE B
SYQ0741 SYQ0741 FRAME PLATE UNIT
SYK1415 SYK1415 FRAME UNIT

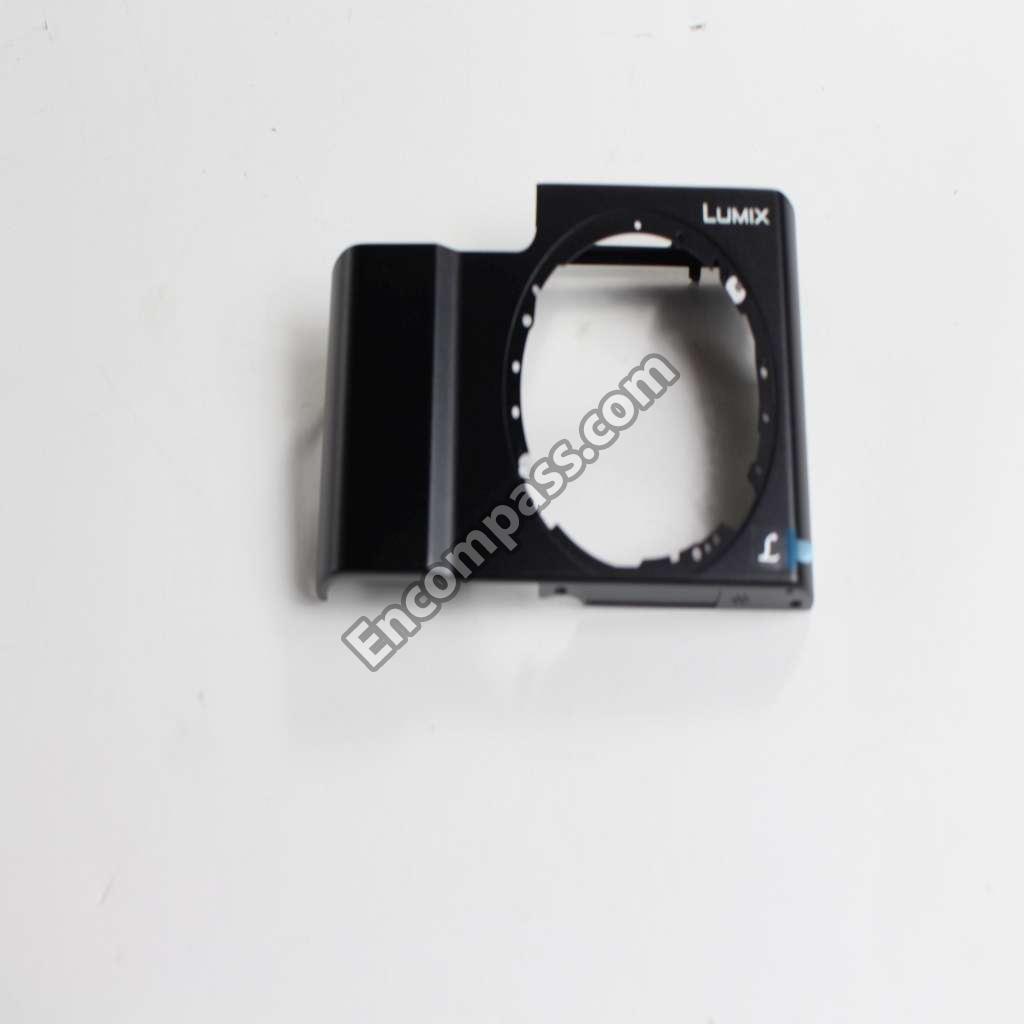

SKK0355K SKK0355K FRONT CASE
ERBRD2R50X ERBRD2R50X FUSE
ERBRD0R75X ERBRD0R75X FUSE
ERBRD2R00X ERBRD2R00X FUSE 32V 2.0A
VFC4297-C VFC4297-C HAND STRAP
SJD0034 SJD0034 HEAT RADIATION PAD
SZT0239 SZT0239 HEAT RADIATION SHEET
SMP0248 SMP0248 HEAT SINK
SUBF000022 SUBF000022 IC
SCG0002 SCG0002 IC
RS10891 RS10891 IC
L2EE00000038 L2EE00000038 IC
EWTS9PDL1A EWTS9PDL1A IC
C1ZBZ0005562 C1ZBZ0005562 IC
C1ZBZ0005550 C1ZBZ0005550 IC
C1CB00004471 C1CB00004471 IC
C0JBAU000226 C0JBAU000226 IC
C0DBGYY06165 C0DBGYY06165 IC
C0DBGYY05360 C0DBGYY05360 IC
C0DBGYY05349 C0DBGYY05349 IC
C0DBGYY03678 C0DBGYY03678 IC
C0DBGYY02527 C0DBGYY02527 IC
C0DBAYY02385 C0DBAYY02385 IC
C0DBAYY02207 C0DBAYY02207 IC
C1AB00003449 C1AB00003449 IC, LINEAR
C0DBGYY05343 C0DBGYY05343 IC, LINEAR
C0DBGYY03640 C0DBGYY03640 IC, LINEAR
C0DBGYY03614 C0DBGYY03614 IC, LINEAR
C0DBGYY02368 C0DBGYY02368 IC, LINEAR
C0ABGA000035 C0ABGA000035 IC, LINEAR
J0JFC0000006 J0JFC0000006 INDUCTOR
SKF0115K SKF0115K JACK DOOR
K1FY119E0057 K1FY119E0057 JACK, HDMI
K1FY105E0014 K1FY105E0014 JACK, USB
SYK1459 SYK1459 LCD DISPLAY UNIT
SYD0017 SYD0017 LENS FIX PLATE UNIT

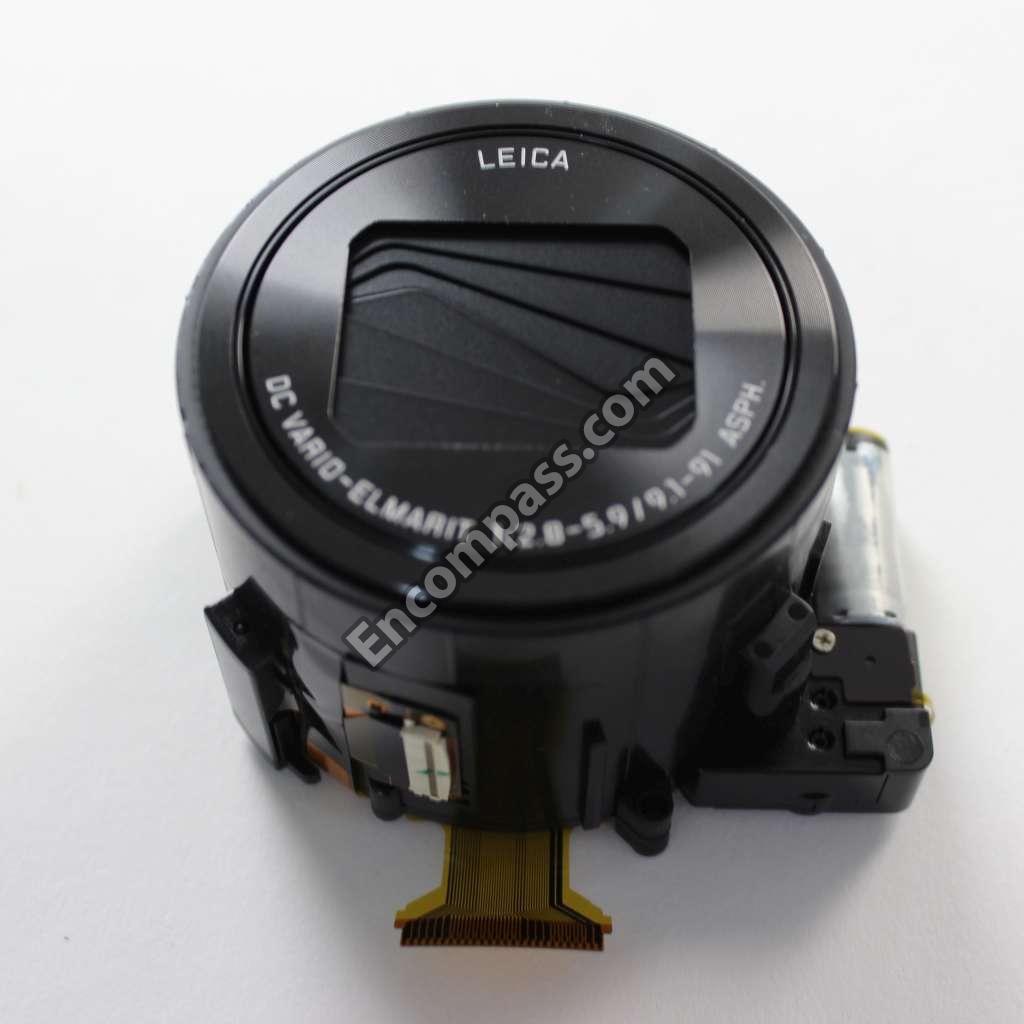

SXW0305 SXW0305 LENS UNIT (W/O MOS)
SYQ0551 SYQ0551 LFV COVER UNIT
ML-421S_DN ML-421S_DN LITHIUM COIN BATTERY
C0DBGYY00779 C0DBGYY00779 LOGIC IC
SYK1481 SYK1481 LVF UNIT
D1BA7502A022 D1BA7502A022 M.RESISTOR
D1BA1203A022 D1BA1203A022 M.RESISTOR CH 1/16W 120
D1BA2203A022 D1BA2203A022 M.RESISTOR CH 1/16W 220
D0GA364JA023 D0GA364JA023 M.RESISTOR CH 1/16W 360K
D1BA6R80A023 D1BA6R80A023 M.RESISTOR CH 1/16W 6.8
D1BA68R0A022 D1BA68R0A022 M.RESISTOR CH 1/16W 68
D1BA75R0A022 D1BA75R0A022 M.RESISTOR CH 1/16W 75
D1BA8201A022 D1BA8201A022 M.RESISTOR CH 1/16W 8.2
D1BA8202A022 D1BA8202A022 M.RESISTOR CH 1/16W 82K
SEP0684AA SEP0684AA MAIN PC BOARD
SXQ0570 SXQ0570 MASTER FLANGE UNIT
D0GA332JA023 D0GA332JA023 METAL GLAZE FILM RESISTOR
ERJ2RKD684X ERJ2RKD684X METAL GLAZE RESISTOR 0 06
ERJ2RKD105 ERJ2RKD105 METAL GLAZE RESISTOR 0 06
D1BA3302A022 D1BA3302A022 METAL GLAZE RESISTOR 0 06
D1BA3002A022 D1BA3002A022 METAL GLAZE RESISTOR 0 06
D1BA3001A022 D1BA3001A022 METAL GLAZE RESISTOR 0 06
D1BA2402A022 D1BA2402A022 METAL GLAZE RESISTOR 0 06
D1BA2002A022 D1BA2002A022 METAL GLAZE RESISTOR 0 06
D1BA1602A022 D1BA1602A022 METAL GLAZE RESISTOR 0 06
D1BA1502A022 D1BA1502A022 METAL GLAZE RESISTOR 0 06
D1BA1103A022 D1BA1103A022 METAL GLAZE RESISTOR 0 06
D1BA1002A022 D1BA1002A022 METAL GLAZE RESISTOR 0 06
D0GAR00J0005 D0GAR00J0005 METAL GLAZE RESISTOR 0 06
D0GA680JA023 D0GA680JA023 METAL GLAZE RESISTOR 0 06
D0GA564JA023 D0GA564JA023 METAL GLAZE RESISTOR 0 06
D0GA473JA023 D0GA473JA023 METAL GLAZE RESISTOR 0 06
D0GA472JA023 D0GA472JA023 METAL GLAZE RESISTOR 0 06
D0GA470JA023 D0GA470JA023 METAL GLAZE RESISTOR 0 06
D0GA392JA023 D0GA392JA023 METAL GLAZE RESISTOR 0 06
D0GA333JA023 D0GA333JA023 METAL GLAZE RESISTOR 0 06
D0GA331JA023 D0GA331JA023 METAL GLAZE RESISTOR 0 06
D0GA330JA023 D0GA330JA023 METAL GLAZE RESISTOR 0 06
D0GA223JA023 D0GA223JA023 METAL GLAZE RESISTOR 0 06
D0GA222JA023 D0GA222JA023 METAL GLAZE RESISTOR 0 06
D0GA152JA023 D0GA152JA023 METAL GLAZE RESISTOR 0 06
D0GA151JA023 D0GA151JA023 METAL GLAZE RESISTOR 0 06
D0GA105JA023 D0GA105JA023 METAL GLAZE RESISTOR 0 06
D0GA104JA023 D0GA104JA023 METAL GLAZE RESISTOR 0 06
D0GA103JA023 D0GA103JA023 METAL GLAZE RESISTOR 0 06
D0GA102JA023 D0GA102JA023 METAL GLAZE RESISTOR 0 06
D0GA101JA023 D0GA101JA023 METAL GLAZE RESISTOR 0 06
D0GA512JA023 D0GA512JA023 METAL GLAZE RESISTOR,0.06
D0GA302JA023 D0GA302JA023 METAL GLAZE RESISTOR,0.06
D0GA202JA023 D0GA202JA023 METAL GLAZE RESISTOR,0.06
SEQ0135 SEQ0135 MOS UNIT
SEP0688AA SEP0688AA OPERATION PC BOARD
SYK1412 SYK1412 REAR CASE UNIT
STJ0175 STJ0175 REAR OPERATION FPC
D1H81034A042 D1H81034A042 RESISTOR
D1BA5602A022 D1BA5602A022 RESISTOR
D1BA5100A022 D1BA5100A022 RESISTOR
D1BA3902A022 D1BA3902A022 RESISTOR
D1BA3003A022 D1BA3003A022 RESISTOR
D1BA2400A022 D1BA2400A022 RESISTOR
D1BA2201A022 D1BA2201A022 RESISTOR
D1BA1R00A079 D1BA1R00A079 RESISTOR
D0GA752JA023 D0GA752JA023 RESISTOR
D0GA334JA023 D0GA334JA023 RESISTOR
D0GA273JA023 D0GA273JA023 RESISTOR
D0GA270JA023 D0GA270JA023 RESISTOR
D1BA6802A022 D1BA6802A022 RESISTOR 68K 1/16W
D1H83304A042 D1H83304A042 RESISTOR NETWORK
D1H81024A042 D1H81024A042 RESISTOR NETWORKS
D1H81014A042 D1H81014A042 RESISTOR NETWORKS
EXB24V472J EXB24V472J RESISTOR RESISTOR
XQN14_BJ4FJK XQN14_BJ4FJK SCREW
VHD2492 VHD2492 SCREW
VHD2480 VHD2480 SCREW
VHD2473 VHD2473 SCREW
VHD2451 VHD2451 SCREW
VHD2390 VHD2390 SCREW
VHD2388 VHD2388 SCREW
VHD2314 VHD2314 SCREW
VHD2240 VHD2240 SCREW
VHD2062-A VHD2062-A SCREW
VHD2019 VHD2019 SCREW
VHD1682 VHD1682 SCREW
K1NA09E00166 K1NA09E00166 SD CARD CONNECTOR
L0AA01A00168 L0AA01A00168 SPEAKER
SXP0133 SXP0133 STRAIGHT FRAME UNIT
SYQ0694 SYQ0694 STRAP ADAPTER
SKH0013S SKH0013S STRAP HOLDER (R)
D1BA6801A022 D1BA6801A022 SURFACE MOUNTING PRECISIO
D1BA2000A022 D1BA2000A022 SURFACE MOUNTING PRECISIO
B0ACRC000001 B0ACRC000001 SWITCHING DIODE
K4ZZ01000208 K4ZZ01000208 TERMINAL
D4CC11030013 D4CC11030013 THERMISTOR
SYK1426 SYK1426 TOP CASE UNIT
MTM861280LBF MTM861280LBF TRANSISTOR
MTM861270LBF MTM861270LBF TRANSISTOR
B1HFCFA00035 B1HFCFA00035 TRANSISTOR
B1CHPB000008 B1CHPB000008 TRANSISTOR
B1CFGC000022 B1CFGC000022 TRANSISTOR
B1ABCF000302 B1ABCF000302 TRANSISTOR
B1ABCF000301 B1ABCF000301 TRANSISTOR
B1CFGD000003 B1CFGD000003 TRANSISTOR FET 0 15W
B1GKCFYY0029 B1GKCFYY0029 TRANSISTOR-RESISTOR
B1GFCFLL0009 B1GFCFLL0009 TRANSISTOR-RESISTOR
B1GDCFYY0150 B1GDCFYY0150 TRANSISTOR-RESISTOR
B1GBCFYY0224 B1GBCFYY0224 TRANSISTOR-RESISTOR
SGQ0693 SGQ0693 TRIPOD
K1HY04YY0106 K1HY04YY0106 USB CABLE
D4ED18R00004 D4ED18R00004 VARISTOR
SMP0244 SMP0244 WI-FI EARTH PLATE
STJ0178 STJ0178 WI-FI FPC
SGS0083 SGS0083 WI-FI SHEET
SEQ0141 SEQ0141 WIFI PC BOARD
