Model Image
Manufacturer

Panasonic

Model Number

DMCZS45

Description

Digital Still Camera

Interactive Exploded View

Parts List

Part Number Description
VSK0768 VSK0768 AC ADAPTER
DMW-BCM13 DMW-BCM13 BATTERY
SVKG000013 SVKG000013 CASE
SVKG000015 SVKG000015 CASE
SVKH000013 SVKH000013 CASE
SVKH000015 SVKH000015 CASE
SVKK000015 SVKK000015 CASE
SVKK000017 SVKK000017 CASE
SVKN000184 SVKN000184 COVER
SVKN000186 SVKN000186 COVER
SVKF000136 SVKF000136 DISPLAY
SVKF000138 SVKF000138 DISPLAY
SVKM000014 SVKM000014 DOOR
SVKM000016 SVKM000016 DOOR
VXQ2388 VXQ2388 FLANGE
SVKJ000008 SVKJ000008 FRAME
SVKJ000010 SVKJ000010 FRAME
SXP0019 SXP0019 FRAME
SXP0026 SXP0026 FRAME
SXP0028 SXP0028 FRAME
SXP0030 SXP0030 FRAME
VDW2433 VDW2433 FRAME
VDW2439 VDW2439 FRAME
VXP3806 VXP3806 FRAME
VXP3855 VXP3855 FRAME
VXP3856 VXP3856 FRAME
VXP3984 VXP3984 FRAME
VXP3985 VXP3985 FRAME
VXQ2363 VXQ2363 FRAME
VDG1796 VDG1796 GEAR
SXW0126 SXW0126 LENS UNIT

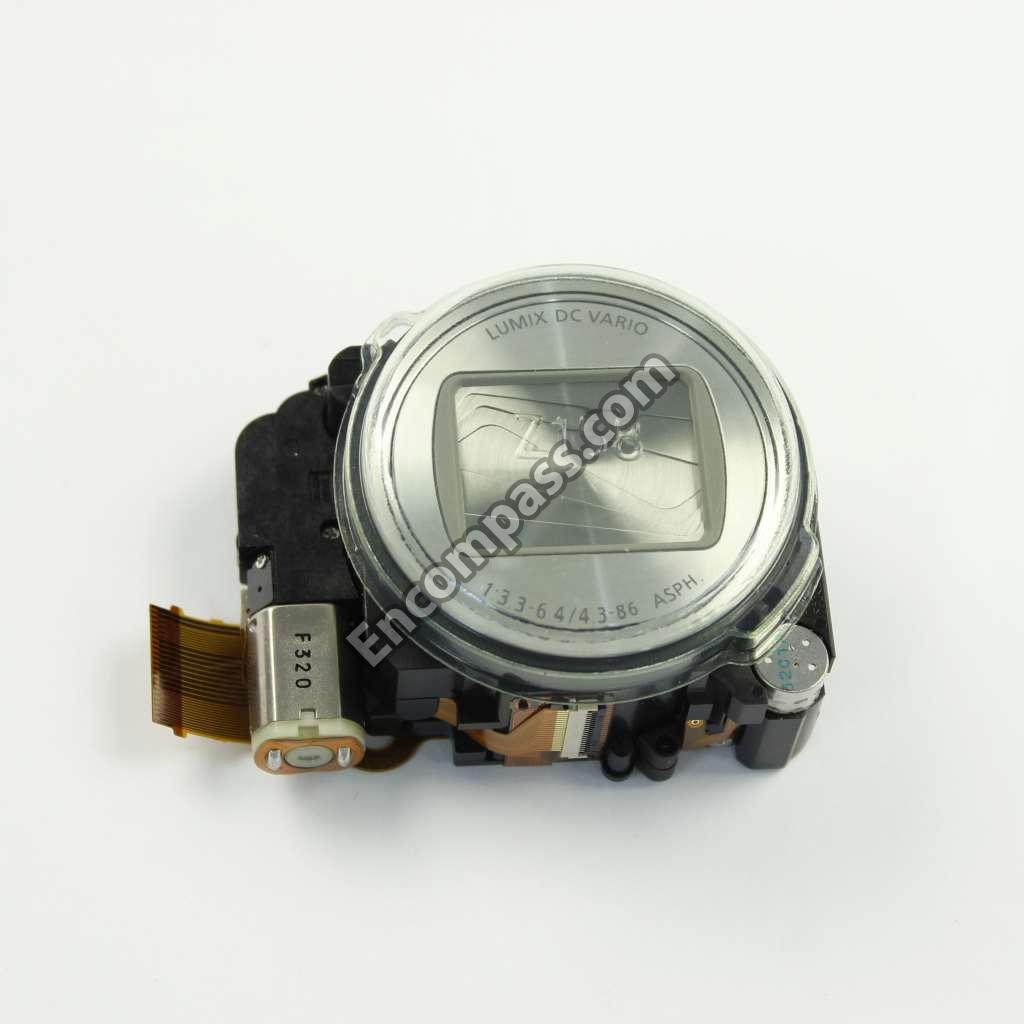

SXW0127 SXW0127 LENS UNIT
VEK0V22 VEK0V22 MOS
SPK0063 SPK0063 PACKAGING
SVKU000004 SVKU000004 PACKAGING
SVKU000005 SVKU000005 PACKAGING
VQL3A26 VQL3A26 PACKAGING
SVKF000133 SVKF000133 PC BOARD
SVKF000134 SVKF000134 PC BOARD
SVKF000135 SVKF000135 PC BOARD
SVKN000183 SVKN000183 PLATE
ERGSJ102 ERGSJ102 RESISTOR
SVKN000029 SVKN000029 SCREW
SVKN000033 SVKN000033 SCREW
SVKN000133 SVKN000133 SCREW
SVKN000134 SVKN000134 SCREW
SVKN000135 SVKN000135 SCREW
SVKN000145 SVKN000145 SCREW
SVKN000202 SVKN000202 SCREW
SVKN000203 SVKN000203 SCREW
SVKN000204 SVKN000204 SCREW
VHD2388 VHD2388 SCREW
VHD2390 VHD2390 SCREW
SVKN000127 SVKN000127 SHAFT
SVKN000140 SVKN000140 SHEET
SVKN000187 SVKN000187 SHEET
SVKN000188 SVKN000188 SHEET
SVKN000189 SVKN000189 SHEET
SVKN000190 SVKN000190 SHEET
SVKN000191 SVKN000191 SHEET
SVKN000193 SVKN000193 SPRING
VMB4601 VMB4601 SPRING
VFC4737-A VFC4737-A STRAP
SVKN000132 SVKN000132 TAPE
SVKN000192 SVKN000192 TAPE
VZT1098 VZT1098 TAPE
RFKZ0333J RFKZ0333J TEST TOOL
RFKZ0422 RFKZ0422 TEST TOOL
RFKZ0523 RFKZ0523 TEST TOOL
RFKZ0570 RFKZ0570 TEST TOOL
RFKZ0609 RFKZ0609 TEST TOOL
RFKZ0612 RFKZ0612 TEST TOOL
VFK1164TCM03 VFK1164TCM03 TEST TOOL
YTU93072M YTU93072M TEST TOOL
K1HY08YY0037 K1HY08YY0037 USB CABLE
