Model Image
Manufacturer

Panasonic

Model Number

DMCZS9

Description

Digital Still Camera

Interactive Exploded View

Parts List

Part Number Description
DMW-AC5 DMW-AC5 ADAPTER
DE-A65BB DE-A65BB ADAPTER
DMW-BCG10 DMW-BCG10 BATTERY
ERJ2GE0R00X ERJ2GE0R00X BEAD
VGU0H73 VGU0H73 BUTTON
VGU0H72 VGU0H72 BUTTON
RFZV0345 RFZV0345 CABLE
RFZV0343 RFZV0343 CABLE
K1HY08YY0018 K1HY08YY0018 CABLE
K1HY08YY0017 K1HY08YY0017 CABLE
F5A84103A020 F5A84103A020 CAPACITOR
F5A84100A015 F5A84100A015 CAPACITOR
F3E0J4760003 F3E0J4760003 CAPACITOR
F2A2F9500007 F2A2F9500007 CAPACITOR
F1K2E4730005 F1K2E4730005 CAPACITOR
F1J1E4750002 F1J1E4750002 CAPACITOR
F1J1C106A059 F1J1C106A059 CAPACITOR
F1J1A106A043 F1J1A106A043 CAPACITOR
F1J1A106A034 F1J1A106A034 CAPACITOR
F1J0J226A014 F1J0J226A014 CAPACITOR
F1H1E105A116 F1H1E105A116 CAPACITOR
F1H1C105A097 F1H1C105A097 CAPACITOR
F1H1A4750004 F1H1A4750004 CAPACITOR
F1H0J475A010 F1H0J475A010 CAPACITOR
ECJ1VB0J475K ECJ1VB0J475K CAPACITOR
F1H0J2250008 F1H0J2250008 CAPACITOR
F1H0J106A009 F1H0J106A009 CAPACITOR
F1G1H4710004 F1G1H4710004 CAPACITOR
F1G1H102A401 F1G1H102A401 CAPACITOR
F1G1E102A086 F1G1E102A086 CAPACITOR
F1G1C1030008 F1G1C1030008 CAPACITOR
F1G1A104A012 F1G1A104A012 CAPACITOR
F1G0J1050007 F1G0J1050007 CAPACITOR
ECJ2FB0J106M ECJ2FB0J106M CAPACITOR
F1H1A105A025 F1H1A105A025 CAPACITOR
ECJ0EC1H470J ECJ0EC1H470J CAPACITOR
ECJ0EC1H221J ECJ0EC1H221J CAPACITOR
ECJ0EC1H220J ECJ0EC1H220J CAPACITOR
F1G1H120A451 F1G1H120A451 CAPACITOR
ECJ0EC1H101J ECJ0EC1H101J CAPACITOR
ECJ0EC1H100D ECJ0EC1H100D CAPACITOR
ECJ0EC1H090D ECJ0EC1H090D CAPACITOR
ECJ0EC1H080D ECJ0EC1H080D CAPACITOR
VYK5B44 VYK5B44 CASE
VYK5B17 VYK5B17 CASE
VYK4T71 VYK4T71 CASE
VMP9896 VMP9896 CASE
DMW-MCTZ20 DMW-MCTZ20 CASE
VEK0R68 VEK0R68 CCD
VFF0771-S VFF0771-S CD ROM
J0JAD0000028 J0JAD0000028 COIL
G5F1A0000026 G5F1A0000026 COIL
ELLYFJ4R7M ELLYFJ4R7M COIL
K4ZZ04000051 K4ZZ04000051 CONNECTOR
K4CC01000001 K4CC01000001 CONNECTOR
K1NA09E00098 K1NA09E00098 CONNECTOR
K1MY47BA0235 K1MY47BA0235 CONNECTOR
K1MY45BA0235 K1MY45BA0235 CONNECTOR
K1MY39BA0235 K1MY39BA0235 CONNECTOR
K1MY24BA0454 K1MY24BA0454 CONNECTOR
K1MY15BA0235 K1MY15BA0235 CONNECTOR
K1MY10BA0454 K1MY10BA0454 CONNECTOR
K1MY04BA0370 K1MY04BA0370 CONNECTOR
K1MN04BA0208 K1MN04BA0208 CONNECTOR
K1KB40AA0123 K1KB40AA0123 CONNECTOR
K1KA40BA0342 K1KA40BA0342 CONNECTOR
K1KA20A00306 K1KA20A00306 CONNECTOR
K1KA20A00275 K1KA20A00275 CONNECTOR
DMW-DCC5 DMW-DCC5 COUPLER
VDW2224 VDW2224 COVER
B3ADB0000142 B3ADB0000142 DIODE
B0JDDD000007 B0JDDD000007 DIODE
B0JDCE000013 B0JDCE000013 DIODE
B0JCFC000001 B0JCFC000001 DIODE
B0ECFR000003 B0ECFR000003 DIODE
B0BC018A0265 B0BC018A0265 DIODE
B0ACCJ000052 B0ACCJ000052 DIODE

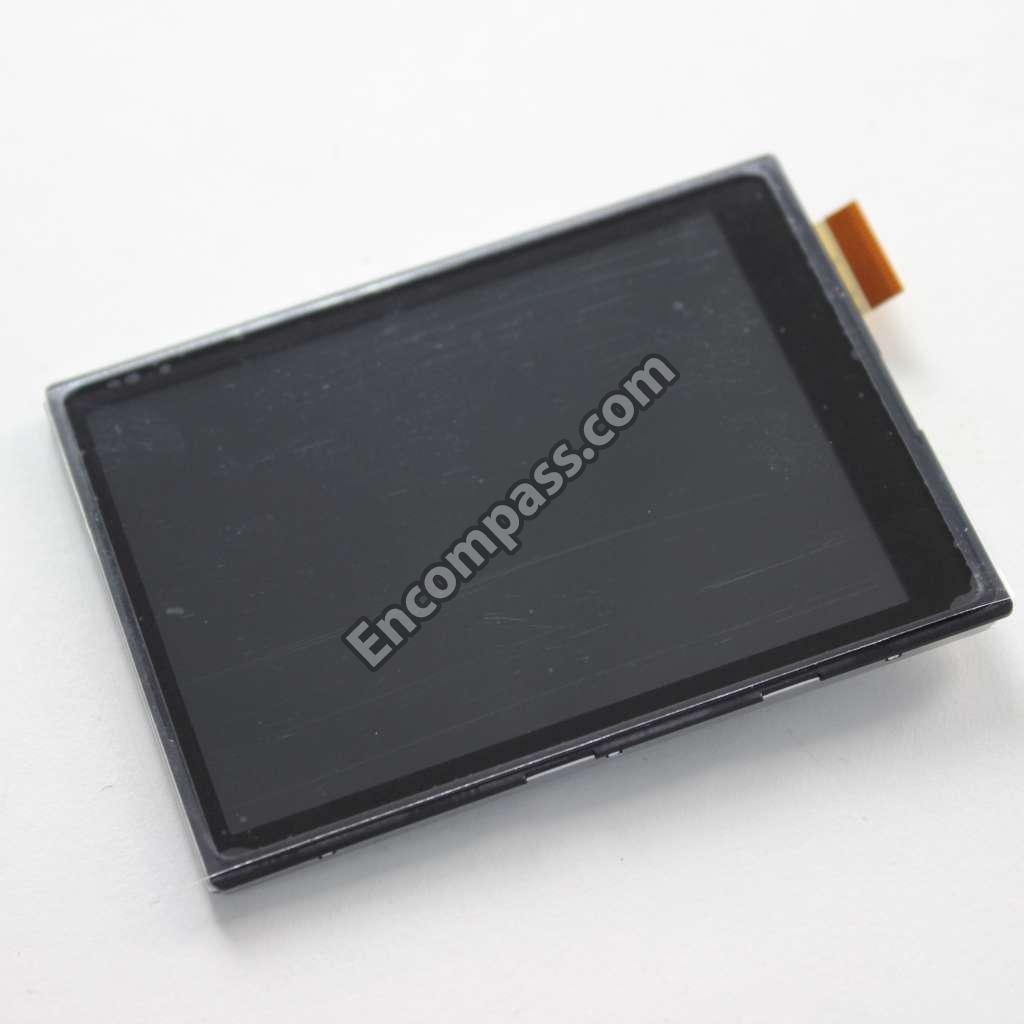

VYK4U15 VYK4U15 DISPLAY
VYK4T91 VYK4T91 DOOR
VKF4799 VKF4799 DOOR
VFK1164ND15 VFK1164ND15 FILTER
J0ZZB0000142 J0ZZB0000142 FILTER
J0JCC0000415 J0JCC0000415 FILTER
J0JCC0000412 J0JCC0000412 FILTER
J0JCC0000317 J0JCC0000317 FILTER
VXQ2081 VXQ2081 FLANGE UNIT
VEK0R27 VEK0R27 FLASH
VWJ2241 VWJ2241 FPC
VWJ2240 VWJ2240 FPC
VEK0R13 VEK0R13 FPC
VXQ1999 VXQ1999 FRAME
VXP3531 VXP3531 FRAME
VXP3530 VXP3530 FRAME
VXP3527 VXP3527 FRAME
VXP3526 VXP3526 FRAME
VXP3525 VXP3525 FRAME
VXP3523 VXP3523 FRAME
VMP9895 VMP9895 FRAME
VDW2183 VDW2183 FRAME
VDW2179 VDW2179 FRAME
VDW2175 VDW2175 FRAME
ERBSE2R00U ERBSE2R00U FUSE
ERBSE1R25U ERBSE1R25U FUSE
RS10262 RS10262 IC
MN89512RF MN89512RF IC
MN63Y2006TF MN63Y2006TF IC
L2ES00000022 L2ES00000022 IC
L2ES00000021 L2ES00000021 IC
C1AB00003449 C1AB00003449 IC
C1AB00003040 C1AB00003040 IC
C0ZBZ0001817 C0ZBZ0001817 IC
C0DBGYY00798 C0DBGYY00798 IC
C0DBGYY00779 C0DBGYY00779 IC
C0DBAYY00780 C0DBAYY00780 IC
C0ABHA000070 C0ABHA000070 IC
G1C4R7MA0428 G1C4R7MA0428 INDUCTOR
G1C3R3MA0428 G1C3R3MA0428 INDUCTOR
G1C3R3MA0392 G1C3R3MA0392 INDUCTOR
G1C2R2MA0211 G1C2R2MA0211 INDUCTOR
G1C150MA0392 G1C150MA0392 INDUCTOR
G1C100MA0428 G1C100MA0428 INDUCTOR
G1C100MA0410 G1C100MA0410 INDUCTOR
G1C100MA0408 G1C100MA0408 INDUCTOR
G1C100MA0393 G1C100MA0393 INDUCTOR
G1C100KA0115 G1C100KA0115 INDUCTOR
VGU0H74 VGU0H74 KNOB
VGQ0L97 VGQ0L97 KNOB
VXW1201 VXW1201 LENS
L0CBAA000015 L0CBAA000015 MICROPHONE
L6HAYYYC0036 L6HAYYYC0036 MOTOR
L6DAYYYC0002 L6DAYYYC0002 MOTOR
VGQ0J81 VGQ0J81 MOUNT
VGQ0U22 VGQ0U22 ORNAMENT
VGK3732 VGK3732 ORNAMENT
VGK3731 VGK3731 ORNAMENT
H0J327200085 H0J327200085 OSCILLATOR
H0J240500048 H0J240500048 OSCILLATOR
VPN7189 VPN7189 PACKAGING
VPK4980 VPK4980 PACKAGING
VPF1547 VPF1547 PACKAGING
VPF1137 VPF1137 PACKAGING
VYK5C82 VYK5C82 PANEL
VGL1268 VGL1268 PANEL
VEP58148A VEP58148A PC BOARD
VEP56125B VEP56125B PC BOARD
VEP51029A VEP51029A PC BOARD
VEP50080C VEP50080C PC BOARD
VEP50079A VEP50079A PC BOARD
VMP9912 VMP9912 PLATE
K5H1522A0018 K5H1522A0018 PROTECTOR
EXBN8V103J EXBN8V103J RESISTOR
ERJ6GEYJ514V ERJ6GEYJ514V RESISTOR
ERJ6GEY0R00A ERJ6GEY0R00A RESISTOR
ERJ3GEYJ680V ERJ3GEYJ680V RESISTOR
ERJ3GEYJ160 ERJ3GEYJ160 RESISTOR
ERJ3GEYJ104V ERJ3GEYJ104V RESISTOR
ERJ3GEY0R00 ERJ3GEY0R00 RESISTOR
ERJ2RKF5902 ERJ2RKF5902 RESISTOR
ERJ2RKF5901 ERJ2RKF5901 RESISTOR
ERJ2RKD680 ERJ2RKD680 RESISTOR
ERJ2RKD564 ERJ2RKD564 RESISTOR
ERJ2RKD334 ERJ2RKD334 RESISTOR
ERJ2GEJ330X ERJ2GEJ330X RESISTOR
ERJ2RKD224 ERJ2RKD224 RESISTOR
ERJ2RKD184 ERJ2RKD184 RESISTOR
ERJ2RKD100 ERJ2RKD100 RESISTOR
ERJ2RHD913 ERJ2RHD913 RESISTOR
ERJ2RHD823 ERJ2RHD823 RESISTOR
ERJ2RHD822X ERJ2RHD822X RESISTOR
ERJ2RHD753 ERJ2RHD753 RESISTOR
ERJ2RHD622 ERJ2RHD622 RESISTOR
ERJ2RHD561 ERJ2RHD561 RESISTOR
ERJ2RHD473 ERJ2RHD473 RESISTOR
ERJ2RHD472X ERJ2RHD472X RESISTOR
ERJ2RHD332X ERJ2RHD332X RESISTOR
ERJ2RHD303 ERJ2RHD303 RESISTOR
ERJ2RHD243 ERJ2RHD243 RESISTOR
ERJ2RHD223 ERJ2RHD223 RESISTOR
ERJ2RHD222 ERJ2RHD222 RESISTOR
ERJ2RHD183 ERJ2RHD183 RESISTOR
ERJ2RHD1621 ERJ2RHD1621 RESISTOR
ERJ2RHD122 ERJ2RHD122 RESISTOR
ERJ2RHD104 ERJ2RHD104 RESISTOR
ERJ2RHD103 ERJ2RHD103 RESISTOR
ERJ2GEJ824 ERJ2GEJ824 RESISTOR
ERJ2GEJ822 ERJ2GEJ822 RESISTOR
ERJ2GEJ752X ERJ2GEJ752X RESISTOR
ERJ2GEJ750 ERJ2GEJ750 RESISTOR
ERJ2GEJ561 ERJ2GEJ561 RESISTOR
ERJ2GEJ513X ERJ2GEJ513X RESISTOR
ERJ2GEJ512X ERJ2GEJ512X RESISTOR
ERJ2GEJ473 ERJ2GEJ473 RESISTOR
ERJ2GEJ470 ERJ2GEJ470 RESISTOR
ERJ2GEJ392 ERJ2GEJ392 RESISTOR
ERJ2GEJ334 ERJ2GEJ334 RESISTOR
ERJ2GEJ332 ERJ2GEJ332 RESISTOR
ERJ2GEJ331 ERJ2GEJ331 RESISTOR
ERJ2GEJ242 ERJ2GEJ242 RESISTOR
ERJ2GEJ223 ERJ2GEJ223 RESISTOR
ERJ2GEJ222X ERJ2GEJ222X RESISTOR
ECEA0JKA221 ECEA0JKA221 RESISTOR
ERJ2GEJ203X ERJ2GEJ203X RESISTOR
ECEA0JKS220I ECEA0JKS220I RESISTOR
ERJ2GEJ182 ERJ2GEJ182 RESISTOR
ERJ2GEJ163X ERJ2GEJ163X RESISTOR
ERJ2GEJ152 ERJ2GEJ152 RESISTOR
ERJ2GEJ151X ERJ2GEJ151X RESISTOR
ERJ2GEJ122 ERJ2GEJ122 RESISTOR
ERJ2GEJ112 ERJ2GEJ112 RESISTOR
ERJ2GEJ105 ERJ2GEJ105 RESISTOR
ERJ2GEJ104 ERJ2GEJ104 RESISTOR
ERJ2GEJ103X ERJ2GEJ103X RESISTOR
ERJ2GEJ102X ERJ2GEJ102X RESISTOR
ERJ2GEJ101 ERJ2GEJ101 RESISTOR
ERJ2GED273X ERJ2GED273X RESISTOR
ERGSJ102 ERGSJ102 RESISTOR
D1H86804A024 D1H86804A024 RESISTOR
D1H84734A024 D1H84734A024 RESISTOR
D1H82214A024 D1H82214A024 RESISTOR
D1BD4703A119 D1BD4703A119 RESISTOR
D0HA1R0ZA005 D0HA1R0ZA005 RESISTOR
XQN14_BJ35FN XQN14_BJ35FN SCREW
VHD2296 VHD2296 SCREW
VHD2207 VHD2207 SCREW
VHD2109 VHD2109 SCREW
VHD2081 VHD2081 SCREW
VHD2071 VHD2071 SCREW
VHD1924-A VHD1924-A SCREW
VHD1909 VHD1909 SCREW
VHD1871 VHD1871 SCREW
RP-SDN16GU1A RP-SDN16GU1A SD CARD
RP-SDN08GU1A RP-SDN08GU1A SD CARD
RP-SDN04GU1A RP-SDN04GU1A SD CARD
RP-SDW32GU1K RP-SDW32GU1K SD MEMORY CARD
RP-SDW16GU1K RP-SDW16GU1K SD MEMORY CARD
RP-SDW04GU1K RP-SDW04GU1K SD MEMORY CARD
B3NBA0000018 B3NBA0000018 SENSOR
VMS8146 VMS8146 SHAFT
VMS7863 VMS7863 SHAFT
VGQ0X13 VGQ0X13 SHEET
VGQ0X10 VGQ0X10 SHEET
VGQ0X09 VGQ0X09 SHEET
VGQ0W96 VGQ0W96 SHEET
VGQ0P04 VGQ0P04 SHEET
K1FB108E0008 K1FB108E0008 SOCKET
VGQ0S28 VGQ0S28 SPACER
VGQ0S27 VGQ0S27 SPACER
VGQ0S26 VGQ0S26 SPACER
L0AA01A00032 L0AA01A00032 SPEAKER
VMB4507 VMB4507 SPRING
VMB4462 VMB4462 SPRING
VMB4448 VMB4448 SPRING
VMB4305 VMB4305 SPRING
VMB4251 VMB4251 SPRING
VMB4143 VMB4143 SPRING
VFC4297-B VFC4297-B STRAP
K0MZ26000005 K0MZ26000005 SWITCH
K0G199A00012 K0G199A00012 SWITCH
K0F111A00583 K0F111A00583 SWITCH
K0F111A00541 K0F111A00541 SWITCH
K0D112B00145 K0D112B00145 SWITCH
VGQ0W39 VGQ0W39 TAPE
VGQ0U66 VGQ0U66 TAPE
N9ZZ00000333 N9ZZ00000333 TERMINAL
K4AC01D00001 K4AC01D00001 TERMINAL
VFK1906 VFK1906 TEST TOOL
VFK1541 VFK1541 TEST TOOL
YTU93072M YTU93072M TEST TOOL
VFK1164TCM03 VFK1164TCM03 TEST TOOL
RFKZ0581 RFKZ0581 TEST TOOL
RFKZ0494 RFKZ0494 TEST TOOL
RFKZ0472 RFKZ0472 TEST TOOL
RFKZ0443 RFKZ0443 TEST TOOL
RFKZ0422 RFKZ0422 TEST TOOL
G5D1A0000082 G5D1A0000082 TRANSFORMER
B1JBLP000022 B1JBLP000022 TRANSISTOR
B1GBCFNL0020 B1GBCFNL0020 TRANSISTOR
B1GBCFJN0041 B1GBCFJN0041 TRANSISTOR
B1CFHC000006 B1CFHC000006 TRANSISTOR
