Model Image
Manufacturer

Panasonic

Model Number

DMPBDT500

Description

3d Blu-ray Disc Player

Interactive Exploded View

Parts List

Part Number Description
VMD6580 VMD6580 BASE
AM-3PA_4B AM-3PA_4B BATTERY
AM-3PA_2B AM-3PA_2B BATTERY
VMG1720 VMG1720 BELT
RMR2058-K RMR2058-K BRACKET
L0DCDA000011 L0DCDA000011 BUZZER
VWJ2335 VWJ2335 CABLE
VEE1L88 VEE1L88 CABLE
VEE1L87 VEE1L87 CABLE
VEE1L30 VEE1L30 CABLE
K2CB2CB00022 K2CB2CB00022 CABLE
VMD6550 VMD6550 CAM
F2G0J221A065 F2G0J221A065 CAPACITOR
F2G0J101A212 F2G0J101A212 CAPACITOR
F2B2E1010003 F2B2E1010003 CAPACITOR
F2A1V470A831 F2A1V470A831 CAPACITOR
F2A1H2200055 F2A1H2200055 CAPACITOR
F2A1H100B040 F2A1H100B040 CAPACITOR
F2A1E470A205 F2A1E470A205 CAPACITOR
F2A1E101B655 F2A1E101B655 CAPACITOR
F2A1C8210008 F2A1C8210008 CAPACITOR
F2A1C471B621 F2A1C471B621 CAPACITOR
F2A1C221B111 F2A1C221B111 CAPACITOR
F2A1A1020072 F2A1A1020072 CAPACITOR
F2A0J470A599 F2A0J470A599 CAPACITOR
F1J1E104A137 F1J1E104A137 CAPACITOR
F1J1C475A059 F1J1C475A059 CAPACITOR
F1J1C106A059 F1J1C106A059 CAPACITOR
F1J1C1060001 F1J1C1060001 CAPACITOR
F1J1A106A024 F1J1A106A024 CAPACITOR
F1J1A1060011 F1J1A1060011 CAPACITOR
F1J0J2260004 F1J0J2260004 CAPACITOR
F1J0J106A020 F1J0J106A020 CAPACITOR
F1H1H392A013 F1H1H392A013 CAPACITOR
F1J0J226A014 F1J0J226A014 CAPACITOR
F1H1H103A219 F1H1H103A219 CAPACITOR
F1H1H102A013 F1H1H102A013 CAPACITOR
F1H1H102A004 F1H1H102A004 CAPACITOR
F1H1E104A002 F1H1E104A002 CAPACITOR
F1H1C104A071 F1H1C104A071 CAPACITOR
F1H1A105A036 F1H1A105A036 CAPACITOR
F1H1A105A025 F1H1A105A025 CAPACITOR
F1H0J475A010 F1H0J475A010 CAPACITOR
F1H0J4750004 F1H0J4750004 CAPACITOR
F1H0J225A005 F1H0J225A005 CAPACITOR
F1H0J2250008 F1H0J2250008 CAPACITOR
F1G1H681A541 F1G1H681A541 CAPACITOR
F1G1H2200001 F1G1H2200001 CAPACITOR
F1G1H120A565 F1G1H120A565 CAPACITOR
F1G1H1010001 F1G1H1010001 CAPACITOR
F1G1H100A565 F1G1H100A565 CAPACITOR
F1G1E6820007 F1G1E6820007 CAPACITOR
F1G1E222A086 F1G1E222A086 CAPACITOR
F1G1E1030005 F1G1E1030005 CAPACITOR
F1G1E102A086 F1G1E102A086 CAPACITOR
F1G1E1020001 F1G1E1020001 CAPACITOR
F1G1C822A081 F1G1C822A081 CAPACITOR
F1G1C104A077 F1G1C104A077 CAPACITOR
F1G1C1030008 F1G1C1030008 CAPACITOR
F1G1A823A032 F1G1A823A032 CAPACITOR
F1G1A333A032 F1G1A333A032 CAPACITOR
F1G1A104A058 F1G1A104A058 CAPACITOR
F1G1A104A012 F1G1A104A012 CAPACITOR
F1G1A104A001 F1G1A104A001 CAPACITOR
F1G0J4740003 F1G0J4740003 CAPACITOR
F1G0J224A001 F1G0J224A001 CAPACITOR
F1G0J105A031 F1G0J105A031 CAPACITOR
F1G0J1050007 F1G0J1050007 CAPACITOR
F1BAF1020020 F1BAF1020020 CAPACITOR
F1A3D470A010 F1A3D470A010 CAPACITOR
F0CAF683A021 F0CAF683A021 CAPACITOR
F0CAF223A021 F0CAF223A021 CAPACITOR
EXC24CE900U EXC24CE900U CAPACITOR
ECHU1H102JX5 ECHU1H102JX5 CAPACITOR
RFKGDT500P RFKGDT500P CASE
VMD6549 VMD6549 CHASSIS
VMD6392-J VMD6392-J CLAMPER
J0JKC0000021 J0JKC0000021 COIL
J0JJC0000005 J0JJC0000005 COIL
J0JHC0000045 J0JHC0000045 COIL
J0JGC0000020 J0JGC0000020 COIL
G1C4R7Z00014 G1C4R7Z00014 COIL
G1C220MA0291 G1C220MA0291 COIL
G1C100KA0101 G1C100KA0101 COIL
G0C100KA0174 G0C100KA0174 COIL
G0B233D00005 G0B233D00005 COIL
K1MY45A00001 K1MY45A00001 CONNECTOR
K1MY06BA0041 K1MY06BA0041 CONNECTOR
K1MN06AA0003 K1MN06AA0003 CONNECTOR
K1MN05AA0046 K1MN05AA0046 CONNECTOR
K1MN04AA0046 K1MN04AA0046 CONNECTOR
K1KY23AA0607 K1KY23AA0607 CONNECTOR
K1KY23AA0606 K1KY23AA0606 CONNECTOR
K1KY15AA0607 K1KY15AA0607 CONNECTOR
K1KY15AA0606 K1KY15AA0606 CONNECTOR
K1KB15AA0032 K1KB15AA0032 CONNECTOR
K1KB10B00045 K1KB10B00045 CONNECTOR
K1KA10B00196 K1KA10B00196 CONNECTOR
K1KA07A00292 K1KA07A00292 CONNECTOR
K1KA06AA0083 K1KA06AA0083 CONNECTOR
K1KA05B00219 K1KA05B00219 CONNECTOR
K1KA05A00466 K1KA05A00466 CONNECTOR
K1KA04AA0083 K1KA04AA0083 CONNECTOR
K1FY119E0025 K1FY119E0025 CONNECTOR
VMA0Y32 VMA0Y32 COVER
RMQ2017 RMQ2017 COVER
VMG1966 VMG1966 DAMPER
RMG0855-KJ RMG0855-KJ DAMPER
DZ2W22000L DZ2W22000L DIODE
B3AEA0000099 B3AEA0000099 DIODE
B0JARL000004 B0JARL000004 DIODE
B0JARG000017 B0JARG000017 DIODE
B0JAMD000026 B0JAMD000026 DIODE
B0EDKT000009 B0EDKT000009 DIODE
B0BA03600021 B0BA03600021 DIODE
B0BA02100019 B0BA02100019 DIODE
B0BA01800018 B0BA01800018 DIODE
B0BA01700055 B0BA01700055 DIODE
B0AADM000003 B0AADM000003 DIODE
RYF0933-K RYF0933-K DOOR
VXY2166 VXY2166 DRIVE MECHANISM
J0MAB0000241 J0MAB0000241 FILTER
J0JYC0000070 J0JYC0000070 FILTER
VMG1212 VMG1212 FOOT
RKA0269-K RKA0269-K FOOT
K5H501Z00005 K5H501Z00005 FUSE
K5H252Z00003 K5H252Z00003 FUSE
K5H2022A0011 K5H2022A0011 FUSE
K5G202Y00006 K5G202Y00006 FUSE
VDG1757 VDG1757 GEAR
RMN0987 RMN0987 HOLDER
RMN0986 RMN0986 HOLDER
MN864705KP MN864705KP IC
J0JCC0000287 J0JCC0000287 IC
C3ABUY000007 C3ABUY000007 IC
C1CB00003704 C1CB00003704 IC
C1CB00002807 C1CB00002807 IC
C1AB00003783 C1AB00003783 IC
C1AB00003363 C1AB00003363 IC
C0ZBZ0001834 C0ZBZ0001834 IC
C0HBB0000068 C0HBB0000068 IC
C0GBY0000118 C0GBY0000118 IC
C0GBY0000088 C0GBY0000088 IC
C0EBK0000206 C0EBK0000206 IC
C0DBZYY00482 C0DBZYY00482 IC
C0DBZYY00381 C0DBZYY00381 IC
C0DBGYY01974 C0DBGYY01974 IC
C0DBGFC00051 C0DBGFC00051 IC
C0DBEYY00176 C0DBEYY00176 IC
C0DBAYY00903 C0DBAYY00903 IC
C0DACYY00011 C0DACYY00011 IC
C0CBCYG00004 C0CBCYG00004 IC
C0CBCDG00006 C0CBCDG00006 IC
C0CBCDD00025 C0CBCDD00025 IC
C0CBCDC00074 C0CBCDC00074 IC
C0CBCBE00005 C0CBCBE00005 IC
C0CBCBC00227 C0CBCBC00227 IC
J0MAB0000147 J0MAB0000147 INDUCTOR
G1C3R3Z00005 G1C3R3Z00005 INDUCTOR
K2AB2B000007 K2AB2B000007 INLET
K2LC108B0113 K2LC108B0113 JACK
K2HA609B0017 K2HA609B0017 JACK
K2HA406B0038 K2HA406B0038 JACK
K1NA12B00005 K1NA12B00005 JACK
K1FY104B0076 K1FY104B0076 JACK
VQL2P54 VQL2P54 LABEL
B3ACA0000254 B3ACA0000254 LED
B3ZAZ0000017 B3ZAZ0000017 MODULE
VEM0896-J VEM0896-J MOTOR
L6KAYYYH0008 L6KAYYYH0008 MOTOR
VMD6551 VMD6551 NUT
RAF3620A-C RAF3620A-C OPTICAL PICKUP
VWJ2303 VWJ2303 OPU FFC
H0J300500024 H0J300500024 OSCILLATOR
H0J270500151 H0J270500151 OSCILLATOR
RYQ0979-Z RYQ0979-Z PACKAGING
RPQF0220-2 RPQF0220-2 PACKAGING
RPN2101B-4 RPN2101B-4 PACKAGING
RPN2101A-4 RPN2101A-4 PACKAGING
RPFC0119-1 RPFC0119-1 PACKAGING
RPF0458 RPF0458 PACKAGING
RYP1775-K RYP1775-K PANEL
RGR0397J-A RGR0397J-A PANEL
RGK2348-K RGK2348-K PANEL
VEP71253A VEP71253A PC BOARD
VEP71252A VEP71252A PC BOARD
VEP71251A VEP71251A PC BOARD
VEP70522A VEP70522A PC BOARD
VEP70521A VEP70521A PC BOARD
VEP70520A VEP70520A PC BOARD
RFKB76274A RFKB76274A PC BOARD
C5ZZZ0000065 C5ZZZ0000065 PC BOARD
RMC0815 RMC0815 PLATE
K9ZZ00002324 K9ZZ00002324 PLATE
VDG1756-1J VDG1756-1J PULLEY
C0DBZYY00486 C0DBZYY00486 REGULATOR

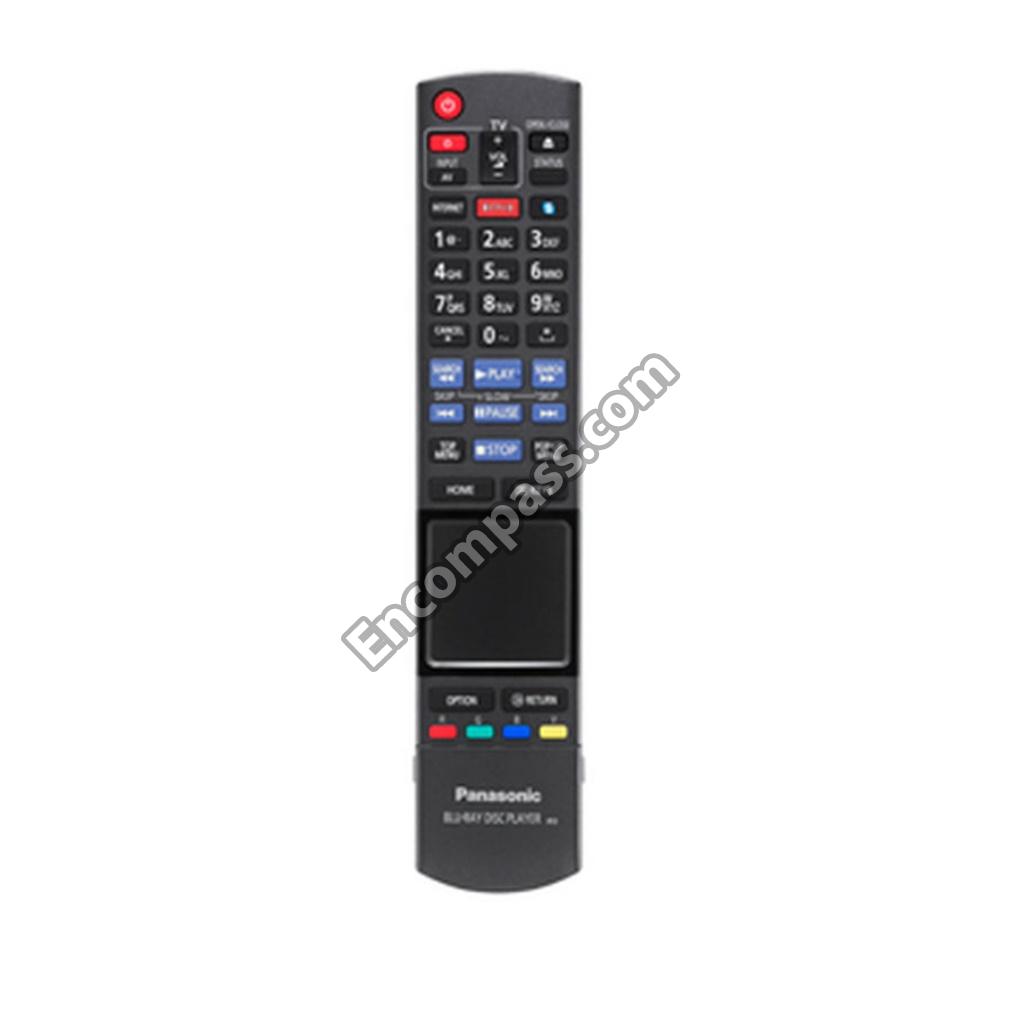

N2QAYB000766 N2QAYB000766 REMOTE CONTROL
ERJ8RQJR22V ERJ8RQJR22V RESISTOR
ERJ6GEYK4R7V ERJ6GEYK4R7V RESISTOR
ERJ6GEYG391 ERJ6GEYG391 RESISTOR
ERJ6GEYJ271 ERJ6GEYJ271 RESISTOR
ERJ6GMYG221 ERJ6GMYG221 RESISTOR
ERJ6GEYG151 ERJ6GEYG151 RESISTOR
ERJ6GEYJ100 ERJ6GEYJ100 RESISTOR
ERJ6GEY0R00A ERJ6GEY0R00A RESISTOR
ERJ3RBD222V ERJ3RBD222V RESISTOR
ERJ3RBD123V ERJ3RBD123V RESISTOR
ERJ3GEYJ820V ERJ3GEYJ820V RESISTOR
ERJ3GEJ750V ERJ3GEJ750V RESISTOR
ERJ3GEYJ562 ERJ3GEYJ562 RESISTOR
ERJ3GEYJ4R7V ERJ3GEYJ4R7V RESISTOR
ERJ3GEYJ472V ERJ3GEYJ472V RESISTOR
ERJ3GEYJ471V ERJ3GEYJ471V RESISTOR
ERJ3GEYJ470V ERJ3GEYJ470V RESISTOR
D0GB393JA041 D0GB393JA041 RESISTOR
ERJ3GEYJ390V ERJ3GEYJ390V RESISTOR
ERJ3GEYJ330 ERJ3GEYJ330 RESISTOR
ERJ3GEYJ223V ERJ3GEYJ223V RESISTOR
ERJ3GEYJ222 ERJ3GEYJ222 RESISTOR
ERJ3GEYJ271V ERJ3GEYJ271V RESISTOR
ERJ3GEYJ1R0V ERJ3GEYJ1R0V RESISTOR
ERJ3GEYJ182V ERJ3GEYJ182V RESISTOR
ERJ3GEYJ151V ERJ3GEYJ151V RESISTOR
ERJ3GEYJ104V ERJ3GEYJ104V RESISTOR
ERJ3GEYJ103V ERJ3GEYJ103V RESISTOR
ERJ3GEYJ331 ERJ3GEYJ331 RESISTOR
ERJ3GEYJ100 ERJ3GEYJ100 RESISTOR
ERJ3GEYF750 ERJ3GEYF750 RESISTOR
ERJ3GEYJR00V ERJ3GEYJR00V RESISTOR
ERJ3EKF5101V ERJ3EKF5101V RESISTOR
ERJ3EKF2201V ERJ3EKF2201V RESISTOR
ERJ2RKF5601X ERJ2RKF5601X RESISTOR
ERJ2RKF2700X ERJ2RKF2700X RESISTOR
ERJ2RKF2491X ERJ2RKF2491X RESISTOR
ERJ2RKF2400X ERJ2RKF2400X RESISTOR
ERJ2RKF1001X ERJ2RKF1001X RESISTOR
ERJ2RKD300X ERJ2RKD300X RESISTOR
ERJ2RHD683X ERJ2RHD683X RESISTOR
ERJ2RHD472X ERJ2RHD472X RESISTOR
ERJ2RHD393X ERJ2RHD393X RESISTOR
ERJ2RHD303X ERJ2RHD303X RESISTOR
ERJ2RHD242X ERJ2RHD242X RESISTOR
ERJ2RHD241X ERJ2RHD241X RESISTOR
ERJ2RHD223X ERJ2RHD223X RESISTOR
ERJ2RHD222X ERJ2RHD222X RESISTOR
ERJ2RHD183X ERJ2RHD183X RESISTOR
ERJ2RHD153X ERJ2RHD153X RESISTOR
ERJ2RHD123X ERJ2RHD123X RESISTOR
ERJ2RHD121X ERJ2RHD121X RESISTOR
ERJ2RHD103X ERJ2RHD103X RESISTOR
ERJ2GEJ820X ERJ2GEJ820X RESISTOR
ERJ2GEJ680 ERJ2GEJ680 RESISTOR
ERJ2GEJ561X ERJ2GEJ561X RESISTOR
ERJ2GEJ4R7X ERJ2GEJ4R7X RESISTOR
ERJ2GEJ473X ERJ2GEJ473X RESISTOR
ERJ2GEJ471 ERJ2GEJ471 RESISTOR
ERJ2GEJ470 ERJ2GEJ470 RESISTOR
ERJ2GEJ333 ERJ2GEJ333 RESISTOR
ERJ2GEJ330X ERJ2GEJ330X RESISTOR
ERJ2GEJ273X ERJ2GEJ273X RESISTOR
ERJ2GEJ272X ERJ2GEJ272X RESISTOR
ERJ2GEJ223X ERJ2GEJ223X RESISTOR
ECEA0JKA221 ECEA0JKA221 RESISTOR
ERJ2GEJ203X ERJ2GEJ203X RESISTOR
ERJ2GEJ201X ERJ2GEJ201X RESISTOR
ERJ2GEJ153X ERJ2GEJ153X RESISTOR
ERJ2GEJ105X ERJ2GEJ105X RESISTOR
ERJ2GEJ104X ERJ2GEJ104X RESISTOR
ERJ2GEJ103X ERJ2GEJ103X RESISTOR
ERJ2GEJ101X ERJ2GEJ101X RESISTOR
ERJ2GE0R00X ERJ2GE0R00X RESISTOR
ERJ14YJ221U ERJ14YJ221U RESISTOR
D1H8R0040009 D1H8R0040009 RESISTOR
D1H88224A024 D1H88224A024 RESISTOR
D1H84734A024 D1H84734A024 RESISTOR
D1H84724A024 D1H84724A024 RESISTOR
D1H84704A024 D1H84704A024 RESISTOR
D1H83334A024 D1H83334A024 RESISTOR
D1H83324A024 D1H83324A024 RESISTOR
D1H83304A024 D1H83304A024 RESISTOR
D1H83014A024 D1H83014A024 RESISTOR
D1H82224A024 D1H82224A024 RESISTOR
D1H81244A024 D1H81244A024 RESISTOR
D1H81034A024 D1H81034A024 RESISTOR
D1H81024A024 D1H81024A024 RESISTOR
D1H81014A024 D1H81014A024 RESISTOR
D0HD821ZA002 D0HD821ZA002 RESISTOR
D0GZR27JA027 D0GZR27JA027 RESISTOR
D0GF1R0JA049 D0GF1R0JA049 RESISTOR

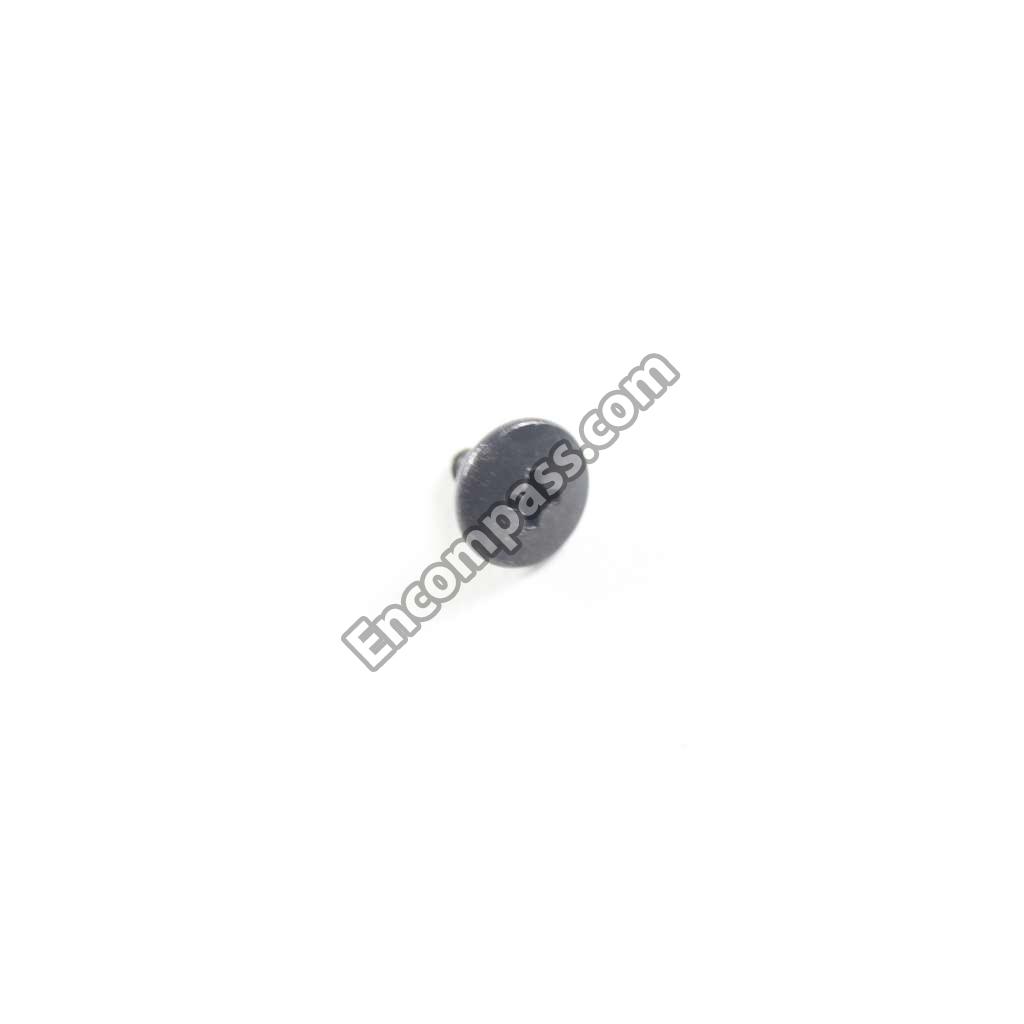

XTN2_4FFJ XTN2_4FFJ SCREW
XSN3_4FJ XSN3_4FJ SCREW
VHD2377 VHD2377 SCREW
RHDC0023 RHDC0023 SCREW
RHD30119-U RHD30119-U SCREW
RHD30113-1K RHD30113-1K SCREW
RHD30105-1 RHD30105-1 SCREW
RHD30101-1J RHD30101-1J SCREW
RHD26045-J RHD26045-J SCREW
VEK0T32 VEK0T32 SENSOR
VMS8199 VMS8199 SHAFT
RSC0905 RSC0905 SHEET
RMZ0975A RMZ0975A SHEET
RFKZ10D01KS RFKZ10D01KS SOLDER
RFKZ06D01KS RFKZ06D01KS SOLDER
RFKZ03D01KS RFKZ03D01KS SOLDER
VMB4542 VMB4542 SPRING
VMB4004-J VMB4004-J SPRING
RMB0941-1 RMB0941-1 SPRING
RMR2036-K RMR2036-K STOPPER
RMN0936 RMN0936 SUPPORT
VXA8986 VXA8986 SW
RMQ2048 RMQ2048 TAPE
RFKZ0328 RFKZ0328 TEST TOOL
RFKZ0327 RFKZ0327 TEST TOOL
RFKZ0316A RFKZ0316A TEST TOOL
RFKZ0239 RFKZ0239 TEST TOOL
RFKZ0216-1 RFKZ0216-1 TEST TOOL
G4DYA0000266 G4DYA0000266 TRANSFORMER
G4D1A0000129 G4D1A0000129 TRANSFORMER
B3PBA0000454 B3PBA0000454 TRANSISTOR
B1GBCFNN0041 B1GBCFNN0041 TRANSISTOR
B1GBCFJJ0040 B1GBCFJJ0040 TRANSISTOR
B1GBCFEN0015 B1GBCFEN0015 TRANSISTOR
B1DGDC000002 B1DGDC000002 TRANSISTOR
B1CFHA000002 B1CFHA000002 TRANSISTOR
B1ADGF000010 B1ADGF000010 TRANSISTOR
B1ADCF000172 B1ADCF000172 TRANSISTOR
B1ABMG000008 B1ABMG000008 TRANSISTOR
B1ABDF000033 B1ABDF000033 TRANSISTOR
VXA8971-SER VXA8971-SER TRAVERSE
VMD6548 VMD6548 TRAY
A2BB00000182 A2BB00000182 TUBE
A2BB00000178 A2BB00000178 TUBE
D4EAY471A127 D4EAY471A127 VARISTOR
VMA0V86 VMA0V86 YOKE
Main Menu x
