Panasonic

Model Number

DVDLX95

Description

Portable Dvd Player

Interactive Exploded View

Parts List

Part Number Description
RFEC201M RFEC201M ADAPTER
RGQ0427-S1 RGQ0427-S1 ARM
RGN2837-S RGN2837-S BADGE
RGQ0431-K RGQ0431-K BARRIER
RMZ0780 RMZ0780 BARRIER
RGL0679-W RGL0679-W BRACKET
RGK1905A-S RGK1905A-S BUTTON
RMR1496-1W RMR1496-1W BUTTON (DISCONTINUED)
RGP1319-K RGP1319-K CABINET
K2KA6CB00003 K2KA6CB00003 CABLE
ECJ1VC1H080D ECJ1VC1H080D CAP
ECJ1VC1H680J ECJ1VC1H680J CAP
ECJ1VB0J105K ECJ1VB0J105K CAPACITOR
ECJ1VB0J474K ECJ1VB0J474K CAPACITOR
ECJ1VB0J684K ECJ1VB0J684K CAPACITOR
ECJ1VB1A224K ECJ1VB1A224K CAPACITOR
F1H1C105A118 F1H1C105A118 CAPACITOR
ECJ1VB1C333K ECJ1VB1C333K CAPACITOR
ECJ1VB1C683K ECJ1VB1C683K CAPACITOR
ECJ1VB1E223K ECJ1VB1E223K CAPACITOR
ECJ1VB1H102K ECJ1VB1H102K CAPACITOR
ECJ1VB1H103K ECJ1VB1H103K CAPACITOR
F1H1H222A219 F1H1H222A219 CAPACITOR
ECUV1H272KBV ECUV1H272KBV CAPACITOR
ECJ1VB1H332K ECJ1VB1H332K CAPACITOR
ECJ1VB1H562K ECJ1VB1H562K CAPACITOR
ECUX1H682KBV ECUX1H682KBV CAPACITOR
ECJ1VC1H120J ECJ1VC1H120J CAPACITOR
ECJ1VC1H221J ECJ1VC1H221J CAPACITOR
ECJ1VC1H270J ECJ1VC1H270J CAPACITOR
ECJ1VC1H390J ECJ1VC1H390J CAPACITOR
ECJ1VC1H561J ECJ1VC1H561J CAPACITOR
ECJ1XF1A105Z ECJ1XF1A105Z CAPACITOR
F1H1C1040004 F1H1C1040004 CAPACITOR
ECJ1XB1C104K ECJ1XB1C104K CAPACITOR
ECJ1XB1E183K ECJ1XB1E183K CAPACITOR
ECJ1XB1H182K ECJ1XB1H182K CAPACITOR
ECUX1H101JCV ECUX1H101JCV CAPACITOR
ECJ1VC1H151J ECJ1VC1H151J CAPACITOR
ECJ1XC1H271J ECJ1XC1H271J CAPACITOR
ECJ1XC1H331J ECJ1XC1H331J CAPACITOR
ECJ1VC1H470J ECJ1VC1H470J CAPACITOR
ECJ1XC1H820J ECJ1XC1H820J CAPACITOR
ECJ1XC1H821J ECJ1XC1H821J CAPACITOR
ECJ2FB0J475K ECJ2FB0J475K CAPACITOR
ECJ3YB1A106K ECJ3YB1A106K CAPACITOR
ECJ3YB1E105K ECJ3YB1E105K CAPACITOR
ECUM1A225KBN ECUM1A225KBN CAPACITOR
ECUV1A335KBN ECUV1A335KBN CAPACITOR
ECUX1H331KBV ECUX1H331KBV CAPACITOR
F1H1H101A799 F1H1H101A799 CAPACITOR
F1H1H332A798 F1H1H332A798 CAPACITOR
F1J0J1060010 F1J0J1060010 CAPACITOR
F1K1C106A062 F1K1C106A062 CAPACITOR
F2G0G331A012 F2G0G331A012 CAPACITOR
F2G1C101A038 F2G1C101A038 CAPACITOR
F2H0G221A001 F2H0G221A001 CAPACITOR
F2H1E680A003 F2H1E680A003 CAPACITOR
F3F0J226A057 F3F0J226A057 CAPACITOR
F3F0J476A047 F3F0J476A047 CAPACITOR
F3F1A106A047 F3F1A106A047 CAPACITOR
F3F1A226A047 F3F1A226A047 CAPACITOR
F3F1C106A042 F3F1C106A042 CAPACITOR
F3G1A476A037 F3G1A476A037 CAPACITOR
F1H1A105A025 F1H1A105A025 CAPACITOR
ECJ1XB1C473K ECJ1XB1C473K CAPACITOR
ECJ1XC1H151J ECJ1XC1H151J CAPACITOR
ECJ1XC1H391J ECJ1XC1H391J CAPACITOR (DISCONTINUED)
RPF0046-1 RPF0046-1 CASE
RMK0502-5C RMK0502-5C CHASSIS
RMK0503-C RMK0503-C CHASSIS
G1C1R5JA0041 G1C1R5JA0041 COIL
G1C150Z00004 G1C150Z00004 COIL
G1C220M00043 G1C220M00043 COIL
J0JHC0000045 J0JHC0000045 COIL
VLP0323A601R VLP0323A601R COIL
VLQ0849 VLQ0849 COIL
VLQ0865M220T VLQ0865M220T COIL
VLQ0914M150T VLQ0914M150T COIL
G1C120JA0041 G1C120JA0041 COIL (DISCONTINUED)
G3AR10C00003 G3AR10C00003 COIL (DISCONTINUED)
UNR212100L UNR212100L COMBINATION
UN5213TX UN5213TX COMBINATION
K1KA02B00053 K1KA02B00053 CONNECTOR
K1KA02BA0072 K1KA02BA0072 CONNECTOR
K1MN10A00068 K1MN10A00068 CONNECTOR
K1MN18B00048 K1MN18B00048 CONNECTOR
K1MN30BA0079 K1MN30BA0079 CONNECTOR
K1MN32A00023 K1MN32A00023 CONNECTOR
K1MN32BA0015 K1MN32BA0015 CONNECTOR
K1MN40B00003 K1MN40B00003 CONNECTOR
K1QZA1AE0001 K1QZA1AE0001 CONNECTOR
K1NA09E00051 K1NA09E00051 CONNECTOR (DISCONTINUED)
K2CB2CB00022 K2CB2CB00022 CORD
J0JBC0000028 J0JBC0000028 CORE (DISCONTINUED)
RFKKPDLS95AK RFKKPDLS95AK COVER
RGQ0422-H RGQ0422-H COVER
RMQ1450 RMQ1450 COVER
RMR1393-WC RMR1393-WC COVER
RFKNDLX95PS0 RFKNDLX95PS0 COVER
RMG0562-K RMG0562-K DAMPER
B0CCAB000048 B0CCAB000048 DIODE
B0JCMD000022 B0JCMD000022 DIODE
B0JCPD000032 B0JCPD000032 DIODE
B0JCPE000004 B0JCPE000004 DIODE
MAZ80510ML MAZ80510ML DIODE
MAZ80560ML MAZ80560ML DIODE
DAN202UT DAN202UT DIODE
MA2SD2400L MA2SD2400L DIODE
MA2S11100L MA2S11100L DIODE
MA2X33800L MA2X33800L DIODE
MA2Z07700L MA2Z07700L DIODE
MA3J745D0L MA3J745D0L DIODE
MA3S132D0L MA3S132D0L DIODE
MA3S132E0L MA3S132E0L DIODE
MA3S13300L MA3S13300L DIODE
MA8039MTX MA8039MTX DIODE
MA8100M MA8100M DIODE
SFPA-73V SFPA-73V DIODE
RKF0733-S RKF0733-S DOOR
ERJ3GEYJ332V ERJ3GEYJ332V ERJ3GEYG332
ERJ3GEYJ333 ERJ3GEYJ333 ERJ3GEYG333
ERJ3GEYJ471V ERJ3GEYJ471V ERJ3GEYG471
ERJ3GEYG473 ERJ3GEYG473 ERJ3GEYG473
ERJ3GEY223 ERJ3GEY223 ERJ3GEYJ223V
ERJ3GEYJ2R2V ERJ3GEYJ2R2V ERJ3GEYJ2R2V
ERJ3GEYJ681 ERJ3GEYJ681 ERJ3GEYJ681V
ERJ3GEYK4R7 ERJ3GEYK4R7 ERJ3GEYK4R7
ERJ3RBD563 ERJ3RBD563 ERJ3RBD563
REZ1697 REZ1697 FFC
REZ1699 REZ1699 FFC
RJB3046A RJB3046A FFC
J0E9205B0002 J0E9205B0002 FILTER
J0HAAB000037 J0HAAB000037 FILTER
K5H2021A0003 K5H2021A0003 FUSE
K5H3121A0004 K5H3121A0004 FUSE
RDG0514-C RDG0514-C GEAR
L0BAD0000179 L0BAD0000179 HEADPHONE
RGQ0425-S RGQ0425-S HOLDER
RGQ0426-S1 RGQ0426-S1 HOLDER
RGQ0433-S RGQ0433-S HOLDER
AN2546FH-AV AN2546FH-AV IC
AN78L05M-E1 AN78L05M-E1 IC
TVSA0021 TVSA0021 IC
C0CBABC00147 C0CBABC00147 IC
C0CBCDC00008 C0CBCDC00008 IC
MB3832APFVER MB3832APFVER IC
C0DBCMD00005 C0DBCMD00005 IC
C0DBFHZ00003 C0DBFHZ00003 IC
C0DBZHD00013 C0DBZHD00013 IC
C0DBZKA00003 C0DBZKA00003 IC
C0EBE0000384 C0EBE0000384 IC
C0FBBK000049 C0FBBK000049 IC
C0GBF0000004 C0GBF0000004 IC
C0GBG0000048 C0GBG0000048 IC
C0JBAA000175 C0JBAA000175 IC
C0JBAA000344 C0JBAA000344 IC
C0JBAH000074 C0JBAH000074 IC
C0JBAS000265 C0JBAS000265 IC
C0ZBZ0001010 C0ZBZ0001010 IC
C0ZBZ0001031 C0ZBZ0001031 IC
C1BB00000952 C1BB00000952 IC
C1ZBZ0002345 C1ZBZ0002345 IC
C3ABQJ000026 C3ABQJ000026 IC
C3EBDC000063 C3EBDC000063 IC
C9ZB00000461 C9ZB00000461 IC
MN101C39CPA MN101C39CPA IC
MN2DS0004APH MN2DS0004APH IC
MN5814 MN5814 IC
NJM2115VTE1 NJM2115VTE1 IC
C0ABBA000075 C0ABBA000075 IC
RFKWPS86E320 RFKWPS86E320 IC
TC7W14FU TC7W14FU IC
G1C100KA0055 G1C100KA0055 INDUCTOR
G1C220KA0055 G1C220KA0055 INDUCTOR
G1C100ZA0059 G1C100ZA0059 INDUCTOR (DISCONTINUED)
RQT8075-1Y RQT8075-1Y INSTRUCT BOOK
K2ED2B000002 K2ED2B000002 JACK
K2HC104B0027 K2HC104B0027 JACK
K2HC108B0002 K2HC108B0002 JACK
K4ZZ04000058 K4ZZ04000058 JACK
VJJ0686 VJJ0686 JACK
B3AAB0000151 B3AAB0000151 LED
B3ACB0000108 B3ACB0000108 LED
B3ADB0000069 B3ADB0000069 LED
B3AEB0000069 B3AEB0000069 LED
RML0699 RML0699 LEVER
RML0700 RML0700 LEVER
BKL2E04KA BKL2E04KA MOTOR
RXQ0786-1 RXQ0786-1 MOTOR
RAF3134A RAF3134A OPTICAL PICKUP
RGK1902-Q RGK1902-Q ORNAMENT
H0J270500080 H0J270500080 OSCILLATOR
RSXY8M00M07T RSXY8M00M07T OSCILLATOR
H0J760400006 H0J760400006 OSCILLATOR (DISCONTINUED)
RPK2310 RPK2310 PACKAGING
RPQF0283 RPQF0283 PACKAGING
RPQ1954 RPQ1954 PACKAGING
RPQ1998 RPQ1998 PAD
RPQ1999 RPQ1999 PAD
L5EDD2H00005 L5EDD2H00005 PANEL
REP3894A-S REP3894A-S PC BOARD
RFKBLS55MP RFKBLS55MP PC BOARD
RMA1928 RMA1928 PLATE

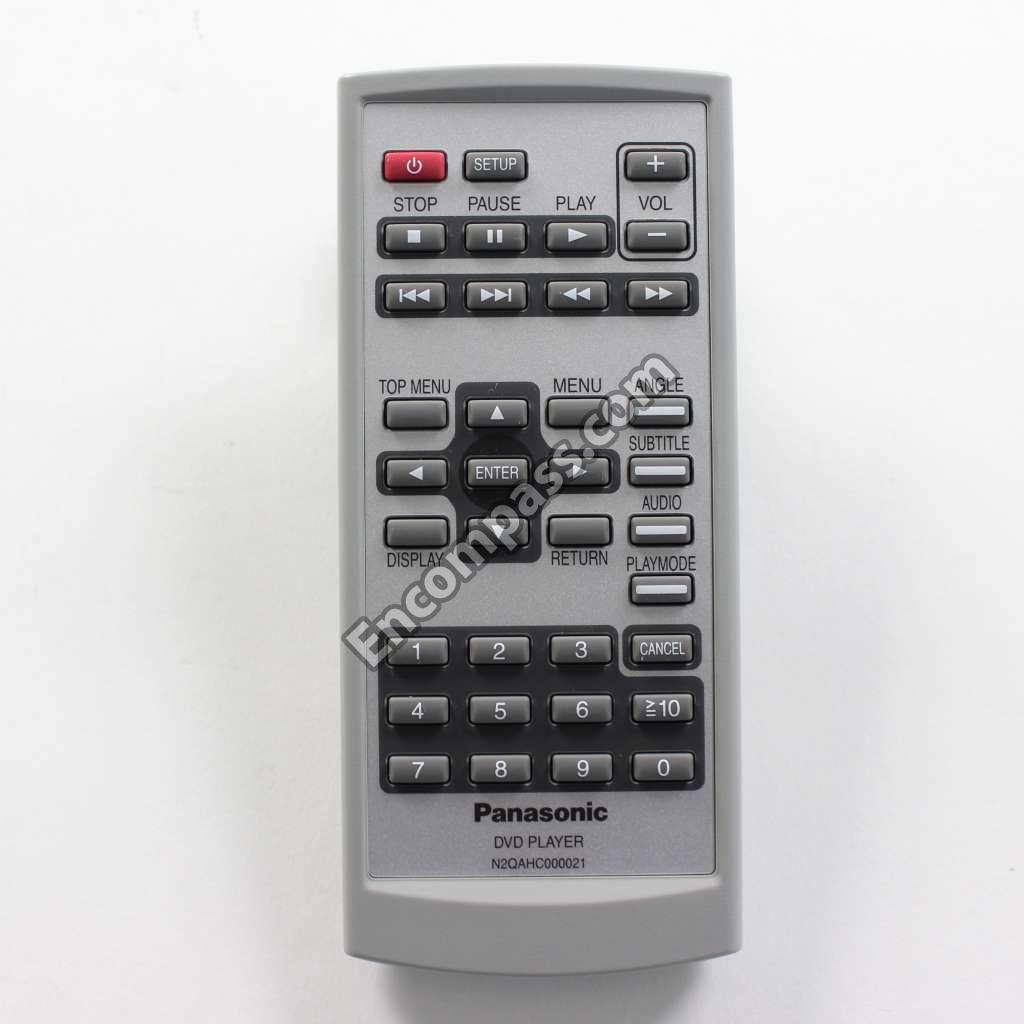

B3RAD0000075 B3RAD0000075 REMOTE CONTROL
N2QAHC000021 N2QAHC000021 REMOTE CONTROL
D1H84724A024 D1H84724A024 RESISTOR
D1H84734A024 D1H84734A024 RESISTOR
VRE0071E332 VRE0071E332 RESISTOR
ERJ12RQJR68U ERJ12RQJR68U RESISTOR
ERJ12YJ270 ERJ12YJ270 RESISTOR
ERJ3GEYJ100 ERJ3GEYJ100 RESISTOR
ERJ3GEYJ101 ERJ3GEYJ101 RESISTOR
ERJ3GEYJ103V ERJ3GEYJ103V RESISTOR
ERJ3GEYJ104V ERJ3GEYJ104V RESISTOR
ERJ3GEYJ105 ERJ3GEYJ105 RESISTOR
ERJ3GEYJ120V ERJ3GEYJ120V RESISTOR
ERJ3GEYJ121 ERJ3GEYJ121 RESISTOR
ERJ3GEYJ123V ERJ3GEYJ123V RESISTOR
ERJ3GEYJ151V ERJ3GEYJ151V RESISTOR
ERJ3GEYG152 ERJ3GEYG152 RESISTOR
ERJ3GEYJ180 ERJ3GEYJ180 RESISTOR
ERJ3GEYJ182V ERJ3GEYJ182V RESISTOR
ERJ3GEYJ183V ERJ3GEYJ183V RESISTOR
ERJ3GEYJ184V ERJ3GEYJ184V RESISTOR
ERJ3GEYJ220 ERJ3GEYJ220 RESISTOR
ERJ3GEYJ222 ERJ3GEYJ222 RESISTOR
ERJ3GEYJ224V ERJ3GEYJ224V RESISTOR
ERJ3GEYJ272 ERJ3GEYJ272 RESISTOR
ERJ3GEYJ273 ERJ3GEYJ273 RESISTOR
ERJ3GEYJ330 ERJ3GEYJ330 RESISTOR
ERJ3GEYJ331 ERJ3GEYJ331 RESISTOR
ERJ3GEYJ334V ERJ3GEYJ334V RESISTOR
D0GB393JA041 D0GB393JA041 RESISTOR
ERJ3GEYJ470 ERJ3GEYJ470 RESISTOR
ERJ3GEYJ472V ERJ3GEYJ472V RESISTOR
ERJ3GEYJ474 ERJ3GEYJ474 RESISTOR
ERJ3GEYJ5R6 ERJ3GEYJ5R6 RESISTOR
ERJ3GEYJ562 ERJ3GEYJ562 RESISTOR
ERJ3GEYJ563 ERJ3GEYJ563 RESISTOR
ERJ3GEYJ680V ERJ3GEYJ680V RESISTOR
ERJ3GEYJ682 ERJ3GEYJ682 RESISTOR
ERJ3GEYJ683 ERJ3GEYJ683 RESISTOR
ERJ3GEYJ820V ERJ3GEYJ820V RESISTOR
ERJ3GEYJ821 ERJ3GEYJ821 RESISTOR
ERJ3GEYJ822 ERJ3GEYJ822 RESISTOR
ERJ3GEYJ823 ERJ3GEYJ823 RESISTOR
ERJ3GEY0R00 ERJ3GEY0R00 RESISTOR
ERJ3RBD122 ERJ3RBD122 RESISTOR
ERJ3RBD123V ERJ3RBD123V RESISTOR
ERJ3RBD151V ERJ3RBD151V RESISTOR
ERJ3RBD152 ERJ3RBD152 RESISTOR
ERJ3RBD102V ERJ3RBD102V RESISTOR
VRE0071E183 VRE0071E183 RESISTOR
ERJ3RBD202V ERJ3RBD202V RESISTOR
ERJ3RBD223 ERJ3RBD223 RESISTOR
ERJ3RBD272V ERJ3RBD272V RESISTOR
ERJ3RBD333V ERJ3RBD333V RESISTOR
ERJ3RBD393 ERJ3RBD393 RESISTOR
ERJ3RBD471 ERJ3RBD471 RESISTOR
ERJ3RBD623 ERJ3RBD623 RESISTOR
ERJ3RBD683 ERJ3RBD683 RESISTOR
ERJ3RED274 ERJ3RED274 RESISTOR
ERJ3RED750 ERJ3RED750 RESISTOR
ERJ3RED820 ERJ3RED820 RESISTOR
ERJ3RED910 ERJ3RED910 RESISTOR
ERJ8GCYJ1R5 ERJ8GCYJ1R5 RESISTOR
EXB28V103JX EXB28V103JX RESISTOR
JAR0816P103D JAR0816P103D RESISTOR
JAR0816P332D JAR0816P332D RESISTOR
JAR0816P822D JAR0816P822D RESISTOR
ERJ3GEYJ153V ERJ3GEYJ153V RESISTOR
ERJ3GEYJ271V ERJ3GEYJ271V RESISTOR
ERJ3GEYJ561V ERJ3GEYJ561V RESISTOR
D1BFR047A024 D1BFR047A024 RESISTOR (DISCONTINUED)
ERJ3GEYJ122 ERJ3GEYJ122 RN4B2AY122J
RMR1705-H RMR1705-H ROLLER
RMG0569-K1 RMG0569-K1 RUBBER
RHD17037-1 RHD17037-1 SCREW
RHD17043-1 RHD17043-1 SCREW
XQN17_BG4FN XQN17_BG4FN SCREW
XQN17_BG6FN XQN17_BG6FN SCREW
XQN17_B4FN XQN17_B4FN SCREW
XQN2_B3FN XQN2_B3FN SCREW
XTN17_6GFJK XTN17_6GFJK SCREW
RMS0751-J RMS0751-J SHAFT
RMS0870 RMS0870 SHAFT
RXJ0031 RXJ0031 SHAFT
RMX0324 RMX0324 SPACER
SPB1061 SPB1061 SPB1061
EAS2D01S EAS2D01S SPEAKER
EAS2D01R0 EAS2D01R0 SPEAKER (DISCONTINUED)
RMB0681-J RMB0681-J SPRING
RMB0833 RMB0833 SPRING
RMB0834 RMB0834 SPRING
RMB0835 RMB0835 SPRING
RMC0448-C RMC0448-C SPRING
RMC0455-3C RMC0455-3C SPRING
RMC0592-C RMC0592-C SPRING
RMC0593-C RMC0593-C SPRING
RMC0626 RMC0626 SPRING
RMR1703-H RMR1703-H STOPPER
ESE11MV9T ESE11MV9T SWITCH
K0H1BA000432 K0H1BA000432 SWITCH
RFKZ0303 RFKZ0303 TEST TOOL
VRT0139J103 VRT0139J103 THERMISTOR
B1ABED000003 B1ABED000003 TRANSISTOR
B1ADPC000004 B1ADPC000004 TRANSISTOR
B1BBCF000026 B1BBCF000026 TRANSISTOR
B1CFHA000002 B1CFHA000002 TRANSISTOR
B1DFDF000001 B1DFDF000001 TRANSISTOR
B1DHCD000023 B1DHCD000023 TRANSISTOR
B1GDCFJN0011 B1GDCFJN0011 TRANSISTOR
B1GFGCAA0001 B1GFGCAA0001 TRANSISTOR
B1ZBZ0000049 B1ZBZ0000049 TRANSISTOR
XN4601TX XN4601TX TRANSISTOR
XP0121300L XP0121300L TRANSISTOR
XP132A1545SR XP132A1545SR TRANSISTOR
XP4501TX XP4501TX TRANSISTOR
2SB1218A 2SB1218A TRANSISTOR
2SD1819AWL 2SD1819AWL TRANSISTOR
RKW0788-W RKW0788-W WINDOW
