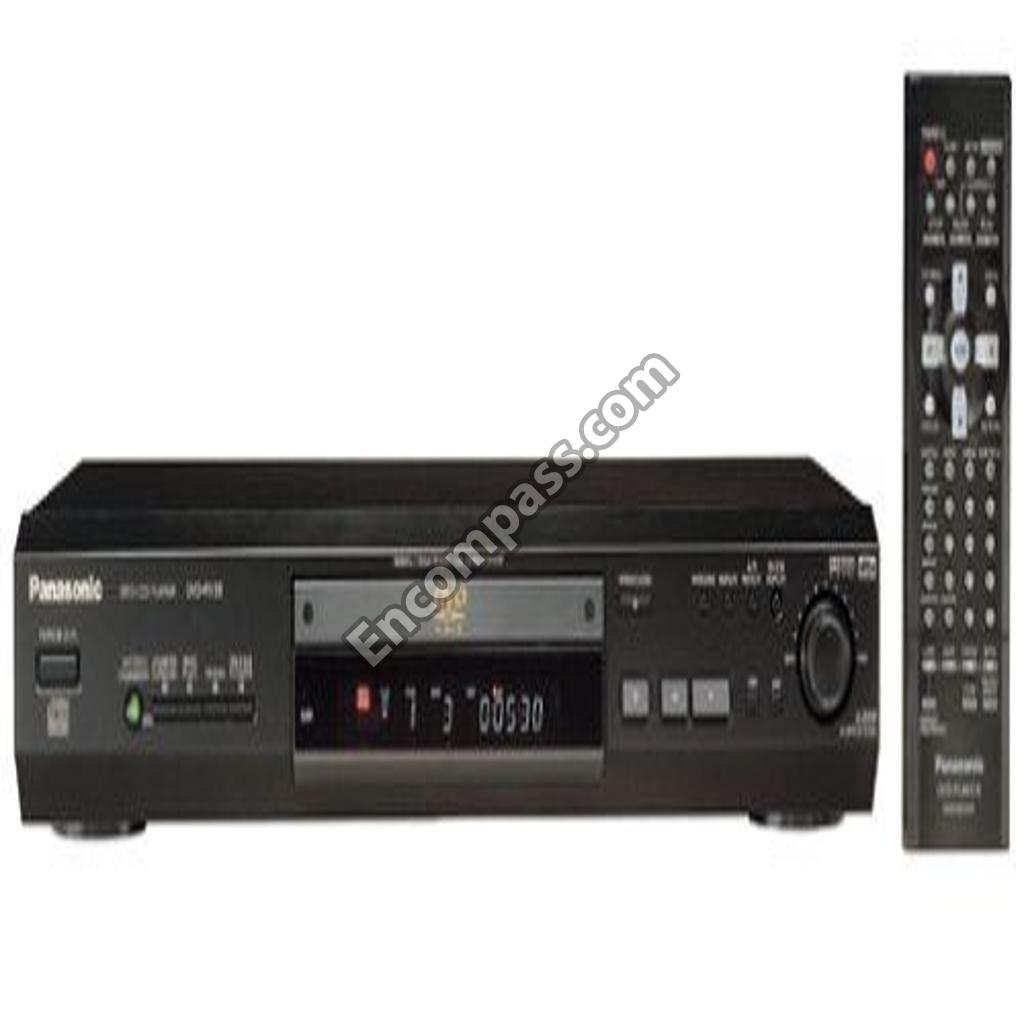

Model Image
Manufacturer

Panasonic

Model Number

DVDRV22

Description

Dig. Video Disc Play

Interactive Exploded View

Parts List

Part Number Description
REP3091B-N REP3091B-N *ASC ORDER DIRECT*
21DQ04 21DQ04 21DQ04
2SD601-RS 2SD601-RS 2SD602ARS-TX
EXBV8V473JV EXBV8V473JV ARRAY
EXBV8V101JV EXBV8V101JV ARRAY
EXBV4V472JV EXBV4V472JV ARRAY
CMC0002 CMC0002 BOARD
CMC0001 CMC0001 BOARD
RWJC0002 RWJC0002 CABLE
RJB2308A-1 RJB2308A-1 CABLE
RJB2309A RJB2309A CABLE
REZ1355-1 REZ1355-1 CABLE
REX1057 REX1057 CABLE
ECJ1XF1A105Z ECJ1XF1A105Z CAP
VCS1AS106R VCS1AS106R CAPACITOR
VCK0299E222 VCK0299E222 CAPACITOR
VCK0299E102 VCK0299E102 CAPACITOR
VCK0266K471T VCK0266K471T CAPACITOR
ECKD2H471KB5 ECKD2H471KB5 CAPACITOR
VCEA1HJH560B VCEA1HJH560B CAPACITOR
VCEA1EJH271B VCEA1EJH271B CAPACITOR
VCEA1AJH181B VCEA1AJH181B CAPACITOR
VCEA1AJH102B VCEA1AJH102B CAPACITOR
VCEA1AJC221B VCEA1AJC221B CAPACITOR
RCST1AY106RC RCST1AY106RC CAPACITOR
F2G0J331A015 F2G0J331A015 CAPACITOR
F2G0J330A015 F2G0J330A015 CAPACITOR
F1J1A2250007 F1J1A2250007 CAPACITOR
EEEHB0J330R EEEHB0J330R CAPACITOR
EEVFC1C100 EEVFC1C100 CAPACITOR
ECUX1H150JCV ECUX1H150JCV CAPACITOR
ECUX1H102JCV ECUX1H102JCV CAPACITOR
ECUX1C104ZFV ECUX1C104ZFV CAPACITOR
ECUV1H822KBV ECUV1H822KBV CAPACITOR
ECUV1H681KBV ECUV1H681KBV CAPACITOR
ECUV1H391JCV ECUV1H391JCV CAPACITOR
ECJ1VB1H332K ECJ1VB1H332K CAPACITOR
ECUV1H222KBV ECUV1H222KBV CAPACITOR
ECUV1H220JCV ECUV1H220JCV CAPACITOR
ECUV1H152KBV ECUV1H152KBV CAPACITOR
ECUX1H103ZFX ECUX1H103ZFX CAPACITOR
ECU1H102KBV ECU1H102KBV CAPACITOR
ECUV1H101JCV ECUV1H101JCV CAPACITOR
ECUV1C473KBV ECUV1C473KBV CAPACITOR
ECUV1C393KBV ECUV1C393KBV CAPACITOR
ECJ1VB0J475K ECJ1VB0J475K CAPACITOR
ECUV1A474KBV ECUV1A474KBV CAPACITOR
ECUV1A224KBV ECUV1A224KBV CAPACITOR
ECUV0J105KBV ECUV0J105KBV CAPACITOR
ECUVNC333KBV ECUVNC333KBV CAPACITOR
ECQV1H104JL2 ECQV1H104JL2 CAPACITOR
ECQU2A683MLC ECQU2A683MLC CAPACITOR
ECQB1H223JF3 ECQB1H223JF3 CAPACITOR
ECQB1H104JF4 ECQB1H104JF4 CAPACITOR
ECEV1CA220P ECEV1CA220P CAPACITOR
EEE1CA101WP EEE1CA101WP CAPACITOR
EEVFC0J221 EEVFC0J221 CAPACITOR
ECEV0GA101SR ECEV0GA101SR CAPACITOR
E50HU54R7M E50HU54R7M CAPACITOR
ECEA1CKA470B ECEA1CKA470B CAPACITOR
ECEA0JK221X ECEA0JK221X CAPACITOR
ECA2EHG330B ECA2EHG330B CAPACITOR
ECA1HM330B ECA1HM330B CAPACITOR
ECA1EM221 ECA1EM221 CAPACITOR
YFUGAC221BJ YFUGAC221BJ CAPACITOR
ECA1CM100B ECA1CM100B CAPACITOR
ECA1CAK470XB ECA1CAK470XB CAPACITOR
ECA1ANK470XB ECA1ANK470XB CAPACITOR
ECA0JM331B ECA0JM331B CAPACITOR
ERD25TG3901 ERD25TG3901 CAPACITOR
ECA1EM331B ECA1EM331B CAPACITOR
ECKD2H182KB5 ECKD2H182KB5 CAPACITOR
EEVHB0J101 EEVHB0J101 CAPACITOR
ECJ1VF1E104Z ECJ1VF1E104Z CAPACITOR
EEEHB1C100R EEEHB1C100R CAPACITOR
ECEA1CU102E ECEA1CU102E CAPACITOR
ERJ3RHD183V ERJ3RHD183V CAPACITOR
SCEA0JFE331E SCEA0JFE331E CAPACITOR
ECEV1CA220WR ECEV1CA220WR CAPACITOR
EEVHB0J470R EEVHB0J470R CAPACITOR
ECKW2H471KB2 ECKW2H471KB2 CAPACITOR
RXQ0748-3 RXQ0748-3 CHASSIS
RMR1376-K RMR1376-K CHASSIS
RXQ0724 RXQ0724 CLAMPER
VLQ0855K220T VLQ0855K220T COIL
VLQ0855K100T VLQ0855K100T COIL
VLQ0611K220T VLQ0611K220T COIL
VLQ0611K100T VLQ0611K100T COIL
VLQEL05T221J VLQEL05T221J COIL
VLQEL05T101J VLQEL05T101J COIL
VLQEL05S330K VLQEL05S330K COIL
VLP0323A601R VLP0323A601R COIL
VLP0146-T VLP0146-T COIL
J1ZZA0000001 J1ZZA0000001 COIL
J0JHC0000045 J0JHC0000045 COIL
JALBK2HS470T JALBK2HS470T COIL
G0C220JA0019 G0C220JA0019 COIL
ELJFCR68KF ELJFCR68KF COIL
ELJEA100KF ELJEA100KF COIL
ELESN101JA ELESN101JA COIL
ELELN100KA ELELN100KA COIL
VLP0157-T VLP0157-T COIL
VJS4222C022B VJS4222C022B CONNECTOR
VJS4222C014B VJS4222C014B CONNECTOR
VJS4047C010 VJS4047C010 CONNECTOR
VJP4369E014B VJP4369E014B CONNECTOR
VJP3233A002 VJP3233A002 CONNECTOR
K1MN50B00010 K1MN50B00010 CONNECTOR
K1MN30B00062 K1MN30B00062 CONNECTOR
K1KB10B00045 K1KB10B00045 CONNECTOR
K1KB06B00033 K1KB06B00033 CONNECTOR
K1KA10B00155 K1KA10B00155 CONNECTOR
K1KA06B00126 K1KA06B00126 CONNECTOR
K1KA22A00044 K1KA22A00044 CONNECTOR
K1MN50A00005 K1MN50A00005 CONNECTOR
JAC3315N JAC3315N CORD
CKM0001-K CKM0001-K COVER
RMN0712 RMN0712 COVER
VSX1044 VSX1044 CRYSTAL
11EQS06TA1 11EQS06TA1 DIODE
VSD0002 VSD0002 DIODE
MA8047M MA8047M DIODE
MA4039HTA MA4039HTA DIODE
MA2SD2400L MA2SD2400L DIODE
YEADGMB01 YEADGMB01 DIODE
MA111-TX MA111-TX DIODE
MA4036M MA4036M DIODE
MAZ40300HF MAZ40300HF DIODE
LNJ301MPUJAD LNJ301MPUJAD DIODE
D4EA7361A002 D4EA7361A002 DIODE
A2BB00000098 A2BB00000098 DIODE
AK04 AK04 DIODE
B0HAGM000006 B0HAGM000006 DIODE
B0EDKT000009 B0EDKT000009 DIODE
MA728 MA728 DIODE
ECEA1CKS101B ECEA1CKS101B ECEA0JKS101I
ECEA0JU102 ECEA0JU102 ECEA0JU102
ECEA1HU100B ECEA1HU100B ECEA1HU100
ECUX1H103KBV ECUX1H103KBV ECUM1H103KBN
ECUX1C223MB ECUX1C223MB ECUV1C223MBN
ECUZ1H471KBN ECUZ1H471KBN ECUV1H471KBN
ECUV1H473KBV ECUV1H473KBV ECUV1H473KBV
ECUV1H561KB ECUV1H561KB ECUV1H561KB
VGB0298 VGB0298 EMBLEM
ERDS2FJ100 ERDS2FJ100 ERD25FJ100P
ERDS2FJ2R2 ERDS2FJ2R2 ERD25FJ2R2
ERDS2FJ331 ERDS2FJ331 ERD25FJ331
ERDS2TJ122T ERDS2TJ122T ERDS2TJ122
ERDS2FJ152 ERDS2FJ152 ERDS2TJ152
ERDS2FJ472 ERDS2FJ472 ERDS2TJ472
ERDS2FJ474 ERDS2FJ474 ERDS2TJ474
ERJ3GEYJ333 ERJ3GEYJ333 ERJ3GEYG333
ERJ3GEYG473 ERJ3GEYG473 ERJ3GEYG473
ERJ3GEYJ100 ERJ3GEYJ100 ERJ3GEYJ100
ERJ3GEYJ101 ERJ3GEYJ101 ERJ3GEYJ101
ERJ3GEYJ271V ERJ3GEYJ271V ERJ3GEYJ221
VRE0071E183 VRE0071E183 ERJ3RBD183
ERJ3RBD752V ERJ3RBD752V ERJ3RBD752
ERJ6GEYJ271 ERJ6GEYJ271 ERJ6GEYJ271
F1H0J1050018 F1H0J1050018 FILTER
VLF1491S104T VLF1491S104T FILTER
RMR1318-X RMR1318-X FIXTURE
VSF0015A10 VSF0015A10 FUSE RESISTOR
RDG0501 RDG0501 GEAR
RDG0500 RDG0500 GEAR
RXQ0729 RXQ0729 HOLDER
RMR1321-X RMR1321-X HOLDER
RMC0415 RMC0415 HOLDER
CMN0001 CMN0001 HOLDER
RFKFRV62B081 RFKFRV62B081 IC
PS2501L-1E3H PS2501L-1E3H IC
MN677533MP MN677533MP IC
MN677203NP1 MN677203NP1 IC
MN102H60GFC MN102H60GFC IC
MN101C35DCM MN101C35DCM IC
K2YZ09000003 K2YZ09000003 IC
CHY57V16DTC8 CHY57V16DTC8 IC
C9ZB00000394 C9ZB00000394 IC
C3EBFC000025 C3EBFC000025 IC
C3ABKG000057 C3ABKG000057 IC
BA5833FM-E2 BA5833FM-E2 IC
C0FBBK000030 C0FBBK000030 IC
C0EBE0000106 C0EBE0000106 IC
C0DBCGE00004 C0DBCGE00004 IC
C0DAEMZ00001 C0DAEMZ00001 IC
C0CBCHG00003 C0CBCHG00003 IC
C0ABBB000118 C0ABBB000118 IC
CGK0001-K CGK0001-K IC
B3RAD0000037 B3RAD0000037 IC
BU2286FV-E2 BU2286FV-E2 IC
AN8708FHK AN8708FHK IC
C0EBE0000070 C0EBE0000070 IC
RQT6237-C RQT6237-C INSTRUCT BOOK
IB-DVDRV32PK IB-DVDRV32PK INSTRUCT BOOK
RQLS0233 RQLS0233 LABEL
RYQ0349-K RYQ0349-K LEG
MA4100H MA4100H MA4100-H
CMA0001 CMA0001 METAL
RXQ1218KIT RXQ1218KIT MOTOR
H2D800400009 H2D800400009 OSCILLATOR
DVDRV22K_EX DVDRV22K_EX OTC VIDEO (DISCONTINUED)
VPF0293-L VPF0293-L PACKING
RPQCF0003 RPQCF0003 PACKING
RPN1480B RPN1480B PACKING
RPN1480A RPN1480A PACKING
RPN1480 RPN1480 PACKING
CYP0003-K CYP0003-K PANAL
REP3303T REP3303T PC BOARD
CEP0005A CEP0005A PC BOARD
RJB2308A-3 RJB2308A-3 PC BOARD
REP3304N REP3304N PCB W/COMPONENT
RAF3022A-1T RAF3022A-1T PICK UP
RMS0712-1 RMS0712-1 PIN
RMS0712 RMS0712 PIN
K9ZZ00001279 K9ZZ00001279 PLATE
RMR1317-K1 RMR1317-K1 PLATE
RFZG0122 RFZG0122 PRC
RFZK0124 RFZK0124 PRC
RFZL0172 RFZL0172 PRC
RFZN0102 RFZN0102 PRC
RFZV0070 RFZV0070 PRC
RFZV0071 RFZV0071 PRC
VSQ1003 VSQ1003 PROTECTOR
RMM0234 RMM0234 RACK
ERJ3GEYJ561V ERJ3GEYJ561V RESISTOR
JAR0816P562D JAR0816P562D RESISTOR
JAR0816P123D JAR0816P123D RESISTOR
EXBV4V473JV EXBV4V473JV RESISTOR
EXBV4V330JV EXBV4V330JV RESISTOR
EXBV4V221JV EXBV4V221JV RESISTOR
EXBV4V103J EXBV4V103J RESISTOR
ERJ6GEY0R00A ERJ6GEY0R00A RESISTOR
ERJ6GEYJ6R8V ERJ6GEYJ6R8V RESISTOR
ERJ6GMYG221 ERJ6GMYG221 RESISTOR
ERJ3RED750 ERJ3RED750 RESISTOR
ERJ3RBD432V ERJ3RBD432V RESISTOR
ERJ3RBD331 ERJ3RBD331 RESISTOR
ERJ3RBD162V ERJ3RBD162V RESISTOR
ERJ3RBD123V ERJ3RBD123V RESISTOR
ERJ3RBD112V ERJ3RBD112V RESISTOR
ERJ3GEYJR00V ERJ3GEYJR00V RESISTOR
ERJ3GEY0R00 ERJ3GEY0R00 RESISTOR
ERJ3GEYJ823V ERJ3GEYJ823V RESISTOR
ERJ3GEYJ822V ERJ3GEYJ822V RESISTOR
ERJ3GEYJ821V ERJ3GEYJ821V RESISTOR
ERJ3GEJ750V ERJ3GEJ750V RESISTOR
ERJ3GEYJ683 ERJ3GEYJ683 RESISTOR
ERJ3GEYJ682V ERJ3GEYJ682V RESISTOR
ERJ3GEYJ563V ERJ3GEYJ563V RESISTOR
ERJ3GEYJ472V ERJ3GEYJ472V RESISTOR
ERJ3GEYJ470V ERJ3GEYJ470V RESISTOR
ERJ3GEYJ392V ERJ3GEYJ392V RESISTOR
ERJ3GEYJ332V ERJ3GEYJ332V RESISTOR
ERJ3GEYJ330 ERJ3GEYJ330 RESISTOR
ERJ3GEYJ303 ERJ3GEYJ303 RESISTOR
ERJ3GEYJ223V ERJ3GEYJ223V RESISTOR
ERJ3GEYJ222 ERJ3GEYJ222 RESISTOR
ERJ3GEYJ220 ERJ3GEYJ220 RESISTOR
ERJ3GEYJ2R2V ERJ3GEYJ2R2V RESISTOR
ERJ3GEYJ183V ERJ3GEYJ183V RESISTOR
ERJ3GEYJ153V ERJ3GEYJ153V RESISTOR
ERJ3GEYJ151V ERJ3GEYJ151V RESISTOR
ERJ3GEYJ123V ERJ3GEYJ123V RESISTOR
ERJ3GEYJ105 ERJ3GEYJ105 RESISTOR
ERJ3GEYJ104V ERJ3GEYJ104V RESISTOR
ERJ3GEYF750 ERJ3GEYF750 RESISTOR
ERJ3GEYF182 ERJ3GEYF182 RESISTOR
ERJ3GEYF122V ERJ3GEYF122V RESISTOR
ERJ12YJ270H ERJ12YJ270H RESISTOR
ERG2SJ680P ERG2SJ680P RESISTOR
ERDS2TJ682T ERDS2TJ682T RESISTOR
ERDS2FJ750 ERDS2FJ750 RESISTOR
ERD25FJ332T ERD25FJ332T RESISTOR
ERD25FJ222 ERD25FJ222 RESISTOR
ERDS2FJ124T ERDS2FJ124T RESISTOR
D4EA7471A008 D4EA7471A008 RESISTOR
ERJ3RBD272V ERJ3RBD272V RESISTOR
ERDS2TJ102 ERDS2TJ102 RESISTOR
ERJ3RBD183V ERJ3RBD183V RESISTOR
RGQ0280-K3 RGQ0280-K3 RGQ0280-K
ERJ3GEYJ331 ERJ3GEYJ331 RN4B2AY102J
RMTC0002 RMTC0002 RUBBER
RMG0561-T RMG0561-T RUBBER
RKA0137-K RKA0137-K RUBBER
RMG0545-A1 RMG0545-A1 RUBBER
XTV3_10JFJ XTV3_10JFJ SCREW
VHD1224 VHD1224 SCREW
VHD1041 VHD1041 SCREW
STN3X6 STN3X6 SCREW
RHD20060 RHD20060 SCREW
RHD17029 RHD17029 SCREW
RHDC0001 RHDC0001 SCREW
VHD0690 VHD0690 SCREW
RHD14095-1 RHD14095-1 SCREW
RHD17045-1 RHD17045-1 SCREW
RHD26046-J RHD26046-J SCREW
XTV3_8GR XTV3_8GR SCREW
XTW3_12SFJ XTW3_12SFJ SCREW (1/10)
RMSC0711 RMSC0711 SHAFT
RMSC0710 RMSC0710 SHAFT
RME0318-1 RME0318-1 SPRING
RME0318 RME0318 SPRING
RMEC0320 RMEC0320 SPRING
RMC0416 RMC0416 SPRING
RSH1A048-A RSH1A048-A SWITCH
ESE24SH7 ESE24SH7 SWITCH
UN2111T UN2111T T-R COMBINATION
ETS28AV145AC ETS28AV145AC TRANSFORMER
2SC3311ARA 2SC3311ARA TRANSISTOR
2SD1996RSTA 2SD1996RSTA TRANSISTOR
2SC4662LF654 2SC4662LF654 TRANSISTOR
2SB1320A-RTA 2SB1320A-RTA TRANSISTOR
B1BDBF000012 B1BDBF000012 TRANSISTOR
XN1501TX XN1501TX TRANSISTOR
UNR221300L UNR221300L TRANSISTOR
UN2214 UN2214 TRANSISTOR
UNR212100L UNR212100L TRANSISTOR
UNR221100L UNR221100L TRANSISTOR
DTA123JK-T96 DTA123JK-T96 TRANSISTOR
B1DHCC000029 B1DHCC000029 TRANSISTOR
2SD1328STTW 2SD1328STTW TRANSISTOR
2SD1996STA 2SD1996STA TRANSISTOR
2SD601ARTX 2SD601ARTX TRANSISTOR
UN5212-TX UN5212-TX UN5212
VLP0155-T VLP0155-T VLP0155
VLP0157 VLP0157 VLP0157
VLQS0166 VLQS0166 VLQS0167
ERJ3GEYJ103V ERJ3GEYJ103V VRESAL8J103
CKW0001-Q1 CKW0001-Q1 WINDOW
XTV3_8JFR XTV3_8JFR XTV3+8JFR
XTV3_8JFZ XTV3_8JFZ XTV3+8JFZ
