Model Image
Manufacturer

Panasonic

Model Number

HFS14140KA

Description

Lens Matte Black

Interactive Exploded View

Parts List

Part Number Description
VFC4430 VFC4430 BAG
SYQ0490 SYQ0490 BATTERY CASE
SGU0156 SGU0156 BUTTON
SGU0180 SGU0180 BUTTON
SGU0182 SGU0182 BUTTON
SGU0183 SGU0183 BUTTON
SGU0185 SGU0185 BUTTON
SGU0186 SGU0186 BUTTON
SGU0187 SGU0187 BUTTON
SGU0188 SGU0188 BUTTON
SGU0192 SGU0192 BUTTON
VFC4605 VFC4605 CAP
VYF3514 VYF3514 CAP
SYK1093 SYK1093 CASE
SYK1108 SYK1108 CASE
K1MY61BA0556 K1MY61BA0556 CONNECTOR
VEJ2336 VEJ2336 CONTACT
SGQ0416 SGQ0416 COVER
SKM0043K SKM0043K COVER
SKM0044K SKM0044K COVER
SYQ0507 SYQ0507 COVER
VGQ1F77-A VGQ1F77-A COVER
SMT0030 SMT0030 CUSHION
SGU0178 SGU0178 DIAL
DZ5S068D0R DZ5S068D0R DIODE
L5ZZ00000207 L5ZZ00000207 DISPLAY
SYF0065 SYF0065 DOOR
SYQ0503 SYQ0503 EYE CUP
SEP0435AA SEP0435AA FPC
STJ0092 STJ0092 FPC
STJ0093 STJ0093 FPC
STJ0097 STJ0097 FPC
SYQ0498 SYQ0498 FPC
SGQ0423 SGQ0423 FRAME
SGQ0454 SGQ0454 FRAME
SYQ0486 SYQ0486 FRAME
SMD0047 SMD0047 GEAR
SMD0048 SMD0048 GEAR
SGQ0457 SGQ0457 GRIP
STJ0114 STJ0114 HARNESS
SGQ0434 SGQ0434 HOLDER
SYQ0484 SYQ0484 HOLDER
SYQ0485 SYQ0485 HOLDER

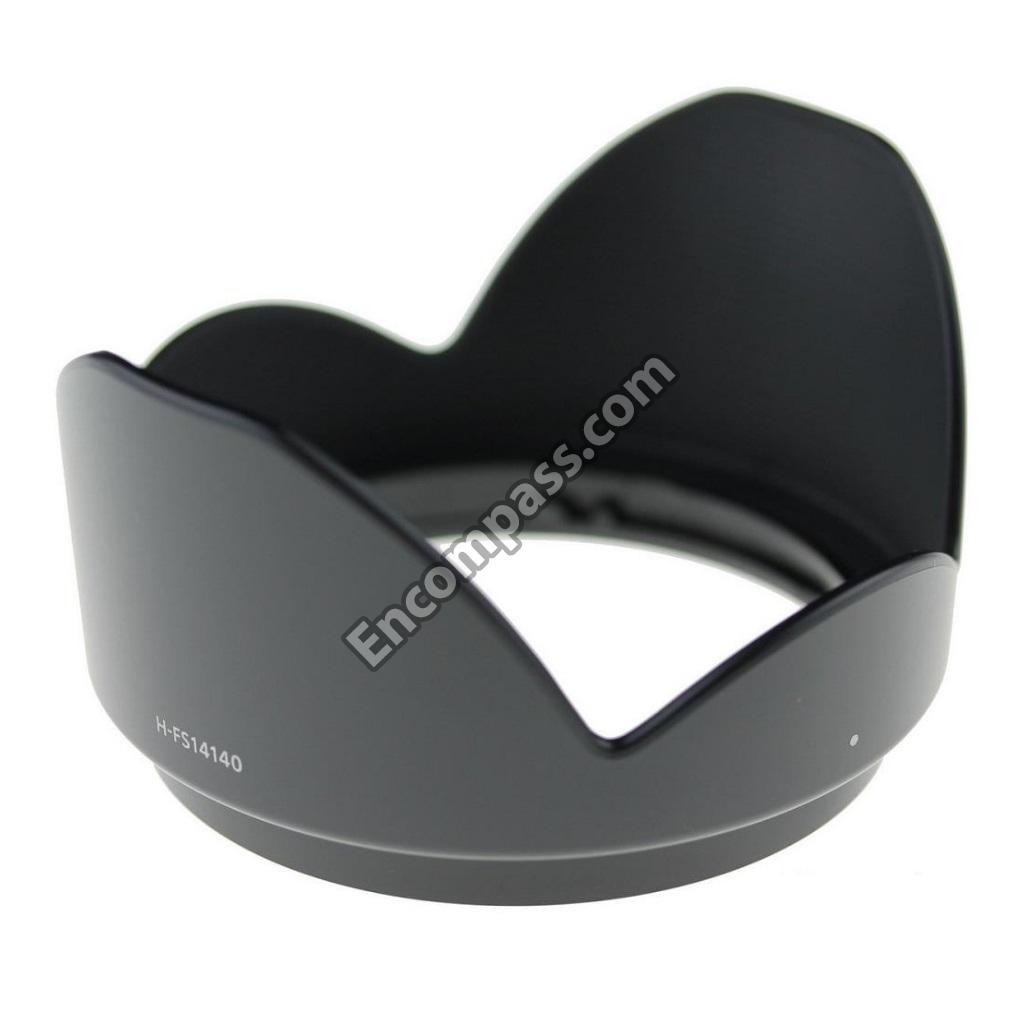

VYC1119 VYC1119 HOOD
RS10787 RS10787 IC
SUBF000017 SUBF000017 IC
SUBF000018 SUBF000018 IC
G1C2R2MA0577 G1C2R2MA0577 INDUCTOR
G1C4R7MA0684 G1C4R7MA0684 INDUCTOR
SGU0160 SGU0160 KNOB
SYK1109 SYK1109 LCD
SXW0205 SXW0205 LENS
SYQ0504 SYQ0504 LOCK KNOB
SYQ0501 SYQ0501 LVF LENS

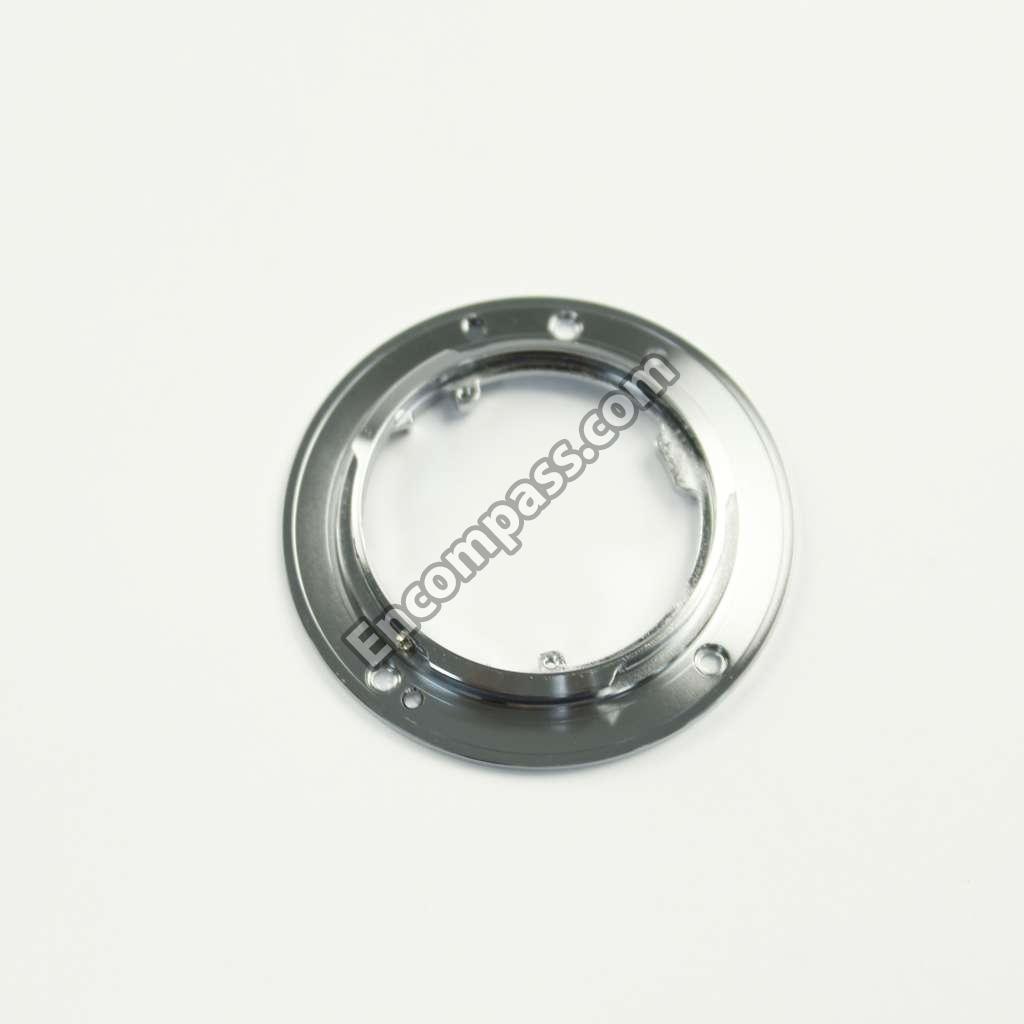

VXQ2372 VXQ2372 MOUNT
SXQ0543 SXQ0543 MOUNT BOX
SPK0105 SPK0105 PACKAGING
SPN0303 SPN0303 PACKAGING
SPN0304 SPN0304 PACKAGING
SPN0308 SPN0308 PACKAGING
VPF1328 VPF1328 PACKAGING
VPF1509 VPF1509 PACKAGING
VYQ8612 VYQ8612 PACKAGING
SMG0027 SMG0027 PACKING
SMG0029 SMG0029 PACKING
VGQ1F83 VGQ1F83 PACKING
SMT0148 SMT0148 PAD
SEP0418AA SEP0418AA PC BOARD
SEP0419AA SEP0419AA PC BOARD
SEP0421AA SEP0421AA PC BOARD
SEP0422AA SEP0422AA PC BOARD
SEP0423AA SEP0423AA PC BOARD
SMA0196 SMA0196 PLATE
SMP0096 SMP0096 PLATE
SMP0097 SMP0097 PLATE
SMP0104 SMP0104 PLATE
SMP0105 SMP0105 PLATE
SMP0113 SMP0113 PLATE
SMP0128 SMP0128 PLATE
SMP0154 SMP0154 PLATE
SYQ0505 SYQ0505 PLATE
SYQ0509 SYQ0509 PLATE
SXQ0394 SXQ0394 REAR FRAME
D1H84714A042 D1H84714A042 RESISTOR
D1H85114A042 D1H85114A042 RESISTOR
D1H88224A042 D1H88224A042 RESISTOR
VDW2635 VDW2635 RING
VMG2090 VMG2090 RING
VYC1120 VYC1120 RING
VMG1855 VMG1855 RUBBER
SHD0060 SHD0060 SCREW
SHD0061 SHD0061 SCREW
SHD0062 SHD0062 SCREW
SHD0104 SHD0104 SCREW
VHD1868 VHD1868 SCREW
VHD2096 VHD2096 SCREW
VHD2246 VHD2246 SCREW
VHD2298 VHD2298 SCREW
VHD2299 VHD2299 SCREW
SMS0124 SMS0124 SHAFT
SMS0128 SMS0128 SHAFT
SMS0132 SMS0132 SHAFT
SGQ0538 SGQ0538 SHEET
SKN0010K SKN0010K SHEET
SKN0011K SKN0011K SHEET
SKN0012K SKN0012K SHEET
SKN0015K SKN0015K SHEET
VGQ0P21 VGQ0P21 SHEET
SGQ0673 SGQ0673 SPACER
SYQ0488 SYQ0488 SPEAKER ASSY
SMB0091 SMB0091 SPRING
SMB0092 SMB0092 SPRING
SMB0164 SMB0164 SPRING
SMC0045 SMC0045 SPRING
K0ZZ00000641 K0ZZ00000641 SWITCH
SGS0029 SGS0029 TAPE
SYK1095 SYK1095 WIFI MODULE
