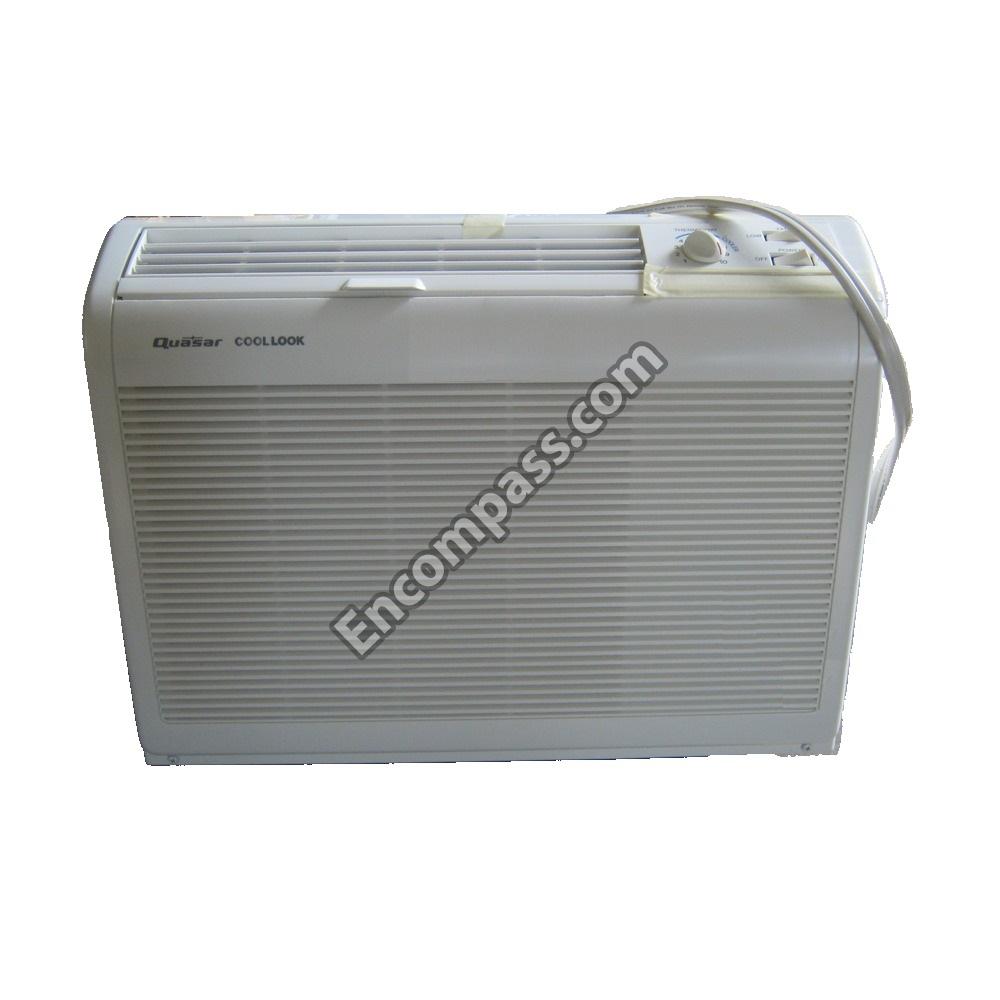

Model Image
Manufacturer

Panasonic

Model Number

HQ2051EH

Description

Air Conditioner

Interactive Exploded View

Parts List

Part Number Description
CWH36C046 CWH36C046 AUX MATERIAL INSTALLATION
CWD50032 CWD50032 BASE
CWH55201 CWH55201 BOLT
CWG87C025 CWG87C025 BRACKET
CWD53071 CWD53071 BULKHEAD
CWH50072 CWH50072 BUSHING
ECJ2XB1H331K ECJ2XB1H331K BUSHING
CWA31283 CWA31283 CAPACITOR
ECUX1E200JCN ECUX1E200JCN CAPACITOR
ECUX1H180JCV ECUX1H180JCV CAPACITOR
CWH7070222U CWH7070222U CAPACITOR
CWB09403 CWB09403 COMPRESSOR
CWB32413 CWB32413 CONDENSER
CWD90827 CWD90827 COVER
ECUV1H220JC ECUV1H220JC CWB15372
ECKF1H391KB ECKF1H391KB ECKF1H391KB
ECUX1H181KM ECUX1H181KM ECUM1H181KN
CWB30408 CWB30408 EVAPORATOR
CWH36C048 CWH36C048 EXPANDABLE PANEL LEFT
CWA92134 CWA92134 FAN MOTOR
CWE10131 CWE10131 FRONT GRILL
CWD31080 CWD31080 GUIDE
CWD32105 CWD32105 GUIDE
CWH30118 CWH30118 HOLDER
CW7041200L CW7041200L HOLDER
HQ2051EHIB HQ2051EHIB HQ2051EHIB
CWG87C241 CWG87C241 INSTALLATION SCREW KIT
SWYM-90041 SWYM-90041 JIG
CWH56032J CWH56032J NUT
CWH7080300 CWH7080300 NUT
CWA12180 CWA12180 OVERLOAD PROTECTOR
CWA20C239 CWA20C239 POWER CORD
CWH00019 CWH00019 PROPELLER FAN
CWH4580326 CWH4580326 SCREW
CWH55027 CWH55027 SCREW
CWH55206 CWH55206 SCREW
XTB5_14C XTB5_14C SCREW
CWB11025 CWB11025 STRAINER
CWA05020 CWA05020 SWITCH
CWA15120 CWA15120 THERMOSTAT
CWE24235A CWE24235A VENT
CWE24236A CWE24236A VENT
