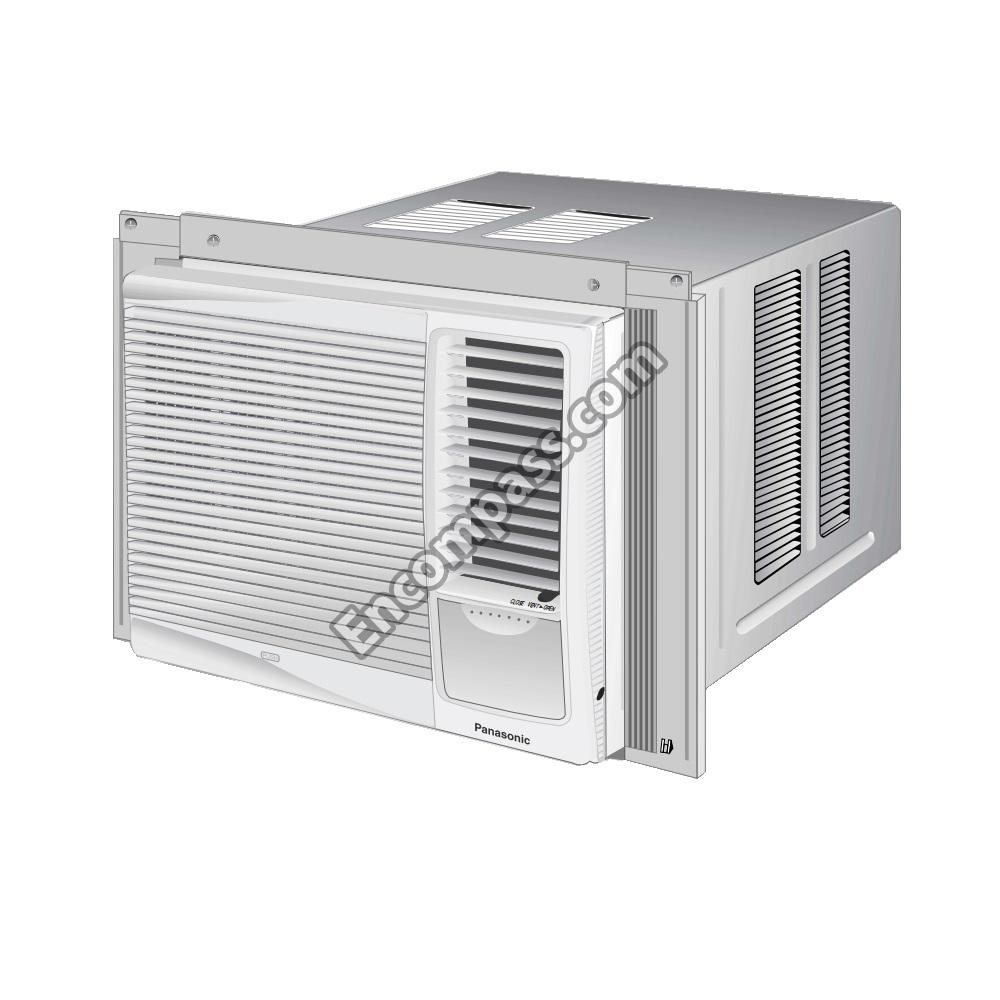

Model Image
Manufacturer

Panasonic

Model Number

HQ2061DW

Description

Air Conditioner

Interactive Exploded View

Parts List

Part Number Description
CWH36C024 CWH36C024 AUX MATERIAL INSTALLATION
CWH01011 CWH01011 BLOWER WHEEL
CWD90718A CWD90718A BOTTOM ANGLE
CWH4610247 CWH4610247 BUSHING
CWE00K161A CWE00K161A CABINET
CWH24027 CWH24027 CABLE
CWA31048M CWA31048M CAPACITOR
CWA31239M CWA31239M CAPACITOR
ECUX1E472ZFQ ECUX1E472ZFQ CAPACITOR
ECUX1H020DCM ECUX1H020DCM CAPACITOR
ECUX1H152KR ECUX1H152KR CAPACITOR
ECUX1H390JCV ECUX1H390JCV CAPACITOR
CWG53093 CWG53093 CARTON
CWB09346 CWB09346 COMPRESSOR
2R10S3R126A6B 2R10S3R126A6B COMPRESSOR
CWB32185 CWB32185 CONDENSER
CWD11019A CWD11019A COVER
CWE14042 CWE14042 DOOR
CWE14095 CWE14095 DOOR
CWH40077L-1 CWH40077L-1 DRAIN PAN
CWG86C733 CWG86C733 DRAIN PAN SCREW
CWB30200 CWB30200 EVAPORATOR
CWH36C013 CWH36C013 EXPANDABLE PANEL LEFT
CWH36C014 CWH36C014 EXPANDABLE PANEL RIGHT
CWA95175 CWA95175 FAN MOTOR
CWE10C671 CWE10C671 FRONT GRILL
CWE10039B CWE10039B GRILLE
CWE10041A CWE10041A GRILLE
CWE20093 CWE20093 GRILLE
CWH4832180 CWH4832180 HOLDER
HQ2051DWIB HQ2051DWIB HQ2051DWIB
CWG87C969 CWG87C969 INSTALLATION SCREW KIT
ECUV1H020CC9 ECUV1H020CC9 MAIN SWITCH
CWA12123 CWA12123 OVERLOAD PROTECTOR
ECUV1H070CC9 ECUV1H070CC9 POWER CORD
CWD04067A CWD04067A SCREEN
CWH4580355 CWH4580355 SCREW
CWH55054 CWH55054 SCREW
CWG86C732 CWG86C732 SCREW TYPE A
CWG86C853 CWG86C853 SCREW TYPE B
CWH4580211 CWH4580211 SCREW TYPE C
CWD60205A CWD60205A SIDE ANGLE
CWA07016 CWA07016 SWITCH
CWA15118 CWA15118 THERMOSTAT
CWD62102A CWD62102A TOP ANGLE
CWB5890211 CWB5890211 TUBE
CWE5065041 CWE5065041 VANE
CWE5065042 CWE5065042 VANE
