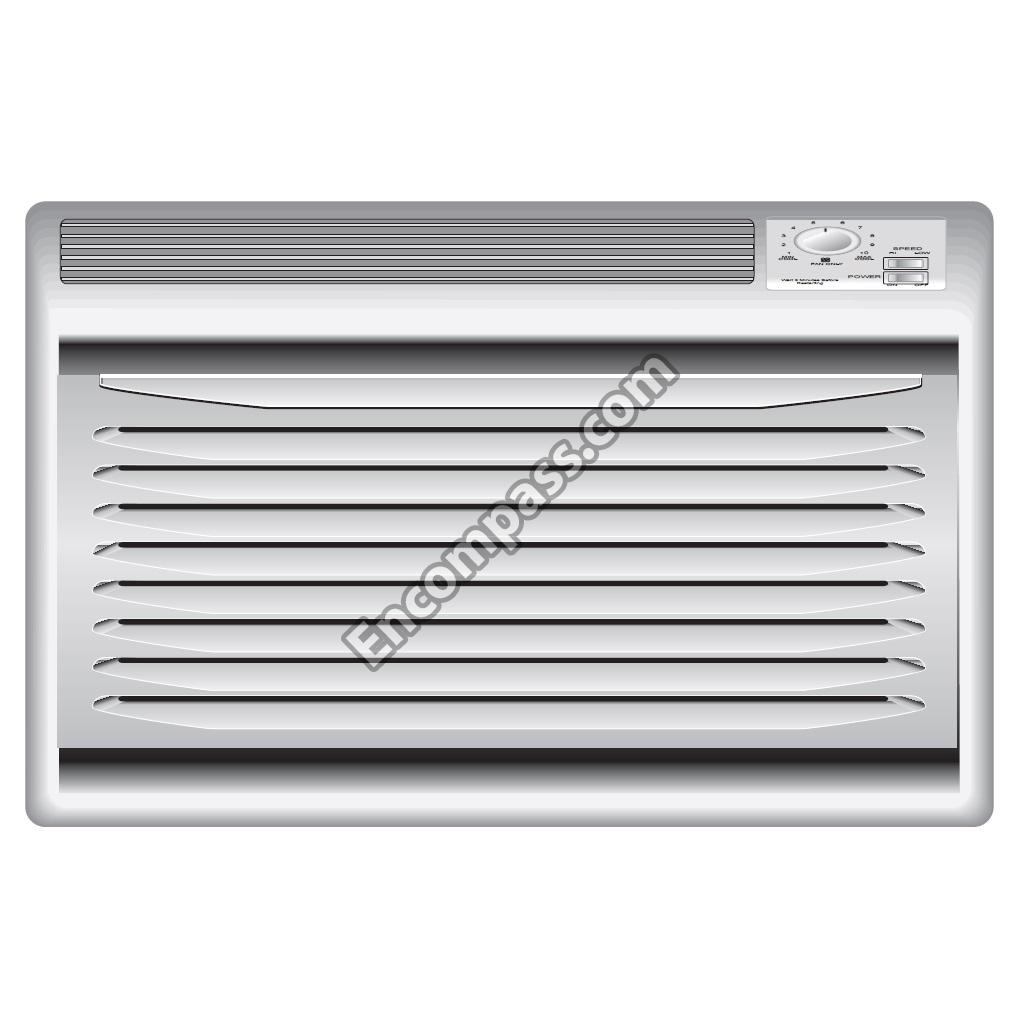

Model Image
Manufacturer

Panasonic

Model Number

HQ2101GH

Description

Air Conditioner

Interactive Exploded View

Parts List

Part Number Description
CWH36C024 CWH36C024 AUX MATERIAL INSTALLATION
CWE26091A CWE26091A BAR
CWE26092 CWE26092 BAR
CWH01K052 CWH01K052 BLOWER WHEEL
CWD90593A CWD90593A BOTTOM ANGLE
CWD54121 CWD54121 BRACKET
CWH50055 CWH50055 BUSHING
CWE00C051 CWE00C051 CABINET
CWA31270 CWA31270 CAPACITOR
ECUV1H180KC9 ECUV1H180KC9 CAPACITOR
ECUV1H182KCM ECUV1H182KCM CAPACITOR
ECUV1H681JCN ECUV1H681JCN CAPACITOR
ECUV1H821JCN ECUV1H821JCN CAPACITOR
ECUX1H153ZF ECUX1H153ZF CAPACITOR
ECUX1H153ZF9 ECUX1H153ZF9 CAPACITOR
ECUX1H391K ECUX1H391K CAPACITOR
CWG55143 CWG55143 CARTON
CWB30C005 CWB30C005 COIL
CWB32C065 CWB32C065 COIL
2P16S3R126B1B 2P16S3R126B1B COMPRESSOR
CWE14064E CWE14064E CONTROL DOOR
CWA05013 CWA05013 CWA05013
CWA05024 CWA05024 CWA05024
CWA4711023 CWA4711023 CWA4711022
CWB4056403 CWB4056403 CWB4056403
CWF56562 CWF56562 CWF56562
CWD90600 CWD90600 DOOR
CWH21010 CWH21010 DOOR
CWH40077L-1 CWH40077L-1 DRAIN PAN
CWG86C733 CWG86C733 DRAIN PAN SCREW
ECKF1H391KB ECKF1H391KB ECKF1H391KB
CWH36C032 CWH36C032 EXPANDABLE PANEL LEFT
CWH36C031 CWH36C031 EXPANDABLE PANEL RIGHT
CWA95185 CWA95185 FAN MOTOR
CWB811008 CWB811008 GASKET
CWD31064 CWD31064 GUIDE
CWD32085 CWD32085 GUIDE
CWD32086 CWD32086 GUIDE
CWH30081 CWH30081 HOLDER
CWH4690379 CWH4690379 HOLDER
CW7041200L CW7041200L HOLDER
CWG87C969 CWG87C969 INSTALLATION SCREW KIT
CWF60993 CWF60993 INSTRUCT BOOK
CWE17162A CWE17162A KNOB
CWA98K052 CWA98K052 MOTOR
CW4582065L CW4582065L NUT
CW4582065JL CW4582065JL NUT
CWH56033 CWH56033 NUT
CWH7080300 CWH7080300 NUT
CWA121126J CWA121126J OVERLOAD PROTECTOR
CWD52K172A CWD52K172A PAN
CWD53K076 CWD53K076 PANEL
CWE26093 CWE26093 PANEL
CWE31742 CWE31742 PANEL
CWD93412 CWD93412 PLATE
CWH4611062L CWH4611062L PLUG
CWA20C322 CWA20C322 POWER CORD
CWG87C715 CWG87C715 SCREW
CWH4580326 CWH4580326 SCREW
CWH4580345 CWH4580345 SCREW
CWH55139 CWH55139 SCREW
CWG86C732 CWG86C732 SCREW TYPE A
CWG86C853 CWG86C853 SCREW TYPE B
CWH4580211 CWH4580211 SCREW TYPE C
CWD60220A CWD60220A SIDE ANGLE
CWD62131A CWD62131A TOP ANGLE
CWE24151 CWE24151 VANE
CWE24152B CWE24152B VANE
CWE24153B CWE24153B VANE
CWD90K075 CWD90K075 VENTILATION
