Manufacturer

Panasonic

Model Number

JP1100

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
C901203010 C901203010 ASSEMBLY

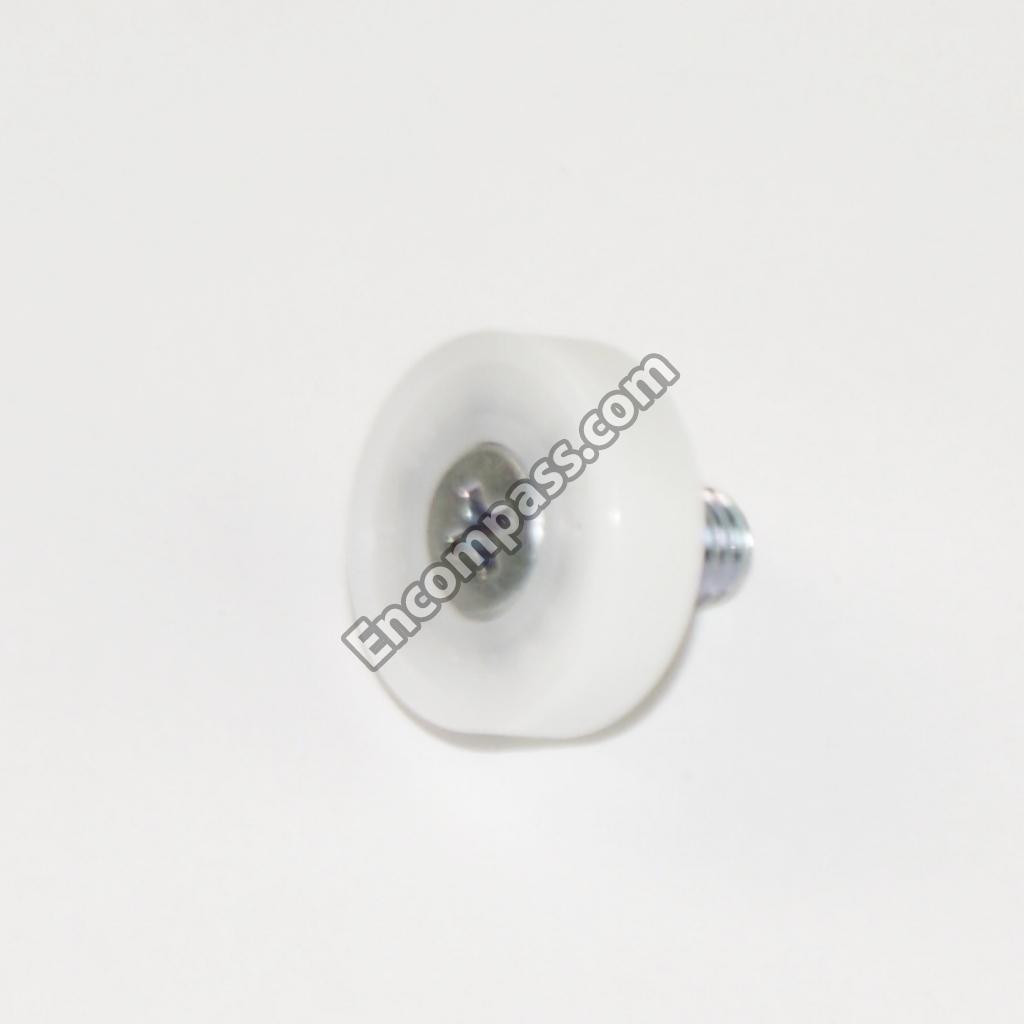

YJ007-5R YJ007-5R BEARING
YJ040-3 YJ040-3 BODY
YJ003-1R YJ003-1R BRACKET
YJJ2T00484B3 YJJ2T00484B3 BRACKET
C904651030 C904651030 CABLE
YLMSF0000800 YLMSF0000800 CLIP
YJRM12BPG-5P YJRM12BPG-5P CONNECTOR
YJ023300892G YJ023300892G CORD
0N3110-R 0N3110-R COUPLER
YJ007-1 YJ007-1 CRADLE
YJJ5W00350B3 YJJ5W00350B3 CREW DISP PANEL
YJCTU-22S YJCTU-22S CTU-22S
YJTLR104 YJTLR104 DIODE
YJERC25-06 YJERC25-06 ERC2506
YJ001-2R YJ001-2R GEAR
C902351020 C902351020 GEAR
YJSN74LS139N YJSN74LS139N I.C.
EHD1174A EHD1174A I.C.
UPD8741AD UPD8741AD IC
SN75107AN SN75107AN IC
YJ7CD20601 YJ7CD20601 INSERT
YJ001-9R YJ001-9R LEVER
YJ001-5 YJ001-5 LEVER
YJ001-4 YJ001-4 LEVER
C903254000 C903254000 NOT SUPPLY AS A
YJ007-6R YJ007-6R NUT
YJ007-9 YJ007-9 PAD
YJ007-2 YJ007-2 PANEL
YJJ5W03872B2 YJJ5W03872B2 PANEL
YJ005-1 YJ005-1 PLATE
ETU-3MC01UA ETU-3MC01UA POWER SUPPLY UN
ETP-28K5A ETP-28K5A POWER TRANSFORM
YJJ4000462A4 YJJ4000462A4 PRIF CABLE ASSY
XUC3VM XUC3VM RFZZXUC3FT
C902351000 C902351000 RIBBON
YJ007-4 YJ007-4 ROLLER
C903254020 C903254020 ROLLER
XSS3_5FJ XSS3_5FJ SCREW
YJ750CD-17 YJ750CD-17 SCREW
B010101311 B010101311 SCREW
YJ007-7 YJ007-7 SHAFT
YJ007-3R YJ007-3R SHAFT
C903254010 C903254010 SHAFT
C903251040 C903251040 SHAFT
YJJ6E01020B3 YJJ6E01020B3 SHEET
YJJ5E01520B4 YJJ5E01520B4 SHEET
YJ002-2R YJ002-2R SOLENOID
YJ008-5-32 YJ008-5-32 SPRING
YJ003-2 YJ003-2 SPRING
C901301050 C901301050 SPRING
C901306010 C901306010 SPRING
C901251080 C901251080 SPRING
YJJ2J00460B4 YJJ2J00460B4 STAY
YJ001-3 YJ001-3 STOPPER
YJ008-3R YJ008-3R SUPPORT
YJ040-5 YJ040-5 SWITCH
A156010201 A156010201 SWITCH
2SC2333 2SC2333 TRANSISTOR
YJTL431C2P YJTL431C2P TRANSISTOR
B101950990 B101950990 WASHER
