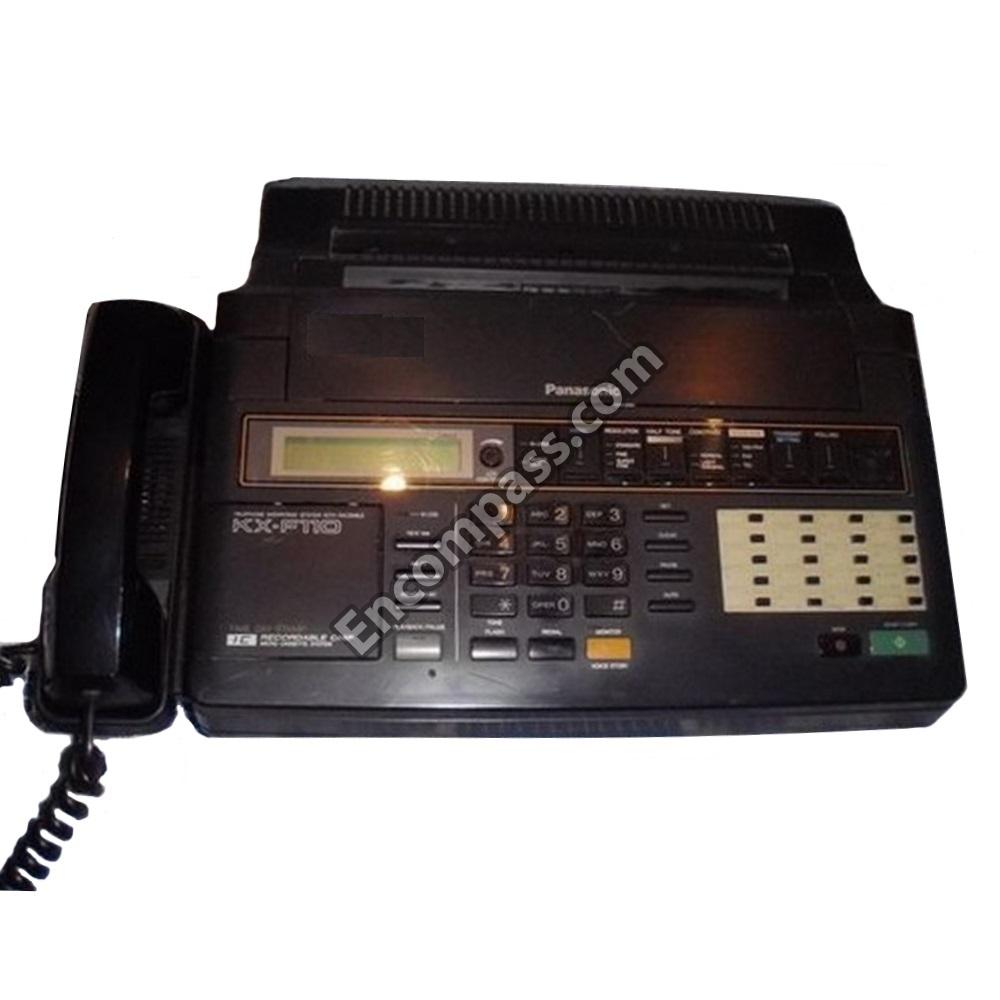

Model Image
Manufacturer

Panasonic

Model Number

KXF110

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
PQDN18Z PQDN18Z ADF ROLLER
CR2032U_B CR2032U_B BACKUP BATTERY
PQPP10006Z PQPP10006Z BAG (DISCONTINUED)
PQFB12Z PQFB12Z BELT
PQBCX185Z PQBCX185Z BUTTON
PQPK1174Z PQPK1174Z CARTON
PQFC9909W PQFC9909W CHASSIS
PQMD9021Y PQMD9021Y CHASSIS
PQJS14X48Z PQJS14X48Z CONNECTOR
PQJS20X59Z PQJS20X59Z CONNECTOR
PQZZ10K4Z PQZZ10K4Z CORD
PQJA212V PQJA212V CORD, HANDSET
PQSG010Y PQSG010Y CUTTER
PQUS230X PQUS230X DIVERTER
PQKG10V PQKG10V DOOR
PQFF9909Y PQFF9909Y FLYWHEEL
PQGG88Z PQGG88Z GRILLE
PQJX2PKA409Z PQJX2PKA409Z HANDSET
PQVICX1172AP PQVICX1172AP IC
PQVIM4464AL PQVIM4464AL IC
PQVIPD7HU04S PQVIPD7HU04S IC
PQVIPD74HUD4S PQVIPD74HUD4S IC
PQVI606909F PQVI606909F IC
PQWIF110M PQWIF110M IC
PQQX6292ZA PQQX6292ZA INSTRUCT BOOK
PQQX6433ZA PQQX6433ZA INSTRUCT BOOK
PQQX9729ZA PQQX9729ZA INSTRUCT BOOK
PQQX9730ZA PQQX9730ZA INSTRUCT BOOK
LN803184UN LN803184UN LIGHT ARRAY
L0CBAB000073 L0CBAB000073 MICROPHONE
PQJQ28Z PQJQ28Z MOTOR CUTTER
PQJQ26Z PQJQ26Z MOTOR RECEIVE
PQJQ27Z PQJQ27Z MOTOR TRANSMITT
PQGP126Z PQGP126Z PANEL
PQLP039Z PQLP039Z PC BOARD
PQWP1F110M PQWP1F110M PC BOARD
PQWP2F110M PQWP2F110M PC BOARD
PQWP3F110M PQWP3F110M PC BOARD
PQYFF110M PQYFF110M PLATE
PFJA1030Z PFJA1030Z POWER CORD
PQSG010Z PQSG010Z PQDX10004Z
PQJE111Z PQJE111Z PQJE111Y
PQJP2D70Y PQJP2D70Y PQJP2D70Y
PQKM195U PQKM195U PQKM195U
ERDS2TJ750TD ERDS2TJ750TD RESISTOR
PQVIPS6002 PQVIPS6002 SENSOR
PQHM114Z PQHM114Z SHAFT
PQQX9807Z PQQX9807Z SHEET
PQUS209Z PQUS209Z SPRING
PQUS209Y PQUS209Y SPRING
PQKE73Z PQKE73Z STACKER
PQHR5354Z PQHR5354Z STATION DIRECTORY COVER
PQHP5101Z PQHP5101Z STATION DIRECTORY SHEET
PQKE72Y PQKE72Y SUB TRAY
B3PAA0000352 B3PAA0000352 TRANSDUCER
PQVTDTC144E PQVTDTC144E TRANSISTOR
PQJE110Z PQJE110Z WIRE
XZB25X34A04 XZB25X34A04 XZB25X34A04
