Model Image
Manufacturer

Panasonic

Model Number

KXP2135

Description

No description available

Interactive Exploded View

Parts List

Part Number Description

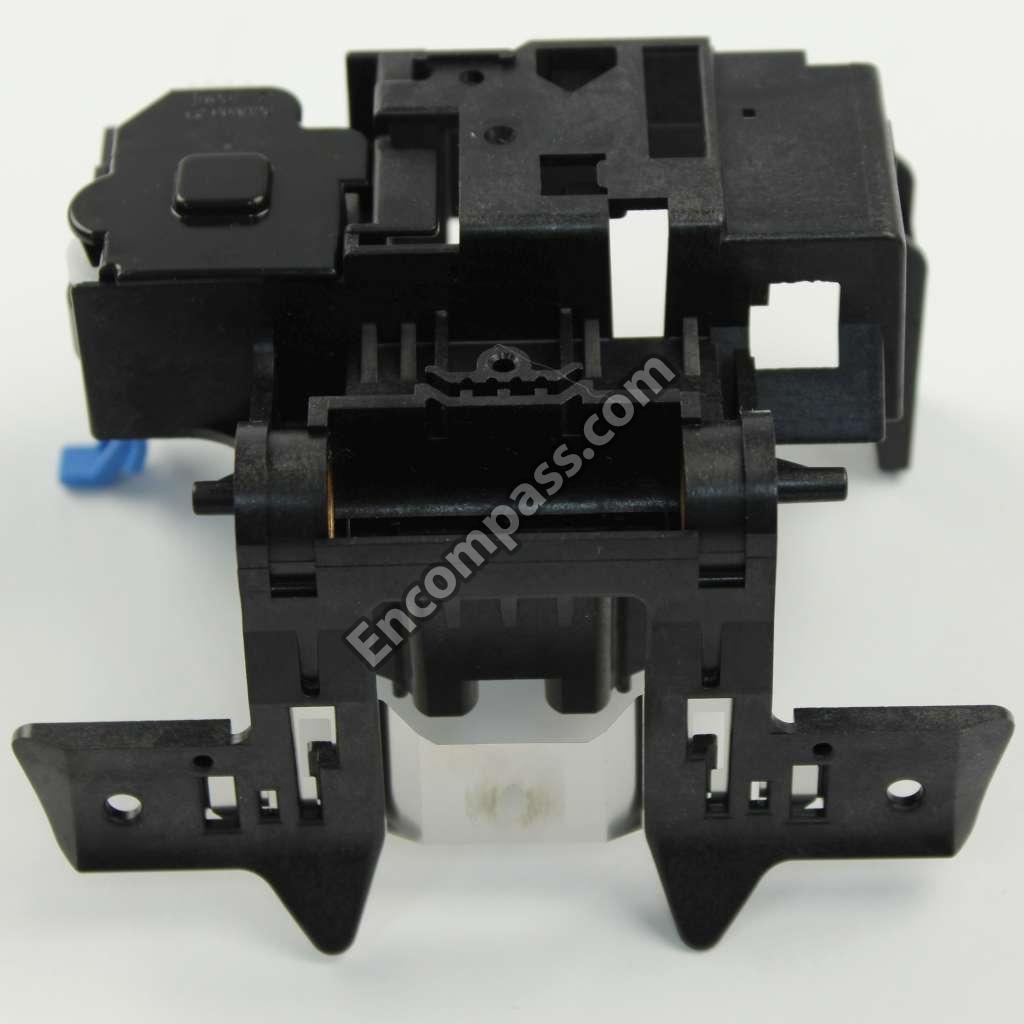

PJYEP1121M1 PJYEP1121M1 1 TRACTOR FEED ASSY LEFT
PJKK151Z PJKK151Z 12 PAPER STAND
PJWHP2130M1 PJWHP2130M1 14 PRINTHEAD
PJJE329Z PJJE329Z 15 RIBBON CABLE PRINTHEAD
PJZCP2130M4 PJZCP2130M4 17 CARRIAGE ASSEMBLY
PJZGP2130M2 PJZGP2130M2 18 RIBBON TURNING GEAR KIT
PJYE1P1121M PJYE1P1121M 2 TRACTOR FEED ASSY RIGHT
PJME142Z PJME142Z 20 CASSETTE LEVER
PJUG185Z PJUG185Z 21 RIBBON MASK
PJYKP2130M PJYKP2130M 23 SMOKED PLASTIC COVER
PJDV41Z PJDV41Z 25 TIMMING BELT
PJUB108Z PJUB108Z 26 PAPER FEED SELECTOR
PJUB107Z PJUB107Z 27 HEAD GAP LEVER
PJUG189Z PJUG189Z 28 PAPER GUIDE LEFT
PJUG190Z PJUG190Z 29 PAPER GUIDE RIGHT
2SB1333 2SB1333 2SB1333N
2SB1504 2SB1504 2SB1504Q
B1AACF000063 B1AACF000063 2SC1740STA
2SD2170 2SD2170 2SD2170T
2SK1351 2SK1351 2SK2662R
PJDT139Z PJDT139Z 3 TRACTOR LOCK LEVER LEFT
PJKK127Z PJKK127Z 30 SOUND-PROOF ACCOUSTIC COVER
PJGK186Z PJGK186Z 31 CONTROL PANEL OVERLAY
PJDT140Z PJDT140Z 4 TRACTOR LOCK LEVER RIGHT
PJDT137Z PJDT137Z 5 TRACTOR COVER LEFT
PJDT138Z PJDT138Z 6 TRACTOR COVER RIGHT
PJDS5063Z PJDS5063Z 9 SPRING TRACTOR COVER
PJJA146Z PJJA146Z AC POWER CORD
PJHR9701Z PJHR9701Z ARM
EXBV8V332JV EXBV8V332JV ARRAY
EXBV8V272JV EXBV8V272JV ARRAY
EXBV8V222J EXBV8V222J ARRAY
EXBV8V151JV EXBV8V151JV ARRAY
EXBV8V122JV EXBV8V122JV ARRAY
EXBV8V102JV EXBV8V102JV ARRAY
EXBV4V272JV EXBV4V272JV ARRAY
EXBV4V223JV EXBV4V223JV ARRAY
EXBV4V152JV EXBV4V152JV ARRAY
PJVI4AC21 PJVI4AC21 ARRAY
PJVIMP4303 PJVIMP4303 ARRAY
PJVDDAN217 PJVDDAN217 ARRAY
PJZR1P2130M1 PJZR1P2130M1 ASSEMBLY
PJYE2P2130M PJYE2P2130M ASSEMBLY
PJUR23Z PJUR23Z BASE
PJUA277Z PJUA277Z BASE
PJMU76X PJMU76X BASE
PJMC187Z PJMC187Z BASE
PJHR9687Z PJHR9687Z BASE
PJZHP2130M PJZHP2130M BRACKET
PJDJ11029RZ PJDJ11029RZ BUSHING
PJDJ11019RY PJDJ11019RY BUSHING
PJDJ08329RZ PJDJ08329RZ BUSHING
PJDJ05151RZ PJDJ05151RZ BUSHING
PJYMP2135MQ PJYMP2135MQ CABINET
PJWX4P1654M PJWX4P1654M CABLE
PJWX1P1624M PJWX1P1624M CABLE
PJJE324Z PJJE324Z CABLE
PJDG5244Z PJDG5244Z CAM
PJDG5243Z PJDG5243Z CAM
PJHR3067Z PJHR3067Z CAM
ECUV1E104ZFG ECUV1E104ZFG CAPACITOR
EC0S2DG271FG EC0S2DG271FG CAPACITOR
ECUV1H223ZF ECUV1H223ZF CAPACITOR
ECUV1H151JC ECUV1H151JC CAPACITOR
ECUV1H150JC ECUV1H150JC CAPACITOR
ECU1H102KBV ECU1H102KBV CAPACITOR
ECUV1H102JC ECUV1H102JC CAPACITOR
ECQV1H334JZ ECQV1H334JZ CAPACITOR
ECQU2APA224C ECQU2APA224C CAPACITOR
ECQB1H104KF ECQB1H104KF CAPACITOR
ECKZ3A471KB ECKZ3A471KB CAPACITOR
ECKZ3A222KB ECKZ3A222KB CAPACITOR
ECKZ3A102KB ECKZ3A102KB CAPACITOR
ECKZRS332ME ECKZRS332ME CAPACITOR
ECKZRS102MB ECKZRS102MB CAPACITOR
ECKR1H391KB ECKR1H391KB CAPACITOR
ECKR1H102KB5 ECKR1H102KB5 CAPACITOR
ECFR1H104ZF8 ECFR1H104ZF8 CAPACITOR
ECEV1HG330P ECEV1HG330P CAPACITOR
ECEA1HGE222E ECEA1HGE222E CAPACITOR
ECEA1EGE470B ECEA1EGE470B CAPACITOR
ECEA1EGE101B ECEA1EGE101B CAPACITOR
ECEA0JE101B ECEA0JE101B CAPACITOR
ECBT1E223ZF ECBT1E223ZF CAPACITOR
ECBC1H102KB ECBC1H102KB CAPACITOR
PJJQ188Z PJJQ188Z CARIAGE MOTOR
PJKM104Z PJKM104Z CASE
PJKF106Z PJKF106Z CASE
XUC5FT XUC5FT CLIP (1/10)
PJLQ88Z PJLQ88Z COIL
KX-PCK12 KX-PCK12 COLOR KIT
KX-P165 KX-P165 COLOR RIBBON
EXCELDR35V EXCELDR35V COMBINATION
PJJS884Z PJJS884Z CONNECTOR
PJJS656Z PJJS656Z CONNECTOR
PJJS424Z PJJS424Z CONNECTOR
PJJS417Z PJJS417Z CONNECTOR
PJJS416Z PJJS416Z CONNECTOR
PJJP404Z PJJP404Z CONNECTOR
PJJP353Z PJJP353Z CONNECTOR
PJJP352Z PJJP352Z CONNECTOR
PJJP333Z PJJP333Z CONNECTOR
PJJP301Z PJJP301Z CONNECTOR
PJJP269Z PJJP269Z CONNECTOR
PJJP169Z PJJP169Z CONNECTOR
PJJP160Z PJJP160Z CONNECTOR
PJWP1P2023M1 PJWP1P2023M1 CONTROL BOARD
PJJN18Z PJJN18Z CORE
PJJN17Z PJJN17Z CORE
PJVDTLP521 PJVDTLP521 COUPLER
PJHR3063Z PJHR3063Z COVER
PJHR3065Z PJHR3065Z COVER
PJUV93Z PJUV93Z COVER
PJMX151V PJMX151V COVER
PJKK150Y PJKK150Y COVER
PJKK127Y PJKK127Y COVER
PJHR5176Z PJHR5176Z COVER
KX-PT12 KX-PT12 CUT SHEET FEEDER
PJHG6167Z PJHG6167Z DAMPER
PJVD1SS119TD PJVD1SS119TD DIODE
PJVD1N4003A PJVD1N4003A DIODE
PJVD05AZ47 PJVD05AZ47 DIODE
PJVDS1WBA60B PJVDS1WBA60B DIODE
PJVDSLR40VRL PJVDSLR40VRL DIODE
PJVDSLR40MGF PJVDSLR40MGF DIODE
PJVDRLS71T PJVDRLS71T DIODE
PJVDMTZJ6_2A PJVDMTZJ6_2A DIODE
PJVDMTZJ5_1C PJVDMTZJ5_1C DIODE
PJVDHZ5C-2 PJVDHZ5C-2 DIODE
PJVDHZ16-1 PJVDHZ16-1 DIODE
PJVDERD32-02 PJVDERD32-02 DIODE
PJVDERA3202 PJVDERA3202 DIODE
PJVDD1NK40T PJVDD1NK40T DIODE
ECBT1H102KB5 ECBT1H102KB5 ECBT1H102KB5
ECEA1CU102E ECEA1CU102E ECEA1CU102
ECEA1HGE100B ECEA1HGE100B ECEA1HGE100
ECQB1H471JZ ECQB1H471JZ ECQB1H471JZ
ECUV1H103KBV ECUV1H103KBV ECUV1H103KBM
ECUV1H103MY ECUV1H103MY ECUV1H103KBM
ECUV1H104MD ECUV1H104MD ECUV1H104MD
ECUV1H153KBN ECUV1H153KBN ECUV1H153KBN

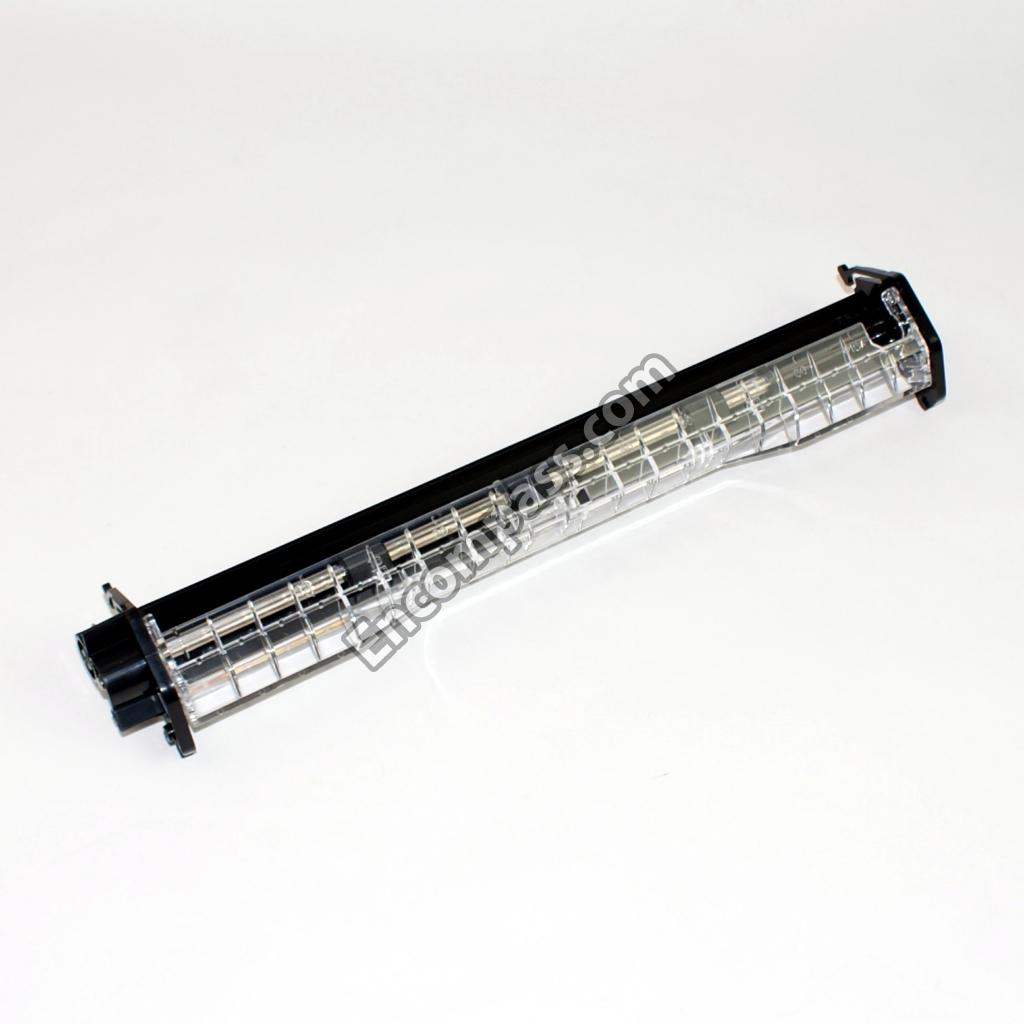

PJUG184Z PJUG184Z EJECTION ROLLER COVER TEAR BAR
ERDS2TJ471 ERDS2TJ471 ERD16TJ471
ERDSTJ151 ERDSTJ151 ERD25FJ151K
ERDS2TJ472TD ERDS2TJ472TD ERD25TLJ472
ERDS2FJ123 ERDS2FJ123 ERDS2FJ123
ERDS2FJ103 ERDS2FJ103 ERDS2TJ103T
ERDS2TJ105 ERDS2TJ105 ERDS2TJ105
ERDS2TJ153TD ERDS2TJ153TD ERDS2TJ153T
ERDS2TJ222TD ERDS2TJ222TD ERDS2TJ222TD
ERDS2TJ682T ERDS2TJ682T ERDS2TJ682T
ERG3SJ560V ERG3SJ560V ERG3SJ560SL1
ERJ6GEYJ102Z ERJ6GEYJ102Z ERJ6GEYF102
ERJ6GEYJ472V ERJ6GEYJ472V ERJ6GEYF472
ERJ6GEYG222 ERJ6GEYG222 ERJ6GEYG103
ERJ6GEYG151 ERJ6GEYG151 ERJ6GEYG151
ERJ6GEYJ330 ERJ6GEYJ330 ERJ6GEYG330
ERJ6GEYJ332V ERJ6GEYJ332V ERJ6GEYG332
ERJ6GEYJ223 ERJ6GEYJ223 ERJ6GEYJ223
RVQQS205K RVQQS205K EVQQS205K
PJHS265Z PJHS265Z FELT
PJDD9030Z PJDD9030Z FLANGE
PJHG981Z PJHG981Z FOOT
PJZB1P2130M PJZB1P2130M FRAME
PJZBP2130M1 PJZBP2130M1 FRAME
PJUA276X PJUA276X FRAME
XBA237004 XBA237004 FUSE
ERQS2BG102 ERQS2BG102 FUSE RESISTOR
PJDG50434Z PJDG50434Z GEAR
PJDG50430Z PJDG50430Z GEAR
PJDG50429Z PJDG50429Z GEAR
PJDG50428Z PJDG50428Z GEAR
PJDG50427Z PJDG50427Z GEAR
PJDG50426Z PJDG50426Z GEAR
PJDG50425Z PJDG50425Z GEAR
PJDG50424Z PJDG50424Z GEAR
PJDG50312Z PJDG50312Z GEAR
PJDG50311Z PJDG50311Z GEAR
PJDG50300Z PJDG50300Z GEAR
PJDG50299Z PJDG50299Z GEAR
PJDG50298Z PJDG50298Z GEAR
PJDG50297Z PJDG50297Z GEAR
PJDG50295Z PJDG50295Z GEAR
PJDG50294Z PJDG50294Z GEAR
PJDG50293Z PJDG50293Z GEAR
PJDG50431Z PJDG50431Z GEAR
PJUG199Z PJUG199Z GUIDE
PJHR3064Z PJHR3064Z GUIDE
PJMY109Z PJMY109Z HEAT SINK
PJUR22Z PJUR22Z HOLDER
PJWSP2130M PJWSP2130M HOME SWITCH
PJWPIP2130M1 PJWPIP2130M1 IC
PJWIP2130M2 PJWIP2130M2 IC
PJVIT90C845F PJVIT90C845F IC
PJVILC33832S PJVILC33832S IC
PJVIS8054HN PJVIS8054HN IC
PJVIS2914AIF PJVIS2914AIF IC
PJVIMC7805CT PJVIMC7805CT IC
LM393PS LM393PS IC
PJVIGP2403 PJVIGP2403 IC
PJVIFA5311P PJVIFA5311P IC
XBAICPF25 XBAICPF25 ICPF25
PJQX6680ZA PJQX6680ZA INSTRUCT BOOK
PJQX2285ZA PJQX2285ZA INSTRUCT BOOK

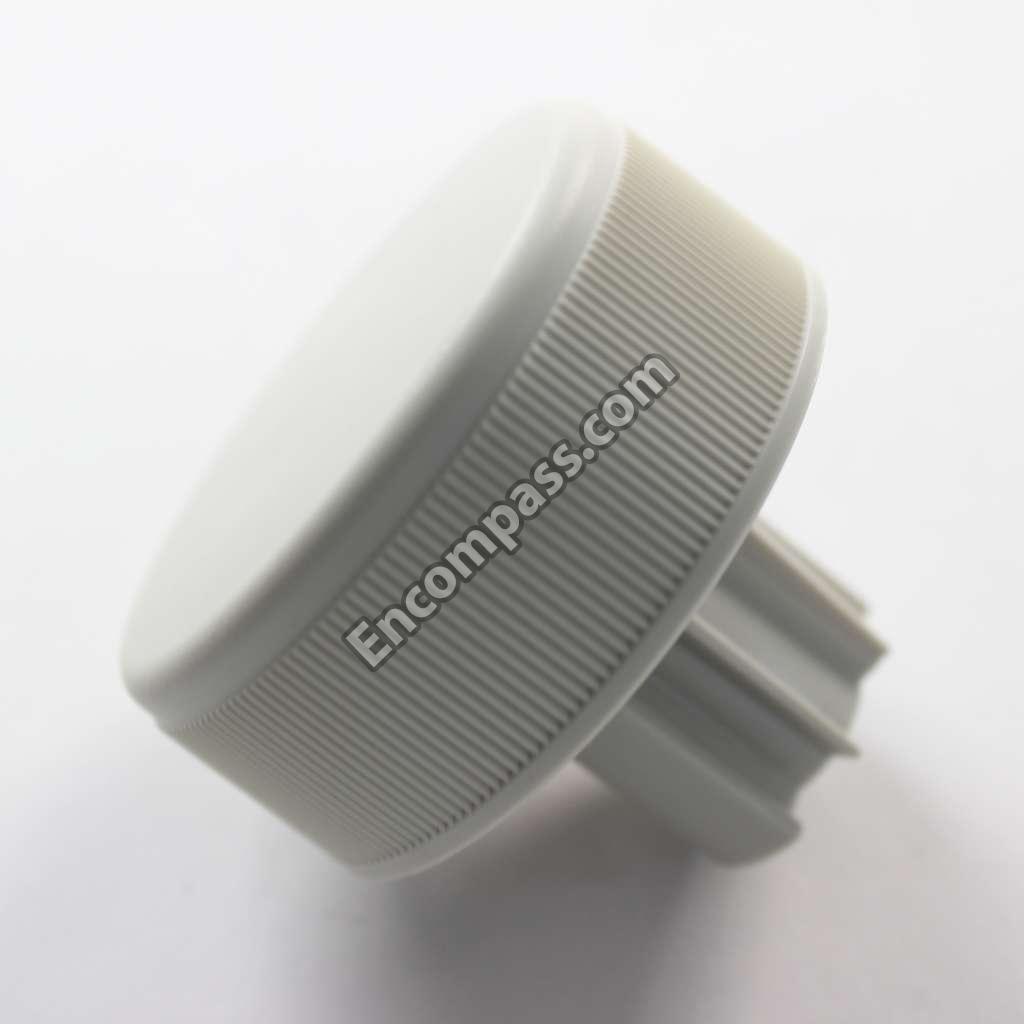

PJBN32Z PJBN32Z KNOB, TRACK FEED
PJJT241Z PJJT241Z LEAD
PJJS862Z PJJS862Z LEAD
PJHR9702Z PJHR9702Z LEVER
PJHR3069Z PJHR3069Z LEVER
PJHR3066Z PJHR3066Z LEVER
PJYMP2135M PJYMP2135M LOWER CABINET
KX-P44 KX-P44 MEMORY UPGRADE
MNR14E0ABJ103 MNR14E0ABJ103 MNR14E0AJ103
PJJQ190Z PJJQ190Z MOTOR
PJJQ169Z PJJQ169Z MOTOR
XNK18FY XNK18FY NUT
PJVCSA14_74M PJVCSA14_74M OSCILLATOR
PJPN879Z PJPN879Z PACKING
PJPN878Z PJPN878Z PACKING
PJPG1225Z PJPG1225Z PACKING
PJPG1218W PJPG1218W PACKING

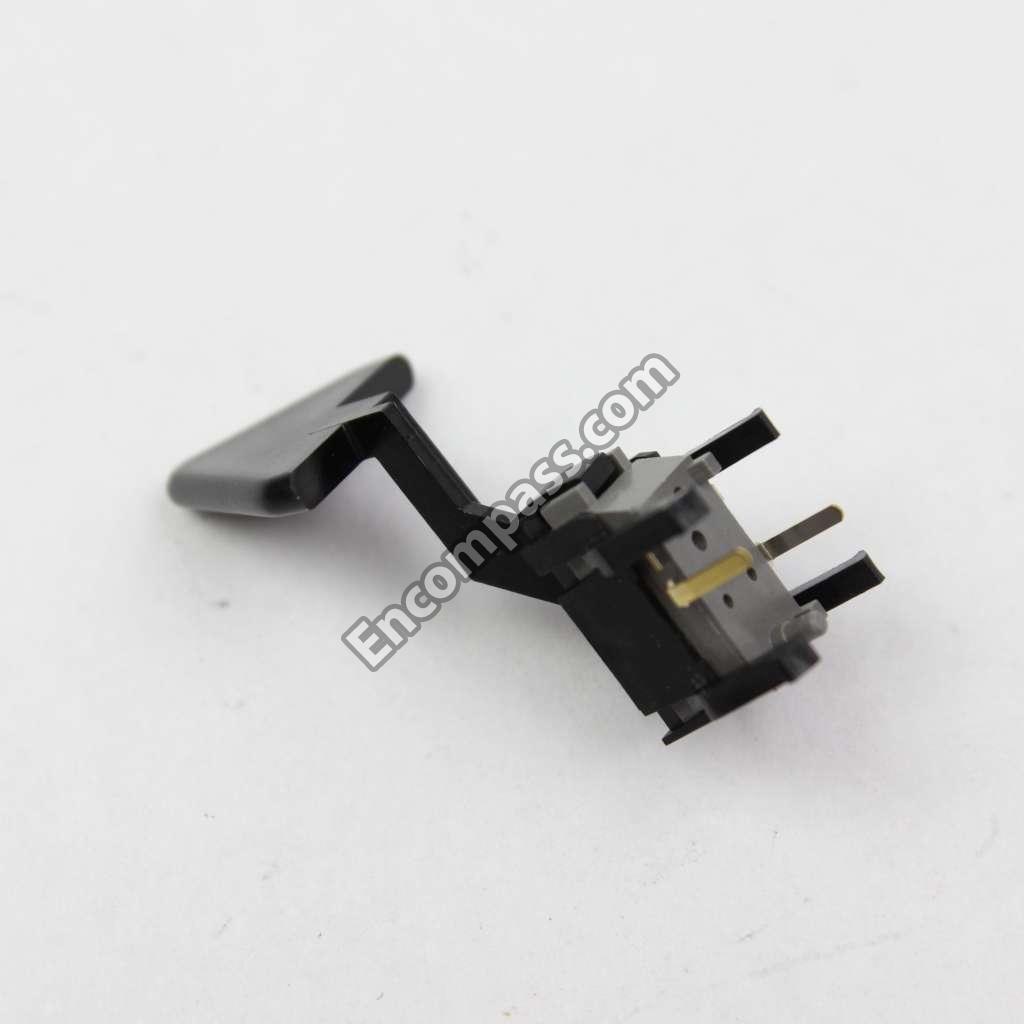

PJWP3P2130M PJWP3P2130M PAPER END SENSOR
PJUG186Z PJUG186Z PAPER GUIDE
PJUP590Z PJUP590Z PC BOARD ONLY
PJWP1P2130M PJWP1P2130M PCB ASSY
PJWPP2130M1 PJWPP2130M1 PCB ASSY
PJWPPCK12M PJWPPCK12M PCB ASSY
PJUP625Z PJUP625Z PCB ONLY
PDKXP2130SER1 PDKXP2130SER1 PDKXP2130SER1

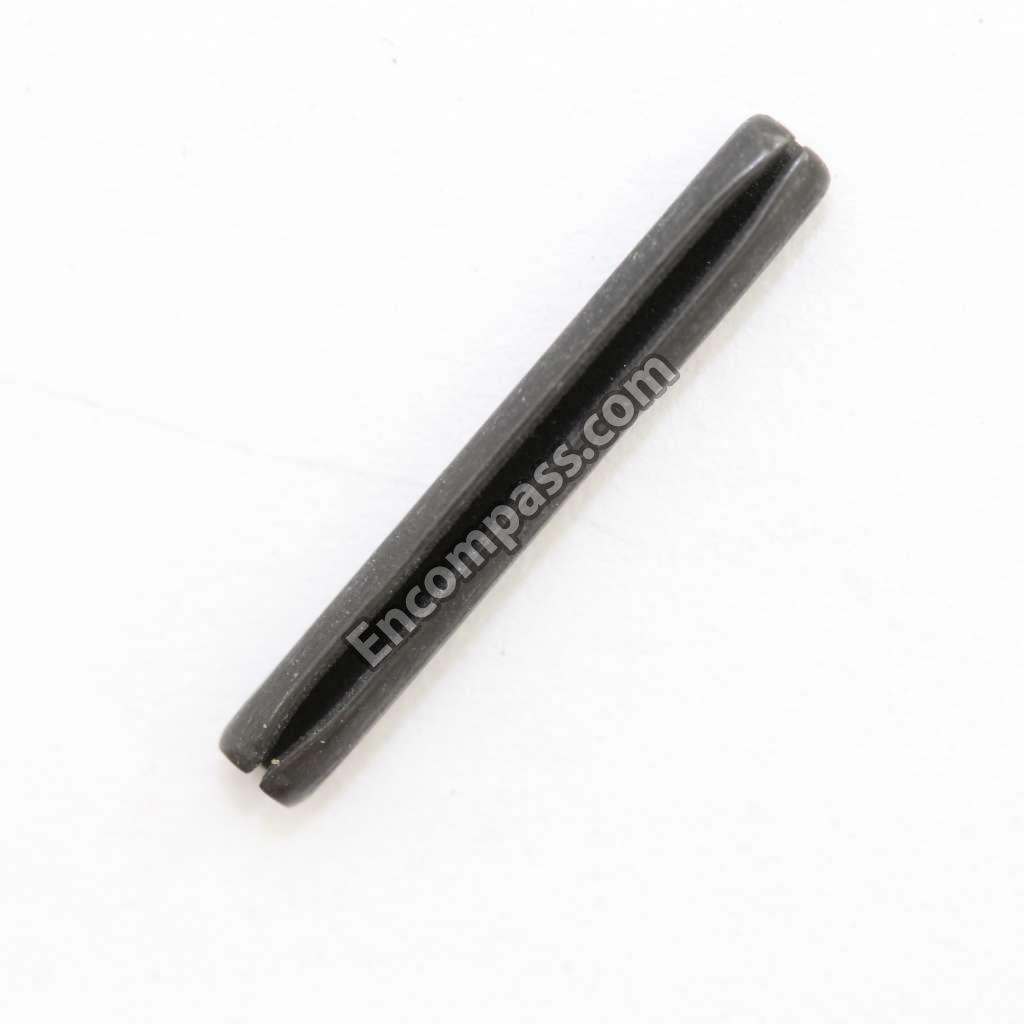

XPL2A16WFP XPL2A16WFP PIN
PJ0L-SG3451 PJ0L-SG3451 PJ0L-SG34511
PJSH1A47Y PJSH1A47Y PJSH1A47Y
PJVDEK09W PJVDEK09W PJVDD1NLTA
PJVDD1FL20U PJVDD1FL20U PJVDIS103C01
PJZUPCK12M PJZUPCK12M PLATE
PJWCP2130M PJWCP2130M PLATE
PJUS266Z PJUS266Z PLATE
PJUS264Z PJUS264Z PLATE
PJUL159Z PJUL159Z PLATE
PJMD9239Z PJMD9239Z PLATE
PJZRP2130M PJZRP2130M PLATEN ASSEMBLY
PJST1A10Z PJST1A10Z POWER SWITCH
ECUV1H330JCG ECUV1H330JCG PQCUV1H330JC
ECUV1H330JCM ECUV1H330JCM PQCUV1H330JC
EXCELSR35T EXCELSR35T PQLE53
PJDD9029Z PJDD9029Z PULLEY
PJDD9028Z PJDD9028Z PULLEY
EXBV4V103J EXBV4V103J RESISTOR
ER0S2TKF6492 ER0S2TKF6492 RESISTOR
ER0S2TKF1332 ER0S2TKF1332 RESISTOR
ER0S2TKF1130 ER0S2TKF1130 RESISTOR
ERX1SZGR39E ERX1SZGR39E RESISTOR
ERX1SJ1R0E ERX1SJ1R0E RESISTOR
ERQS2BJ270 ERQS2BJ270 RESISTOR
ERJ6GEYJ224Z ERJ6GEYJ224Z RESISTOR
ERJ6GMYG221 ERJ6GMYG221 RESISTOR
ERJ6GEYJ152V ERJ6GEYJ152V RESISTOR
ERJ6GEYJ123V ERJ6GEYJ123V RESISTOR
ERJ6GEYJ122V ERJ6GEYJ122V RESISTOR
ERJ6GEYJ101V ERJ6GEYJ101V RESISTOR
ERJ6ENF3300V ERJ6ENF3300V RESISTOR
ERJ6ENF1001V ERJ6ENF1001V RESISTOR
ERJ14YJ682H ERJ14YJ682H RESISTOR
ERJ14YJ103H ERJ14YJ103H RESISTOR
ERJ14YJ101H ERJ14YJ101H RESISTOR
ERJ14YF682H ERJ14YF682H RESISTOR
ERG2SJ393E ERG2SJ393E RESISTOR
ERG2SJ333E ERG2SJ333E RESISTOR
RC07-1_8M5 RC07-1_8M5 RESISTOR
ERDS2TJ183 ERDS2TJ183 RESISTOR
ERDS2TJ102 ERDS2TJ102 RESISTOR
XUC3VM XUC3VM RFKVXUC3FT
PJUP653Z PJUP653Z RIBBON CABLE
PJDD241Z PJDD241Z RING
PJDR198Z PJDR198Z ROLLER
PJDR146Z PJDR146Z ROLLER
PJDR131Z PJDR131Z ROLLER
PJHG719Z PJHG719Z RUBBER
PJHG718Y PJHG718Y RUBBER
PJHG352Z PJHG352Z RUBBER
PJHG328Y PJHG328Y RUBBER
PJHE5065Z PJHE5065Z SCREW
XYN26_F8 XYN26_F8 SCREW
XYC3_JF12 XYC3_JF12 SCREW
XYC3_FF8C XYC3_FF8C SCREW
XTW4_6L XTW4_6L SCREW
XTW3_5L XTW3_5L SCREW
XTW3_U8LR XTW3_U8LR SCREW
XTW3_U5L XTW3_U5L SCREW
XTW26_8L XTW26_8L SCREW
XTW26_8F XTW26_8F SCREW
XTW26_12F XTW26_12F SCREW
XTW23_6F XTW23_6F SCREW
XTN3D12F XTN3D12F SCREW
XTB3_8BFN XTB3_8BFN SCREW
XSN3_W10 XSN3_W10 SCREW
PJYC3_MC16 PJYC3_MC16 SCREW
XTW3_10FR XTW3_10FR SCREW (1/10)
XTW3_10F XTW3_10F SCREW (1/10)
XTW3_20L XTW3_20L SCREW Z
PJDF9430Z PJDF9430Z SHAFT
PJDF9303Z PJDF9303Z SHAFT
PJDF565Z PJDF565Z SHAFT
PJDF351Z PJDF351Z SHAFT
PJDF350Y PJDF350Y SHAFT
PJGK182X PJGK182X SHEET
PJUS272Z PJUS272Z SHEET
PJHR5177Z PJHR5177Z SHEET
PJHR5165Z PJHR5165Z SHEET
PJHR9025Z PJHR9025Z SLIDER
PJHE10Z PJHE10Z SPACER
PJDS7117Z PJDS7117Z SPRING
PJDS7103Z PJDS7103Z SPRING
PJDS51810Z PJDS51810Z SPRING
PJDS51505Z PJDS51505Z SPRING
PJDS51218Z PJDS51218Z SPRING
PJDS4182Z PJDS4182Z SPRING
PJDS4142Z PJDS4142Z SPRING
PJUS214Z PJUS214Z SPRING
PJUS193Z PJUS193Z SPRING
PJHR3062Z PJHR3062Z STOPPER
PJUG198Z PJUG198Z SUPPORT
PJSH1A58Z PJSH1A58Z SWITCH
PJSH1A46Z PJSH1A46Z SWITCH
PJ0L-948P PJ0L-948P TEST TOOL
PJ0L-K1879 PJ0L-K1879 TEST TOOL
PJZXP1123M PJZXP1123M TEST TOOL
PJWX7P1180M PJWX7P1180M TEST TOOL
PJWX2P1121M PJWX2P1121M TEST TOOL
PJWX1P1121M PJWX1P1121M TEST TOOL
PJRT113Z PJRT113Z THERMISTOR
PJLTS5H15 PJLTS5H15 TRANSFORMER
2SB1580 2SB1580 TRANSISTOR
2SB1205 2SB1205 TRANSISTOR
PJVIDTC144WK PJVIDTC144WK TRANSISTOR
PJVIDTC143ES PJVIDTC143ES TRANSISTOR
PJVIDTC143EK PJVIDTC143EK TRANSISTOR
TSC925-4 TSC925-4 TSC925-4
PJYFP2135M PJYFP2135M UPPER CABINET
PJRZSAS271KD PJRZSAS271KD VARISTOR
PJHM396Z PJHM396Z WASHER
PJHE6050Z PJHE6050Z WASHER
XWC4B XWC4B WASHER (1/5)
PJJT313Z PJJT313Z WIRE
XBAICPF75 XBAICPF75 XBAICPF75
XTW3_12SFJ XTW3_12SFJ XTW3+12S
XTW3_16L XTW3_16L XTW3+16L
XTW3_6S XTW3_6S XTW3+6LFB
XUC9FY XUC9FY XUC9VM
XYN3_F8FZS XYN3_F8FZS XYN3+F8FZ
Main Menu x
