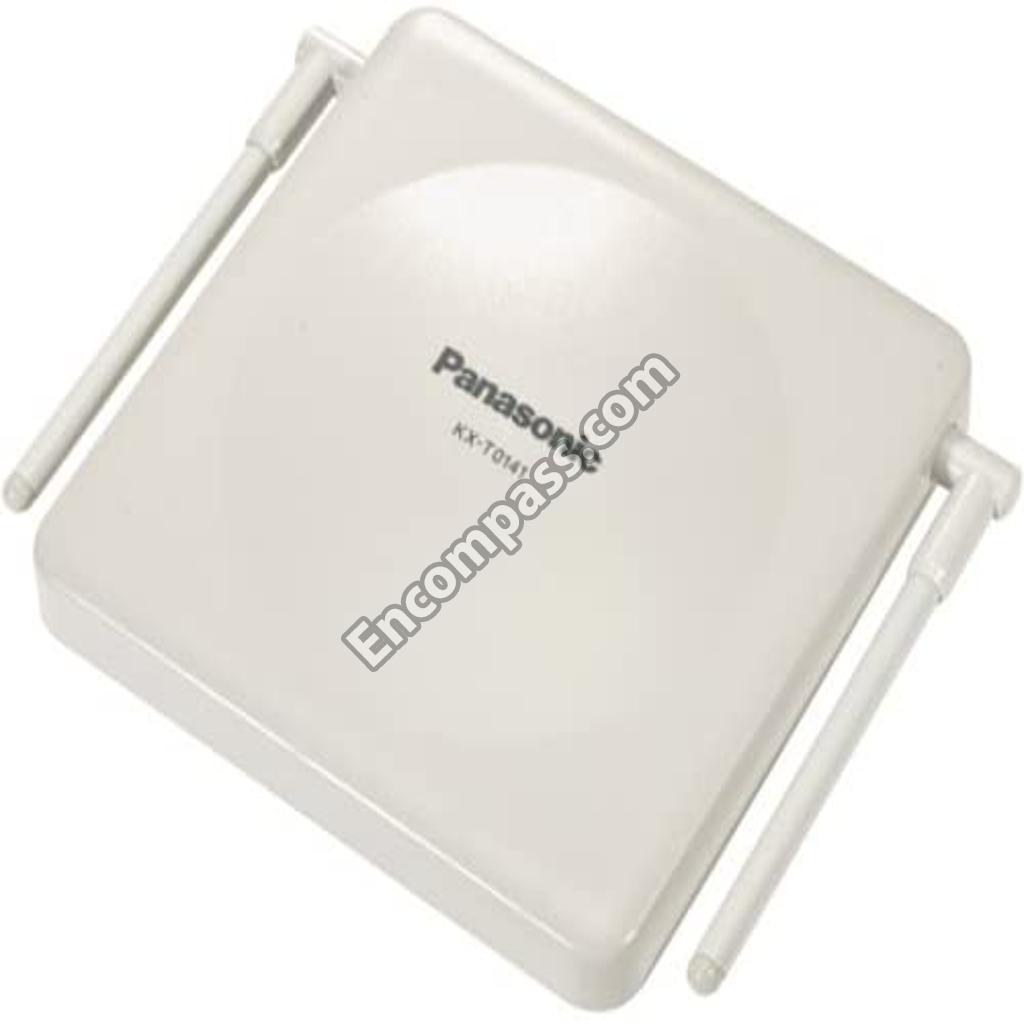

Model Image
Manufacturer

Panasonic

Model Number

KXT0141

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
EECFE5R5474 EECFE5R5474 0.47 Farad 5.5VDC
2SB1132RTX 2SB1132RTX 2SB1132RTX
2SD1819AWL 2SD1819AWL 2SD1819AR
N1CAAJY00003 N1CAAJY00003 ANTENNA
PSKM1036T1 PSKM1036T1 CABINET
PSKF1064Z1 PSKF1064Z1 CABINET
F1G1H100A420 F1G1H100A420 CAP
F2J1V4R70004 F2J1V4R70004 CAPACITOR
ECJ1VF1E104Z ECJ1VF1E104Z CAPACITOR
PSCEV0JA471 PSCEV0JA471 CAPACITOR
PQCUV1H222JC PQCUV1H222JC CAPACITOR
PQCUV1C105ZF PQCUV1C105ZF CAPACITOR
F2G1H1510001 F2G1H1510001 CAPACITOR
F2G1H1010006 F2G1H1010006 CAPACITOR
F2G1C1000014 F2G1C1000014 CAPACITOR
F2G1A4710004 F2G1A4710004 CAPACITOR
ECUV1H560JCV ECUV1H560JCV CAPACITOR
ECUV1H471JCV ECUV1H471JCV CAPACITOR
ECUV1H391JCV ECUV1H391JCV CAPACITOR
ECJ1VB1H332K ECJ1VB1H332K CAPACITOR
ECUV1H270JCV ECUV1H270JCV CAPACITOR
ECUV1H151JCV ECUV1H151JCV CAPACITOR
ECUV1H103KBV ECUV1H103KBV CAPACITOR
ECU1H102KBV ECU1H102KBV CAPACITOR
ECUV1H101JCV ECUV1H101JCV CAPACITOR
ECUV1H100DCV ECUV1H100DCV CAPACITOR
ECUV1H090DCV ECUV1H090DCV CAPACITOR
ECUV1H070DCV ECUV1H070DCV CAPACITOR
ECUV1C224ZFV ECUV1C224ZFV CAPACITOR
ECUZ1C104ZFV ECUZ1C104ZFV CAPACITOR
ECJ1VB0J475K ECJ1VB0J475K CAPACITOR
ECUV0J105KBV ECUV0J105KBV CAPACITOR
ECUE1H220JCQ ECUE1H220JCQ CAPACITOR
ECUE1H102KBQ ECUE1H102KBQ CAPACITOR
ECUE1H101JCQ ECUE1H101JCQ CAPACITOR
ECUE1H0R5CCQ ECUE1H0R5CCQ CAPACITOR
ECUE1H070DCQ ECUE1H070DCQ CAPACITOR
ECUE1H020CCQ ECUE1H020CCQ CAPACITOR
ECUE1H010CCQ ECUE1H010CCQ CAPACITOR
ECUE1E472KBQ ECUE1E472KBQ CAPACITOR
ECUE1E221JCQ ECUE1E221JCQ CAPACITOR
ECUE1C103KBQ ECUE1C103KBQ CAPACITOR
ECUE1A473KBQ ECUE1A473KBQ CAPACITOR
ECUE1A104KBQ ECUE1A104KBQ CAPACITOR
ECHU1C103GB ECHU1C103GB CAPACITOR
ECEV1VA4R7 ECEV1VA4R7 CAPACITOR
PSLQR3A331M PSLQR3A331M COIL
PSLQR1S27NJ PSLQR1S27NJ COIL
PSLQR1S1N0S PSLQR1S1N0S COIL
PQLQR4C5N6S PQLQR4C5N6S COIL
PQLQR4C3N9S PQLQR4C3N9S COIL
PQLQR4C2N7S PQLQR4C2N7S COIL
PQLQR4C10NJ PQLQR4C10NJ COIL
PQLQR2M27NJT PQLQR2M27NJT COIL
PQLQR1U101K PQLQR1U101K COIL
ELJPA1R0MF ELJPA1R0MF COIL
ELJPA100KF ELJPA100KF COIL
PSJP03A44ZAT PSJP03A44ZAT CONNECTOR
PSHX1128Z PSHX1128Z COVER
PQPH89Z PQPH89Z COVER
PSVCC0025GT PSVCC0025GT CRYSTAL
MA8220 MA8220 DIODE
PSVDRB160LT PSVDRB160LT DIODE
PQVDBAS16 PQVDBAS16 DIODE
MA8091MTX MA8091MTX DIODE
MA153TX MA153TX DIODE
B0JCMG000007 B0JCMG000007 DIODE
B0ECKM000003 B0ECKM000003 DIODE
B0DDCL000001 B0DDCL000001 DIODE
B0CCAB000020 B0CCAB000020 DIODE
1SS355 1SS355 DIODE
ERJ3GEYG473 ERJ3GEYG473 ERJ3GEYG473
ERJ3GEYJ105 ERJ3GEYJ105 ERJ3GEYJ105V
ERJ3GEYJ151V ERJ3GEYJ151V ERJ3GEYJ151V
ERJ3GEY223 ERJ3GEY223 ERJ3GEYJ223V
ERJ3GEYJ681 ERJ3GEYJ681 ERJ3GEYJ681V
J0E2457B0002 J0E2457B0002 FILTER
C3BBHC000368 C3BBHC000368 IC
PSWIT0141M PSWIT0141M IC
PQVIPMB4729T PQVIPMB4729T IC
PQVIMC7101B5 PQVIMC7101B5 IC
PQVILM4040D2 PQVILM4040D2 IC
PQVI2340FA10 PQVI2340FA10 IC
C1ZBZ0002692 C1ZBZ0002692 IC
C1CB00001568 C1CB00001568 IC
C1CB00001643 C1CB00001643 IC
C1CB00001282 C1CB00001282 IC
C0JBAE000367 C0JBAE000367 IC
C0JBAA000246 C0JBAA000246 IC
C0EBE0000117 C0EBE0000117 IC
C0DBZGG00009 C0DBZGG00009 IC
C0DBAGG00006 C0DBAGG00006 IC
K2LB104D0005 K2LB104D0005 JACK
PSQT1907Z PSQT1907Z LABEL
PSYET0141M PSYET0141M NAME PLATE
PSLP1174Z PSLP1174Z NR PC BD
H0J960400003 H0J960400003 OSCILLATOR
H0J103500013 H0J103500013 OSCILLATOR
PSZKT0141M PSZKT0141M PACKING (DISCONTINUED)
PSWPT0141M PSWPT0141M PC BOARD
PQ4R10XJ102 PQ4R10XJ102 RESISTOR
ERJ3GEYJ821 ERJ3GEYJ821 RESISTOR
ERJ3GEYJ683 ERJ3GEYJ683 RESISTOR
ERJ3GEYJ682 ERJ3GEYJ682 RESISTOR
ERJ3GEYJ562 ERJ3GEYJ562 RESISTOR
D0GB393JA041 D0GB393JA041 RESISTOR
ERJ3GEYJ391V ERJ3GEYJ391V RESISTOR
ERJ3GEYJ331 ERJ3GEYJ331 RESISTOR
ERJ3GEYJ273 ERJ3GEYJ273 RESISTOR
ERJ3GEYJ271V ERJ3GEYJ271V RESISTOR
ERJ3GEYJ222 ERJ3GEYJ222 RESISTOR
ERJ3GEYJ220 ERJ3GEYJ220 RESISTOR
ERJ3GEYJ1R0 ERJ3GEYJ1R0 RESISTOR
ERJ3GEYJ182V ERJ3GEYJ182V RESISTOR
ERJ3GEYJ121 ERJ3GEYJ121 RESISTOR
ERJ3GEYJ104V ERJ3GEYJ104V RESISTOR
ERJ3GEYJ101 ERJ3GEYJ101 RESISTOR
ERJ3GEYF822 ERJ3GEYF822 RESISTOR
ERJ3GEYG562 ERJ3GEYG562 RESISTOR
ERJ3GEYF333 ERJ3GEYF333 RESISTOR
ERJ3GEYF123 ERJ3GEYF123 RESISTOR
ERJ3GEYF122 ERJ3GEYF122 RESISTOR
ERJ3GEYF103 ERJ3GEYF103 RESISTOR
ERJ3GEY0R00 ERJ3GEY0R00 RESISTOR
ERJ2GEYJ394 ERJ2GEYJ394 RESISTOR
ERJ2GEYJ222 ERJ2GEYJ222 RESISTOR
ERJ2GEYJ183 ERJ2GEYJ183 RESISTOR
ERJ2GEYJ181 ERJ2GEYJ181 RESISTOR
ERJ2GEJ682 ERJ2GEJ682 RESISTOR
ERJ2GEJ331 ERJ2GEJ331 RESISTOR
ERJ2RHD272 ERJ2RHD272 RESISTOR
ERJ2GEJ101X ERJ2GEJ101X RESISTOR
ERJ2GEJ000 ERJ2GEJ000 RESISTOR
ERJ14YJ121 ERJ14YJ121 RESISTOR
ERJ14YJ102 ERJ14YJ102 RESISTOR
D1H83304A036 D1H83304A036 RESISTOR
ERJ3GEYJ122 ERJ3GEYJ122 RN4B2AY122J
PSHG1063Z PSHG1063Z RUBBER
XTW3_16PFJ7 XTW3_16PFJ7 SCREW
XTW3_S16M XTW3_S16M SCREW
PQHE5004Y PQHE5004Y SCREW
PSMC1100Z PSMC1100Z SHIELD
PSMC1099Z PSMC1099Z SHIELD
K0D169A00001 K0D169A00001 SWITCH
PSZZ2TDA0142 PSZZ2TDA0142 TEST TOOL
PSZZ1TDA0142 PSZZ1TDA0142 TEST TOOL
PSZZ5TDA0142 PSZZ5TDA0142 TEST TOOL (DISCONTINUED)
PSZZ4TDA0142 PSZZ4TDA0142 TEST TOOL (DISCONTINUED)
ETJS13ZA14AB ETJS13ZA14AB TRANSFORMER
UN5213TX UN5213TX TRANSISTOR
PSVTUMS1NTR PSVTUMS1NTR TRANSISTOR
G1C1N2Z00002 G1C1N2Z00002 TRANSISTOR
B1KBA0000009 B1KBA0000009 TRANSISTOR
B1ADRC000008 B1ADRC000008 TRANSISTOR
B1ADGD000007 B1ADGD000007 TRANSISTOR
D4ZZ00000024 D4ZZ00000024 VARISTOR
D4ED3560A001 D4ED3560A001 VARISTOR
ERJ3GEYJ103V ERJ3GEYJ103V VRESAL8J103
XWG35FJ XWG35FJ WASHER
