Model Image
Manufacturer

Panasonic

Model Number

KXT7730

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
KX-TCA91S KX-TCA91S *NLA* HEADPHONE
PSBX1100Y1 PSBX1100Y1 BUTTON
PSBC1032Z3 PSBC1032Z3 BUTTON
PSBH1007Z1 PSBH1007Z1 BUTTON
PSBX1103Z1 PSBX1103Z1 BUTTON
PSBX1108Z1 PSBX1108Z1 BUTTON

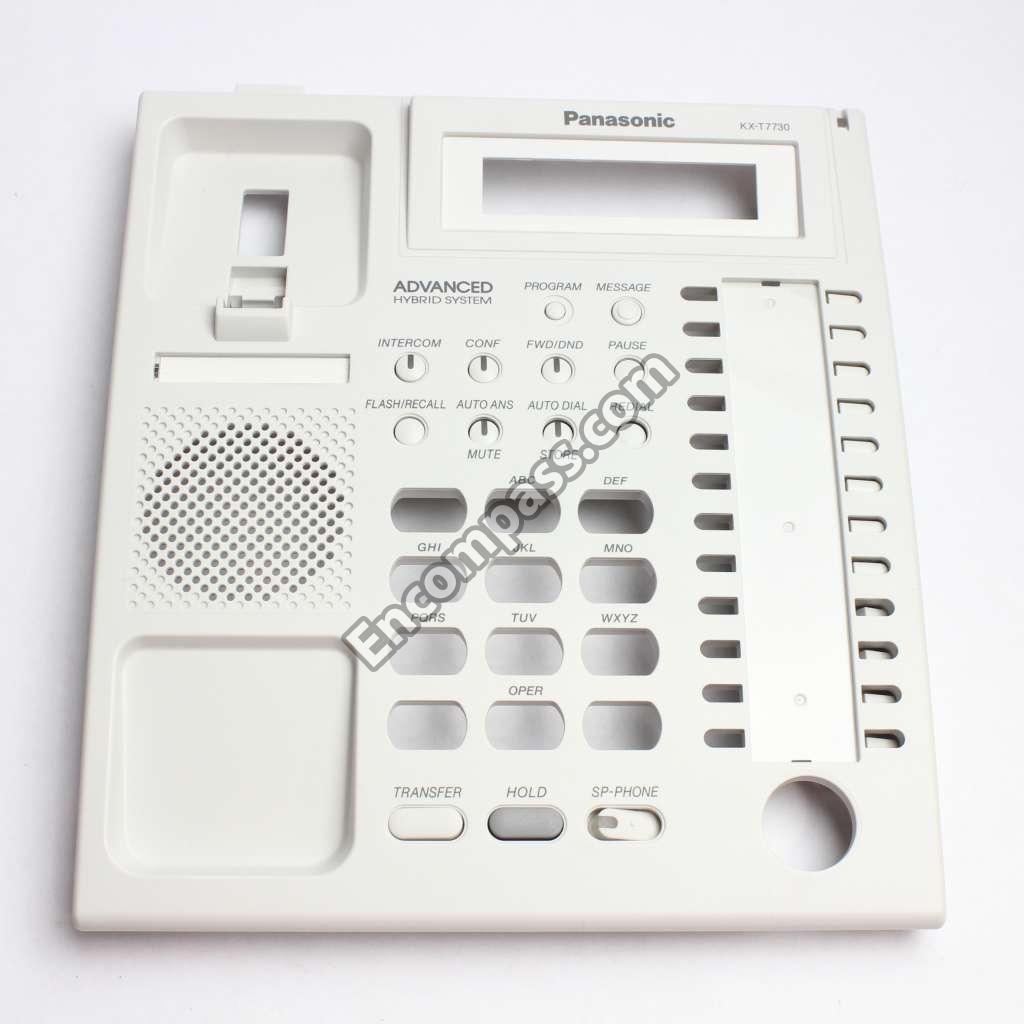

PSKM1102Y1 PSKM1102Y1 CABINET
PSYF1041Y1 PSYF1041Y1 CABINET
EEE0JA221WP EEE0JA221WP CAPACITOR
ECEV0JA470 ECEV0JA470 CAPACITOR
ECUV1A106ZF ECUV1A106ZF CAPACITOR
ECJ1VB0J475K ECJ1VB0J475K CAPACITOR
ECUZ1C104ZFV ECUZ1C104ZFV CAPACITOR
ECUV1C224KBV ECUV1C224KBV CAPACITOR
ECUV1C473KBV ECUV1C473KBV CAPACITOR
ECUV1C563KBV ECUV1C563KBV CAPACITOR
ECU1H102KBV ECU1H102KBV CAPACITOR
ECUV1H151JCV ECUV1H151JCV CAPACITOR
ECUV1H153KBV ECUV1H153KBV CAPACITOR
ECUV1H222KBV ECUV1H222KBV CAPACITOR
ECUV1H223KBV ECUV1H223KBV CAPACITOR
ECJ1VB1H332K ECJ1VB1H332K CAPACITOR
ECUV1H333KBV ECUV1H333KBV CAPACITOR
ECUV1H821JCV ECUV1H821JCV CAPACITOR
PQCUV1A225KB PQCUV1A225KB CAPACITOR
PQCUV1A225ZF PQCUV1A225ZF CAPACITOR
PQCUV1A475ZF PQCUV1A475ZF CAPACITOR
F2G0J1020008 F2G0J1020008 CAPACITOR
PSCEV1CA100S PSCEV1CA100S CAPACITOR
F2G1E4700013 F2G1E4700013 CAPACITOR
PSGD1071Z PSGD1071Z CARD
PSGD1070Y PSGD1070Y CARD
PQJP02B08Z PQJP02B08Z CONNECTOR
K1MN09B00059 K1MN09B00059 CONNECTOR
PSJP02A05Z PSJP02A05Z CONNECTOR
PSJS02P10Z PSJS02P10Z CONNECTOR
PSJS02Q35Y PSJS02Q35Y CONNECTOR
PSJS14A61Z PSJS14A61Z CONNECTOR
PQJA48W PQJA48W CORD
PSJA1084Z PSJA1084Z CORD
PQHR576Z PQHR576Z COVER
PQPP170Z PQPP170Z COVER
PSHR1273Z PSHR1273Z COVER
PSHG1122Z PSHG1122Z CUSHION
MA2J1110GL MA2J1110GL DIODE
L5DBBHC00004 L5DBBHC00004 DISPLAY
PSVD1SRCT PSVD1SRCT DISPLAY
PSVD1VGCT PSVD1VGCT DISPLAY
ECUV0JV101SP ECUV0JV101SP ECEV0JV101SP
ECEV1CA220P ECEV1CA220P ECEV1CA220P
ECUX1H120JCN ECUX1H120JCN ECUM1H120JCN
ECUV1H103KBV ECUV1H103KBV ECUV1H103KBM
ECUV1H682MD ECUV1H682MD ECUV1H682MBV
ERJ3GEYJ332V ERJ3GEYJ332V ERJ3GEYG332
ERJ3GEYJ333 ERJ3GEYJ333 ERJ3GEYG333
ERJ3GEYJ471V ERJ3GEYJ471V ERJ3GEYG471
ERJ3GEYG473 ERJ3GEYG473 ERJ3GEYG473
ERJ3GEYJ105 ERJ3GEYJ105 ERJ3GEYJ105V
ERJ3GEYJ123V ERJ3GEYJ123V ERJ3GEYJ123V
ERJ3GEYJ151V ERJ3GEYJ151V ERJ3GEYJ151V
ERJ3GEYG152 ERJ3GEYG152 ERJ3GEYJ152V
ERJ3GEYJ153V ERJ3GEYJ153V ERJ3GEYJ153V
ERJ3GEY223 ERJ3GEY223 ERJ3GEYJ223V
ERJ3GEYJ681 ERJ3GEYJ681 ERJ3GEYJ681V
PSHA1002Z PSHA1002Z FOOT
PSHR1275Z PSHR1275Z GUIDE
PQJX2PSL01Z PQJX2PSL01Z HANDSET
PQKE10070Z3 PQKE10070Z3 HANGER
KX-TCA430 KX-TCA430 HEADPHONE
AN6183SE1 AN6183SE1 IC
C0EBJ0000410 C0EBJ0000410 IC
C2ABEE000013 C2ABEE000013 IC
PQVIBA06FPE2 PQVIBA06FPE2 IC
YEAMZAL0001 YEAMZAL0001 IC
C1CB00001850 C1CB00001850 IC
PQVITC7H00F PQVITC7H00F IC
PSVICD4066BS PSVICD4066BS IC
PSQW1921WA INSTRUCT BOOK
PQJJ1C002Z PQJJ1C002Z JACK
K2LB104D0005 K2LB104D0005 JACK
K2LB104D0004 K2LB104D0004 JACK
PSBD1013Z1 PSBD1013Z1 KNOB
PSQT1583Z PSQT1583Z LABEL
B3AAB0000111 B3AAB0000111 LED
PQVDBRPY1204 PQVDBRPY1204 LED
A4LZFC000001 A4LZFC000001 LIGHT
PSQW1923Z PSQW1923Z MANUAL
RJM142Z RJM142Z MICROPHONE
H0J400400011 H0J400400011 OSCILLATOR
PSPK2030Z PSPK2030Z PACKING (DISCONTINUED)
PSGP1088Z PSGP1088Z PANEL
PSGP1094Z1 PSGP1094Z1 PANEL
PSWPT7730MUK PSWPT7730MUK PC BOARD
PSGT2296Z PSGT2296Z PLATE
PQCUV1C105ZF PQCUV1C105ZF PQCUV1C105ZF
B0EDER000009 B0EDER000009 PQVDS1ZB40F1
D1H84724A024 D1H84724A024 RESISTOR
D1H84734A024 D1H84734A024 RESISTOR
ERJ3GEYJ101 ERJ3GEYJ101 RESISTOR
ERJ3GEYJ104V ERJ3GEYJ104V RESISTOR
ERJ3GEYJ124 ERJ3GEYJ124 RESISTOR
ERJ3GEYJ154 ERJ3GEYJ154 RESISTOR
ERJ3GEYJ180 ERJ3GEYJ180 RESISTOR
ERJ3GEYJ182V ERJ3GEYJ182V RESISTOR
ERJ3GEYJ183V ERJ3GEYJ183V RESISTOR
ERJ3GEYJ203V ERJ3GEYJ203V RESISTOR
ERJ3GEYJ271V ERJ3GEYJ271V RESISTOR
ERJ3GEYJ222 ERJ3GEYJ222 RESISTOR
ERJ3GEYJ224V ERJ3GEYJ224V RESISTOR
ERJ3GEYJ225V ERJ3GEYJ225V RESISTOR
ERJ3GEYJ272 ERJ3GEYJ272 RESISTOR
ERJ3GEYJ273 ERJ3GEYJ273 RESISTOR
ERJ3GEYJ274 ERJ3GEYJ274 RESISTOR
ERJ3GEYJ275 ERJ3GEYJ275 RESISTOR
ERJ3GEYJ303 ERJ3GEYJ303 RESISTOR
ERJ3GEYJ330 ERJ3GEYJ330 RESISTOR
ERJ3GEYJ390V ERJ3GEYJ390V RESISTOR
D0GB393JA041 D0GB393JA041 RESISTOR
ERJ3GEYJ470 ERJ3GEYJ470 RESISTOR
ERJ3GEYJ472V ERJ3GEYJ472V RESISTOR
ERJ3GEYJ474 ERJ3GEYJ474 RESISTOR
ERJ3GEYJ560V ERJ3GEYJ560V RESISTOR
ERJ3GEYJ562 ERJ3GEYJ562 RESISTOR
ERJ3GEYJ563 ERJ3GEYJ563 RESISTOR
ERJ3GEYJ680V ERJ3GEYJ680V RESISTOR
ERJ3GEYJ682 ERJ3GEYJ682 RESISTOR
ERJ3GEYJ683 ERJ3GEYJ683 RESISTOR
ERJ3GEYJ684V ERJ3GEYJ684V RESISTOR
ERJ3GEYJ821 ERJ3GEYJ821 RESISTOR
ERJ3GEYJ822 ERJ3GEYJ822 RESISTOR
ERJ3GEY0R00 ERJ3GEY0R00 RESISTOR
PQ4R18XJ3R3 PQ4R18XJ3R3 RESISTOR
ERJ3GEYJ331 ERJ3GEYJ331 RN4B2AY102J
PQAS57P03Z PQAS57P03Z SPEAKER
PSUS1028Z PSUS1028Z SPRING
PSUS1018Z PSUS1018Z SPRING
PSYL1004Z1 PSYL1004Z1 STAND
PSSS3A101Z PSSS3A101Z SWITCH
PSSX1024Z PSSX1024Z SWITCH
0N3181 0N3181 TRANSDUCER
G5A1A0000003 G5A1A0000003 TRANSFORMER
PSLT9Z4A PSLT9Z4A TRANSFORMER
B1ABGB000020 B1ABGB000020 TRANSISTOR
B1ADGP000008 B1ADGP000008 TRANSISTOR
B1HBGBA00001 B1HBGBA00001 TRANSISTOR
PQVTDTA143EU PQVTDTA143EU TRANSISTOR
PQVTDTA143XU PQVTDTA143XU TRANSISTOR
PSVTUMA7NTR PSVTUMA7NTR TRANSISTOR
PSVTUMG2NTR PSVTUMG2NTR TRANSISTOR
UN5213TX UN5213TX TRANSISTOR
2SC4081RTX 2SC4081RTX TRANSISTOR
ERJ3GEYJ103V ERJ3GEYJ103V VRESAL8J103
PSJE1028Z PSJE1028Z WIRE
XTW3_12PFJ7 XTW3_12PFJ7 XTW3+12JR
