Model Image
Manufacturer

Panasonic

Model Number

KXTA30850B

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
PQPP170Z PQPP170Z BAG
PSBX1119Z2 PSBX1119Z2 BUTTON
PSBX1110Y2 PSBX1110Y2 BUTTON
PSBX1103Z3 PSBX1103Z3 BUTTON
PSBH1007Z2 PSBH1007Z2 BUTTON
PSBC1037Z1 PSBC1037Z1 BUTTON
PSBC1033Z4 PSBC1033Z4 BUTTON
PSBX1100X2 PSBX1100X2 BUTTON (DISCONTINUED)
PSYF1041W2 PSYF1041W2 CABINET
PSKM1096Q2 PSKM1096Q2 CABINET
PSJE1036Y PSJE1036Y CABLE
F2G1C2200012 F2G1C2200012 CAPACITOR
F2G1A3310006 F2G1A3310006 CAPACITOR
PSCEV0JA101 PSCEV0JA101 CAPACITOR
PSCEV1HA100 PSCEV1HA100 CAPACITOR
F2G1E4700013 F2G1E4700013 CAPACITOR
PSCEV1CA100S PSCEV1CA100S CAPACITOR
PSCEV1AA331 PSCEV1AA331 CAPACITOR
F2G0J1020008 F2G0J1020008 CAPACITOR
PQCUV1H472KB PQCUV1H472KB CAPACITOR
PQCUV1C105ZF PQCUV1C105ZF CAPACITOR
PQCUV1A475ZF PQCUV1A475ZF CAPACITOR
PQCUV1A225ZF PQCUV1A225ZF CAPACITOR
ECUV1H821JCV ECUV1H821JCV CAPACITOR
ECJ1VB1H332K ECJ1VB1H332K CAPACITOR
ECUV1H223KBV ECUV1H223KBV CAPACITOR
ECUV1H222KBV ECUV1H222KBV CAPACITOR
ECUV1H221JCV ECUV1H221JCV CAPACITOR
ECUV1H153KBV ECUV1H153KBV CAPACITOR
ECUV1H151JCV ECUV1H151JCV CAPACITOR
ECUV1H103KBV ECUV1H103KBV CAPACITOR
ECU1H102KBV ECU1H102KBV CAPACITOR
ECUV1C683KBV ECUV1C683KBV CAPACITOR
ECUV1C473KBV ECUV1C473KBV CAPACITOR
ECUV1C224KBV ECUV1C224KBV CAPACITOR
ECUZ1C104ZFV ECUZ1C104ZFV CAPACITOR
ECJ1VB0J475K ECJ1VB0J475K CAPACITOR
ECUV1A154KBV ECUV1A154KBV CAPACITOR
ECUV1A106ZF ECUV1A106ZF CAPACITOR
EEE0JA221WP EEE0JA221WP CAPACITOR
PSGD1075Z PSGD1075Z CARD
PSJS02Q35Y PSJS02Q35Y CONNECTOR
PSJS02P10Z PSJS02P10Z CONNECTOR
PSJP02A05Z PSJP02A05Z CONNECTOR

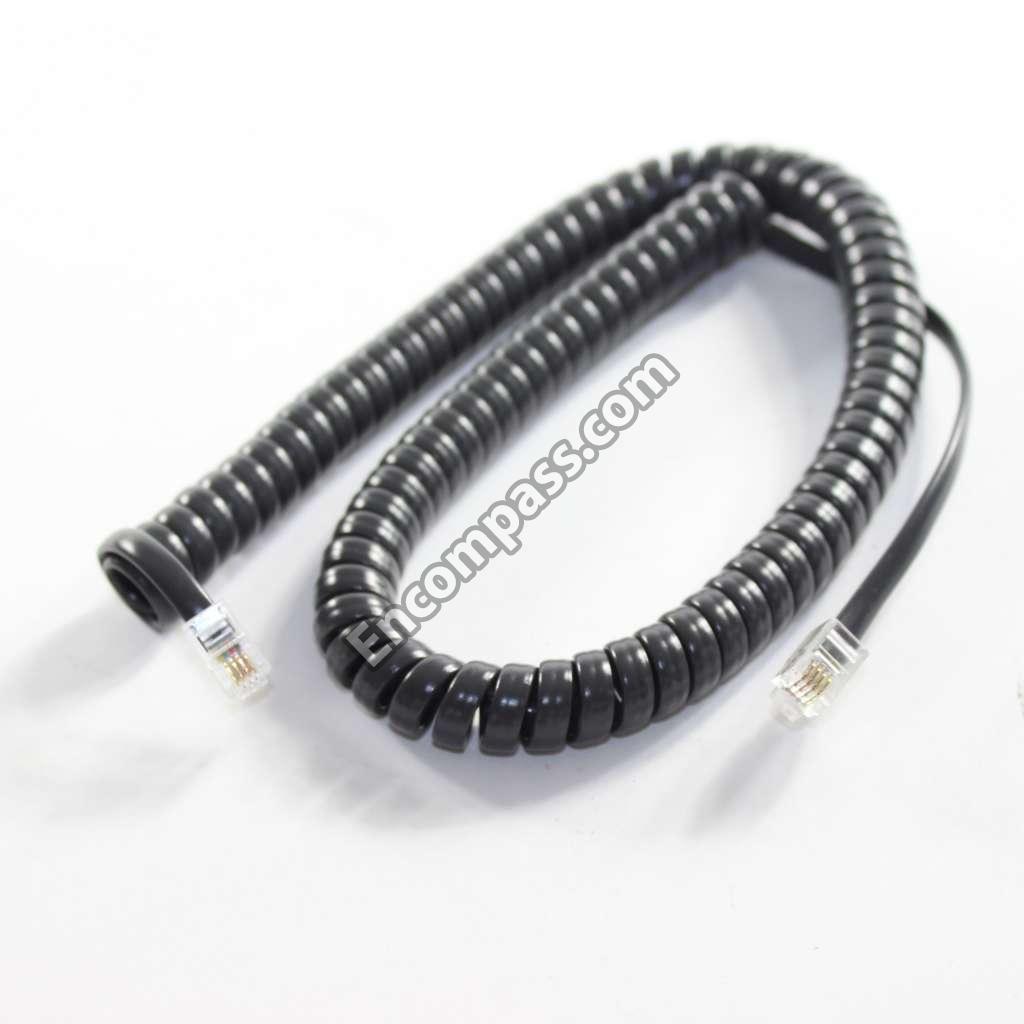

PSJA1084Z PSJA1084Z CORD
PSJA1084X PSJA1084X CORD
PQJA48W PQJA48W CORD
PSHR1264Z PSHR1264Z COVER
PQHR576Z PQHR576Z COVER
B0EDER000009 B0EDER000009 DIODE
MA2J1110GL MA2J1110GL DIODE
PSVD1VGCT PSVD1VGCT DISPLAY
PSVD1SRCT PSVD1SRCT DISPLAY
ECUV0JV101SP ECUV0JV101SP ECEV0JV101SP
ECEV1CA220P ECEV1CA220P ECEV1CA220P
ECUX1H120JCN ECUX1H120JCN ECUM1H120JCN
ECUV1H473KBV ECUV1H473KBV ECUV1H473KBV
ERJ3GEYJ332V ERJ3GEYJ332V ERJ3GEYG332
ERJ3GEYJ333 ERJ3GEYJ333 ERJ3GEYG333
ERJ3GEYJ471V ERJ3GEYJ471V ERJ3GEYG471
ERJ3GEYG473 ERJ3GEYG473 ERJ3GEYG473
ERJ3GEYJ105 ERJ3GEYJ105 ERJ3GEYJ105V
ERJ3GEYJ123V ERJ3GEYJ123V ERJ3GEYJ123V
ERJ3GEYJ151V ERJ3GEYJ151V ERJ3GEYJ151V
ERJ3GEYG152 ERJ3GEYG152 ERJ3GEYJ152V
ERJ3GEYJ153V ERJ3GEYJ153V ERJ3GEYJ153V
ERJ3GEY223 ERJ3GEY223 ERJ3GEYJ223V
ERJ3GEYJ681 ERJ3GEYJ681 ERJ3GEYJ681V
PSHA1002Z PSHA1002Z FOOT

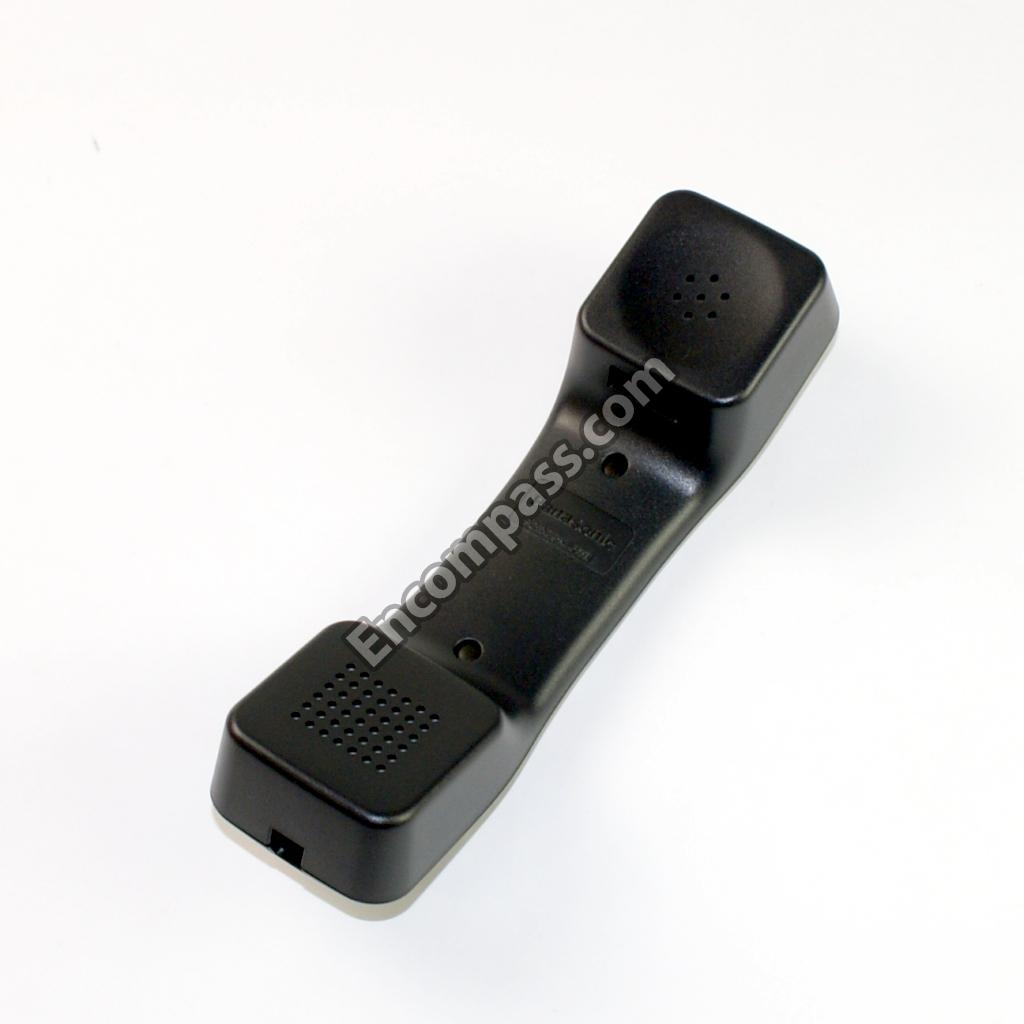

PQJX2PKAL01Z PQJX2PKAL01Z HANDSET
KX-TCA430 KX-TCA430 HEADPHONE
AN6183SAE1V AN6183SAE1V IC
PSVICD4066BS PSVICD4066BS IC
PQVITC7H00F PQVITC7H00F IC
YEAMZAL0001 YEAMZAL0001 IC
PQVIBA06FPE2 PQVIBA06FPE2 IC
PFVIN2149RT1 PFVIN2149RT1 IC
C2ABEE000017 C2ABEE000017 IC
C0EBJ0000410 C0EBJ0000410 IC
AN6183SE1 AN6183SE1 IC
PSQW2121Z PSQW2121Z INSTRUCT BOOK
PSQW2120Z PSQW2120Z INSTRUCT BOOK
K2LB104D0004 K2LB104D0004 JACK
K2LB104D0005 K2LB104D0005 JACK

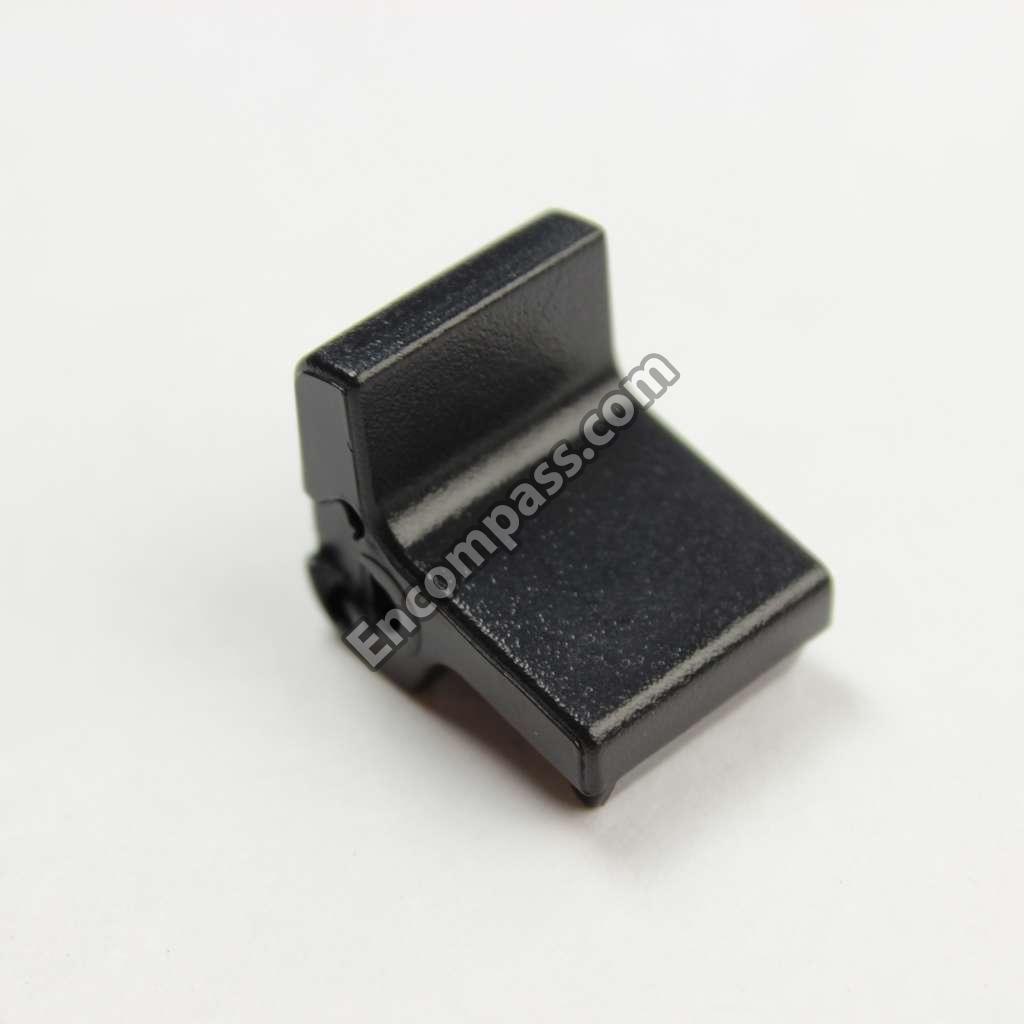

PSBD1013Z1 PSBD1013Z1 KNOB
PQKE10070Z1 PQKE10070Z1 KNOB
PQVDBRPY1204 PQVDBRPY1204 LED
B3AAB0000111 B3AAB0000111 LED
QUGT00146Y QUGT00146Y NAME PLATE
H0J400400011 H0J400400011 OSCILLATOR
QUPK00059Z QUPK00059Z PACKING (DISCONTINUED)
PSGP1088Z PSGP1088Z PANEL
PSWPA30850MU PSWPA30850MU PC BOARD
PQ4R18XJ220 PQ4R18XJ220 RESISTOR
ERJ3GEYJ822 ERJ3GEYJ822 RESISTOR
ERJ3GEYJ820V ERJ3GEYJ820V RESISTOR
ERJ3GEYJ684V ERJ3GEYJ684V RESISTOR
ERJ3GEYJ683 ERJ3GEYJ683 RESISTOR
ERJ3GEYJ682 ERJ3GEYJ682 RESISTOR
ERJ3GEYJ562 ERJ3GEYJ562 RESISTOR
ERJ3GEYJ560V ERJ3GEYJ560V RESISTOR
ERJ3GEYJ474 ERJ3GEYJ474 RESISTOR
ERJ3GEYJ472V ERJ3GEYJ472V RESISTOR
ERJ3GEYJ470 ERJ3GEYJ470 RESISTOR
D0GB393JA041 D0GB393JA041 RESISTOR
ERJ3GEYJ390V ERJ3GEYJ390V RESISTOR
ERJ3GEYJ330 ERJ3GEYJ330 RESISTOR
ERJ3GEYJ274 ERJ3GEYJ274 RESISTOR
ERJ3GEYJ273 ERJ3GEYJ273 RESISTOR
ERJ3GEYJ272 ERJ3GEYJ272 RESISTOR
ERJ3GEYJ271V ERJ3GEYJ271V RESISTOR
ERJ3GEYJ222 ERJ3GEYJ222 RESISTOR
ERJ3GEYJ203V ERJ3GEYJ203V RESISTOR
ERJ3GEYJ184V ERJ3GEYJ184V RESISTOR
ERJ3GEYJ183V ERJ3GEYJ183V RESISTOR
ERJ3GEYJ182V ERJ3GEYJ182V RESISTOR
ERJ3GEYJ180 ERJ3GEYJ180 RESISTOR
ERJ3GEYJ104V ERJ3GEYJ104V RESISTOR
ERJ3GEYJ101 ERJ3GEYJ101 RESISTOR
ERJ3GEY0R00 ERJ3GEY0R00 RESISTOR
D1H84724A024 D1H84724A024 RESISTOR
ERJ3GEYJ331 ERJ3GEYJ331 RN4B2AY102J
PQAS57P03Z PQAS57P03Z SPEAKER
PSUS1018Z PSUS1018Z SPRING
PSYL1002Z2 PSYL1002Z2 STAND
PSSX1022Z PSSX1022Z SWITCH
PSSS3A101Z PSSS3A101Z SWITCH
0N3181 0N3181 TRANSDUCER
PSLT9Z4A PSLT9Z4A TRANSFORMER
G5A1A0000003 G5A1A0000003 TRANSFORMER
UN5213TX UN5213TX TRANSISTOR
PSVTUMG2NTR PSVTUMG2NTR TRANSISTOR
PSVTUMA7NTR PSVTUMA7NTR TRANSISTOR
PQVTDTA143XU PQVTDTA143XU TRANSISTOR
PQVTDTA143EU PQVTDTA143EU TRANSISTOR
B1HBGBA00001 B1HBGBA00001 TRANSISTOR
B1ADGP000008 B1ADGP000008 TRANSISTOR
B1ABGB000020 B1ABGB000020 TRANSISTOR
2SC4081RTX 2SC4081RTX TRANSISTOR
ERJ3GEYJ103V ERJ3GEYJ103V VRESAL8J103
XTW3_12PFJ7 XTW3_12PFJ7 XTW3+12JR
