Model Image
Manufacturer

Panasonic

Model Number

KXTA82483

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
2SD1819AWL 2SD1819AWL 2SD1819AR
XZB05X10A03 XZB05X10A03 BAG
PSPP1052Z PSPP1052Z BAG
PSPP1045Z PSPP1045Z BAG
PSCU2JW221KR PSCU2JW221KR CAPACITOR
F2G1H2R20005 F2G1H2R20005 CAPACITOR
F2G1H1000010 F2G1H1000010 CAPACITOR
F2G1H1R00013 F2G1H1R00013 CAPACITOR
F2G1C1000014 F2G1C1000014 CAPACITOR
F1J1E105A008 F1J1E105A008 CAPACITOR
ECQE2E105KZ ECQE2E105KZ CAPACITOR
EEUFC1E101S EEUFC1E101S CAPACITOR
ECUV1H471JCV ECUV1H471JCV CAPACITOR
ECUV1H223KBV ECUV1H223KBV CAPACITOR
ECUV1H103KBV ECUV1H103KBV CAPACITOR
ECU1H102KBV ECU1H102KBV CAPACITOR
ECUV1H101JCV ECUV1H101JCV CAPACITOR
ECUV1C683KBV ECUV1C683KBV CAPACITOR
ECUV1C563KBV ECUV1C563KBV CAPACITOR
ECUV1C474ZFV ECUV1C474ZFV CAPACITOR
ECUV1C393KBV ECUV1C393KBV CAPACITOR
ECUV1C224ZFV ECUV1C224ZFV CAPACITOR
ECJ1VB0J475K ECJ1VB0J475K CAPACITOR
ECJ1XF1A105Z ECJ1XF1A105Z CAPACITOR
ECJ1VF1E104Z ECJ1VF1E104Z CAPACITOR
ECJ1VB0J225 ECJ1VB0J225 CAPACITOR
ECEA1HN4R7S ECEA1HN4R7S CAPACITOR
PQCUV1C105ZF PQCUV1C105ZF CAPACITOR
PQCUV1H104KB PQCUV1H104KB CAPACITOR
ECJ0EC1H200J ECJ0EC1H200J CAPACITOR
ECJ0EC1H220J ECJ0EC1H220J CAPACITOR
ECUE1H221JCQ ECUE1H221JCQ CAPACITOR
ECUV1A105KBV ECUV1A105KBV CAPACITOR
ECUV1C475ZF ECUV1C475ZF CAPACITOR
F1G1A104A001 F1G1A104A001 CAPACITOR
F1G1H101A566 F1G1H101A566 CAPACITOR
F1G1H103A573 F1G1H103A573 CAPACITOR
F1J1E335A157 F1J1E335A157 CAPACITOR
F1K1C1060001 F1K1C1060001 CAPACITOR
F1K1H2250001 F1K1H2250001 CAPACITOR
F2G1A3300010 F2G1A3300010 CAPACITOR
F2G1C1000015 F2G1C1000015 CAPACITOR
PQLQXH152J PQLQXH152J COIL
PFLE003 PFLE003 COIL
G1C220K00023 G1C220K00023 COIL
K1KB40C00002 K1KB40C00002 CONNECTOR

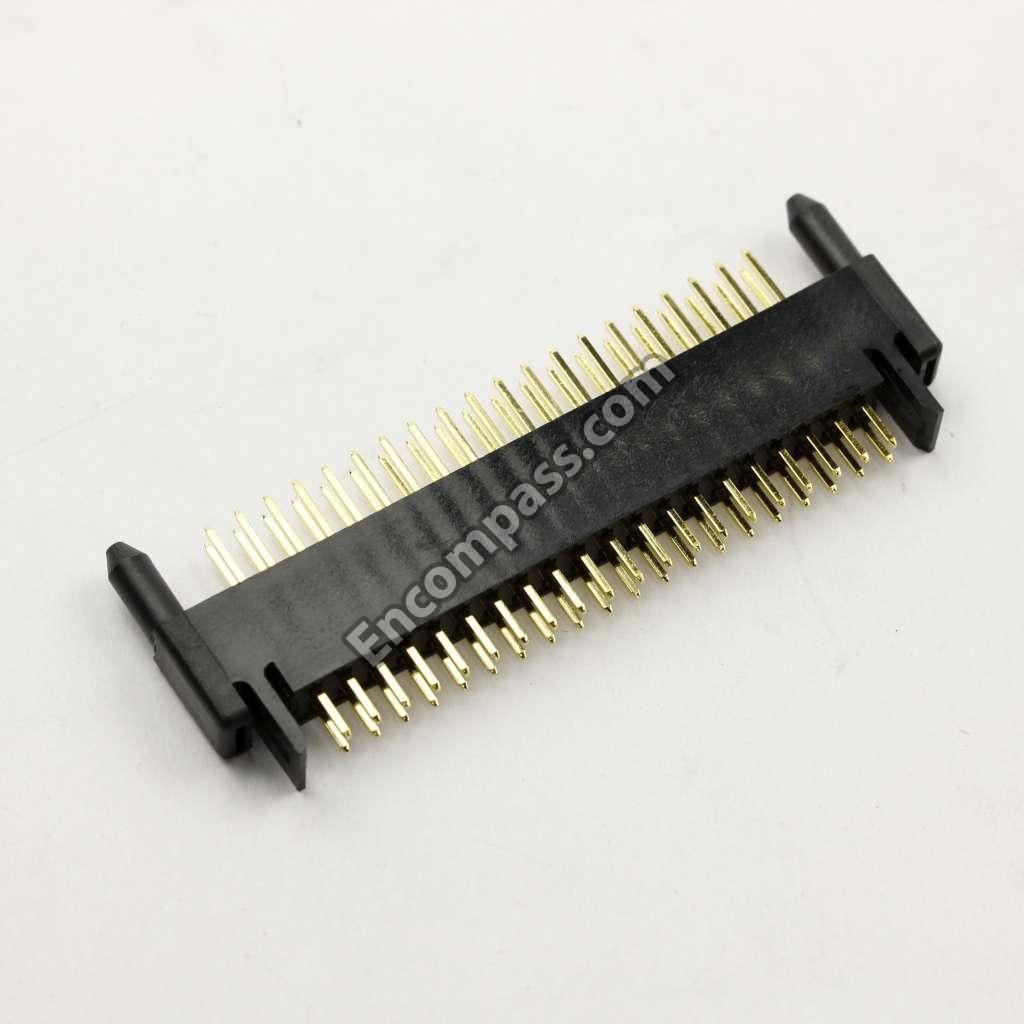

K1KA40A00234 K1KA40A00234 CONNECTOR
K1KB30B00031 K1KB30B00031 CONNECTOR
PSVCYY0358M3 PSVCYY0358M3 CRYSTAL
PSPN1070Z PSPN1070Z CUSHION
PQVDRLZ2R0B PQVDRLZ2R0B DIODE
MA8039 MA8039 DIODE
MA8036H MA8036H DIODE
MA2J1110GL MA2J1110GL DIODE
B0EDKT000010 B0EDKT000010 DIODE
B0JCLC000002 B0JCLC000002 DIODE
ECUX1C223MB ECUX1C223MB ECUV1C223MBN
ERJ3GEYJ333 ERJ3GEYJ333 ERJ3GEYG333
ERJ3GEYJ471V ERJ3GEYJ471V ERJ3GEYG471
ERJ3GEYG473 ERJ3GEYG473 ERJ3GEYG473
ERJ3GEYJ123V ERJ3GEYJ123V ERJ3GEYJ123V
ERJ3GEYJ153V ERJ3GEYJ153V ERJ3GEYJ153V
D4FAR1700002 D4FAR1700002 FUSE
PSGG1009Y1 PSGG1009Y1 GRILLE
PQVIMC4051BF PQVIMC4051BF IC
PSVIMT8816AP PSVIMT8816AP IC
C1CB00001892 C1CB00001892 IC
C1CB00001876 C1CB00001876 IC
C1CB00001875 C1CB00001875 IC
C1CB00001852 C1CB00001852 IC
C0JBAR000248 C0JBAR000248 IC
C0JBAB000407 C0JBAB000407 IC
C0CBAKE00010 C0CBAKE00010 IC
C0ABBB000179 C0ABBB000179 IC
J0HAAH000003 J0HAAH000003 IC
PSVITCVT138T PSVITCVT138T IC
C0DBAFE00016 C0DBAFE00016 IC
C0JBAE000261 C0JBAE000261 IC
C0JBAF000484 C0JBAF000484 IC
MA153TX MA153TX MA153
PSZKTA82483M PSZKTA82483M PACKAGING
PSZKA82483MM PSZKA82483MM PACKAGING
K2LB104B0052 K2LB104B0052 RECEPTACLE
PQSL41A PQSL41A RELAY
K6B2CGA00121 K6B2CGA00121 RELAY
K6B2CGA00095 K6B2CGA00095 RELAY
PQ4R18XJ220 PQ4R18XJ220 RESISTOR
PQ4R18XJ000 PQ4R18XJ000 RESISTOR
PQ4R10XJ822 PQ4R10XJ822 RESISTOR
PQ4R10XJ682 PQ4R10XJ682 RESISTOR
PQ4R10XJ681 PQ4R10XJ681 RESISTOR
PQ4R10XJ271 PQ4R10XJ271 RESISTOR
PQ4R10XJ000 PQ4R10XJ000 RESISTOR
ERJ8GEYJ390 ERJ8GEYJ390 RESISTOR
ERJ3GEY0R00 ERJ3GEY0R00 RESISTOR
ERJ3GEYJ683 ERJ3GEYJ683 RESISTOR
ERJ3GEYJ682 ERJ3GEYJ682 RESISTOR
ERJ3GEYJ563 ERJ3GEYJ563 RESISTOR
ERJ3GEYJ472V ERJ3GEYJ472V RESISTOR
D0GB393JA041 D0GB393JA041 RESISTOR
ERJ3GEYJ334V ERJ3GEYJ334V RESISTOR
ERJ3GEYJ304V ERJ3GEYJ304V RESISTOR
ERJ3GEYJ273 ERJ3GEYJ273 RESISTOR
ERJ3GEYJ272 ERJ3GEYJ272 RESISTOR
ERJ3GEYJ222 ERJ3GEYJ222 RESISTOR
ERJ3GEYJ271V ERJ3GEYJ271V RESISTOR
ERJ3GEYJ220 ERJ3GEYJ220 RESISTOR
ERJ3GEYJ104V ERJ3GEYJ104V RESISTOR
ERJ3GEYJ101 ERJ3GEYJ101 RESISTOR
ERJ3GEYF122 ERJ3GEYF122 RESISTOR
ERJ3EKF3900V ERJ3EKF3900V RESISTOR
ERJ3EKF2201 ERJ3EKF2201 RESISTOR
ERJ3EKF1003 ERJ3EKF1003 RESISTOR
ERJ3EKF1001 ERJ3EKF1001 RESISTOR
ERJ14YJ680 ERJ14YJ680 RESISTOR
ERJ14YJ220 ERJ14YJ220 RESISTOR
ERJ1WYJ223 ERJ1WYJ223 RESISTOR
ERJ1WYJ102 ERJ1WYJ102 RESISTOR
D1H82214A037 D1H82214A037 RESISTOR
D1H82204A036 D1H82204A036 RESISTOR
D1H81034A037 D1H81034A037 RESISTOR
D1H81034A024 D1H81034A024 RESISTOR
ERJ2GEJ000 ERJ2GEJ000 RESISTOR
ERJ2GEJ101X ERJ2GEJ101X RESISTOR
ERJ2GEJ103X ERJ2GEJ103X RESISTOR
ERJ2GEJ104 ERJ2GEJ104 RESISTOR
ERJ2GEJ105X ERJ2GEJ105X RESISTOR
ERJ2GEJ683 ERJ2GEJ683 RESISTOR
ERJ2GEYJ102 ERJ2GEYJ102 RESISTOR
ERJ2GEYJ103 ERJ2GEYJ103 RESISTOR
ERJ3EKF2202 ERJ3EKF2202 RESISTOR
ERJ3EKF2403 ERJ3EKF2403 RESISTOR
ERJ3GEYJ331 ERJ3GEYJ331 RN4B2AY102J
ERJ3GEYJ122 ERJ3GEYJ122 RN4B2AY122J
K2LB1YYB0002 K2LB1YYB0002 SOCKET
PSHE1051Z PSHE1051Z SPACER
D4DA72200004 D4DA72200004 THERMISTOR
PQVIP27011M3 PQVIP27011M3 TRANSDUCER
CNC2S5020LL1 CNC2S5020LL1 TRANSDUCER
G4A1A0000177 G4A1A0000177 TRANSFORMER
G4A1A0000173 G4A1A0000173 TRANSFORMER
ETE13K24AY ETE13K24AY TRANSFORMER
2SD874A 2SD874A TRANSISTOR
2SC4731S 2SC4731S TRANSISTOR
2SB766ARTX 2SB766ARTX TRANSISTOR
2SB1417P 2SB1417P TRANSISTOR
2SB1218A 2SB1218A TRANSISTOR
UN5213TX UN5213TX TRANSISTOR
PSVTUMX1NTN PSVTUMX1NTN TRANSISTOR
PQVTDTC143E PQVTDTC143E TRANSISTOR
PQVTDTA114EU PQVTDTA114EU TRANSISTOR
B1GFAFNN0001 B1GFAFNN0001 TRANSISTOR
B1CCBR000001 B1CCBR000001 TRANSISTOR
ETA14Y85AY ETA14Y85AY TRSNSFORMER
PFRZRA102P6T PFRZRA102P6T VARISTOR
J0LE00000042 J0LE00000042 VARISTOR
D4EAB820A005 D4EAB820A005 VARISTOR
D4EAB220A005 D4EAB220A005 VARISTOR
ERJ3GEYJ103V ERJ3GEYJ103V VRESAL8J103
