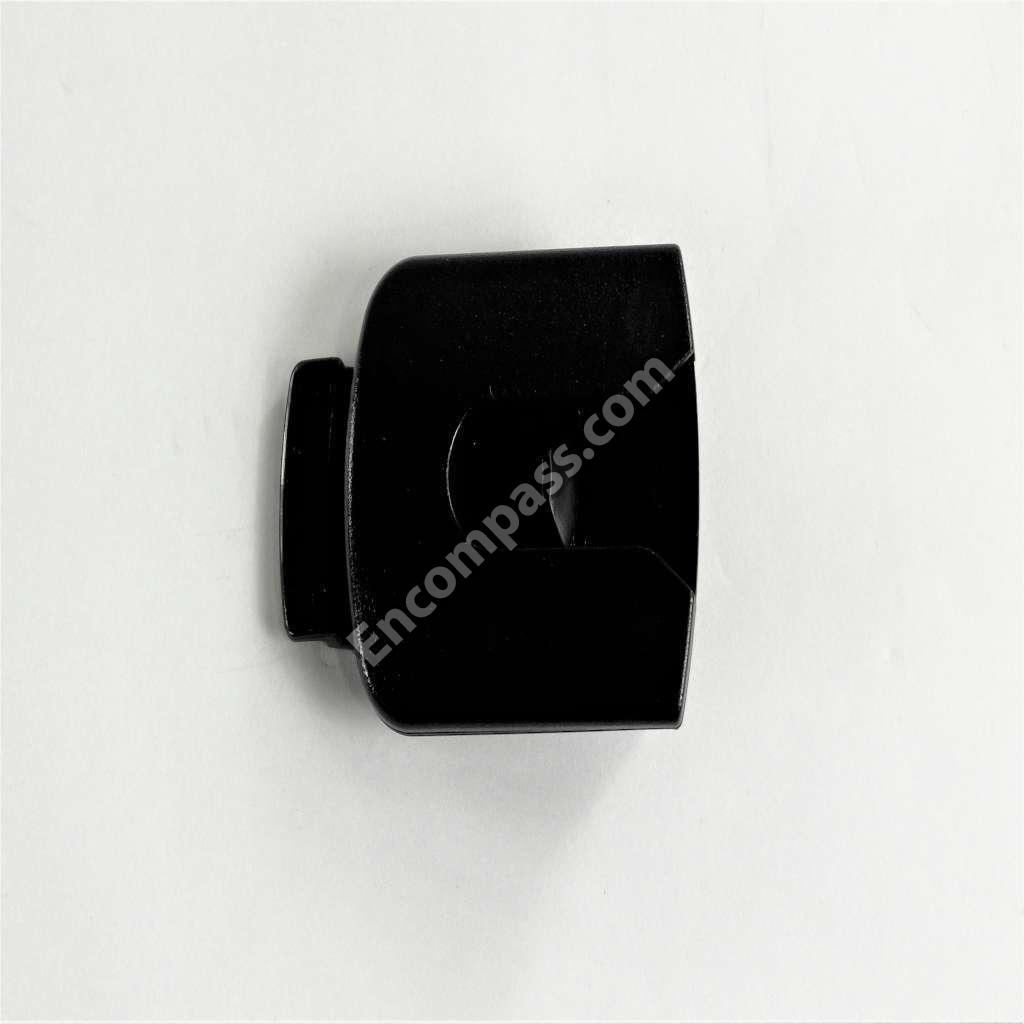

Model Image
Manufacturer

Panasonic

Model Number

KXTCA285

Description

Headset

Interactive Exploded View

Parts List

Part Number Description
PNLV226-0X PNLV226-0X AC ADAPTER
PNLA1020Z PNLA1020Z ANTENNA
PNLA1087Z PNLA1087Z ANTENNA
PNKE1142Z1 PNKE1142Z1 BELT CLIP
PNKF1224Z1 PNKF1224Z1 CABINET
PNKM1251Z1 PNKM1251Z1 CABINET
PNKM1252Y1 PNKM1252Y1 CABINET
PNYF1058Y1 PNYF1058Y1 CABINET
PNKF1224Y1 PNKF1224Y1 CABINET COVER
ECJ0EC1H050C ECJ0EC1H050C CAPACITOR
ECJ0EC1H390J ECJ0EC1H390J CAPACITOR
ECUE0J105KBQ ECUE0J105KBQ CAPACITOR
ECUE1A104KBQ ECUE1A104KBQ CAPACITOR
ECUE1H102KBQ ECUE1H102KBQ CAPACITOR
ECUE1H1R5CCQ ECUE1H1R5CCQ CAPACITOR
ECUX1H330JCQ ECUX1H330JCQ CAPACITOR
ECUE1H471KBQ ECUE1H471KBQ CAPACITOR
ECJ1VB0J475K ECJ1VB0J475K CAPACITOR
ECUV1C105KBV ECUV1C105KBV CAPACITOR
ECUV1C393KBV ECUV1C393KBV CAPACITOR
F1G1A1050002 F1G1A1050002 CAPACITOR
F1G1A105A047 F1G1A105A047 CAPACITOR
F1G1H100A565 F1G1H100A565 CAPACITOR
F1G1H121A557 F1G1H121A557 CAPACITOR
F1G1H1R2A841 F1G1H1R2A841 CAPACITOR
F1G1H1R8A765 F1G1H1R8A765 CAPACITOR
F1G1H2R2A765 F1G1H2R2A765 CAPACITOR
F1G1H3R0A445 F1G1H3R0A445 CAPACITOR
F1G1HR20A801 F1G1HR20A801 CAPACITOR
F1G1HR50A765 F1G1HR50A765 CAPACITOR
F1G1HR80A801 F1G1HR80A801 CAPACITOR
F1H0J1060006 F1H0J1060006 CAPACITOR
F1H0J4750004 F1H0J4750004 CAPACITOR
F1H1A225A025 F1H1A225A025 CAPACITOR
F1J0J2260004 F1J0J2260004 CAPACITOR
F1J0J476A013 F1J0J476A013 CAPACITOR
F1K0J107A036 F1K0J107A036 CAPACITOR
F1H1C104A041 F1H1C104A041 CERAMIC CAPACITOR MULTI L
PNWETCA285M PNWETCA285M CHARGER
G1C1N5Z00005 G1C1N5Z00005 COIL
G1C220MA0320 G1C220MA0320 COIL
G1C27NJ00010 G1C27NJ00010 COIL
G1C5N1ZA0063 G1C5N1ZA0063 COIL
J0JDC0000103 J0JDC0000103 COIL
PQLQR1RS241 PQLQR1RS241 COIL
PQLQR4C10NJ PQLQR4C10NJ COIL
PQLQR4C2N7S PQLQR4C2N7S COIL
PQLQR4C6N8J PQLQR4C6N8J COIL
PSLQR1S4N7ST PSLQR1S4N7ST COIL
K1KA03AA0263 K1KA03AA0263 CONNECTOR
K1MY11BA0277 K1MY11BA0277 CONNECTOR
PNKE1123Y1 PNKE1123Y1 COVER
B0BC4R3A0006 B0BC4R3A0006 DIODE
DA2J10100L DA2J10100L DIODE
DB2X41400L DB2X41400L DIODE
LNJ326W83RA LNJ326W83RA DIODE
LNJ826W83RA LNJ826W83RA DIODE
PNZYTCA285M PNZYTCA285M DISPLAY
PNHS1346Y PNHS1346Y FELT
PNYE1068Z PNYE1068Z FELT
J0JCC0000276 J0JCC0000276 FILTER
J0JCC0000286 J0JCC0000286 FILTER
EETHC2W471LJ EETHC2W471LJ FILTER
J0JYC0000380 J0JYC0000380 FILTER
PQHA10023Z PQHA10023Z FOOT
K5H252Y00002 K5H252Y00002 FUSE
K5H302Y00003 K5H302Y00003 FUSE
PNHR1434Z PNHR1434Z HOLDER
PNZCUDT111CE PNZCUDT111CE HOLDER
C0CBCBC00171 C0CBCBC00171 IC
C0DBAYY01070 C0DBAYY01070 IC
C0DBDYY00036 C0DBDYY00036 IC
C0DBEYY00179 C0DBEYY00179 IC
C0DBZYY00453 C0DBZYY00453 IC
C0ZBZ0001974 C0ZBZ0001974 IC
C1CB00003729 C1CB00003729 IC
C2HBCY000099 C2HBCY000099 IC
C3BBKY000023 C3BBKY000023 IC
J0JCC0000287 J0JCC0000287 IC
G1C7N5JA0044 G1C7N5JA0044 INDUCTOR
G1CR18J00004 G1CR18J00004 INDUCTOR
J0JDC0000045 J0JDC0000045 INDUCTOR
PNYT1025U1 PNYT1025U1 KEYBOARD
L0CBAY000127 L0CBAY000127 MICROPHONE
PSJQ1018Z PSJQ1018Z MOTOR
PNYETCA285MH PNYETCA285MH NAMEPLATE
PNYETCA285MR PNYETCA285MR NAMEPLATE
H0J138500015 H0J138500015 OSCILLATOR
PNPK3528Z PNPK3528Z PACKAGING
PNYETCA285M PNYETCA285M PACKAGING
XZB10X10A04 XZB10X10A04 PACKAGING
XZB10X30A04 XZB10X30A04 PACKAGING
XZB15X20A04 XZB15X20A04 PACKAGING
PNGP1222Y1 PNGP1222Y1 PANEL
PNLPTCA285RZ PNLPTCA285RZ PC BOARD
PNWPDT121CEH PNWPDT121CEH PC BOARD
D0GA100JA021 D0GA100JA021 RESISTOR
D0GA102JA021 D0GA102JA021 RESISTOR
ERJ2GEJ103 ERJ2GEJ103 RESISTOR
D0GA104JA021 D0GA104JA021 RESISTOR
D0GA105JA021 D0GA105JA021 RESISTOR
D0GA121JA015 D0GA121JA015 RESISTOR
D0GA124JA015 D0GA124JA015 RESISTOR
D0GA151JA021 D0GA151JA021 RESISTOR
D0GA182JA015 D0GA182JA015 RESISTOR
D0GA183JA015 D0GA183JA015 RESISTOR
D0GA221JA021 D0GA221JA021 RESISTOR
D0GA222JA021 D0GA222JA021 RESISTOR
D0GA223JA015 D0GA223JA015 RESISTOR
D0GA332JA015 D0GA332JA015 RESISTOR
D0GA333JA015 D0GA333JA015 RESISTOR
D0GA473JA021 D0GA473JA021 RESISTOR
D0GA474JA021 D0GA474JA021 RESISTOR
D0GA821JA021 D0GA821JA021 RESISTOR
D0HD330JA002 D0HD330JA002 RESISTOR
ERJ2GE0R00X ERJ2GE0R00X RESISTOR
ERJ2GEJ101 ERJ2GEJ101 RESISTOR
ECEA0JKA221 ECEA0JKA221 RESISTOR
ERJ2GEJ334 ERJ2GEJ334 RESISTOR
ERJ2GEJ471 ERJ2GEJ471 RESISTOR
ERJ2GEYJ331 ERJ2GEYJ331 RESISTOR
ERJ2GEYJ391 ERJ2GEYJ391 RESISTOR
ERJ2RKF2703 ERJ2RKF2703 RESISTOR
ERJ2RKF3002 ERJ2RKF3002 RESISTOR
ERJ2RKF3301 ERJ2RKF3301 RESISTOR
ERJ2RKF6042X ERJ2RKF6042X RESISTOR
ERJ2RKF6202X ERJ2RKF6202X RESISTOR
ERJ3BSFR10V ERJ3BSFR10V RESISTOR
EXB24V103JX EXB24V103JX RESISTOR
EXB24V330JX EXB24V330JX RESISTOR
EXB24V332JX EXB24V332JX RESISTOR
EXB28V103JX EXB28V103JX RESISTOR
PSHG1197Z PSHG1197Z RUBBER
XTB2_8GFJ XTB2_8GFJ SCREW
PNMC1099Z PNMC1099Z SHEET
K2ECYB000001 K2ECYB000001 SOCKET
K2HD103D0001 K2HD103D0001 SOCKET
PNHR1570Z PNHR1570Z SPACER
PNHR1571Z PNHR1571Z SPACER
PNHR1572Y PNHR1572Y SPACER
PNHR1655Z PNHR1655Z SPACER
PSHE1167Y PSHE1167Y SPACER
L0AA02A00115 L0AA02A00115 SPEAKER
L0AD01C00007 L0AD01C00007 SPEAKER
EZAEG2A50AX EZAEG2A50AX SUPPRESSOR
K9ZZ00002357 K9ZZ00002357 TERMINAL PLATE
PNJT1095Z PNJT1095Z TERMINAL PLATE
PNJT1096Z PNJT1096Z TERMINAL PLATE
PNJT1097Z PNJT1097Z TERMINAL PLATE
PNJT1098Z PNJT1098Z TERMINAL PLATE
PNJT1099Z PNJT1099Z TERMINAL PLATE
PSZZ1TD7896M PSZZ1TD7896M TEST TOOL
B1ABDF000017 B1ABDF000017 TRANSISTOR
B1ABGE000011 B1ABGE000011 TRANSISTOR
B1GBCFGH0007 B1GBCFGH0007 TRANSISTOR
DRC9113Z0L DRC9113Z0L TRANSISTOR
PNJE1113Z PNJE1113Z WIRE
