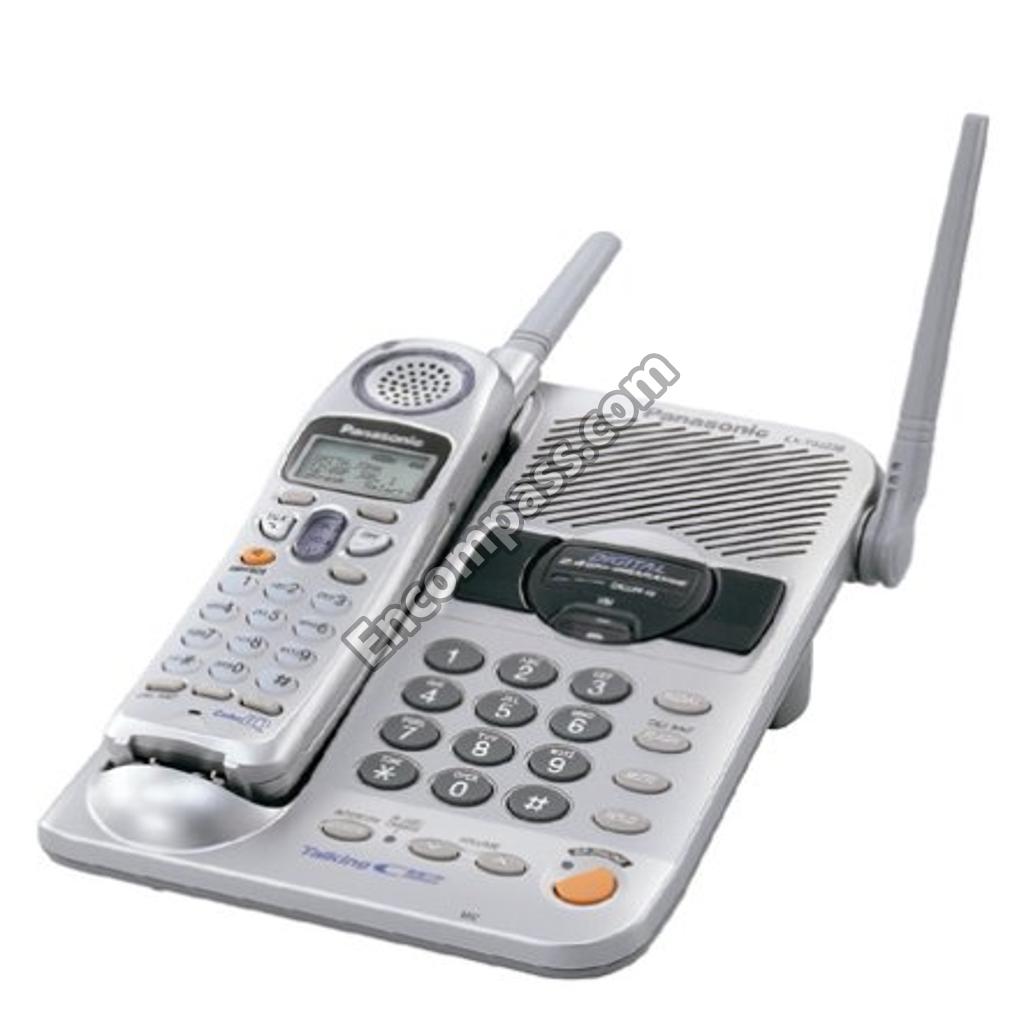

Model Image
Manufacturer

Panasonic

Model Number

KXTG2238S

Description

2.4 Ghz Digital Phon

Interactive Exploded View

Parts List

Part Number Description
2SD1819AWL 2SD1819AWL 2SD1819AR
PQLV19Y PQLV19Y ADAPTER
PQSA10098X PQSA10098X ANTENNA
PQSA10125Z PQSA10125Z ANTENNA, HANDSET
PQKK10138Z1 PQKK10138Z1 BATTERY COVER, HANDSET
PQBC10382Y2 PQBC10382Y2 BUTTON
PQSX10237Z PQSX10237Z BUTTON ASSY., HANDSET
PQBC10383Z1 PQBC10383Z1 BUTTON, VOLUME KEY
PQKM10598Y1 PQKM10598Y1 CABINET
PQKF10594Z1 PQKF10594Z1 CABINET
PQKF10592Z1 PQKF10592Z1 CABINET
PQKM10601Z1 PQKM10601Z1 CABINET, FRONT HANDSET
PQCUV1H154KR PQCUV1H154KR CAPACITOR
PQCUV1A684KB PQCUV1A684KB CAPACITOR
F1K2J681A006 F1K2J681A006 CAPACITOR
EXRV8V104JV EXRV8V104JV CAPACITOR
EEE1HA010SR EEE1HA010SR CAPACITOR
EEE1CA101WP EEE1CA101WP CAPACITOR
EEE1CA100SR EEE1CA100SR CAPACITOR
EEE0JA331P EEE0JA331P CAPACITOR
EEE0JA221WP EEE0JA221WP CAPACITOR
EEE0JA101SP EEE0JA101SP CAPACITOR
EEEFK0J331P EEEFK0J331P CAPACITOR
ECUV1H681JCV ECUV1H681JCV CAPACITOR
ECUV1H121JCV ECUV1H121JCV CAPACITOR
ECU1H102KBV ECU1H102KBV CAPACITOR
ECUV1H101JCV ECUV1H101JCV CAPACITOR
ECUV1C473KBV ECUV1C473KBV CAPACITOR
ECUZ1C104ZFV ECUZ1C104ZFV CAPACITOR
ECJ1VB0J475K ECJ1VB0J475K CAPACITOR
ECUV1A474KBV ECUV1A474KBV CAPACITOR
ECUV1A224KBV ECUV1A224KBV CAPACITOR
ECUV1A106ZF ECUV1A106ZF CAPACITOR
ECJ1XF1A105Z ECJ1XF1A105Z CAPACITOR
ECUE1H681KBQ ECUE1H681KBQ CAPACITOR
ECUE1H5R0CCQ ECUE1H5R0CCQ CAPACITOR
ECUE1H471KBQ ECUE1H471KBQ CAPACITOR
ECUE1H4R0CCQ ECUE1H4R0CCQ CAPACITOR
ECUE1H391KBQ ECUE1H391KBQ CAPACITOR
ECUE1H3R0CCQ ECUE1H3R0CCQ CAPACITOR
ECUE1H272KBQ ECUE1H272KBQ CAPACITOR
ECUE1H221JCQ ECUE1H221JCQ CAPACITOR
ECUE1H2R0CCQ ECUE1H2R0CCQ CAPACITOR
ECUE1H102KBQ ECUE1H102KBQ CAPACITOR
ECUE1H101JCQ ECUE1H101JCQ CAPACITOR
ECUE1H100DCQ ECUE1H100DCQ CAPACITOR
ECUE1H1R5CCQ ECUE1H1R5CCQ CAPACITOR
ECUV1H333JC ECUV1H333JC CAPACITOR
ECUE1H030CCQ ECUE1H030CCQ CAPACITOR
ECUE1E103ZFQ ECUE1E103ZFQ CAPACITOR
ECUE1C104ZFQ ECUE1C104ZFQ CAPACITOR
ECUE1C103KBQ ECUE1C103KBQ CAPACITOR
ECUE1A823KBQ ECUE1A823KBQ CAPACITOR
ECUE1A473KBQ ECUE1A473KBQ CAPACITOR
ECUE1A333KBQ ECUE1A333KBQ CAPACITOR
ECUE1A104KBQ ECUE1A104KBQ CAPACITOR
ECUE0J105ZFQ ECUE0J105ZFQ CAPACITOR
ECST0JY226 ECST0JY226 CAPACITOR
ECST0JY106 ECST0JY106 CAPACITOR
ECST0JZ106R ECST0JZ106R CAPACITOR
F1G1H100A005 F1G1H100A005 CAPACITOR
PQCUV1E104MD PQCUV1E104MD CAPACITOR
PQKE10361Z3 PQKE10361Z3 CLIP
PQLQXF330K PQLQXF330K COIL
PQLQXF3R3K PQLQXF3R3K COIL
PQLQR4RB601D PQLQR4RB601D COIL
PQLQR4D1R0K PQLQR4D1R0K COIL
PQLQR2KA213 PQLQR2KA213 COIL
PQLE1G5K3220 PQLE1G5K3220 COIL
MQLRF3N9DF MQLRF3N9DF COIL
MQLRF2N7DFB MQLRF2N7DFB COIL
MQLRF2N2DF2 MQLRF2N2DF2 COIL
MQLRF10NJFB MQLRF10NJFB COIL
J0JCC0000186 J0JCC0000186 COIL
G1C6R8MA0072 G1C6R8MA0072 COIL
MQLRF2N2DFB MQLRF2N2DFB COIL
MQLRF3N9DFB MQLRF3N9DFB COIL
PQHR10986Z PQHR10986Z CONDUCTOR
PQHR10985Z PQHR10985Z CONDUCTOR
PQJS22A12Z PQJS22A12Z CONNECTOR
PQJS18A96Z PQJS18A96Z CONNECTOR
PQJA10075Z PQJA10075Z CORD
PQKE10359Z1 PQKE10359Z1 COVER
PQHS10457Z PQHS10457Z COVER
PQVDSML210MT PQVDSML210MT DIODE
PQVDRLZ20A PQVDRLZ20A DIODE
PQVDMD5S PQVDMD5S DIODE
PQVDHRU0302A PQVDHRU0302A DIODE
PQVDEP10LA03 PQVDEP10LA03 DIODE
PQVDEL1921SR PQVDEL1921SR DIODE
MA27P0700L MA27P0700L DIODE
MA2J1110GL MA2J1110GL DIODE
B0JCME000035 B0JCME000035 DIODE
B0JCMD000020 B0JCMD000020 DIODE
MA8220 MA8220 DIODE
L5DCBDC00009 L5DCBDC00009 DISPLAY
ECUV1H103KBV ECUV1H103KBV ECUV1H103KBM
ECUX1H330JCQ ECUX1H330JCQ ECUX1H330JCQ
ERJ2GEJ151X ERJ2GEJ151X ERJ2GEJ151X
ERJ3GEYG473 ERJ3GEYG473 ERJ3GEYG473
ERJ3GEYJ105 ERJ3GEYJ105 ERJ3GEYJ105V
ERJ3GEYJ123V ERJ3GEYJ123V ERJ3GEYJ123V
ERJ3GEYJ681 ERJ3GEYJ681 ERJ3GEYJ681V
J0E2457B0008 J0E2457B0008 FILTER
PQGG10163Z1 PQGG10163Z1 GRILLE
PQHR11006Z PQHR11006Z GUIDE
PQHR10984Z PQHR10984Z GUIDE
PQHR10983Z PQHR10983Z GUIDE
PQHR10981Z PQHR10981Z GUIDE
PQKE10134Z1 PQKE10134Z1 HANGER
PQKE10131Z7 PQKE10131Z7 HANGER
KX-TCA80 KX-TCA80 HEADSET
PQWITG2238SH PQWITG2238SH IC
PQWITG2224WR PQWITG2224WR IC
PQVIPS3436UT PQVIPS3436UT IC
PQVIMM1385HN PQVIMM1385HN IC
C2HBBK000009 C2HBBK000009 IC
C2HBBJ000038 C2HBBJ000038 IC
C1CB00001486 C1CB00001486 IC
C0EBE0000292 C0EBE0000292 IC
C0EBE0000283 C0EBE0000283 IC
C0CBABD00036 C0CBABD00036 IC
C0CBABD00019 C0CBABD00019 IC
C0CBABD00017 C0CBABD00017 IC
C0CBAAC00119 C0CBAAC00119 IC
PQQX13577X PQQX13577X INSTRUCT BOOK
PQQW12842Z PQQW12842Z INSTRUCT BOOK
PQQW12831Y PQQW12831Y INSTRUCT BOOK
PQQW12830Z PQQW12830Z INSTRUCT BOOK
K2LD104A0001 K2LD104A0001 JACK
PQXDZLDRS1 PQXDZLDRS1 LABEL
PQQT22575Z PQQT22575Z LABEL
PQQT22570Y PQQT22570Y LABEL
PQVDSML310MT PQVDSML310MT LED
PQVDSML210L PQVDSML210L LED
L0AD02A00014 L0AD02A00014 MICROPHONE
L0CBAB000106 L0CBAB000106 MICROPHONE
H0J819400004 H0J819400004 OSCILLATOR
KXTG2238S_EX KXTG2238S_EX OTC TELEPHONE (DISCONTINUED)
PQPD10570Z PQPD10570Z PACKING (DISCONTINUED)
PQPK13919Z PQPK13919Z PACKING (DISCONTINUED)
PQGP10235Z1 PQGP10235Z1 PANEL
PQWP2TG2238H PQWP2TG2238H PC BOARD
PQWP1TG2238H PQWP1TG2238H PC BOARD
PQLP10262Z PQLP10262Z PC BOARD
PQJT10208Z PQJT10208Z PLATE
PQJT10207Z PQJT10207Z PLATE
PQGT16043Z PQGT16043Z PLATE
PQGT15683Z PQGT15683Z PLATE
PQVTDTC143E PQVTDTC143E PQVTDTC143EU
PR0G-RWH PR0G-RWH PRC
PQ4R10XJ150 PQ4R10XJ150 RESISTOR
PQ4R10XJ120 PQ4R10XJ120 RESISTOR
PQ4R10XJ000 PQ4R10XJ000 RESISTOR
PQVDDSS301L PQVDDSS301L RESISTOR
EXRV8V472JV EXRV8V472JV RESISTOR
ERJ3GEY0R00 ERJ3GEY0R00 RESISTOR
ERJ3GEYJ820V ERJ3GEYJ820V RESISTOR
ERJ3GEYJ563 ERJ3GEYJ563 RESISTOR
ERJ3GEYJ472V ERJ3GEYJ472V RESISTOR
ERJ3GEYJ470 ERJ3GEYJ470 RESISTOR
ERJ3GEYJ394V ERJ3GEYJ394V RESISTOR
D0GB393JA041 D0GB393JA041 RESISTOR
ERJ3GEYJ391V ERJ3GEYJ391V RESISTOR
ERJ3GEYJ335 ERJ3GEYJ335 RESISTOR
ERJ3GEYJ334V ERJ3GEYJ334V RESISTOR
ERJ3GEYJ331 ERJ3GEYJ331 RESISTOR
ERJ3GEYJ273 ERJ3GEYJ273 RESISTOR
ERJ3GEYJ222 ERJ3GEYJ222 RESISTOR
ERJ3GEYJ104V ERJ3GEYJ104V RESISTOR
ERJ3GEYJ101 ERJ3GEYJ101 RESISTOR
ERJ3GEYF824 ERJ3GEYF824 RESISTOR
ERJ3GEYF434 ERJ3GEYF434 RESISTOR
ERJ3GEYF103 ERJ3GEYF103 RESISTOR
ERJ2GE0R00X ERJ2GE0R00X RESISTOR
ERJ2GEYF225 ERJ2GEYF225 RESISTOR
ERJ2GEYF185 ERJ2GEYF185 RESISTOR
ERJ2GEYF105 ERJ2GEYF105 RESISTOR
ERJ2GEJ821 ERJ2GEJ821 RESISTOR
ERJ2GEJ334 ERJ2GEJ334 RESISTOR
ERJ2GEJ680 ERJ2GEJ680 RESISTOR
ERJ2GEJ473 ERJ2GEJ473 RESISTOR
ERJ2GEJ471 ERJ2GEJ471 RESISTOR
ERJ2GEJ470 ERJ2GEJ470 RESISTOR
ERJ2GEJ4R7 ERJ2GEJ4R7 RESISTOR
ERJ2GEJ393X ERJ2GEJ393X RESISTOR
ERJ2GEJ391 ERJ2GEJ391 RESISTOR
ERJ2GEJ333 ERJ2GEJ333 RESISTOR
ERJ2GEJ332 ERJ2GEJ332 RESISTOR
ERJ2GEJ331 ERJ2GEJ331 RESISTOR
ERJ2GEJ224 ERJ2GEJ224 RESISTOR
ERJ2GEJ222X ERJ2GEJ222X RESISTOR
ERJ2GEJ182 ERJ2GEJ182 RESISTOR
ERJ2GEJ181 ERJ2GEJ181 RESISTOR
ERJ2GEJ122 ERJ2GEJ122 RESISTOR
ERJ2GEJ104 ERJ2GEJ104 RESISTOR
ERJ2GEJ103X ERJ2GEJ103X RESISTOR
ERJ2GEJ102X ERJ2GEJ102X RESISTOR
ERJ2GEJ101X ERJ2GEJ101X RESISTOR
ERJ2GEJ100X ERJ2GEJ100X RESISTOR
ERJ12YJ330 ERJ12YJ330 RESISTOR
ERJ12YJ221 ERJ12YJ221 RESISTOR
D1BB4303A055 D1BB4303A055 RESISTOR
D1BB8203A055 D1BB8203A055 RESISTOR
ERJ2GEJ101 ERJ2GEJ101 RESISTOR
ERJ2GEJ681 ERJ2GEJ681 RESISTOR
ERJ3GEYK106 ERJ3GEYK106 RESISTOR
ERJ3GEYJ561V ERJ3GEYJ561V RESISTOR
PQMG10025Z PQMG10025Z RUBBER
PQHA10018Z PQHA10018Z RUBBER
PQHA10017Z PQHA10017Z RUBBER
XTW26_14P XTW26_14P SCREW
PQHV2612PJ65 PQHV2612PJ65 SCREW
XTW2_R10PFJ XTW2_R10PFJ SCREW
XTB26_9J XTB26_9J SCREW
XTB26_9JFJ XTB26_9JFJ SCREW
XTW26_14PFJ7 XTW26_14PFJ7 SCREW
XTW26_8PFJ7 XTW26_8PFJ7 SCREW
XTW26_8PFJ XTW26_8PFJ SCREW (1/10)
PQHS10192Z PQHS10192Z SHEET
PQMC10472Z PQMC10472Z SHIELD
PQMC10471Z PQMC10471Z SHIELD
K2HD103D0001 K2HD103D0001 SOCKET
PQKE10360Z1 PQKE10360Z1 SPACER
PQHX11186Z PQHX11186Z SPACER
PQHS10592Z PQHS10592Z SPACER
PQHS10573Z PQHS10573Z SPACER
PQHR10778Z PQHR10778Z SPACER
PQHG10666Z PQHG10666Z SPACER
PQHE10148Z PQHE10148Z SPACER
PQHE10143Z PQHE10143Z SPACER
PQAS5P13Y PQAS5P13Y SPEAKER
PQAS3P07Y PQAS3P07Y SPEAKER
PQUS10285Z PQUS10285Z SPRING
PQSX10239Z PQSX10239Z SWITCH
PQSX10233Z PQSX10233Z SWITCH
PQHS10610Z PQHS10610Z TAPE
PQHS10576Z PQHS10576Z TAPE
PQHS10572Z PQHS10572Z TAPE
PQWE10028Z PQWE10028Z TERMINAL
PQWE10027Z PQWE10027Z TERMINAL
PQRPAR390N PQRPAR390N THERMISTOR
2SD874A 2SD874A TRANSISTOR
2SD1758Q 2SD1758Q TRANSISTOR
2SC3930C 2SC3930C TRANSISTOR
PQVTXP151A13 PQVTXP151A13 TRANSISTOR
B1BDBP000002 B1BDBP000002 TRANSISTOR
B1BBAP000021 B1BBAP000021 TRANSISTOR
ERJ3GEYJ103V ERJ3GEYJ103V VRESAL8J103
PQJE10127Z PQJE10127Z WIRE
