Model Image
Manufacturer

Panasonic

Model Number

KXTG2344B

Description

2.4 Cdl Tot 2 H/s

Interactive Exploded View

Parts List

Part Number Description
KX-TCA91S KX-TCA91S *NLA* HEADPHONE
2SD1819AWL 2SD1819AWL 2SD1819AR
4890543A53 4890543A53 2SD1991AQSTA
PQLV1V PQLV1V ADAPTER
PQSA10098V PQSA10098V ANTENNA FOR BASE UNIT
PQSA10146Y PQSA10146Y ANTENNA FOR HANDSET
HHR-P104A HHR-P104A BATTERY
PQBC10398Z1 PQBC10398Z1 BUTTON
PQBC10403Z1 PQBC10403Z1 BUTTON
PQKF10609Z2 PQKF10609Z2 CABINET
PQKF10610Z2 PQKF10610Z2 CABINET
PQKF10613Z2 PQKF10613Z2 CABINET
PQKM10620Z3 PQKM10620Z3 CABINET
PQKM10622Z2 PQKM10622Z2 CABINET
PQKM10629Z2 PQKM10629Z2 CABINET
ECJ0EB1E472K ECJ0EB1E472K CAPACITOR
ECST0JY225 ECST0JY225 CAPACITOR
ECST0JY226 ECST0JY226 CAPACITOR
F3F0J106A057 F3F0J106A057 CAPACITOR
ECUE1A104KBQ ECUE1A104KBQ CAPACITOR
ECUE1A473KBQ ECUE1A473KBQ CAPACITOR
ECUE1A683KBQ ECUE1A683KBQ CAPACITOR
ECUE1C103KBQ ECUE1C103KBQ CAPACITOR
ECUE1H010CCQ ECUE1H010CCQ CAPACITOR
ECUE1H020CCQ ECUE1H020CCQ CAPACITOR
ECUE1H100DCQ ECUE1H100DCQ CAPACITOR
ECUE1H101JCQ ECUE1H101JCQ CAPACITOR
ECUE1H102KBQ ECUE1H102KBQ CAPACITOR
ECUE1H121JCQ ECUE1H121JCQ CAPACITOR
ECUE1H1R5CCQ ECUE1H1R5CCQ CAPACITOR
ECUE1H221JCQ ECUE1H221JCQ CAPACITOR
ECJ0EB1H222K ECJ0EB1H222K CAPACITOR
ECUE1H2R0CCQ ECUE1H2R0CCQ CAPACITOR
ECUE1H3R0CCQ ECUE1H3R0CCQ CAPACITOR
ECUE1H471KBQ ECUE1H471KBQ CAPACITOR
ECUE1H4R0CCQ ECUE1H4R0CCQ CAPACITOR
ECJ1VB0J475K ECJ1VB0J475K CAPACITOR
ECUV1C224KBV ECUV1C224KBV CAPACITOR
ECUV1C333KBV ECUV1C333KBV CAPACITOR
ECUV1C473KBV ECUV1C473KBV CAPACITOR
ECUV1C474KBV ECUV1C474KBV CAPACITOR
ECUV1E104KBV ECUV1E104KBV CAPACITOR
ECUV1H101JCV ECUV1H101JCV CAPACITOR
ECU1H102KBV ECU1H102KBV CAPACITOR
ECUV1H103KBV ECUV1H103KBV CAPACITOR
ECUV1H272KBV ECUV1H272KBV CAPACITOR
ECUV1H681JCV ECUV1H681JCV CAPACITOR
EEE0GA331WP EEE0GA331WP CAPACITOR
EEE0JA101SP EEE0JA101SP CAPACITOR
EEE0JA331P EEE0JA331P CAPACITOR
EEE0JA470SR EEE0JA470SR CAPACITOR
EEE1CA100SR EEE1CA100SR CAPACITOR
EEE1EA100SR EEE1EA100SR CAPACITOR
EEEFK1C470P EEEFK1C470P CAPACITOR
EXRV8V104JV EXRV8V104JV CAPACITOR
F1G0J1050007 F1G0J1050007 CAPACITOR
F1J0J1060006 F1J0J1060006 CAPACITOR
F1K2J681A006 F1K2J681A006 CAPACITOR
F2G1E1010011 F2G1E1010011 CAPACITOR
F5A424740002 F5A424740002 CAPACITOR
F5A841040004 F5A841040004 CAPACITOR
PQCUV1A684KB PQCUV1A684KB CAPACITOR
PQCUV1H154KR PQCUV1H154KR CAPACITOR
ECEC1HKS010 ECEC1HKS010 CAPACITOR

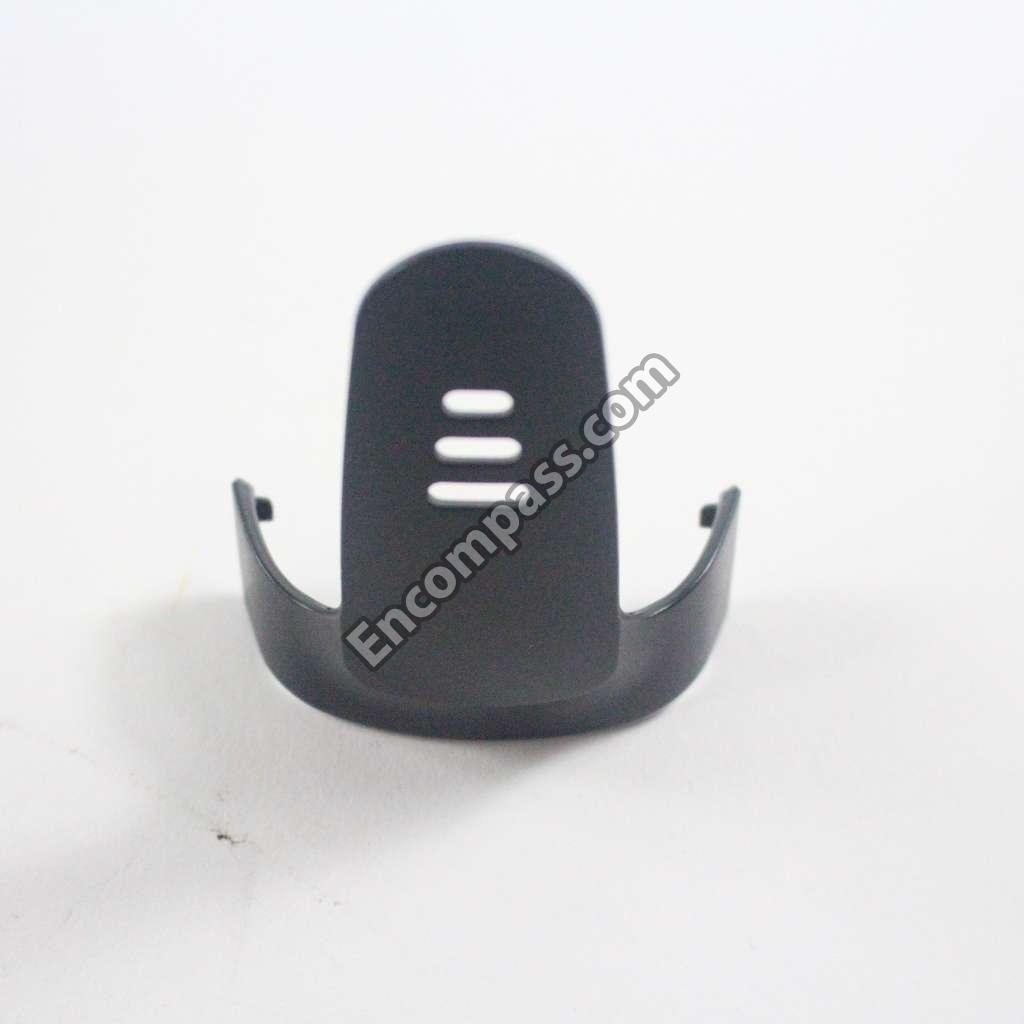

PQKE10375Z2 PQKE10375Z2 CLIP
G1C220M00037 G1C220M00037 COIL
G1C6R8MA0072 G1C6R8MA0072 COIL
G1CR47J00005 G1CR47J00005 COIL
MQLRE10NJF MQLRE10NJF COIL
MQLRE10NJF2 MQLRE10NJF2 COIL
MQLRE18NJF MQLRE18NJF COIL
MQLRE22NJF MQLRE22NJF COIL
MQLRF10NJFB MQLRF10NJFB COIL
MQLRF2N2DF2 MQLRF2N2DF2 COIL
MQLRF3N3DFB MQLRF3N3DFB COIL
MQLRF4N7DF2 MQLRF4N7DF2 COIL
PQLQR2KA213 PQLQR2KA213 COIL
PQLQR2KB113T PQLQR2KB113T COIL
PQLQR4D1R0K PQLQR4D1R0K COIL
PQLQXF330K PQLQXF330K COIL
PQLQXF4R7K PQLQXF4R7K COIL
D1H41022A006 D1H41022A006 COMPONENT
D1H42222A006 D1H42222A006 COMPONENT
F5A421030002 F5A421030002 COMPONENT
K1MN22B00096 K1MN22B00096 CONNECTOR
K1MN26B00096 K1MN26B00096 CONNECTOR
PQJA10075Z PQJA10075Z CORD
PQHS10327Z PQHS10327Z COVER
PQKE10374Z2 PQKE10374Z2 COVER
B0DCCD000011 B0DCCD000011 DIODE
B0ECKM000008 B0ECKM000008 DIODE
B0JCMD000010 B0JCMD000010 DIODE
B0JCME000035 B0JCME000035 DIODE
B3AAB0000170 B3AAB0000170 DIODE
MA2J1110GL MA2J1110GL DIODE
MA147 MA147 DIODE
MA8047HTX MA8047HTX DIODE
PQVDAK04A PQVDAK04A DIODE
PQVDRLZ20A PQVDRLZ20A DIODE
B0EDER000009 B0EDER000009 DIODE
PQVD1N4003 PQVD1N4003 DIODE
MA8220 MA8220 DIODE
MA132WK MA132WK DIODE
ECUX1C223MB ECUX1C223MB ECUV1C223MBN
ERDS2TJ222TD ERDS2TJ222TD ERDS2TJ222TD
ERDS2TJ3R9 ERDS2TJ3R9 ERDS2TJ3R9T
ERJ2GEJ151X ERJ2GEJ151X ERJ2GEJ151X
ERJ3GEYJ333 ERJ3GEYJ333 ERJ3GEYG333
ERJ3GEYG473 ERJ3GEYG473 ERJ3GEYG473
J0E2457B0008 J0E2457B0008 FILTER
PQGG10247Z3 PQGG10247Z3 GRILLE
PQGG10248Z2 PQGG10248Z2 GRILLE
PQGG10255Z2 PQGG10255Z2 GRILLE
PQHR10778Z PQHR10778Z GUIDE
PQHR10984Z PQHR10984Z GUIDE
PQHR11022Z PQHR11022Z GUIDE
PQHR11023Z PQHR11023Z GUIDE
PQHR11028Z PQHR11028Z GUIDE
KX-TCA430 KX-TCA430 HEADPHONE
KX-TCA60 KX-TCA60 HEADSET
KX-TCA80 KX-TCA80 HEADSET
C0CAAHG00013 C0CAAHG00013 IC
C0CBAAD00018 C0CBAAD00018 IC
C0CBAAD00054 C0CBAAD00054 IC
C0CBABD00019 C0CBABD00019 IC
C0DBAGZ00023 C0DBAGZ00023 IC
C0DBFGD00017 C0DBFGD00017 IC
C1CB00001657 C1CB00001657 IC
C2HBBK000011 C2HBBK000011 IC
C2HBBK000066 C2HBBK000066 IC
PQVIC61CN32N PQVIC61CN32N IC
PQVINJM2904V PQVINJM2904V IC
PQWITG2344BH PQWITG2344BH IC
PQWITG2344BR PQWITG2344BR IC
PQQW13178Y INSTRUCT BOOK
PQQW13193Y PQQW13193Y INSTRUCT BOOK
PQQW13194Y PQQW13194Y INSTRUCT BOOK
PQQX13990YA INSTRUCT BOOK
K2EZ2B000040 K2EZ2B000040 JACK
PQQT22706Z PQQT22706Z LABEL
PQQT22711Z PQQT22711Z LABEL
PQXDZLDRS1 PQXDZLDRS1 LABEL
L5DCBCB00016 L5DCBCB00016 LCD
L5DCBDC00009 L5DCBDC00009 LCD
LNJ201LPQJA LNJ201LPQJA LED
PQHR11024Z PQHR11024Z LED
PQHR11025Z PQHR11025Z LED
PQVDSML210L PQVDSML210L LED
PQVDSML310MT PQVDSML310MT LED
PQHR10932Z PQHR10932Z LENS
L0CBAB000052 L0CBAB000052 MICROPHONE
PQGT16458Z PQGT16458Z NAME PLATE
PQGT16517Z PQGT16517Z NAME PLATE
PQGT16668Z PQGT16668Z NAME PLATE
PQWP1TG2344H PQWP1TG2344H NR PC BD
PQWPTG2344BR PQWPTG2344BR NR PC BD
H0J138500003 H0J138500003 OSCILLATOR
KXTG2344B_EX KXTG2344B_EX OTC TELEPHONE (DISCONTINUED)
PQPD10602Z PQPD10602Z PACKING (DISCONTINUED)
PQPK14190Z PQPK14190Z PACKING (DISCONTINUED)
PQPN11709Z PQPN11709Z PACKING (DISCONTINUED)
XZB05X14A04 XZB05X14A04 PACKING (DISCONTINUED)
PQGP10252Z1 PQGP10252Z1 PANEL
PQGP10253Z3 PQGP10253Z3 PANEL
PQWP2TG2344H PQWP2TG2344H PC BOARD
PQWPG30023YB PQWPG30023YB PC BOARD
XZB15X25A04 XZB15X25A04 PLASTIC BAG
1QSPB-63H 1QSPB-63H PRC
1QSPB-81A 1QSPB-81A PRC
1QSPB-81UNITSA 1QSPB-81UNITSA PRC
1QSPB-63UNITSB 1QSPB-63UNITSB PRC (DISCONTINUED)
D1H810240004 D1H810240004 RESISTOR
ERDS2TJ000 ERDS2TJ000 RESISTOR
ERDS2TJ101 ERDS2TJ101 RESISTOR
ERDS2TJ102 ERDS2TJ102 RESISTOR
ERDS2FJ560 ERDS2FJ560 RESISTOR
ERJ12YJ330 ERJ12YJ330 RESISTOR
ERJ2GE0R00X ERJ2GE0R00X RESISTOR
ERJ2GEJ100X ERJ2GEJ100X RESISTOR
ERJ2GEJ101X ERJ2GEJ101X RESISTOR
ERJ2GEJ102X ERJ2GEJ102X RESISTOR
ERJ2GEJ103X ERJ2GEJ103X RESISTOR
ERJ2GEJ104 ERJ2GEJ104 RESISTOR
ERJ2GEJ105X ERJ2GEJ105X RESISTOR
ERJ2GEJ121 ERJ2GEJ121 RESISTOR
ERJ2GEJ122 ERJ2GEJ122 RESISTOR
ERJ2GEJ123 ERJ2GEJ123 RESISTOR
ERJ2GEJ180 ERJ2GEJ180 RESISTOR
ERJ2GEJ182 ERJ2GEJ182 RESISTOR
ECEA0JKS220I ECEA0JKS220I RESISTOR
ERJ2GEJ222X ERJ2GEJ222X RESISTOR
ERJ2GEJ223X ERJ2GEJ223X RESISTOR
ERJ2GEJ224 ERJ2GEJ224 RESISTOR
ERJ2GEJ225 ERJ2GEJ225 RESISTOR
ERJ2GEJ274 ERJ2GEJ274 RESISTOR
ERJ2GEJ331 ERJ2GEJ331 RESISTOR
ERJ2GEJ332 ERJ2GEJ332 RESISTOR
ERJ2GEJ391 ERJ2GEJ391 RESISTOR
ERJ2GEJ393X ERJ2GEJ393X RESISTOR
ERJ2GEJ470 ERJ2GEJ470 RESISTOR
ERJ2GEJ473 ERJ2GEJ473 RESISTOR
ERJ2GEJ4R7 ERJ2GEJ4R7 RESISTOR
ERJ2GEJ561 ERJ2GEJ561 RESISTOR
ERJ2GEJ334 ERJ2GEJ334 RESISTOR
ERJ3GEY0R00 ERJ3GEY0R00 RESISTOR
ERJ3GEYF103 ERJ3GEYF103 RESISTOR
ERJ3GEYF434 ERJ3GEYF434 RESISTOR
ERJ3GEYF824 ERJ3GEYF824 RESISTOR
ERJ3GEYJ101 ERJ3GEYJ101 RESISTOR
ERJ3GEYJ104V ERJ3GEYJ104V RESISTOR
ERJ3GEYJ121 ERJ3GEYJ121 RESISTOR
D0GB155JA057 D0GB155JA057 RESISTOR
ERJ3GEYJ222 ERJ3GEYJ222 RESISTOR
ERJ3GEYJ275 ERJ3GEYJ275 RESISTOR
ERJ3GEYJ394V ERJ3GEYJ394V RESISTOR
ERJ3GEYJ472V ERJ3GEYJ472V RESISTOR
ERJ3GEYJ5R6 ERJ3GEYJ5R6 RESISTOR
ERJ3GEYJ821 ERJ3GEYJ821 RESISTOR
ERJ3GEYJ823 ERJ3GEYJ823 RESISTOR
EXB28V221JX EXB28V221JX RESISTOR
EXRV8V472JV EXRV8V472JV RESISTOR
PQ4R10XJ101 PQ4R10XJ101 RESISTOR
PQ4R10XJ120 PQ4R10XJ120 RESISTOR
PQ4R10XJ150 PQ4R10XJ150 RESISTOR
PQVDDSS301L PQVDDSS301L RESISTOR
ERJ2GEJ101 ERJ2GEJ101 RESISTOR
ERJ2GEJ223 ERJ2GEJ223 RESISTOR
ERJ2GEJ681 ERJ2GEJ681 RESISTOR
ERJ3GEYK106 ERJ3GEYK106 RESISTOR
ERJ3GEYJ271V ERJ3GEYJ271V RESISTOR
ERJ3GEYJ331 ERJ3GEYJ331 RN4B2AY102J
PQHA10023Z PQHA10023Z RUBBER
XTB26_9J XTB26_9J SCREW
PQHV2612PJ65 PQHV2612PJ65 SCREW
XTW26_8PFJ XTW26_8PFJ SCREW (1/10)
PQHX11247Z PQHX11247Z SHEET
PQMC10471Z PQMC10471Z SHIELD
PQMC10472Z PQMC10472Z SHIELD
K2HD103D0001 K2HD103D0001 SOCKET
K2LD104A0001 K2LD104A0001 SOCKET
PQHE10151Z PQHE10151Z SPACER
PQHG10584Z PQHG10584Z SPACER
PQHG10689Z PQHG10689Z SPACER
PQHS10592Z PQHS10592Z SPACER
PQHS10622Z PQHS10622Z SPACER
PQHS10624Z PQHS10624Z SPACER
PQHS10634Z PQHS10634Z SPACER
PQHX11186Z PQHX11186Z SPACER
PQKE10373Z1 PQKE10373Z1 SPACER
PQMG10023Z PQMG10023Z SPACER
L0AD02A00010 L0AD02A00010 SPEAKER
L0AD02A00020 L0AD02A00020 SPEAKER
PQAS5P13Y PQAS5P13Y SPEAKER
PQKL10060Z2 PQKL10060Z2 STAND
PQSX10254Y PQSX10254Y SWITCH
PQSX10256Y PQSX10256Y SWITCH
PQHA10011Z PQHA10011Z TAPE
PQHS10623Z PQHS10623Z TAPE
PQHS10625Z PQHS10625Z TAPE
PQJT10200Z PQJT10200Z TERMINAL
PQJT10211Z PQJT10211Z TERMINAL
PQJT10212Z PQJT10212Z TERMINAL
PQWE10027Z PQWE10027Z TERMINAL
PQWE10032Z PQWE10032Z TERMINAL
PFRT002 PFRT002 THERMISTOR
PQDJ10006Y PQDJ10006Y TOOL (DISCONTINUED)
2SA933 2SA933 TRANSISTOR
2SB1197KQ 2SB1197KQ TRANSISTOR
2SB1218A 2SB1218A TRANSISTOR
2SC39300CL 2SC39300CL TRANSISTOR
DSC7003S0L DSC7003S0L TRANSISTOR
2SD1758Q 2SD1758Q TRANSISTOR
2SD2136 2SD2136 TRANSISTOR
B1ADGP000008 B1ADGP000008 TRANSISTOR
B1BBAP000021 B1BBAP000021 TRANSISTOR
PQVTDTC114TU PQVTDTC114TU TRANSISTOR
PQVTDTC123JU PQVTDTC123JU TRANSISTOR
PQVTDTC143E PQVTDTC143E TRANSISTOR
PSVTUMG11NTR PSVTUMG11NTR TRANSISTOR
UN521 UN521 TRANSISTOR
B1DHCD000032 B1DHCD000032 TRANSISTOR
2SD637 2SD637 TRANSISTOR
UN5213TX UN5213TX TRANSISTOR
UN4210 UN4210 UN4210-S
ERJ3GEYJ103V ERJ3GEYJ103V VRESAL8J103
PQJE10135Z PQJE10135Z WIRE
