Model Image
Manufacturer

Panasonic

Model Number

KXTG2670N

Description

2.4 Ghz Cordless Pho

Interactive Exploded View

Parts List

Part Number Description
2SD1819AWL 2SD1819AWL 2SD1819AR
2SD601-RS 2SD601-RS 2SD601AQ
PQSA10111Z PQSA10111Z ANTENNA
PQSA10110Z PQSA10110Z ANTENNA
PQSA10109Z PQSA10109Z ANTENNA
EXRV8V221JV EXRV8V221JV ARRAY
PQGB7Y PQGB7Y BADGE
PQYF10182X1 PQYF10182X1 BASE LOWER CABINET
PQKM10460Y1 PQKM10460Y1 BASE TOP CABINET

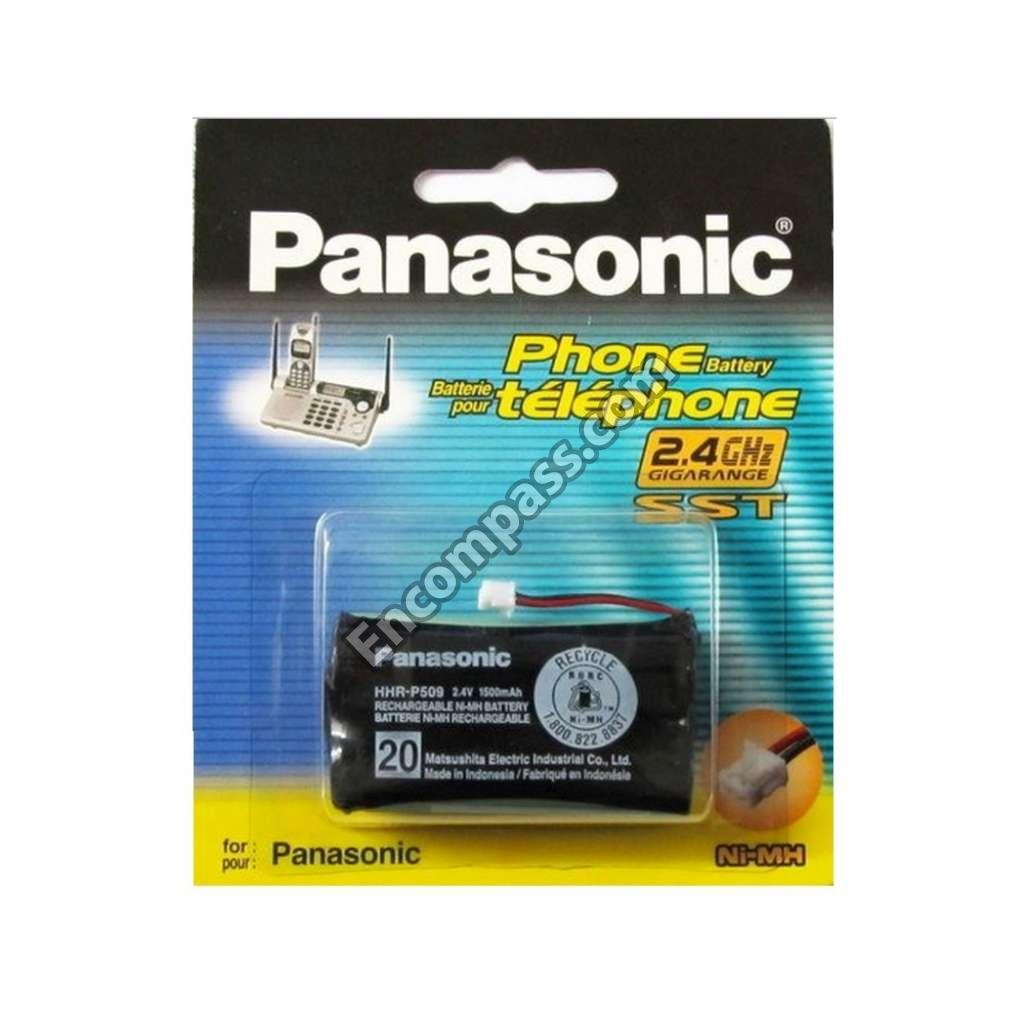

HHR-P509A HHR-P509A BATTERY
PQLP10237Z PQLP10237Z BLOCK
PQBX10343Z1 PQBX10343Z1 BUTTON
PQBC10314Z1 PQBC10314Z1 BUTTON
PQBC10313Z1 PQBC10313Z1 BUTTON
PQBC10311Z1 PQBC10311Z1 BUTTON
PQBC10310Z1 PQBC10310Z1 BUTTON
PQKE10107X1 PQKE10107X1 CABINET
ECJ1XF1A105Z ECJ1XF1A105Z CAP
PQCUV1H154KR PQCUV1H154KR CAPACITOR
PQCUV1A684KB PQCUV1A684KB CAPACITOR
PQCBC1C103MY PQCBC1C103MY CAPACITOR
EEUFC1E221 EEUFC1E221 CAPACITOR
EEUFC1A471E EEUFC1A471E CAPACITOR
ECUV1H681JCV ECUV1H681JCV CAPACITOR
ECUV1H680JCV ECUV1H680JCV CAPACITOR
ECUV1H471JCV ECUV1H471JCV CAPACITOR
ECUV1H470JCV ECUV1H470JCV CAPACITOR
ECUV1H330JCV ECUV1H330JCV CAPACITOR
ECUV1H272KBV ECUV1H272KBV CAPACITOR
ECUV1H221JCV ECUV1H221JCV CAPACITOR
ECUV1H182KBV ECUV1H182KBV CAPACITOR
ECUV1H121JCV ECUV1H121JCV CAPACITOR
ECU1H102KBV ECU1H102KBV CAPACITOR
ECUV1H101JCV ECUV1H101JCV CAPACITOR
ECUV1H100DCV ECUV1H100DCV CAPACITOR
ECUV1H1R5CCV ECUV1H1R5CCV CAPACITOR
ECUV1H070CCV ECUV1H070CCV CAPACITOR
ECUV1H060DCV ECUV1H060DCV CAPACITOR
ECUV1H0R5CCV ECUV1H0R5CCV CAPACITOR
ECUV1C683KBV ECUV1C683KBV CAPACITOR
ECUV1C473KBV ECUV1C473KBV CAPACITOR
ECUZ1C104ZFV ECUZ1C104ZFV CAPACITOR
ECJ1VB0J475K ECJ1VB0J475K CAPACITOR
ECUV1A474KBV ECUV1A474KBV CAPACITOR
ECUV1A224KBV ECUV1A224KBV CAPACITOR
ECST0JZ106R ECST0JZ106R CAPACITOR
ECST0JY475 ECST0JY475 CAPACITOR
ECST0JX226R ECST0JX226R CAPACITOR
ECST0JTPB337 ECST0JTPB337 CAPACITOR
ECST0JC107R ECST0JC107R CAPACITOR
ECST0GY226 ECST0GY226 CAPACITOR
ECKD2H681KB5 ECKD2H681KB5 CAPACITOR
ECEV0JBS221P ECEV0JBS221P CAPACITOR
ECEA1HKKR47L ECEA1HKKR47L CAPACITOR
ECEA1AU102B ECEA1AU102B CAPACITOR
ECEA0JU471 ECEA0JU471 CAPACITOR
ECEA0JU102 ECEA0JU102 CAPACITOR
ECEC1HKS010 ECEC1HKS010 CAPACITOR
ERJ3RHD183V ERJ3RHD183V CAPACITOR
SCEA0JFE331E SCEA0JFE331E CAPACITOR
ECEA1US221 ECEA1US221 CAPACITOR
ECST0JC107 ECST0JC107 CAPACITOR
ECST0JX226 ECST0JX226 CAPACITOR
EECS5R5T473 EECS5R5T473 CAPACITOR
PQLQXF330K PQLQXF330K COIL
PQLQXF3R3K PQLQXF3R3K COIL
PQLQXF100K PQLQXF100K COIL
PQLQR4T151M PQLQR4T151M COIL
PQLQR3FL121 PQLQR3FL121 COIL
PQLQR2K1A102 PQLQR2K1A102 COIL
PQLQR2KA213 PQLQR2KA213 COIL
PQLE139 PQLE139 COIL
PQLE1G5K3220 PQLE1G5K3220 COIL
KX-TGA10 KX-TGA10 COLOR PLATE
K1MN22BA0070 K1MN22BA0070 CONNECTOR
PSJP02A44Z PSJP02A44Z CONNECTOR
PQJS30B37Z PQJS30B37Z CONNECTOR
PQJS22B11Z PQJS22B11Z CONNECTOR
PQJE10107Z PQJE10107Z CONNECTOR
PQKE10111Z1 PQKE10111Z1 COVER
PQHX10989Z PQHX10989Z COVER
PQHX10963Y PQHX10963Y COVER
PQHX10962Z PQHX10962Z COVER
PQHX10961Z PQHX10961Z COVER
PQHS10458Z PQHS10458Z COVER
PQHS10457Z PQHS10457Z COVER
PQVCK4096N9Z PQVCK4096N9Z CRYSTAL
PQVCI4096N3Z PQVCI4096N3Z CRYSTAL
PQPD10440Y PQPD10440Y CUSHION
PQVDSS24 PQVDSS24 DIODE
PQVDRLZ20A PQVDRLZ20A DIODE
PQVDPTZTE25 PQVDPTZTE25 DIODE
PQVDHRU0302A PQVDHRU0302A DIODE
PQVDHRU0203A PQVDHRU0203A DIODE
PQVDHPY1105W PQVDHPY1105W DIODE
PQVDFA1105W PQVDFA1105W DIODE
PQVDEP10LA03 PQVDEP10LA03 DIODE
PQVDEC10 PQVDEC10 DIODE
MA8150 MA8150 DIODE
MA8051 MA8051 DIODE
MA8047HTX MA8047HTX DIODE
MA8043 MA8043 DIODE
MA8036H MA8036H DIODE
MA8033 MA8033 DIODE
MA2ZD1400 MA2ZD1400 DIODE
MA153TX MA153TX DIODE
MA2J1110GL MA2J1110GL DIODE
LNJ115W89RA LNJ115W89RA DIODE
B0EDER000009 B0EDER000009 DIODE
B0JCNE000008 B0JCNE000008 DIODE
MA8220 MA8220 DIODE
PQADGP097A0 PQADGP097A0 DISPLAY
PQADGP096B0 PQADGP096B0 DISPLAY
DTC114EU DTC114EU DTC114EU
ECEA1CKA470B ECEA1CKA470B ECEA0JK470
ECEA1CKS101B ECEA1CKS101B ECEA0JKS101I
ECEA1AU101 ECEA1AU101 ECEA10V100L
ECEAUCK100 ECEAUCK100 ECEA1CK100
ECUV1H103KBV ECUV1H103KBV ECUV1H103KBM
ERDS1FJ331 ERDS1FJ331 ERDS1FJ331P
ERJ3GEYJ332V ERJ3GEYJ332V ERJ3GEYG332
ERJ3GEYJ333 ERJ3GEYJ333 ERJ3GEYG333
ERJ3GEYG473 ERJ3GEYG473 ERJ3GEYG473
ERJ3GEYJ105 ERJ3GEYJ105 ERJ3GEYJ105V
ERJ3GEYJ123V ERJ3GEYJ123V ERJ3GEYJ123V
ERJ3GEYJ151V ERJ3GEYJ151V ERJ3GEYJ151V
ERJ3GEYG152 ERJ3GEYG152 ERJ3GEYJ152V
ERJ3GEYJ153V ERJ3GEYJ153V ERJ3GEYJ153V
PQGG10117Z1 PQGG10117Z1 GRILLE
PQKF10494Z1 PQKF10494Z1 HANDSET BACK CABINET
PQKK10108Z1 PQKK10108Z1 HANDSET BATTERY COVER
PQYMTG2670NR PQYMTG2670NR HANDSET FRONT CABINET
WM-53BSU WM-53BSU HANDSET MIC
PQKE10108Z1 PQKE10108Z1 HANGER
PQWITG2670NR PQWITG2670NR IC
PQWITG2670NH PQWITG2670NH IC
PQVI16569ADB PQVI16569ADB IC
PQVI16107AFA PQVI16107AFA IC
PQVIXCR3302M PQVIXCR3302M IC
PQVIXCF4502P PQVIXCF4502P IC
PQVITC7W74U PQVITC7W74U IC
PQVITC7S08FU PQVITC7S08FU IC
PQVISPM3204T PQVISPM3204T IC
PQVIPS3432UT PQVIPS3432UT IC
PQVINJM2360M PQVINJM2360M IC
PQVINJM2135R PQVINJM2135R IC
PQVIMM1385EN PQVIMM1385EN IC
PQVIC68B102M PQVIC68B102M IC
PQVIC61CC22N PQVIC61CC22N IC
PQVIC61CC20N PQVIC61CC20N IC
PQPK13229Z PQPK13229Z IC
PQQX12840Z PQQX12840Z INSTRUCT BOOK
PQQW12297Z PQQW12297Z INSTRUCT BOOK
PQQW12296Z PQQW12296Z INSTRUCT BOOK
PQJJ1T022Z PQJJ1T022Z JACK
PQJJ1C002Z PQJJ1C002Z JACK
PQJJ1C001Z PQJJ1C001Z JACK
PQSX10155Z PQSX10155Z KEYPAD BUTTONS
PQQT22128Y PQQT22128Y LABEL
PQVDSML310MT PQVDSML310MT LED
PQVDBR1111C PQVDBR1111C LED
LNJ211R8ARU LNJ211R8ARU LED
LNJ115W8PRA LNJ115W8PRA LED
PQJA10075Z PQJA10075Z LINE CORD
PQMH10424Z PQMH10424Z METAL
PQGT14363Z PQGT14363Z NAMEPLATE
PQGT14362Z PQGT14362Z NAMEPLATE
KXTG2670N_1ST KXTG2670N_1ST OTC TELEPHONE
KXTG2670N_EX KXTG2670N_EX OTC TELEPHONE
PQGP10171Z1 PQGP10171Z1 PANEL
PQWP2TG2670H PQWP2TG2670H PC BOARD
PQWP1TG2670H PQWP1TG2670H PC BOARD
PQWPTG2670NR PQWPTG2670NR PC BOARD
PQWPTG2650NR PQWPTG2650NR PC BOARD
PQWPTG2650KT PQWPTG2650KT PC BOARD
PQLP10238Z PQLP10238Z PC BOARD
PQVTDTC143E PQVTDTC143E PQVTDTC143EU
PQGP10172Z1 PQGP10172Z1 PRC
PQ4R10XJ000 PQ4R10XJ000 RESISTOR
PQVDDSS301L PQVDDSS301L RESISTOR
ERX1SJR15 ERX1SJR15 RESISTOR
ERJ3GEY0R00 ERJ3GEY0R00 RESISTOR
ERJ3GEYJ823 ERJ3GEYJ823 RESISTOR
ERJ3GEYJ822 ERJ3GEYJ822 RESISTOR
ERJ3GEYJ821 ERJ3GEYJ821 RESISTOR
ERJ3GEYJ683 ERJ3GEYJ683 RESISTOR
ERJ3GEYJ682 ERJ3GEYJ682 RESISTOR
ERJ3GEYJ563 ERJ3GEYJ563 RESISTOR
ERJ3GEYJ562 ERJ3GEYJ562 RESISTOR
ERJ3GEYJ474 ERJ3GEYJ474 RESISTOR
ERJ3GEYJ472V ERJ3GEYJ472V RESISTOR
ERJ3GEYJ470 ERJ3GEYJ470 RESISTOR
ERJ3GEYJ394V ERJ3GEYJ394V RESISTOR
D0GB393JA041 D0GB393JA041 RESISTOR
ERJ3GEYJ391V ERJ3GEYJ391V RESISTOR
ERJ3GEYJ390V ERJ3GEYJ390V RESISTOR
ERJ3GEYJ335 ERJ3GEYJ335 RESISTOR
ERJ3GEYJ331 ERJ3GEYJ331 RESISTOR
ERJ3GEYJ330 ERJ3GEYJ330 RESISTOR
ERJ3GEYJ274 ERJ3GEYJ274 RESISTOR
ERJ3GEYJ273 ERJ3GEYJ273 RESISTOR
ERJ3GEYJ224V ERJ3GEYJ224V RESISTOR
ERJ3GEYJ222 ERJ3GEYJ222 RESISTOR
D0GB181JA057 D0GB181JA057 RESISTOR
ERJ3GEYJ180 ERJ3GEYJ180 RESISTOR
ERJ3GEYJ150 ERJ3GEYJ150 RESISTOR
ERJ3GEYJ125 ERJ3GEYJ125 RESISTOR
ERJ3GEYJ121 ERJ3GEYJ121 RESISTOR
ERJ3GEYJ120V ERJ3GEYJ120V RESISTOR
ERJ3GEYJ104V ERJ3GEYJ104V RESISTOR
ERJ3GEYJ101 ERJ3GEYJ101 RESISTOR
ERJ3GEYF824 ERJ3GEYF824 RESISTOR
ERJ3GEYF473 ERJ3GEYF473 RESISTOR
ERJ3GEYF434 ERJ3GEYF434 RESISTOR
ERJ3GEYF123 ERJ3GEYF123 RESISTOR
ERJ3GEYF104 ERJ3GEYF104 RESISTOR
ERJ3EKF2204 ERJ3EKF2204 RESISTOR
ERJ3EKF2203 ERJ3EKF2203 RESISTOR
ERDS1VJ106 ERDS1VJ106 RESISTOR
ERDS1TJ820 ERDS1TJ820 RESISTOR
ERDS1TJ330 ERDS1TJ330 RESISTOR
ERJ3GEJ151V ERJ3GEJ151V RESISTOR
D1BB4303A055 D1BB4303A055 RESISTOR
D1BB8203A055 D1BB8203A055 RESISTOR
ERJ3GEYJ271V ERJ3GEYJ271V RESISTOR
ERJ3GEYJ561V ERJ3GEYJ561V RESISTOR
ERJ3GEYJ122 ERJ3GEYJ122 RN4B2AY122J
PQMG10025Z PQMG10025Z RUBBER
XTW26_14P XTW26_14P SCREW
XTW2_R6PFJ XTW2_R6PFJ SCREW
XTW2_Q8PFJ45 XTW2_Q8PFJ45 SCREW
XTW26_14PFJ7 XTW26_14PFJ7 SCREW
XTW26_8PFJ7 XTW26_8PFJ7 SCREW
XTW26_8PFJ XTW26_8PFJ SCREW (1/10)
PQJJ1T008X PQJJ1T008X SOCKET
PQ9WIG2670NR PQ9WIG2670NR SOHNEN (1/100)
PQKE10112Z1 PQKE10112Z1 SPACER
PQHR10840Z PQHR10840Z SPACER
PQHR10834Z PQHR10834Z SPACER
PQHR10787Z PQHR10787Z SPACER
PQHR10785Z PQHR10785Z SPACER
PQHR10781Z PQHR10781Z SPACER
PQHR10779Z PQHR10779Z SPACER
PQHR10778Z PQHR10778Z SPACER
PQHG10666Z PQHG10666Z SPACER
PQHE10119Z PQHE10119Z SPACER
PQAS57P03Y PQAS57P03Y SPEAKER
PQAS3P07Y PQAS3P07Y SPEAKER
L0AD01A00011 L0AD01A00011 SPEAKER
PQUS10263Z PQUS10263Z SPRING
PQSX10162Z PQSX10162Z SWITCH
PQSX10153Z PQSX10153Z SWITCH
PQHS10466Z PQHS10466Z TAPE
PQJT10170Z PQJT10170Z TERMINAL
PQJT10169Y PQJT10169Y TERMINAL
PQJT10152Z PQJT10152Z TERMINAL
PQTG2670FREE PQTG2670FREE TEST TOOL
PQRPAR390N PQRPAR390N THERMISTOR
2SD2136 2SD2136 TRANSISTOR
2SD1994A 2SD1994A TRANSISTOR
2SD1758Q 2SD1758Q TRANSISTOR
2SD1664Q 2SD1664Q TRANSISTOR
2SC2120 2SC2120 TRANSISTOR
2SA1797Q 2SA1797Q TRANSISTOR
PQVT2N6517CA PQVT2N6517CA TRANSISTOR
PQVTXP151A13 PQVTXP151A13 TRANSISTOR
PQVTXP132A11 PQVTXP132A11 TRANSISTOR
PQVTDTA143TU PQVTDTA143TU TRANSISTOR
PQVTDTA143EU PQVTDTA143EU TRANSISTOR
B1ACGP000007 B1ACGP000007 TRANSISTOR
UN5213TX UN5213TX TRANSISTOR
ERJ3GEYJ103V ERJ3GEYJ103V VRESAL8J103
PQKL10038Y1 PQKL10038Y1 WALL MOUNT BRACKET
