Model Image
Manufacturer

Panasonic

Model Number

KXTG5438S

Description

5.8 Ghz Tot 1 Hs

Interactive Exploded View

Parts List

Part Number Description
KX-TCA91S KX-TCA91S *NLA* HEADPHONE
2SD1819AWL 2SD1819AWL 2SD1819AR
PQLV1V PQLV1V ADAPTER
756257B 756257B ADAPTER
PQSA10157Z PQSA10157Z ANTENNA
PQSA10158Z PQSA10158Z ANTENNA
XZB21X35A03 XZB21X35A03 BAG
HHR-P104A HHR-P104A BATTERY
PQBC10416Z1 PQBC10416Z1 BUTTON
PQBC10417Z1 PQBC10417Z1 BUTTON
PQKF10633Z3 PQKF10633Z3 CABINET
PQKM10649Z1 PQKM10649Z1 CABINET
PQKM10650Z1 PQKM10650Z1 CABINET
PQYF10594Z1 PQYF10594Z1 CABINET
ECJ0EB1H471K ECJ0EB1H471K CAP
ECJ0EB1C103K ECJ0EB1C103K CAPACITOR
ECJ0EB1C223K ECJ0EB1C223K CAPACITOR
ECJ0EC1H030C ECJ0EC1H030C CAPACITOR
ECJ0EC1H040C ECJ0EC1H040C CAPACITOR
ECJ0EC1H050C ECJ0EC1H050C CAPACITOR
ECJ0EC1H080D ECJ0EC1H080D CAPACITOR
ECJ0EC1H220J ECJ0EC1H220J CAPACITOR
ECJ1XB1H472K ECJ1XB1H472K CAPACITOR
F3F0J106A057 F3F0J106A057 CAPACITOR
ECST0JY225 ECST0JY225 CAPACITOR
ECST0JY226 ECST0JY226 CAPACITOR
ECUE1A104KBQ ECUE1A104KBQ CAPACITOR
ECUE1C103KBQ ECUE1C103KBQ CAPACITOR
ECUE1C153KBQ ECUE1C153KBQ CAPACITOR
ECUE1C183KBQ ECUE1C183KBQ CAPACITOR
ECUE1H0R5CCQ ECUE1H0R5CCQ CAPACITOR
ECUE1H010CCQ ECUE1H010CCQ CAPACITOR
ECUE1H030CCQ ECUE1H030CCQ CAPACITOR
ECUE1H040CCQ ECUE1H040CCQ CAPACITOR
ECUE1H050CCQ ECUE1H050CCQ CAPACITOR
ECUE1H1R5CCQ ECUE1H1R5CCQ CAPACITOR
ECUE1H100DCQ ECUE1H100DCQ CAPACITOR
ECUE1H101JCQ ECUE1H101JCQ CAPACITOR
ECUE1H102KBQ ECUE1H102KBQ CAPACITOR
ECUE1H121JCQ ECUE1H121JCQ CAPACITOR
ECUE1H150JCQ ECUE1H150JCQ CAPACITOR
ECUE1H2R0CCQ ECUE1H2R0CCQ CAPACITOR
ECUE1H221JCQ ECUE1H221JCQ CAPACITOR
ECJ0EB1H222K ECJ0EB1H222K CAPACITOR
ECUE1H272KBQ ECUE1H272KBQ CAPACITOR
ECUE1H331KBQ ECUE1H331KBQ CAPACITOR
ECUE1H471KBQ ECUE1H471KBQ CAPACITOR
ECUV0J106KB ECUV0J106KB CAPACITOR
ECUV1A105KBV ECUV1A105KBV CAPACITOR
ECUV1A106ZF ECUV1A106ZF CAPACITOR
ECUV1A224KBV ECUV1A224KBV CAPACITOR
ECUV1A474KBV ECUV1A474KBV CAPACITOR
ECJ1VB0J475K ECJ1VB0J475K CAPACITOR
ECUV1C473KBV ECUV1C473KBV CAPACITOR
ECUV1C474KBV ECUV1C474KBV CAPACITOR
ECUV1E104KBV ECUV1E104KBV CAPACITOR
ECUV1H101JCV ECUV1H101JCV CAPACITOR
ECUV1H103KBV ECUV1H103KBV CAPACITOR
ECUV1H681JCV ECUV1H681JCV CAPACITOR
ECUV2H681KB ECUV2H681KB CAPACITOR
EEEFK1C470P EEEFK1C470P CAPACITOR
EEE0GA331WP EEE0GA331WP CAPACITOR
EEE0JA101SP EEE0JA101SP CAPACITOR
EEE0JA331P EEE0JA331P CAPACITOR
EEE1CA100SR EEE1CA100SR CAPACITOR
ELB1A001 ELB1A001 CAPACITOR
F1G0J1050007 F1G0J1050007 CAPACITOR
F1G1A473A032 F1G1A473A032 CAPACITOR
F1G1C183A081 F1G1C183A081 CAPACITOR
F1G1HR20A561 F1G1HR20A561 CAPACITOR
F1G1H221A541 F1G1H221A541 CAPACITOR
F1J0J1060006 F1J0J1060006 CAPACITOR
F1J2A473A024 F1J2A473A024 CAPACITOR
F2G1E1010011 F2G1E1010011 CAPACITOR
F5A424740002 F5A424740002 CAPACITOR
F5A841040004 F5A841040004 CAPACITOR
KNCFH165R8Z1 KNCFH165R8Z1 CAPACITOR
PQCUV0J475MB PQCUV0J475MB CAPACITOR
PQCUV1A684KB PQCUV1A684KB CAPACITOR
EEE1EA100WR EEE1EA100WR CAPACITOR (DISCONTINUED)
PQHR11063Z PQHR11063Z CASE
PQKE10338Z1 PQKE10338Z1 CASE

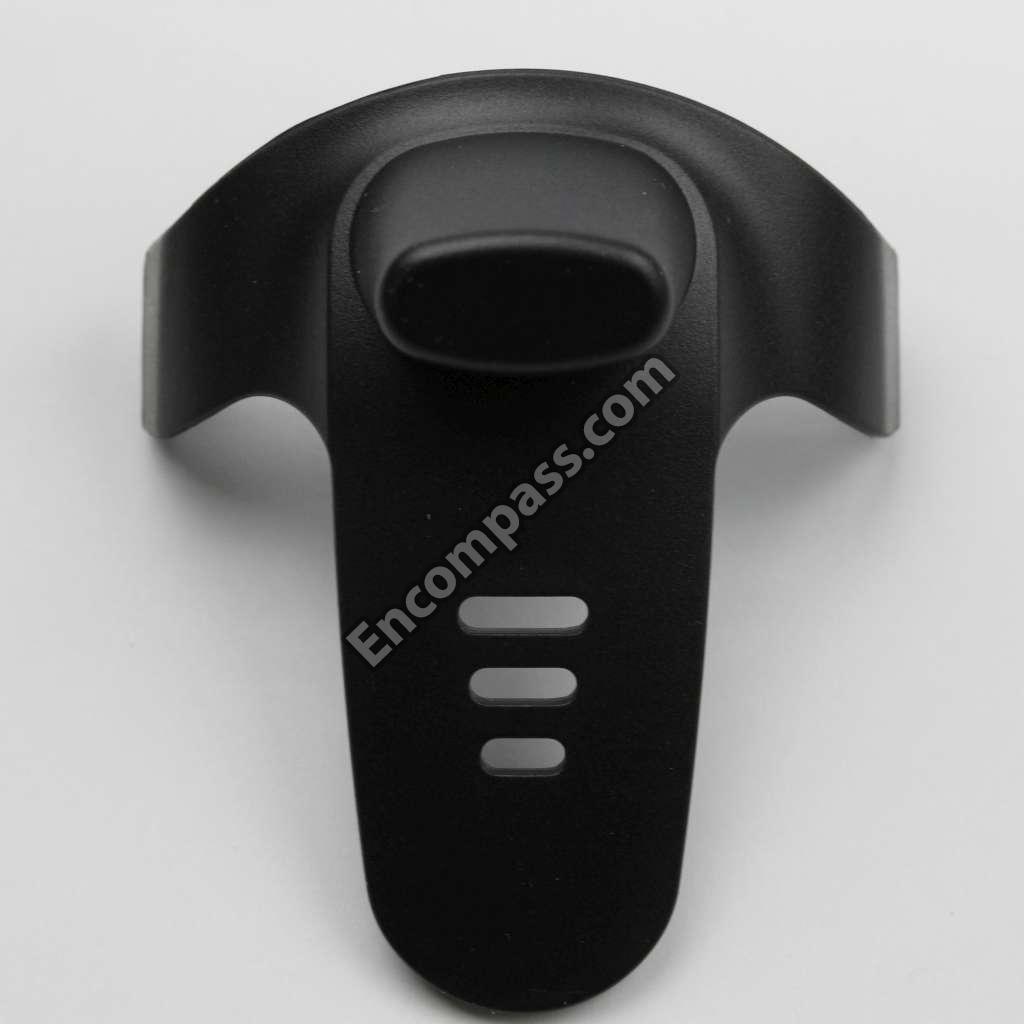

PQKE10389Z1 PQKE10389Z1 CLIP
G1C1R0KA0096 G1C1R0KA0096 COIL
G1C220M00037 G1C220M00037 COIL
G1C6R8MA0072 G1C6R8MA0072 COIL
MQLRF1N5DFB MQLRF1N5DFB COIL
MQLRF18NJFB MQLRF18NJFB COIL
MQLRF2N2DFB MQLRF2N2DFB COIL
MQLRF2N7DFB MQLRF2N7DFB COIL
MQLRF6N8JFB MQLRF6N8JFB COIL
PQLQR2KA213 PQLQR2KA213 COIL
PQLQR2KB113T PQLQR2KB113T COIL
PQLQXF330K PQLQXF330K COIL
D1H42222A006 D1H42222A006 COMPONENT
K1MY32BA0026 K1MY32BA0026 CONNECTOR
K1MN22B00101 K1MN22B00101 CONNECTOR
PQHS10327Z PQHS10327Z COVER
PQKE10387Z1 PQKE10387Z1 COVER
PQKE10388Z1 PQKE10388Z1 COVER
PQKE10390Z1 PQKE10390Z1 COVER
PQKK10584Z3 PQKK10584Z3 COVER
PQMG10025Z PQMG10025Z COVER
PQHG10700Z PQHG10700Z CUSHION
PQHG10703Z PQHG10703Z CUSHION
B0ECKM000008 B0ECKM000008 DIODE
B0JCMD000010 B0JCMD000010 DIODE
B0JCME000035 B0JCME000035 DIODE
B3ACB0000133 B3ACB0000133 DIODE
B3AZB0000032 B3AZB0000032 DIODE
MAZ805100L MAZ805100L DIODE
MA2J1110GL MA2J1110GL DIODE
MA8220 MA8220 DIODE
PQVDMD5S PQVDMD5S DIODE
PQVDRLZ20A PQVDRLZ20A DIODE
ERJ2GEJ151X ERJ2GEJ151X ERJ2GEJ151X
ERJ3GEYJ332V ERJ3GEYJ332V ERJ3GEYG332
ERJ3GEYJ333 ERJ3GEYJ333 ERJ3GEYG333
ERJ3GEYG473 ERJ3GEYG473 ERJ3GEYG473
ERJ3GEYJ123V ERJ3GEYJ123V ERJ3GEYJ123V
PQHS10653Z PQHS10653Z GASKET
PQHS10654Z PQHS10654Z GASKET
PQHS10656Z PQHS10656Z GASKET
PQGG10266Y3 PQGG10266Y3 GRILLE
PQGG10267Z2 PQGG10267Z2 GRILLE
PQGG10268Z1 PQGG10268Z1 GRILLE
PQGG10269Z1 PQGG10269Z1 GRILLE
PQGG10270Z1 PQGG10270Z1 GRILLE
PQGG10271Z1 PQGG10271Z1 GRILLE
PQHR10778Z PQHR10778Z GUIDE
PQHR11022Z PQHR11022Z GUIDE
PQHR11060Z PQHR11060Z GUIDE
PQHR11062Z PQHR11062Z GUIDE
PQHR11064Z PQHR11064Z GUIDE
PQHR11068Z PQHR11068Z GUIDE
PQHR11069Z PQHR11069Z GUIDE
KX-TCA430 KX-TCA430 HEADPHONE
KX-TCA60 KX-TCA60 HEADSET
KX-TCA80 KX-TCA80 HEADSET
C0CBAAC00083 C0CBAAC00083 IC
C0CBABD00011 C0CBABD00011 IC
C0CBABD00019 C0CBABD00019 IC
C0CBABE00029 C0CBABE00029 IC
C0DBAGZ00023 C0DBAGZ00023 IC
C0DBFGD00017 C0DBFGD00017 IC
C0EBF0000179 C0EBF0000179 IC
C1CB00001657 C1CB00001657 IC
C1CB00001682 C1CB00001682 IC
C1CB00001917 C1CB00001917 IC
C1CB00002285 C1CB00002285 IC
C2HBBK000076 C2HBBK000076 IC
C2HBBK000092 C2HBBK000092 IC
PQVIC61CN32N PQVIC61CN32N IC
PQWITG5438FH PQWITG5438FH IC
PQWITG5438FR PQWITG5438FR IC
PQQW13505Y PQQW13505Y INSTRUCT BOOK
PQQW13506Y PQQW13506Y INSTRUCT BOOK
PQQW13518Z PQQW13518Z INSTRUCT BOOK
PQQX14351WA PQQX14351WA INSTRUCT BOOK
K2EZ2B000040 K2EZ2B000040 JACK
PQSX10276Z PQSX10276Z KEYPAD
PQQT22850Z PQQT22850Z LABEL
PQXDZLDRS1 PQXDZLDRS1 LABEL
PQKE10386Z1 PQKE10386Z1 LATCH
L5DCBCB00016 L5DCBCB00016 LCD
L5DCBDC00009 L5DCBDC00009 LCD
PQHR11061Z PQHR11061Z LED
PQHR11070Z PQHR11070Z LED
PQVDSML210L PQVDSML210L LED
L0CBAB000052 L0CBAB000052 MICROPHONE
PQGT17289Z PQGT17289Z NAME PLATE
PQGT17779Z PQGT17779Z NAME PLATE
H0J138500003 H0J138500003 OSCILLATOR
PQHG10695Z PQHG10695Z PACKAGING
PQPK14750Z PQPK14750Z PACKAGING
PQPN11719Z PQPN11719Z PACKAGING
PQHG10696Z PQHG10696Z PACKING
PQHG10679Z PQHG10679Z PACKING (DISCONTINUED)
PQGP10266Z1 PQGP10266Z1 PANEL
PQGP10267Y1 PQGP10267Y1 PANEL
PQWPTG5438FR PQWPTG5438FR PC BOARD
PQWP1TG5438H PQWP1TG5438H PC BOARD
PQWP2TG5438H PQWP2TG5438H PC BOARD
PQHR11065Z PQHR11065Z PLATE
PQHX11314Z PQHX11314Z PLATE
D1BB4303A055 D1BB4303A055 RESISTOR
D1BB8203A055 D1BB8203A055 RESISTOR
D1H810440003 D1H810440003 RESISTOR
D1H84714A013 D1H84714A013 RESISTOR
ERJ12YJ330 ERJ12YJ330 RESISTOR
ERJ2GEJ1R0 ERJ2GEJ1R0 RESISTOR
ERJ2GEJ100X ERJ2GEJ100X RESISTOR
ERJ2GEJ101X ERJ2GEJ101X RESISTOR
ERJ2GEJ102X ERJ2GEJ102X RESISTOR
ERJ2GEJ103X ERJ2GEJ103X RESISTOR
ERJ2GEJ104 ERJ2GEJ104 RESISTOR
ERJ2GEJ121 ERJ2GEJ121 RESISTOR
ERJ2GEJ180 ERJ2GEJ180 RESISTOR
ERJ2GEJ182 ERJ2GEJ182 RESISTOR
ECEA0JKS220I ECEA0JKS220I RESISTOR
ERJ2GEJ222X ERJ2GEJ222X RESISTOR
ERJ2GEJ223X ERJ2GEJ223X RESISTOR
ERJ2GEJ224 ERJ2GEJ224 RESISTOR
ERJ2GEJ225 ERJ2GEJ225 RESISTOR
ERJ2GEJ270 ERJ2GEJ270 RESISTOR
ERJ2GEJ274 ERJ2GEJ274 RESISTOR
ERJ2GEJ331 ERJ2GEJ331 RESISTOR
ERJ2GEJ332 ERJ2GEJ332 RESISTOR
ERJ2GEJ391 ERJ2GEJ391 RESISTOR
ERJ2GEJ393X ERJ2GEJ393X RESISTOR
ERJ2GEJ4R7 ERJ2GEJ4R7 RESISTOR
ERJ2GEJ470 ERJ2GEJ470 RESISTOR
ERJ2GEJ473 ERJ2GEJ473 RESISTOR
ERJ2GEJ561 ERJ2GEJ561 RESISTOR
ERJ2GEJ562X ERJ2GEJ562X RESISTOR
ERJ2GEJ334 ERJ2GEJ334 RESISTOR
ERJ2GEJ821 ERJ2GEJ821 RESISTOR
ERJ2GE0R00X ERJ2GE0R00X RESISTOR
ERJ2RKF103X ERJ2RKF103X RESISTOR
ERJ3GEYF434 ERJ3GEYF434 RESISTOR
ERJ3GEYF824 ERJ3GEYF824 RESISTOR
ERJ3GEYJ100 ERJ3GEYJ100 RESISTOR
ERJ3GEYJ101 ERJ3GEYJ101 RESISTOR
ERJ3GEYJ104V ERJ3GEYJ104V RESISTOR
ERJ3GEYJ121 ERJ3GEYJ121 RESISTOR
D0GB393JA041 D0GB393JA041 RESISTOR
ERJ3GEYJ394V ERJ3GEYJ394V RESISTOR
ERJ3GEYJ395 ERJ3GEYJ395 RESISTOR
ERJ3GEYJ431V ERJ3GEYJ431V RESISTOR
ERJ3GEYJ470 ERJ3GEYJ470 RESISTOR
ERJ3GEYJ751 ERJ3GEYJ751 RESISTOR
ERJ3GEY0R00 ERJ3GEY0R00 RESISTOR
EXB28V221JX EXB28V221JX RESISTOR
EXRV8V472JV EXRV8V472JV RESISTOR
ERJ2GEJ101 ERJ2GEJ101 RESISTOR
ERJ2GEJ223 ERJ2GEJ223 RESISTOR
ERJ2GEJ681 ERJ2GEJ681 RESISTOR
ERJ3GEYK106 ERJ3GEYK106 RESISTOR
ERJ3GEYJ271V ERJ3GEYJ271V RESISTOR
ERJ3GEYJ561V ERJ3GEYJ561V RESISTOR
ERJ6GEY0R00A ERJ6GEY0R00A RESISTOR
D1H84724A013 D1H84724A013 RESISTOR (DISCONTINUED)
ERJ3GEYJ135 ERJ3GEYJ135 RESISTOR (DISCONTINUED)
ERJ3GEYJ331 ERJ3GEYJ331 RN4B2AY102J
PQHV2612PJ65 PQHV2612PJ65 SCREW
XTW2_R14PFJ XTW2_R14PFJ SCREW
XTW2_R9PFJ XTW2_R9PFJ SCREW
XTW26_14PFJ7 XTW26_14PFJ7 SCREW
XTW26_8PFJ7 XTW26_8PFJ7 SCREW
PQDF10100Z PQDF10100Z SHAFT
PQHX11289Z PQHX11289Z SHEET
PQHX11305Z PQHX11305Z SHEET
PQHX11322Z PQHX11322Z SHEET
PQHX11325Z PQHX11325Z SHEET
PQQT22839Z PQQT22839Z SHEET
PQMC10491Z PQMC10491Z SHIELD
PQMC10492Z PQMC10492Z SHIELD
PQMC10499Z PQMC10499Z SHIELD
K2HD103D0001 K2HD103D0001 SOCKET
PQJJ1TA15Z PQJJ1TA15Z SOCKET
PQHE10156Z PQHE10156Z SPACER
PQHS10598Z PQHS10598Z SPACER
PQHS10652Z PQHS10652Z SPACER
PQHX11292Z PQHX11292Z SPACER
L0AA04A00028 L0AA04A00028 SPEAKER
L0AD02A00023 L0AD02A00023 SPEAKER
L0AD02A00026 L0AD02A00026 SPEAKER
PQKL10057Z1 PQKL10057Z1 STAND
PQHS10651Z PQHS10651Z TAPE
PQHS10655Z PQHS10655Z TAPE
PQJA10075Z PQJA10075Z TELEPHONE LINE CORD
PQJT10220Z PQJT10220Z TERMINAL
PQJT10221Z PQJT10221Z TERMINAL
PQJT10222Z PQJT10222Z TERMINAL
PQWE10033Z PQWE10033Z TERMINAL
PFRT002 PFRT002 THERMISTOR
PQDJ10006Y PQDJ10006Y TOOL (DISCONTINUED)
B1ADGP000008 B1ADGP000008 TRANSISTOR
B1BBAP000021 B1BBAP000021 TRANSISTOR
B1DHCD000032 B1DHCD000032 TRANSISTOR
B1GHCFEM0001 B1GHCFEM0001 TRANSISTOR
PQVTDTC114TU PQVTDTC114TU TRANSISTOR
PQVTDTC123JU PQVTDTC123JU TRANSISTOR
PQVTDTC143E PQVTDTC143E TRANSISTOR
PQVTDTC144TU PQVTDTC144TU TRANSISTOR
PSVTUMG11NTR PSVTUMG11NTR TRANSISTOR
UN521 UN521 TRANSISTOR
2SB1197KQ 2SB1197KQ TRANSISTOR
2SB1218A 2SB1218A TRANSISTOR
2SC39300CL 2SC39300CL TRANSISTOR
DSC7003S0L DSC7003S0L TRANSISTOR
2SD1758Q 2SD1758Q TRANSISTOR
B1ABAA000022 B1ABAA000022 TRANSISTOR (DISCONTINUED)
J0LE00000047 J0LE00000047 VARISTOR
ERJ3GEYJ103V ERJ3GEYJ103V VRESAL8J103
PQJE10142X PQJE10142X WIRE
PQJE10142Z PQJE10142Z WIRE
