Model Image
Manufacturer

Panasonic

Model Number

KXTG9392T

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
KX-J42 KX-J42 ADAPTER
PQLV219Z PQLV219Z ADAPTER
PNLA1005Z PNLA1005Z ANTENNA
PNLA1016Z PNLA1016Z ANTENNA
HHR-4DPA_2B HHR-4DPA_2B BATTERY
PNBC1001Z2 PNBC1001Z2 BUTTON
PNBC1002Z2 PNBC1002Z2 BUTTON
PNBC1003X4 PNBC1003X4 BUTTON
PNBC1004Y2 PNBC1004Y2 BUTTON
PNBC1005Y2 PNBC1005Y2 BUTTON
PNBC1006Y2 PNBC1006Y2 BUTTON
PNBC1007Y2 PNBC1007Y2 BUTTON
PNBC1008Y2 PNBC1008Y2 BUTTON
PNBC1009Y2 PNBC1009Y2 BUTTON
PNBC1010Y2 PNBC1010Y2 BUTTON
PNBC1011Y2 PNBC1011Y2 BUTTON
PNBC1246Z1 PNBC1246Z1 BUTTON
PNBC1247Z1 PNBC1247Z1 BUTTON
PNBH1007Z1 PNBH1007Z1 BUTTON
PNBX1028Z1 PNBX1028Z1 BUTTON
L0DDFD000002 L0DDFD000002 BUZZER
PNKF1006Z1 PNKF1006Z1 CABINET
PNKF1039Z1 PNKF1039Z1 CABINET
PNKF1040Z1 PNKF1040Z1 CABINET
PNKM1015Y2 PNKM1015Y2 CABINET
PNKM1052Z1 PNKM1052Z1 CABINET
PNKM1053Z1 PNKM1053Z1 CABINET
PNKM1054Z1 PNKM1054Z1 CABINET
PQJA10075Z PQJA10075Z CABLE
PQJA10088Z PQJA10088Z CABLE
PQJA212V PQJA212V CABLE
D0GG682JA007 D0GG682JA007 CAPACITOR
ECJ0EB1A563K ECJ0EB1A563K CAPACITOR
ECST0JY106 ECST0JY106 CAPACITOR
ECUE0J105KBQ ECUE0J105KBQ CAPACITOR
ECUE1A104KBQ ECUE1A104KBQ CAPACITOR
ECUE1A224KBQ ECUE1A224KBQ CAPACITOR
ECUE1C103KBQ ECUE1C103KBQ CAPACITOR
ECUE1C183KBQ ECUE1C183KBQ CAPACITOR
ECUE1H100DCQ ECUE1H100DCQ CAPACITOR
ECUE1H101JCQ ECUE1H101JCQ CAPACITOR
ECUE1H102KBQ ECUE1H102KBQ CAPACITOR
ECUE1H151JCQ ECUE1H151JCQ CAPACITOR
ECUE1H1R0BCQ ECUE1H1R0BCQ CAPACITOR
ECUE1H220JCQ ECUE1H220JCQ CAPACITOR
ECJ0EB1H222K ECJ0EB1H222K CAPACITOR
ECUE1H331KBQ ECUE1H331KBQ CAPACITOR
ECUE1H332KBQ ECUE1H332KBQ CAPACITOR
ECUE1H3R0CCQ ECUE1H3R0CCQ CAPACITOR
ECUE1H471KBQ ECUE1H471KBQ CAPACITOR
ECUE1H5R0CCQ ECUE1H5R0CCQ CAPACITOR
ECUE1H681KBQ ECUE1H681KBQ CAPACITOR
ECUE1H7R0CCQ ECUE1H7R0CCQ CAPACITOR
ECUV1A105KBV ECUV1A105KBV CAPACITOR
ECUV1A224KBV ECUV1A224KBV CAPACITOR
ECUV1A225KB ECUV1A225KB CAPACITOR
ECUV1C103KBV ECUV1C103KBV CAPACITOR
ECJ1VB0J475K ECJ1VB0J475K CAPACITOR
ECUV1C105KBV ECUV1C105KBV CAPACITOR
ECUV1C474KBV ECUV1C474KBV CAPACITOR
ECUV1C563KBV ECUV1C563KBV CAPACITOR
ECUV1H100DCV ECUV1H100DCV CAPACITOR
ECUV1H101JCV ECUV1H101JCV CAPACITOR
ECUV1H103KBV ECUV1H103KBV CAPACITOR
ECUV1H221JCV ECUV1H221JCV CAPACITOR
ECUV1H473KBV ECUV1H473KBV CAPACITOR
EEE0JA101WR EEE0JA101WR CAPACITOR
EEE0JA221WP EEE0JA221WP CAPACITOR
EEE0JA331P EEE0JA331P CAPACITOR
EEE1CA100SR EEE1CA100SR CAPACITOR
EEE1HA010SR EEE1HA010SR CAPACITOR
EXCELDR35 EXCELDR35 CAPACITOR
F0C2E1050005 F0C2E1050005 CAPACITOR
F1G1H1R2A480 F1G1H1R2A480 CAPACITOR
F1G1H1R8A480 F1G1H1R8A480 CAPACITOR
F1G1H2R2A480 F1G1H2R2A480 CAPACITOR
F1G1H2R4A480 F1G1H2R4A480 CAPACITOR
F1G1H2R7A480 F1G1H2R7A480 CAPACITOR
F1G1H3R3A562 F1G1H3R3A562 CAPACITOR
F1G1H7R0A480 F1G1H7R0A480 CAPACITOR
F1G1HR50A480 F1G1HR50A480 CAPACITOR
F1G1HR75A480 F1G1HR75A480 CAPACITOR
F1H0J4750002 F1H0J4750002 CAPACITOR
F1J0J2260004 F1J0J2260004 CAPACITOR
F1K1C2250005 F1K1C2250005 CAPACITOR
F1K1C4750023 F1K1C4750023 CAPACITOR
F1K2J681A006 F1K2J681A006 CAPACITOR
F2G0J3310025 F2G0J3310025 CAPACITOR
F2G1E1010011 F2G1E1010011 CAPACITOR
F2G1H4R70017 F2G1H4R70017 CAPACITOR
PQCUV0J106KB PQCUV0J106KB CAPACITOR
PQCUV0J475MB PQCUV0J475MB CAPACITOR
PQCUV1A105KB PQCUV1A105KB CAPACITOR
PNLC1001YT PNLC1001YT CHARGER
PNKE1004Z1 PNKE1004Z1 CLIP
ELJRF1N5ZFB ELJRF1N5ZFB COIL
ELJRF33NJFB ELJRF33NJFB COIL
ELJRF3N3ZFB ELJRF3N3ZFB COIL
G1C100MA0072 G1C100MA0072 COIL
G1C470M00025 G1C470M00025 COIL
MQLRF6N8JFB MQLRF6N8JFB COIL
PQLQR1RS241 PQLQR1RS241 COIL
PQLQR1WT PQLQR1WT COIL
PQLQR2KA20T PQLQR2KA20T COIL
PQLQR2M5N6K PQLQR2M5N6K COIL
PQLQR4F121ST PQLQR4F121ST COIL
PQLQR4F601ST PQLQR4F601ST COIL
K2LB102B0053 K2LB102B0053 CONNECTOR
B3PBB0000039 B3PBB0000039 COUPLER
PNHX1004Z PNHX1004Z COVER
PNHX1036Z PNHX1036Z COVER
PNHX1080Z PNHX1080Z COVER
PNHX1124Z PNHX1124Z COVER
PNKE1002Z2 PNKE1002Z2 COVER
PNKF1012Z1 PNKF1012Z1 COVER
PNKK1001Z2 PNKK1001Z2 COVER
PNYNTGA430BR PNYNTGA430BR COVER
PNHS1030Z PNHS1030Z CUSHION
PQHG10756Z PQHG10756Z CUSHION
1SS355 1SS355 DIODE
B0DDCL000001 B0DDCL000001 DIODE
B0DDCM000001 B0DDCM000001 DIODE
B0EDER000009 B0EDER000009 DIODE
B0JAME000095 B0JAME000095 DIODE
B0JCDD000002 B0JCDD000002 DIODE
B0JCMC000006 B0JCMC000006 DIODE
B0JCME000035 B0JCME000035 DIODE
B0JCNE000008 B0JCNE000008 DIODE
B3ACB0000216 B3ACB0000216 DIODE
B3AFB0000177 B3AFB0000177 DIODE
LNJ826W83RA LNJ826W83RA DIODE
MA1Z300 MA1Z300 DIODE
MA21D3400L MA21D3400L DIODE
MA27P1200L MA27P1200L DIODE
MA8043M MA8043M DIODE
MAZ805100L MAZ805100L DIODE
MAZY04700L MAZY04700L DIODE
L5DZBYY00013 L5DZBYY00013 DISPLAY
L5DZBYY00015 L5DZBYY00015 DISPLAY
J0JCC0000276 J0JCC0000276 FILTER
J0JCC0000286 J0JCC0000286 FILTER
PQHA10023Z PQHA10023Z FOOT
K5H302Y00003 K5H302Y00003 FUSE
PNHR1001Z PNHR1001Z GUIDE
PNHR1006Z PNHR1006Z GUIDE
PNHR1063Z PNHR1063Z GUIDE
PNHR1064Z PNHR1064Z GUIDE
PQHR11082Z PQHR11082Z GUIDE
PQHR11313Z PQHR11313Z GUIDE

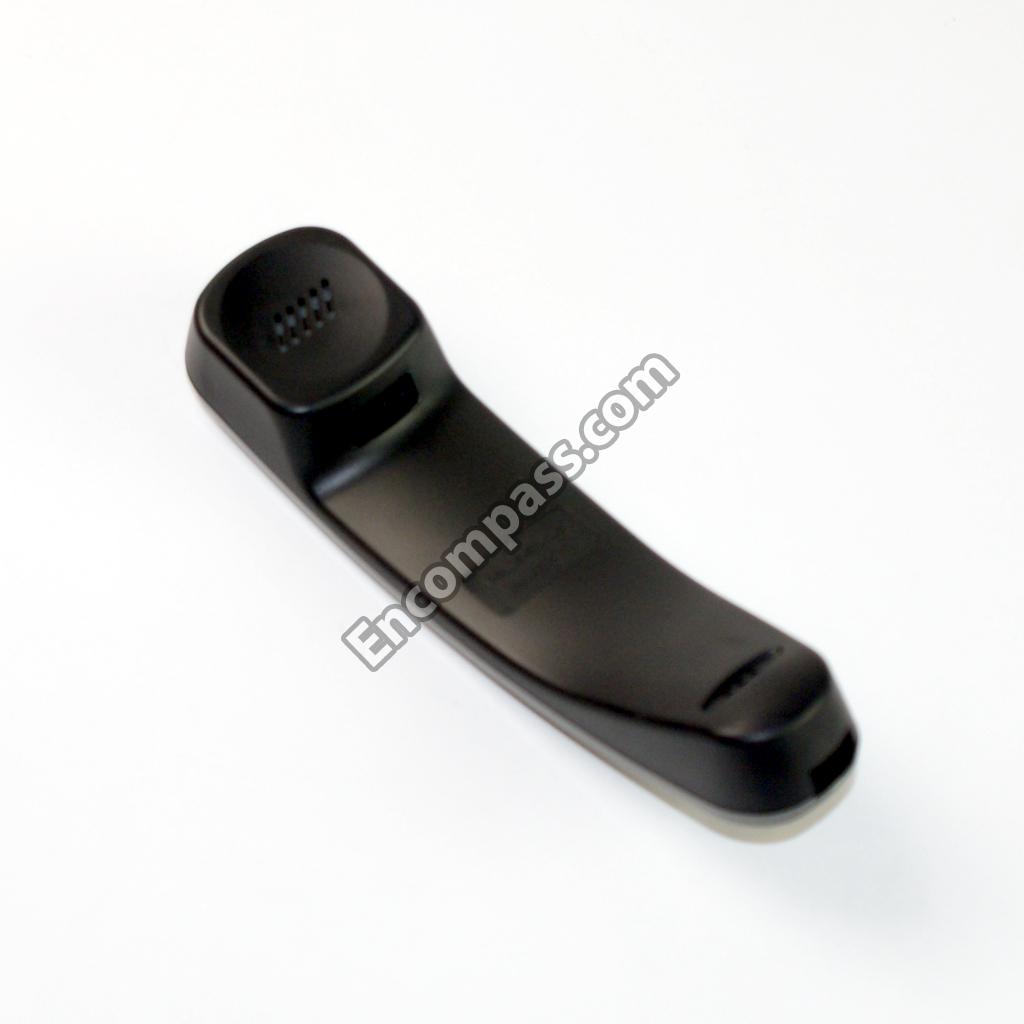

PNLXP1001Z PNLXP1001Z HANDSET
KX-TCA60 KX-TCA60 HEADSET
KX-TCA80 KX-TCA80 HEADSET
KX-TCA430 KX-TCA430 HEADSET
KX-TCA93 KX-TCA93 HEADSET
C0ABBA000233 C0ABBA000233 IC
C0ABEB000023 C0ABEB000023 IC
C0BBBA000022 C0BBBA000022 IC
C0CBABD00036 C0CBABD00036 IC
C0CBABD00040 C0CBABD00040 IC
C0CBADE00031 C0CBADE00031 IC
C0CBAYG00016 C0CBAYG00016 IC
C0DBAGZ00023 C0DBAGZ00023 IC
C0DBGYY00335 C0DBGYY00335 IC
C0EBE0000528 C0EBE0000528 IC
C0JBAF000223 C0JBAF000223 IC
C1CB00001842 C1CB00001842 IC
C1CB00002427 C1CB00002427 IC
C1CB00002704 C1CB00002704 IC
C1CB00002903 C1CB00002903 IC
C1CB00002906 C1CB00002906 IC
C3FBLY000058 C3FBLY000058 IC
C3FBMY000195 C3FBMY000195 IC
J0JCC0000275 J0JCC0000275 IC
J0JCC0000287 J0JCC0000287 IC
PNWITG9391TH PNWITG9391TH IC
PNWITGA939TR PNWITGA939TR IC
PQVIBU4053BC PQVIBU4053BC IC
PQJJ1T030W PQJJ1T030W JACK
PNQT1230Y PNQT1230Y LABEL
PQQT23193Z PQQT23193Z LABEL
PQXDZLDRS1 PQXDZLDRS1 LABEL
PNHR1005Z PNHR1005Z LED
PNHR1066Z PNHR1066Z LENS
L0CBAB000052 L0CBAB000052 MICROPHONE
L0CBAY000016 L0CBAY000016 MICROPHONE
PNGT1490Z PNGT1490Z NAMEPLATE
PNGT1728Z PNGT1728Z NAMEPLATE
H0J103500020 H0J103500020 OSCILLATOR
H0J103500033 H0J103500033 OSCILLATOR
XZB08X25B02 XZB08X25B02 PACKAGING
PNGP1002X1 PNGP1002X1 PANEL
PNGP1034Y1 PNGP1034Y1 PANEL
PNLP2083Z PNLP2083Z PC BOARD
PNWPTG9391TH PNWPTG9391TH PC BOARD
PNWPTGA939TR PNWPTGA939TR PC BOARD
PQLP10293Z PQLP10293Z PC BOARD
PQWPTGA721CH PQWPTGA721CH PC BOARD
KX-TGA939T KX-TGA939T PHONE
PNHR1065Z PNHR1065Z PLATE
PQHR11279Z PQHR11279Z PLATE
L0AD02A00043 L0AD02A00043 RECEIVER
PSSLG6K2FYZ PSSLG6K2FYZ RELAY
D0GA563ZA006 D0GA563ZA006 RESISTOR
D1H410220001 D1H410220001 RESISTOR
D1H433220001 D1H433220001 RESISTOR
ERG2SJ100E ERG2SJ100E RESISTOR
ERJ12YJ120 ERJ12YJ120 RESISTOR
ERJ12YJ270 ERJ12YJ270 RESISTOR
ERJ2GE0R00X ERJ2GE0R00X RESISTOR
ERJ2GEJ100X ERJ2GEJ100X RESISTOR
ERJ2GEJ101 ERJ2GEJ101 RESISTOR
ERJ2GEJ102X ERJ2GEJ102X RESISTOR
ERJ2GEJ103X ERJ2GEJ103X RESISTOR
ERJ2GEJ104 ERJ2GEJ104 RESISTOR
ERJ2GEJ105X ERJ2GEJ105X RESISTOR
ERJ2GEJ122 ERJ2GEJ122 RESISTOR
ERJ2GEJ153 ERJ2GEJ153 RESISTOR
ERJ2GEJ181 ERJ2GEJ181 RESISTOR
ERJ2GEJ182 ERJ2GEJ182 RESISTOR
ECEA0JKA221 ECEA0JKA221 RESISTOR
ERJ2GEJ222X ERJ2GEJ222X RESISTOR
ERJ2GEJ223 ERJ2GEJ223 RESISTOR
ERJ2GEJ224 ERJ2GEJ224 RESISTOR
ERJ2GEJ271 ERJ2GEJ271 RESISTOR
ERJ2GEJ330X ERJ2GEJ330X RESISTOR
ERJ2GEJ331 ERJ2GEJ331 RESISTOR
ERJ2GEJ332 ERJ2GEJ332 RESISTOR
ERJ2GEJ392 ERJ2GEJ392 RESISTOR
ERJ2GEJ470 ERJ2GEJ470 RESISTOR
ERJ2GEJ471 ERJ2GEJ471 RESISTOR
ERJ2GEJ473 ERJ2GEJ473 RESISTOR
ERJ2GEJ561 ERJ2GEJ561 RESISTOR
ERJ2GEJ562X ERJ2GEJ562X RESISTOR
ERJ2GEJ682 ERJ2GEJ682 RESISTOR
ERJ2GEJ821 ERJ2GEJ821 RESISTOR
ERJ3EKF5601 ERJ3EKF5601 RESISTOR
ERJ3GEY0R00 ERJ3GEY0R00 RESISTOR
ERJ3GEYF133 ERJ3GEYF133 RESISTOR
ERJ3GEYJ101 ERJ3GEYJ101 RESISTOR
ERJ3GEYJ331 ERJ3GEYJ331 RESISTOR
ERJ3GEYJ103V ERJ3GEYJ103V RESISTOR
ERJ3GEYJ104V ERJ3GEYJ104V RESISTOR
ERJ3GEYJ105 ERJ3GEYJ105 RESISTOR
ERJ3GEYK106 ERJ3GEYK106 RESISTOR
ERJ3GEYJ121 ERJ3GEYJ121 RESISTOR
ERJ3GEYG152 ERJ3GEYG152 RESISTOR
ERJ3GEYJ153V ERJ3GEYJ153V RESISTOR
ERJ3GEYJ180 ERJ3GEYJ180 RESISTOR
D0GB181JA057 D0GB181JA057 RESISTOR
ERJ3GEYJ183V ERJ3GEYJ183V RESISTOR
ERJ3GEYJ271V ERJ3GEYJ271V RESISTOR
ERJ3GEYJ222 ERJ3GEYJ222 RESISTOR
ERJ3GEY223 ERJ3GEY223 RESISTOR
ERJ3GEYJ224V ERJ3GEYJ224V RESISTOR
ERJ3GEYJ273 ERJ3GEYJ273 RESISTOR
ERJ3GEYJ330 ERJ3GEYJ330 RESISTOR
ERJ3GEYJ391V ERJ3GEYJ391V RESISTOR
D0GB393JA041 D0GB393JA041 RESISTOR
ERJ3GEYJ472V ERJ3GEYJ472V RESISTOR
ERJ3GEYG473 ERJ3GEYG473 RESISTOR
ERJ3GEYK4R7 ERJ3GEYK4R7 RESISTOR
ERJ3GEYJ560V ERJ3GEYJ560V RESISTOR
ERJ3GEYJ562 ERJ3GEYJ562 RESISTOR
ERJ3GEYJ564 ERJ3GEYJ564 RESISTOR
ERJ3GEYJ682 ERJ3GEYJ682 RESISTOR
ERJ3GEYJ683 ERJ3GEYJ683 RESISTOR
ERJ3GEYJ6R8V ERJ3GEYJ6R8V RESISTOR
ERJ3GEYJ820V ERJ3GEYJ820V RESISTOR
ERJ3GEYJ821 ERJ3GEYJ821 RESISTOR
ERJ3GEYJ822 ERJ3GEYJ822 RESISTOR
ERJ3GEYJ825 ERJ3GEYJ825 RESISTOR
ERJ6RSJR10V ERJ6RSJR10V RESISTOR
PQ4R10XJ105 PQ4R10XJ105 RESISTOR
PQ4R10XJ184 PQ4R10XJ184 RESISTOR
PQ4R10XJ222 PQ4R10XJ222 RESISTOR
PQ4R10XJ472 PQ4R10XJ472 RESISTOR
PQ4R10XJ475 PQ4R10XJ475 RESISTOR
PQHG10729Z PQHG10729Z RUBBER
PQHG10734Z PQHG10734Z RUBBER
PQMG10025W PQMG10025W RUBBER
XTB2_8GFJ XTB2_8GFJ SCREW
XTB26_8GFJ XTB26_8GFJ SCREW
PNMC1003Z PNMC1003Z SHIELD
K2ECYB000001 K2ECYB000001 SOCKET
K2HD103D0001 K2HD103D0001 SOCKET
K2LB1YYB0001 K2LB1YYB0001 SOCKET
PNHS1001Z PNHS1001Z SPACER
PQHS10561Y PQHS10561Y SPACER
PQHS10622Z PQHS10622Z SPACER
PQHS10722Y PQHS10722Y SPACER
L0AA04A00028 L0AA04A00028 SPEAKER
L0AD02A00026 L0AD02A00026 SPEAKER
PNBX1027Z1 PNBX1027Z1 SWITCH
PNJK1031Z PNJK1031Z SWITCH
PNJK1032Z PNJK1032Z SWITCH
PNJK1033Z PNJK1033Z SWITCH
PQSH2B105Z PQSH2B105Z SWITCH
PNHS1002Z PNHS1002Z TAPE
PNHS1055Z PNHS1055Z TAPE
PNJT1001Y PNJT1001Y TERMINAL
PNJT1002Y PNJT1002Y TERMINAL
PNJT1010Z PNJT1010Z TERMINAL
PQJC10056X PQJC10056X TERMINAL
PQWE10050Z PQWE10050Z TERMINAL
PNZZTG9391T PNZZTG9391T TEST TOOL
PQZZ1CD300E PQZZ1CD300E TEST TOOL
PQZZ430PIR PQZZ430PIR TEST TOOL
PFRT002 PFRT002 THERMISTER
G5AZA0000001 G5AZA0000001 TRANSFORMER
2SC6054JSL 2SC6054JSL TRANSISTOR
DSC7003S0L DSC7003S0L TRANSISTOR
2SD1819AWL 2SD1819AWL TRANSISTOR
B1ADGE000012 B1ADGE000012 TRANSISTOR
B1ADGP000008 B1ADGP000008 TRANSISTOR
B1BBAP000021 B1BBAP000021 TRANSISTOR
B1CHND000004 B1CHND000004 TRANSISTOR
PQVTBF822T7 PQVTBF822T7 TRANSISTOR
PQVTDTC143E PQVTDTC143E TRANSISTOR
UN5113 UN5113 TRANSISTOR
UN5213TX UN5213TX TRANSISTOR
UN9219J UN9219J TRANSISTOR
D4ED1270A014 D4ED1270A014 VARISTOR
D4ZZ00000032 D4ZZ00000032 VARISTOR
J0LE00000047 J0LE00000047 VARISTOR
PNJE1014Z PNJE1014Z WIRE
PNWHK16SS05N PNWHK16SS05N WIRE
PQJE10179V PQJE10179V WIRE
