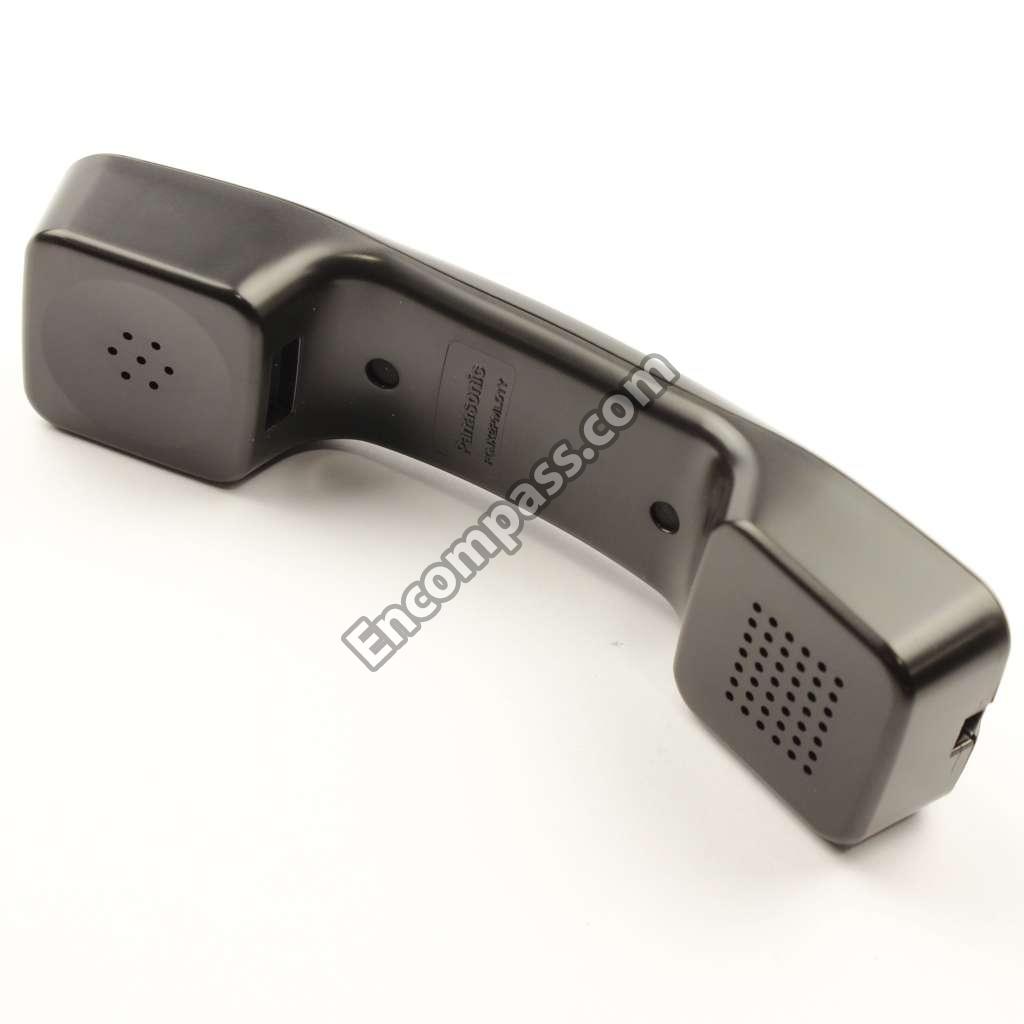

Model Image
Manufacturer

Panasonic

Model Number

KXTSC55B

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
2SA1627 2SA1627 2SA1627
2SB1218A 2SB1218A 2SB1218A-RS
2SD1819AWL 2SD1819AWL 2SD1819AR
QT-A11 QT-A11 AC ADAPTER
AN6562 AN6562 AN6562
PQYF10133Z1 PQYF10133Z1 BASE LOWER CABINET
PQKM10345X1 PQKM10345X1 BASE TOP CABINET
PQBC10261Z1 PQBC10261Z1 BUTTON
PQBC10262Z1 PQBC10262Z1 BUTTON
PQBC10263Z1 PQBC10263Z1 BUTTON
PQBC10264Z1 PQBC10264Z1 BUTTON
PQBH10023Z1 PQBH10023Z1 BUTTON
PQBX10312Z1 PQBX10312Z1 BUTTON
PQBX10313Z1 PQBX10313Z1 BUTTON
PQBX10314Z1 PQBX10314Z1 BUTTON
ECEC1HKS010 ECEC1HKS010 CAPACITOR
ECEA0JU102 ECEA0JU102 CAPACITOR
ERJ3GEYF470 ERJ3GEYF470 CAPACITOR
ECEA1CU471B ECEA1CU471B CAPACITOR
ECEA1EU101 ECEA1EU101 CAPACITOR
ECEA1HKSR22 ECEA1HKSR22 CAPACITOR
ECEAHKSR47 ECEAHKSR47 CAPACITOR
ECEA1HKA2R2I ECEA1HKA2R2I CAPACITOR
ECEA1HKKR47L ECEA1HKKR47L CAPACITOR
ECEA1HU100B ECEA1HU100B CAPACITOR
ECEA1HU220 ECEA1HU220 CAPACITOR
NCEA1HGE4R7B NCEA1HGE4R7B CAPACITOR
ECEA1VU330 ECEA1VU330 CAPACITOR
ECKD2H681KB5 ECKD2H681KB5 CAPACITOR
ECKT2H101KB ECKT2H101KB CAPACITOR
ECQE2E105KZ ECQE2E105KZ CAPACITOR
ECQE2E224JZ ECQE2E224JZ CAPACITOR
ECST0JY106 ECST0JY106 CAPACITOR
ECST1CX106 ECST1CX106 CAPACITOR
ECJ1VB0J475K ECJ1VB0J475K CAPACITOR
ECUZ1C104ZFV ECUZ1C104ZFV CAPACITOR
ECUV1C224ZFV ECUV1C224ZFV CAPACITOR
ECUV1C473KBV ECUV1C473KBV CAPACITOR
ECUV1C683KBV ECUV1C683KBV CAPACITOR
ECUV1H101JCV ECUV1H101JCV CAPACITOR
ECU1H102KBV ECU1H102KBV CAPACITOR
ECUV1H122KBV ECUV1H122KBV CAPACITOR
ECUV1H151JCV ECUV1H151JCV CAPACITOR
ECUV1H153KBV ECUV1H153KBV CAPACITOR
ECJ1XC1H180J ECJ1XC1H180J CAPACITOR
ECUV1H200JCV ECUV1H200JCV CAPACITOR
ECUV1H220JCV ECUV1H220JCV CAPACITOR
ECUV1H222KBV ECUV1H222KBV CAPACITOR
ECUV1H223KB ECUV1H223KB CAPACITOR
ECUV1H223KBV ECUV1H223KBV CAPACITOR
ECUV1H333KDV ECUV1H333KDV CAPACITOR
ECUV1H683KBN ECUV1H683KBN CAPACITOR
ECUV1H821KBV ECUV1H821KBV CAPACITOR
ECUV1H822KBV ECUV1H822KBV CAPACITOR
EECFME5R5473 EECFME5R5473 CAPACITOR
PQCUV1A105KB PQCUV1A105KB CAPACITOR
PQCUV1C105ZF PQCUV1C105ZF CAPACITOR
PQCUV1H103ZF PQCUV1H103ZF CAPACITOR
PQCUV1H333JC PQCUV1H333JC CAPACITOR
PQPK12689Z PQPK12689Z CARTON
ELEV220KA ELEV220KA COIL
PQLQZMR33K PQLQZMR33K COIL
PQLQZM100K PQLQZM100K COIL
PQLQZM220K PQLQZM220K COIL
PQJP14A93Z PQJP14A93Z CONNECTOR
PQJP14B66Z PQJP14B66Z CONNECTOR
PQJS14A79Z PQJS14A79Z CONNECTOR
PQJS14B06Z PQJS14B06Z CONNECTOR
PQJS14B15Z PQJS14B15Z CONNECTOR
EVNDXAA03B53 EVNDXAA03B53 CONTROL
PQJA10088Z PQJA10088Z CORD
PQVCK3581N9Z PQVCK3581N9Z CRYSTAL
PQPN10641Y PQPN10641Y CUSHION
PQPN10641Z PQPN10641Z CUSHION
MAZ41800MF MAZ41800MF DIODE
MA4091TA MA4091TA DIODE
MAZ40620M MAZ40620M DIODE
MTZJ5R1BTA MTZJ5R1BTA DIODE
MA4051M MA4051M DIODE
MA110 MA110 DIODE
TVS1N4148V TVS1N4148V DIODE
MA4024 MA4024 DIODE
MAZ40470L MAZ40470L DIODE
MA4051L MA4051L DIODE
MA4300 MA4300 DIODE
MA700A MA700A DIODE
MA8030L MA8030L DIODE
MAZ80510LL MAZ80510LL DIODE
PQVDBR1112H PQVDBR1112H DIODE
PQVDHZS4ALL PQVDHZS4ALL DIODE
PQVDS1YB40F1 PQVDS1YB40F1 DIODE
MA4056N MA4056N DIODE
MA4120 MA4120 DIODE
ECEA1AU101 ECEA1AU101 ECEA10V100L
ECEA1EU470 ECEA1EU470 ECEA1CFS470
ECEAUCK100 ECEAUCK100 ECEA1CK100
ECEA1CKS101B ECEA1CKS101B ECEA1CKS101B
ECEA1CK220 ECEA1CK220 ECEA1CU220
ECEA1HKSR22E ECEA1HKSR22E ECEA1HKSR22
ECUV1H103KBV ECUV1H103KBV ECUV1H103KBM
ECUV1H682MD ECUV1H682MD ECUV1H682MBV
ERDS2TJ392 ERDS2TJ392 ERD25FJ392
ERD25TJ393T ERD25TJ393T ERD25TJ393T
ERDS2TJ473 ERDS2TJ473 ERD25TJ473
ERDS2TJ823T ERDS2TJ823T ERD25TJ823V
ERDS2TJ472TD ERDS2TJ472TD ERD25TLJ472
ERDS2FJ103 ERDS2FJ103 ERDS2TJ103T
ERDS2TJ104 ERDS2TJ104 ERDS2TJ104T
ERDS2TJ105 ERDS2TJ105 ERDS2TJ105
ERDS2FJ152 ERDS2FJ152 ERDS2TJ152
ERDS2TJ222TD ERDS2TJ222TD ERDS2TJ222TD
ERD10TLJ332 ERD10TLJ332 ERDS2TJ332T
ERD25TJ683V ERD25TJ683V ERDS2TJ683
ERJ3GEYJ332V ERJ3GEYJ332V ERJ3GEYG332
ERJ3GEYJ333 ERJ3GEYJ333 ERJ3GEYG333
ERJ3GEYG473 ERJ3GEYG473 ERJ3GEYG473
ERJ3GEYJ105 ERJ3GEYJ105 ERJ3GEYJ105V
ERJ3GEYJ123V ERJ3GEYJ123V ERJ3GEYJ123V
ERJ3GEYJ153V ERJ3GEYJ153V ERJ3GEYJ153V
ERJ3GEY223 ERJ3GEY223 ERJ3GEYJ223V
ERJ3GEYK4R7 ERJ3GEYK4R7 ERJ3GEYK4R7
PQVBB480E2 PQVBB480E2 FILTER
PQVFCS8_00MT PQVFCS8_00MT FILTER
PQJX2PML01Y PQJX2PML01Y HANDSET
PQJA212V PQJA212V HANDSET CORD
PQKE10070Z1 PQKE10070Z1 HANDSET HANGER
PQVINJM4558F PQVINJM4558F IC
PQVIAS2504 PQVIAS2504 IC
PQVIBA8205F PQVIBA8205F IC
C1CB00002030 C1CB00002030 IC
YEAMZAL0001 YEAMZAL0001 IC
PQVISC77655S PQVISC77655S IC
PQVITC35219F PQVITC35219F IC
C0JBAS000226 C0JBAS000226 IC
PQVI25LC32IT PQVI25LC32IT IC
PQVI3877NB01 PQVI3877NB01 IC
PQQW11958ZA PQQW11958ZA INSTRUCT BOOK
PQQW11959ZA PQQW11959ZA INSTRUCT BOOK
PQQX11959ZA PQQX11959ZA INSTRUCT BOOK
K2EZ2B000040 K2EZ2B000040 JACK
PQJJ1C001Z PQJJ1C001Z JACK
K2LA1YYB0001 K2LA1YYB0001 JACK
PQBT10001Z1 PQBT10001Z1 KNOB
PQADLMG164C1 PQADLMG164C1 LCD
PQVDBRPY1204 PQVDBRPY1204 LED
PQJA10075Z PQJA10075Z LINE CORD
YEAD1SS133 YEAD1SS133 MA165
MA4120HTA MA4120HTA MA4120HTA
MA4120M MA4120M MA4120M
PQJM122Z PQJM122Z MICROPHONE
PQGT13427Z PQGT13427Z NAMEPLATE
PQVCJ3581N9Z PQVCJ3581N9Z OSCILLATOR
KXTSC55B_EX KXTSC55B_EX OTC TELEPHONE
PQGP10141Z1 PQGP10141Z1 PANEL
PQWP2TSC55B PQWP2TSC55B PC BOARD
PQWP3TSC55B PQWP3TSC55B PC BOARD
PSWP1TSC55B PSWP1TSC55B PC BOARD
PQVIPC817K PQVIPC817K PHOTO COUPLER
PQVIPC851K PQVIPC851K PHOTO COUPLER
PQVCL3276N9Z PQVCL3276N9Z PQVCL3276N9Z
PQSL151Z PQSL151Z RELAY
ERDS2FJ331 ERDS2FJ331 RESISTOR
ERDS2TJ102 ERDS2TJ102 RESISTOR
ERDS1FJ100P ERDS1FJ100P RESISTOR
ERDS1FJ682 ERDS1FJ682 RESISTOR
ERDS2TJ150T ERDS2TJ150T RESISTOR
ERDS2TJ333T ERDS2TJ333T RESISTOR
ERJ3ENF1804 ERJ3ENF1804 RESISTOR
ERJ3GEYF303 ERJ3GEYF303 RESISTOR
ERJ3GEYJ822 ERJ3GEYJ822 RESISTOR
ERJ3GEYJ101 ERJ3GEYJ101 RESISTOR
ERJ3GEYJ104V ERJ3GEYJ104V RESISTOR
ERJ3GEYK106 ERJ3GEYK106 RESISTOR
ERJ3GEYJ124 ERJ3GEYJ124 RESISTOR
D0GB155JA057 D0GB155JA057 RESISTOR
ERJ3GEYJ182V ERJ3GEYJ182V RESISTOR
ERJ3GEYJ183V ERJ3GEYJ183V RESISTOR
ERJ3GEYJ184V ERJ3GEYJ184V RESISTOR
ERJ3GEYJ271V ERJ3GEYJ271V RESISTOR
ERJ3GEYJ222 ERJ3GEYJ222 RESISTOR
ERJ3GEYJ224V ERJ3GEYJ224V RESISTOR
ERJ3GEYJ225V ERJ3GEYJ225V RESISTOR
ERJ3GEYJ273 ERJ3GEYJ273 RESISTOR
ERJ3GEYJ275 ERJ3GEYJ275 RESISTOR
ERJ3GEYJ334V ERJ3GEYJ334V RESISTOR
ERJ3GEYJ335 ERJ3GEYJ335 RESISTOR
ERJ3GEYJ391V ERJ3GEYJ391V RESISTOR
D0GB393JA041 D0GB393JA041 RESISTOR
ERJ3GEYJ394V ERJ3GEYJ394V RESISTOR
ERJ3GEYJ470 ERJ3GEYJ470 RESISTOR
ERJ3GEYJ472V ERJ3GEYJ472V RESISTOR
ERJ3GEYJ474 ERJ3GEYJ474 RESISTOR
ERJ3GEYJ562 ERJ3GEYJ562 RESISTOR
ERJ3GEYJ564 ERJ3GEYJ564 RESISTOR
ERJ3GEYJ682 ERJ3GEYJ682 RESISTOR
ERJ3GEYJ683 ERJ3GEYJ683 RESISTOR
ERJ3GEYJ823 ERJ3GEYJ823 RESISTOR
ERJ3GEYJ824 ERJ3GEYJ824 RESISTOR
ERJ3GEY0R00 ERJ3GEY0R00 RESISTOR
ERJ6GEYF825 ERJ6GEYF825 RESISTOR
ERJ8GEYF825 ERJ8GEYF825 RESISTOR
PQRD1VJ330 PQRD1VJ330 RESISTOR
PQVDDSS301L PQVDDSS301L RESISTOR
PQ4R10XJ000 PQ4R10XJ000 RESISTOR
PQ4R10XJ101 PQ4R10XJ101 RESISTOR
PQ4R10XJ102 PQ4R10XJ102 RESISTOR
PQ4R10XJ151 PQ4R10XJ151 RESISTOR
PQ4R10XJ222 PQ4R10XJ222 RESISTOR
PQ4R10XJ224 PQ4R10XJ224 RESISTOR
PQ4R10XJ333 PQ4R10XJ333 RESISTOR
PQ4R10XJ391 PQ4R10XJ391 RESISTOR
PQ4R10XJ471 PQ4R10XJ471 RESISTOR
PQ4R10XJ472 PQ4R10XJ472 RESISTOR
PQ4R10XJ564 PQ4R10XJ564 RESISTOR
PQ4R18XJ000 PQ4R18XJ000 RESISTOR
ERJ3GEYJ331 ERJ3GEYJ331 RN4B2AY102J
ERJ3GEYJ122 ERJ3GEYJ122 RN4B2AY122J
XTW3_10PFJ7 XTW3_10PFJ7 SCREW
XTW3_S14P XTW3_S14P SCREW
PQHX10851Z PQHX10851Z SHEET
K2LA104B0019 K2LA104B0019 SOCKET
PQJJ1TA15Z PQJJ1TA15Z SOCKET
K2LB1YYB0001 K2LB1YYB0001 SOCKET
PQHR10619Z PQHR10619Z SPACER
PQHR10620Z PQHR10620Z SPACER
PQHX10856Y PQHX10856Y SPACER
PQMG10020Z PQMG10020Z SPACER
PQAS65P37Z PQAS65P37Z SPEAKER
ESE14A211 ESE14A211 SWITCH
PFSR12A01Z PFSR12A01Z SWITCH
PQSX10084Z PQSX10084Z SWITCH
PQSX10085Z PQSX10085Z SWITCH
PQSX10086Z PQSX10086Z SWITCH
PQZZ14K8Z PQZZ14K8Z TEST TOOL
PQZZ14K9Z PQZZ14K9Z TEST TOOL
PQRPAR390N PQRPAR390N THERMISTOR
0N3181 0N3181 TRANSDUCER
PQLT2D2B PQLT2D2B TRANSFORMER
PQLT8D2A PQLT8D2A TRANSFORMER
2SA933 2SA933 TRANSISTOR
PQVTD143Z106 PQVTD143Z106 TRANSISTOR
PQVTKSD261CY PQVTKSD261CY TRANSISTOR
PQVT2N6517CA PQVT2N6517CA TRANSISTOR
UN5113 UN5113 TRANSISTOR
UN5213TX UN5213TX TRANSISTOR
B1ACGP000007 B1ACGP000007 TRANSISTOR
2SB1413 2SB1413 TRANSISTOR
2SD1994A 2SD1994A TRANSISTOR
2SD2137 2SD2137 TRANSISTOR
2SK1228 2SK1228 TRANSISTOR
2SK3018 2SK3018 TRANSISTOR
ERJ3GEYJ103V ERJ3GEYJ103V VRESAL8J103
