Model Image
Manufacturer

Panasonic

Model Number

MCCL933

Description

Vacuum - Bagless Canister

Interactive Exploded View

Parts List

Part Number Description
AC52FDXEZG0U AC52FDXEZG0U BLADE
AC04ADXEZV07 AC04ADXEZV07 BRACKET
AC46NDXEZV07 AC46NDXEZV07 BUTTON

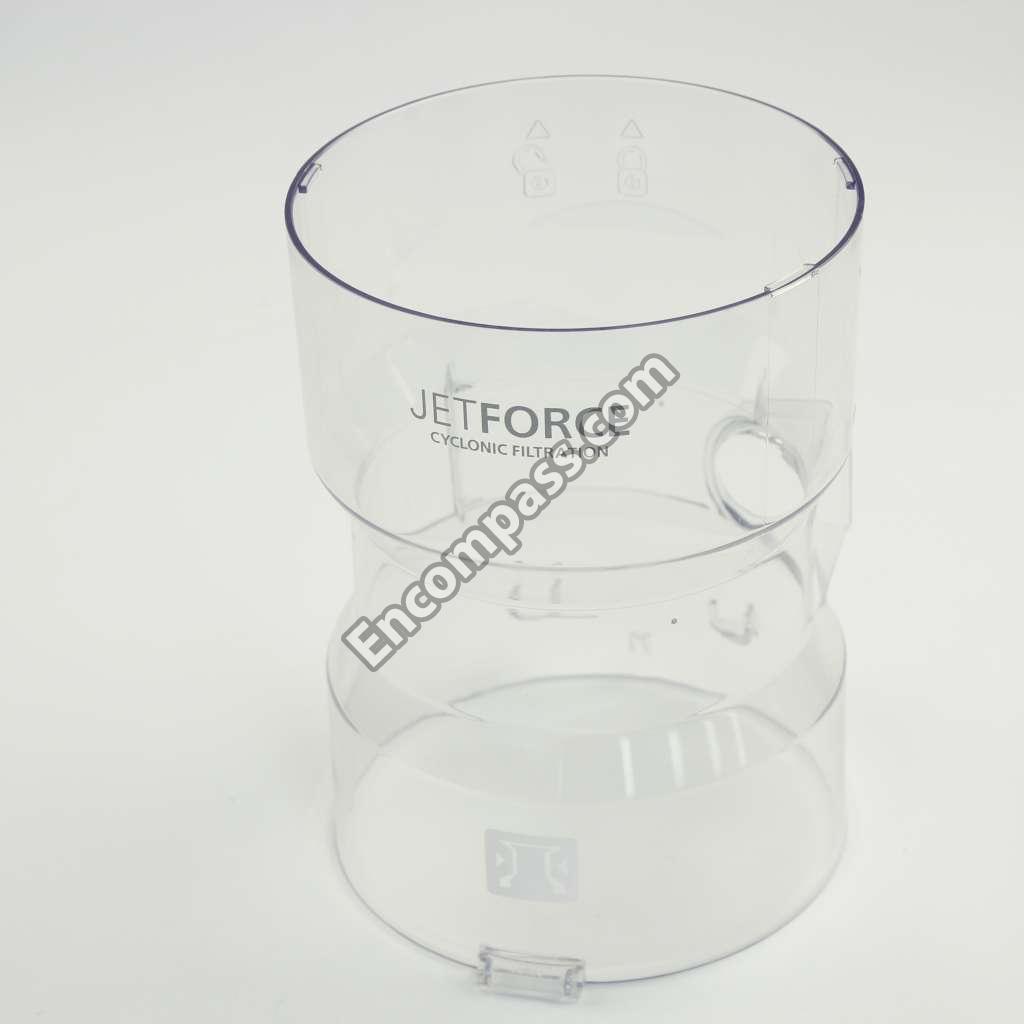

AC42KDXEZU00 AC42KDXEZU00 CABINET
AC03ADXEZV07 AC03ADXEZV07 CABINET
AC02ADXEZV07 AC02ADXEZV07 CABINET
AC09FDXEZ000 AC09FDXEZ000 CASE
AC93CAKTZV07 AC93CAKTZV07 CASTER
AC85KDXEZG0U AC85KDXEZG0U COMPARTMENT
AC4154460 AC4154460 CONNECTOR
AC19NDXEZ000 AC19NDXEZ000 CONTACT
AC98NCVAZV06 AC98NCVAZV06 CONTACT DISC
AC68KAJDZV07 AC68KAJDZV07 COVER
AC63FDXEZV07 AC63FDXEZV07 COVER
AC48HDXFZWUN AC48HDXFZWUN COVER
AC06BDXEZW0N AC06BDXEZW0N COVER
AC44KDXEZ000 AC44KDXEZ000 FILTER

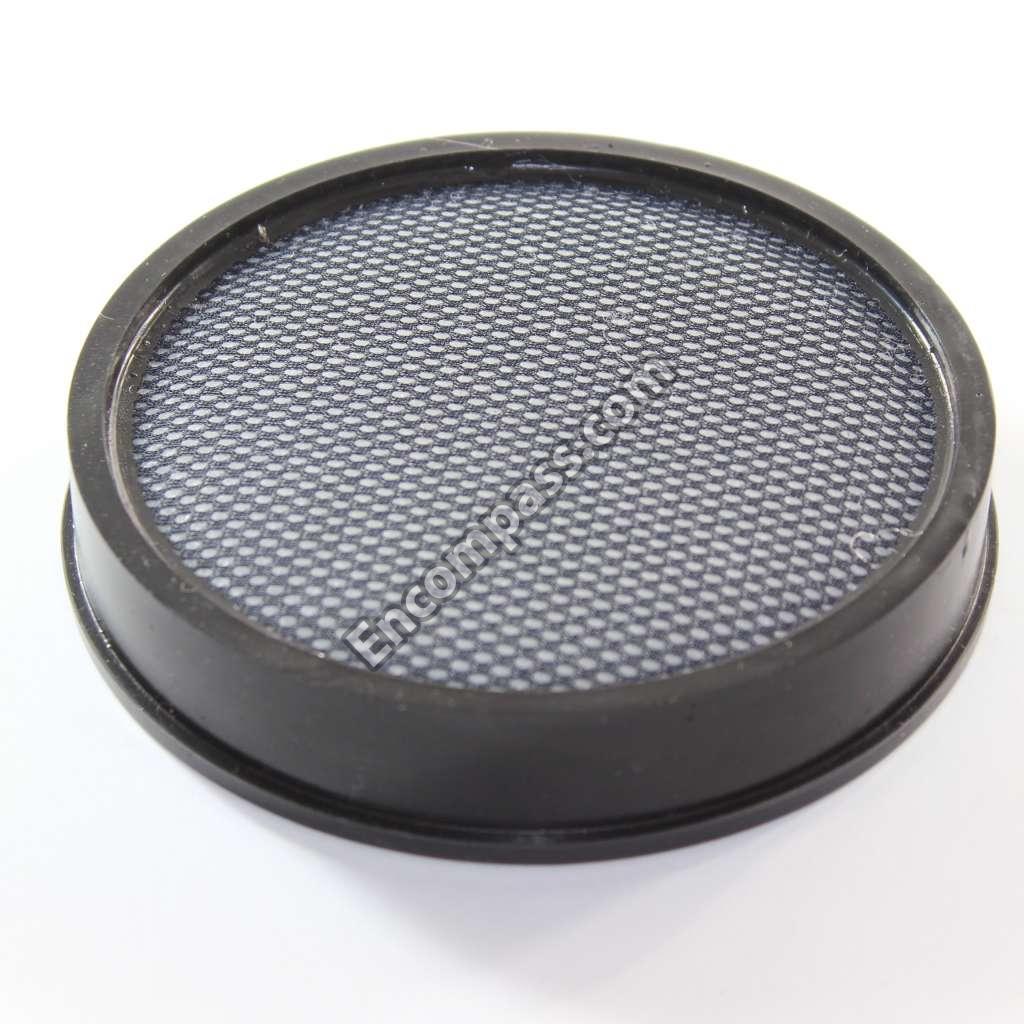

AC44KDSCZ000 AC44KDSCZ000 FILTER
AC38KDXFZU00 AC38KDXFZU00 FILTER
AC38KDWCZV07 AC38KDWCZV07 FILTER
AC27SDXFZU03 AC27SDXFZU03 FITTING
AC03LDXEZU00 AC03LDXEZU00 GASKET
AC39LDXEZG0U AC39LDXEZG0U GUIDE
AC95BDXFZU00 AC95BDXFZU00 HANDLE
AC64BDXEZW0N AC64BDXEZW0N HANDLE
AC01BDXEZV07 AC01BDXEZV07 HANDLE
AC94PDXFZU03 AC94PDXFZU03 HOSE
AC84PDXFZM00 AC84PDXFZM00 HOSE

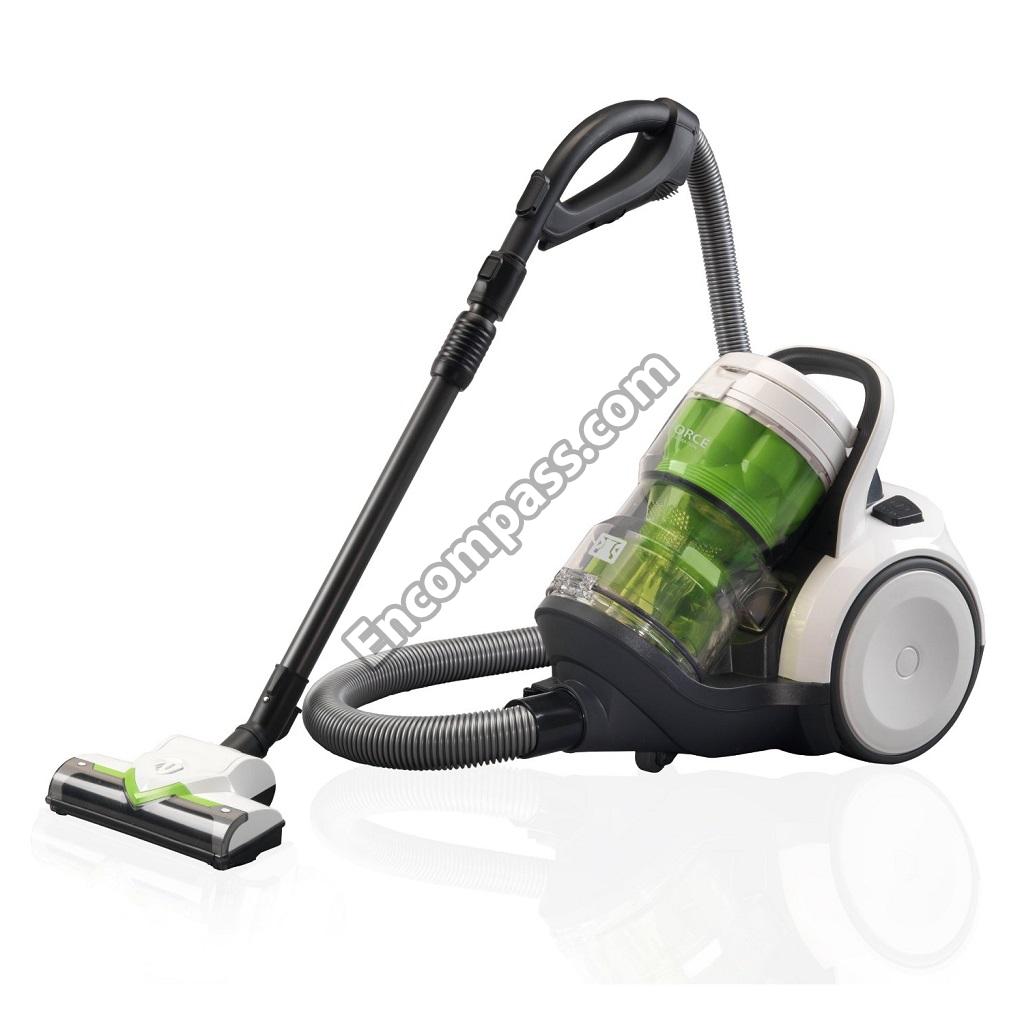

MC-CL933 MC-CL933 JETFORCE TECHNOLOGY BAGLESS CANISTER VACUUM CLEANER
AC94NDXEZ000 AC94NDXEZ000 LEVER
AC20HDXEZWUN AC20HDXEZWUN LID
AC92FDJHZ000 AC92FDJHZ000 MOTOR

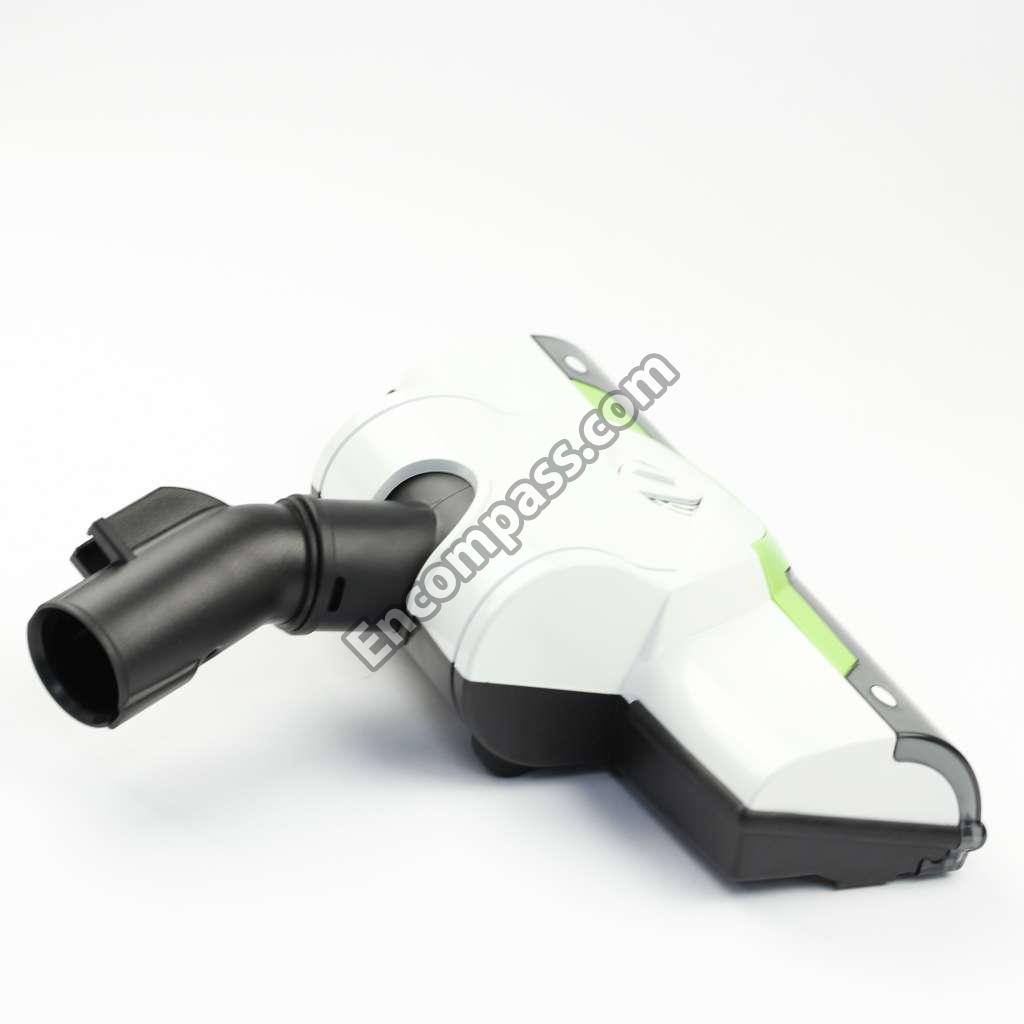

AC99RDXFZW0N AC99RDXFZW0N NOZZLE
AC27RDXEZ000 AC27RDXEZ000 NOZZLE
AC61ZDXFZ0U0 AC61ZDXFZ0U0 PACKAGING
AC75ADXEZ000 AC75ADXEZ000 PACKING
AC74KDMTZ000 AC74KDMTZ000 PACKING
AC73KDXEZU03 AC73KDXEZU03 PACKING
AC39ADDWZ000 AC39ADDWZ000 PACKING
AC97LDMTZ000 AC97LDMTZ000 PARTITION
AC05EDXEZV07 AC05EDXEZV07 PEDAL
AC64PDXEZV0S AC64PDXEZV0S PIPE
AC50PDXFZU00 AC50PDXFZU00 PIPE
AC25KDXEZ000 AC25KDXEZ000 PLATE
AC17HDXFZV07 AC17HDXFZV07 PLATE
AC43KDXEZG0Q AC43KDXEZG0Q PRE FILTER
AC76FDXFZ000 AC76FDXFZ000 PROTECTOR
AC69KJMZV07 AC69KJMZV07 PROTECTOR
AC99NDXEZV07 AC99NDXEZV07 REEL
AC01NCUHZ000 AC01NCUHZ000 REEL
AXTN4-20BFY AXTN4-20BFY SCREW
AXTN4_16BFY AXTN4_16BFY SCREW
AXTN3_8BFY AXTN3_8BFY SCREW
AC74EDXFZU00 AC74EDXFZU00 SEAL
AC74EDXEZU00 AC74EDXEZU00 SEAL
AC53MAKEZ00 AC53MAKEZ00 SPACER
AC70KDVJZP00 AC70KDVJZP00 SPRING
AC67KDXEZ000 AC67KDXEZ000 SPRING
AC47NDXEZ000 AC47NDXEZ000 SPRING
AC23DDKMZ000 AC23DDKMZ000 SPRING
AC36KDXEZ000 AC36KDXEZ000 SUPPORT
AC32KDXEZV07 AC32KDXEZV07 SUPPORT
AC24PDXFZU00 AC24PDXFZU00 SUPPORT
AC03FAFVZ000 AC03FAFVZ000 SUPPORT
AC02FDJHZ000 AC02FDJHZ000 SUPPORT
AC01EDRZZ000 AC01EDRZZ000 SWITCH
AC75KDXEZW0N AC75KDXEZW0N TERMINAL
AC99PDXFZU00 AC99PDXFZU00 WAND
AC99CDXEZW0N AC99CDXEZW0N WHEEL
AC95CAKTZV06 AC95CAKTZV06 WHEEL
AC85WDYUZ000 AC85WDYUZ000 WIRE
AC85GDYUZ000 AC85GDYUZ000 WIRE
AC85GDXFZ000 AC85GDXFZ000 WIRE
