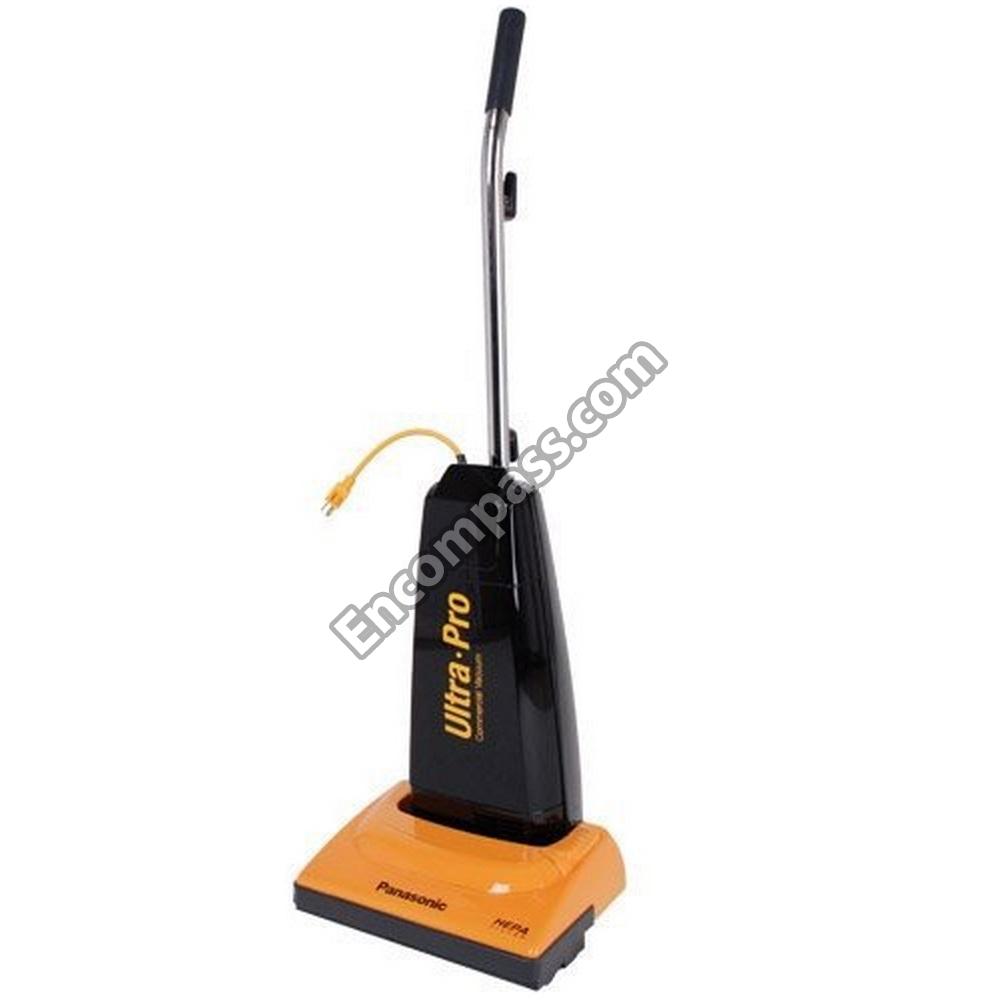

Model Image
Manufacturer

Panasonic

Model Number

MCGG21301

Description

Bagged Upright

Interactive Exploded View

Parts List

Part Number Description

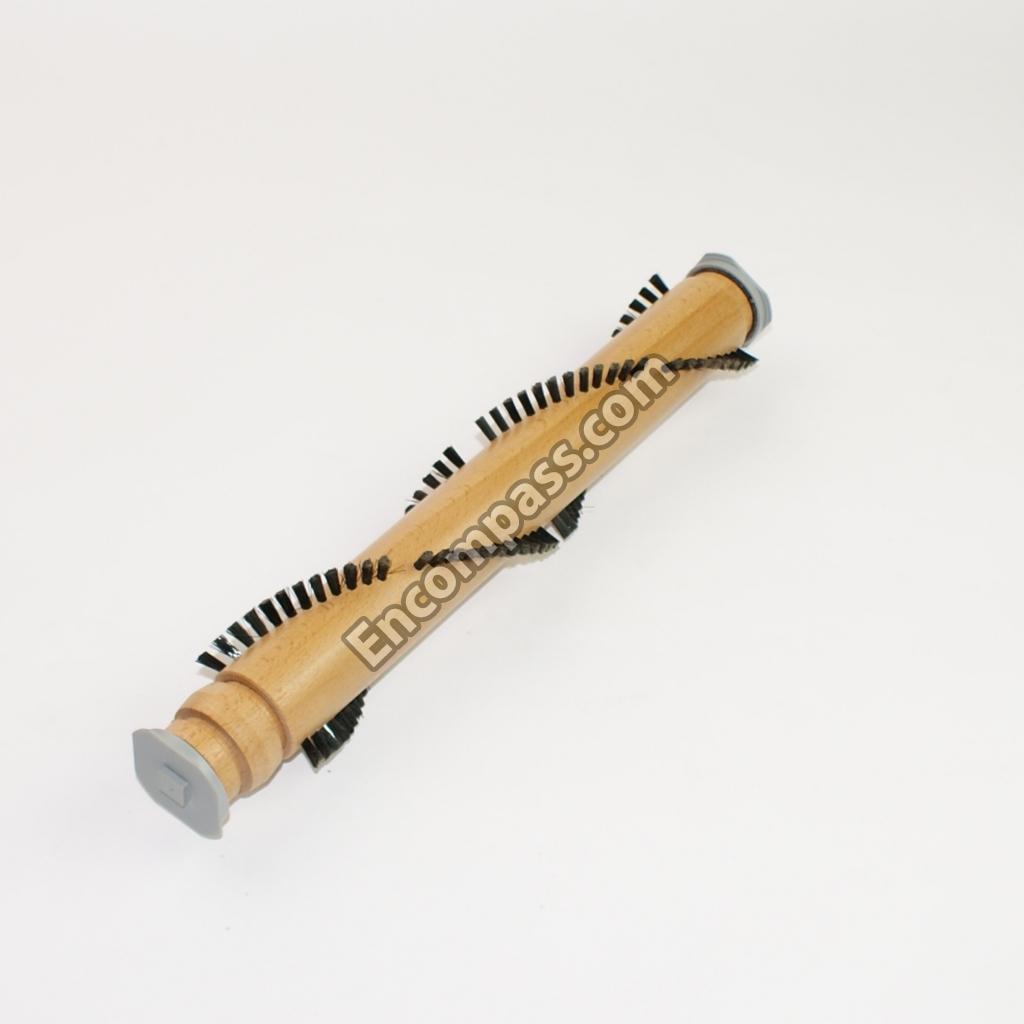

AC84RDKCZ000 AC84RDKCZ000 AGITATOR
MC-V155M MC-V155M BAG
MC-V270B MC-V270B BELT
AC94EDFEZY02 AC94EDFEZY02 CABLE
AC26FCHT1000 AC26FCHT1000 CAP
AC68KJMZV06 AC68KJMZV06 CASE
AC23FBVNZ000 AC23FBVNZ000 CLIP
AC78KDKPZU03 AC78KDKPZU03 COMPARTMENT
AC44DCYKZ000 AC44DCYKZ000 CONNECTOR
C02LDKCZ000 C02LDKCZ000 COVER
AMC02H-F70E AMC02H-F70E COVER
AC60KBFCZUU1 AC60KBFCZUU1 COVER
AC38HAPNZ0U AC38HAPNZ0U COVER
AC23HDKCZ000 AC23HDKCZ000 COVER
AC03EARFZV06 AC03EARFZV06 COVER
AC19FJPZV06 AC19FJPZV06 CUSHION
AC19AARKZV00 AC19AARKZV00 CUSHION
MC-V191H MC-V191H FILTER
AC37KAAEZ00 AC37KAAEZ00 FILTER
AC73KV0ZV06 AC73KV0ZV06 GASKET
AMC66K-V01V006 AMC66K-V01V006 GASKET
AMC43S-V00 AMC43S-V00 GUIDE
AC95BTEZVU7 AC95BTEZVU7 HANDLE
AC01ADKPZYU2 AC01ADKPZYU2 HOUSING
AMC60H-F74VU06 AMC60H-F74VU06 INLET
AC61LAGMZ00 AC61LAGMZ00 KIT
AMC68N-AV0K AMC68N-AV0K LATCH
AC92FBJXZ000 AC92FBJXZ000 MOTOR
AC09FBJXZU01 AC09FBJXZU01 MOTOR
AMP21B-17Z00 AMP21B-17Z00 NUT
AC91ADKPZV07 AC91ADKPZV07 PLATE
AC27ADKPZV07 AC27ADKPZV07 PLATE
AC06AAJUZ00 AC06AAJUZ00 PLATE
AC51E4GZU01 AC51E4GZU01 PROTECTOR
AC06WAPNZ00 AC06WAPNZ00 RETAINER
AXYN4_E10FFY AXYN4_E10FFY SCREW
AXTN4-20BFY AXTN4-20BFY SCREW
AXTN4_16BFY AXTN4_16BFY SCREW
AMC73B-V0Z00 AMC73B-V0Z00 SCREW
AMC68A-V30 AMC68A-V30 SCREW
AMC25S-V00 AMC25S-V00 SHAFT
AC16CNXZ00 AC16CNXZ00 SHAFT
AC16CDSSZ000 AC16CDSSZ000 SHAFT
AMC57A-V00 AMC57A-V00 SPRING
AC70NYUZ00 AC70NYUZ00 SPRING
AMC32K-V0Z00 AMC32K-V0Z00 SUPPORT
AMC03F-V00 AMC03F-V00 SUPPORT
AC18MJMZV06 AC18MJMZV06 SUPPORT
AC99GAMMZ00 AC99GAMMZ00 SUPPRESSOR
AC98EARFZ0U AC98EARFZ0U SWITCH
AMC596-702 AMC596-702 TIE
AXWG6E115FY AXWG6E115FY WASHER
AXWE10J223FE AXWE10J223FE WASHER
AC99CBSAV06 AC99CBSAV06 WHEEL
AC90QNGZV06 AC90QNGZV06 WHEEL
AC99WAJDZ00 AC99WAJDZ00 WIRE
AC38GARTZ000 AC38GARTZ000 WIRE
AC37GTEZ0U AC37GTEZ0U WIRE
