Model Image
Manufacturer

Panasonic

Model Number

MCGG233

Description

Comm Vac - Ultra Pro Bagg

Interactive Exploded View

Parts List

Part Number Description
AC84RDKCZ000 AC84RDKCZ000 AGITATOR
MC-V155M MC-V155M BAG
MC-V270B MC-V270B BELT
AC94EDFEZY02 AC94EDFEZY02 CABLE
AC61KJPZV06 AC61KJPZV06 CAM
AC26FCHT1000 AC26FCHT1000 CAP
AC68KJMZV06 AC68KJMZV06 CASE
AC23FBVNZ000 AC23FBVNZ000 CLIP
AC78KDKPZV07 AC78KDKPZV07 COMPARTMENT
AC44DCYKZ000 AC44DCYKZ000 CONNECTOR
AC03EARFZV06 AC03EARFZV06 COVER
AC38HAPNZ0U AC38HAPNZ0U COVER
AC60KBFCZUU1 AC60KBFCZUU1 COVER
C02LDKCZ000 C02LDKCZ000 COVER
AC19AARKZV00 AC19AARKZV00 CUSHION
AC19FJPZV06 AC19FJPZV06 CUSHION
AC37KAAEZ00 AC37KAAEZ00 FILTER
MC-V191H MC-V191H FILTER
AMC66K-V01V006 AMC66K-V01V006 GASKET
AC73KV0ZV06 AC73KV0ZV06 GASKET
AMC43S-V00 AMC43S-V00 GUIDE
AC95BTEZVU7 AC95BTEZVU7 HANDLE
AC34PV0ZV07 AC34PV0ZV07 HOSE
AC01ADUSZUU3 AC01ADUSZUU3 HOUSING
AC60HF74V07 AC60HF74V07 INLET
AC96HEAUZVU7 AC96HEAUZVU7 INLET
AC61LAGMZ00 AC61LAGMZ00 KIT

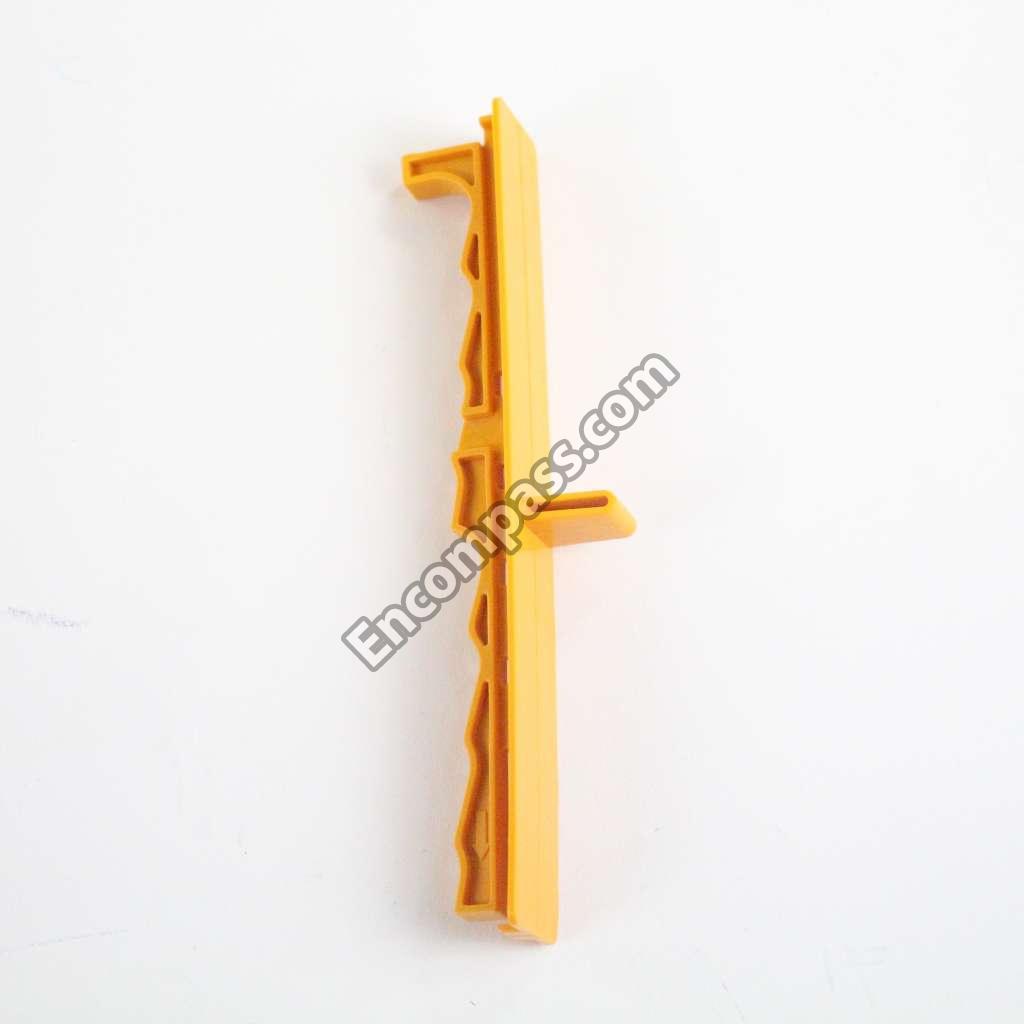

AC57HJPZY02 AC57HJPZY02 KNOB
AMC68N-AV0K AMC68N-AV0K LATCH

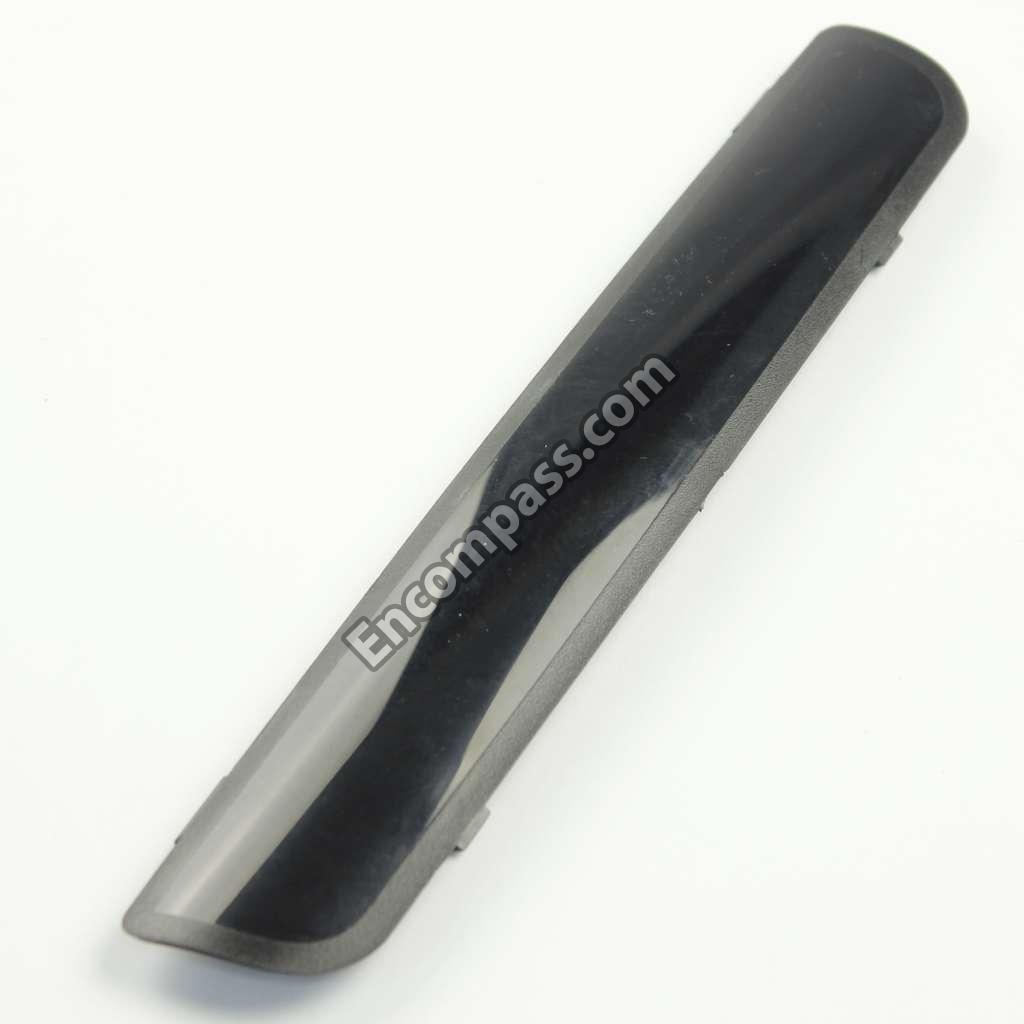

AC23HDKCZU03 AC23HDKCZU03 LENS
AC09FBJXZU01 AC09FBJXZU01 MOTOR
AC92FBJZZ000 AC92FBJZZ000 MOTOR
AMP21B-17Z00 AMP21B-17Z00 NUT
AC61ZEAUZ000 AC61ZEAUZ000 PACKAGING
AC06AAJUZ00 AC06AAJUZ00 PLATE
AC27AAEZZV07 AC27AAEZZV07 PLATE

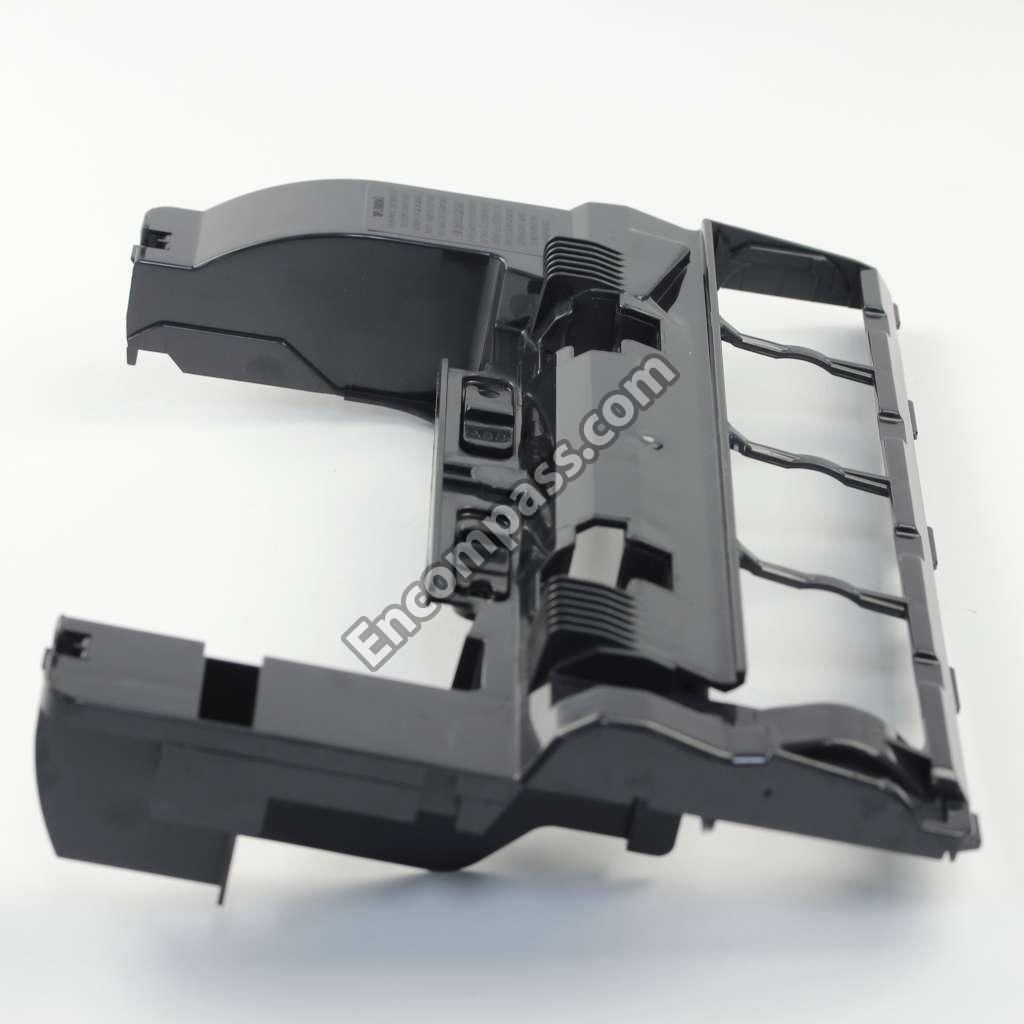

AC91AAEZZV07 AC91AAEZZV07 PLATE

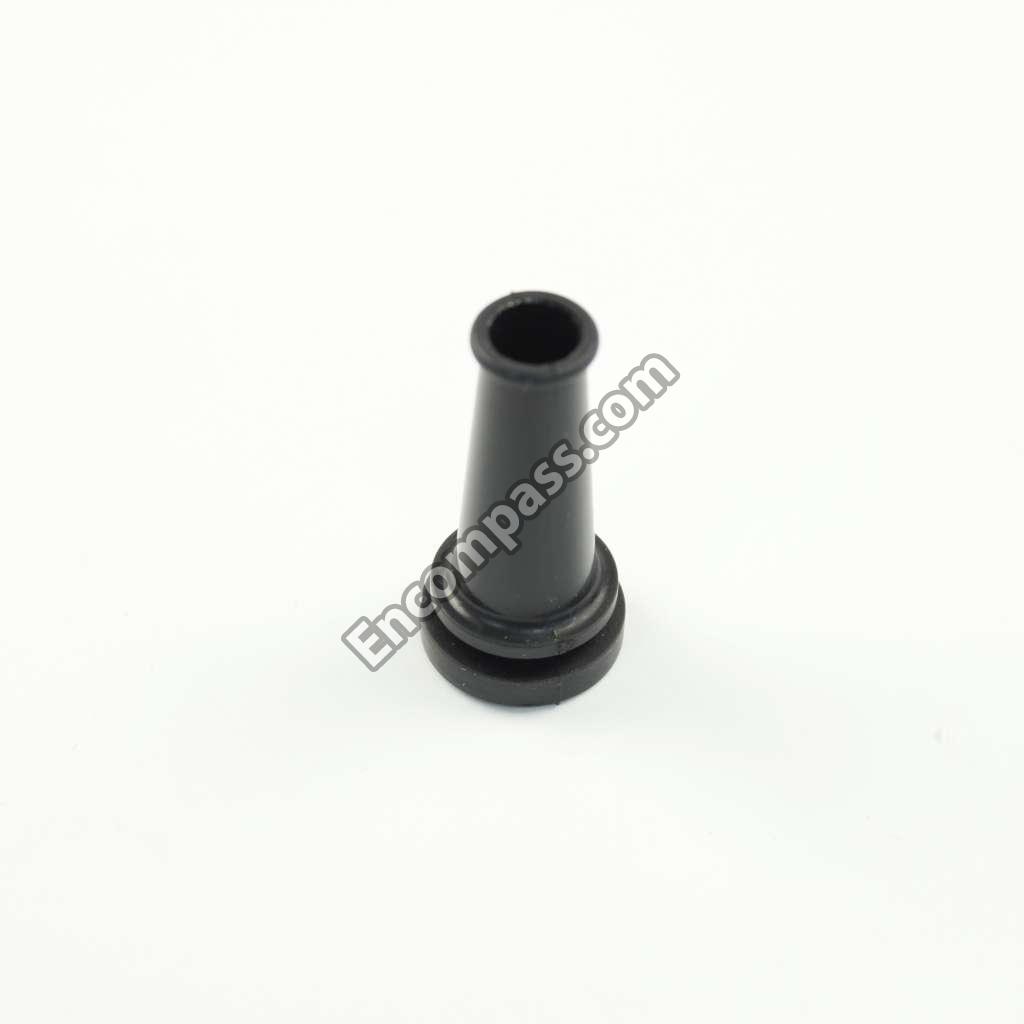

AC51E4GZV07 AC51E4GZV07 PROTECTOR
AC06WAPNZ00 AC06WAPNZ00 RETAINER
AC68ACUTZ000 AC68ACUTZ000 SCREW
AMC73B-V0Z00 AMC73B-V0Z00 SCREW
AXTN4_16BFY AXTN4_16BFY SCREW
AXTN4-20BFY AXTN4-20BFY SCREW
AXYN4_E10FFY AXYN4_E10FFY SCREW
AC16CDSSZ000 AC16CDSSZ000 SHAFT
AC16CNXZ00 AC16CNXZ00 SHAFT
AMC25S-V00 AMC25S-V00 SHAFT
AMC57A-V00 AMC57A-V00 SPRING
AC18MJMZV06 AC18MJMZV06 SUPPORT
AC53KAPNZW03 AC53KAPNZW03 SUPPORT
AMC03F-V00 AMC03F-V00 SUPPORT
AMC32K-V0Z00 AMC32K-V0Z00 SUPPORT
AC99GAMMZ00 AC99GAMMZ00 SUPPRESSOR
AC98EARFZ0U AC98EARFZ0U SWITCH
AMC596-702 AMC596-702 TIE
AXWE10J223FE AXWE10J223FE WASHER
AXWG6E115FY AXWG6E115FY WASHER
AC90QNGZV06 AC90QNGZV06 WHEEL
AC99CBSAZV07 AC99CBSAZV07 WHEEL
AC37GTEZ0U AC37GTEZ0U WIRE
AC38GARTZ000 AC38GARTZ000 WIRE
AC99WAJDZ00 AC99WAJDZ00 WIRE
