Model Image
Manufacturer

Panasonic

Model Number

MCH2000

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
AMC27F-ZY00U AMC27F-ZY00U AMC27F-ZYZ0U
AMC742-006 AMC742-006 AXLE
AMC742-029 AMC742-029 BAR
AMC415-4967 AMC415-4967 BASE
AMC743-395 AMC743-395 BEARING
MC-V320B MC-V320B BELT
AMC742-015 AMC742-015 BLOCK
AMC742-509 AMC742-509 BRUSH
AMC742-506 AMC742-506 BRUSH
AMC742-478 AMC742-478 BRUSH
AMC742-031 AMC742-031 BRUSH
AMC742-030 AMC742-030 BRUSH

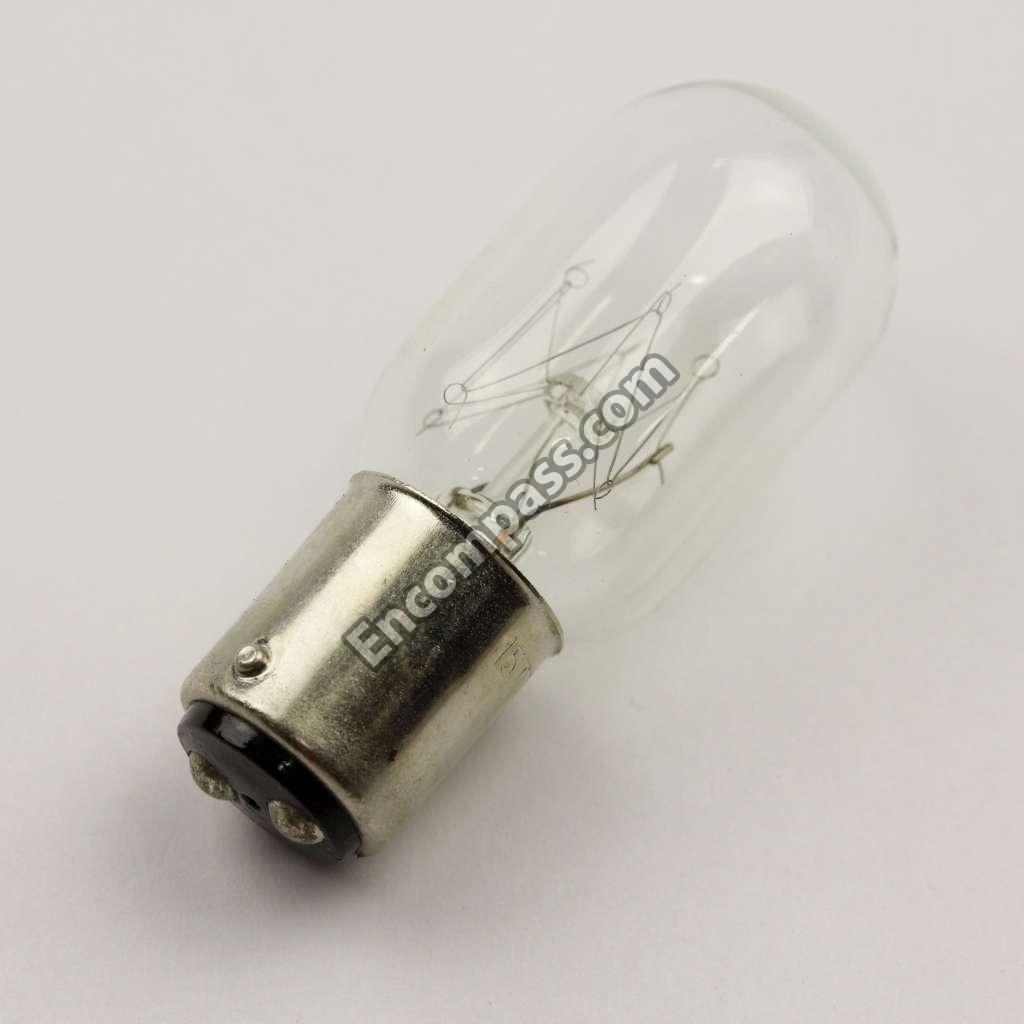

AMC596-181 AMC596-181 BULB
AMC414-8425 AMC414-8425 BUMPER
AMC681-276 AMC681-276 BUSHING (10)
AMC744-280 AMC744-280 BUTTON
C01ZZZ00U C01ZZZ00U C01ZZZ00U
AMC744-039 AMC744-039 CAM
AMC414-8543 AMC414-8543 CAP
AMC61Z-ZYZ0U AMC61Z-ZYZ0U CARTON
AMC742-016 AMC742-016 CATCH
AMC722-955 AMC722-955 CATCH
AMC414-7035 AMC414-7035 CHAMBER
AMC701-236 AMC701-236 CLIP
AMC681-557 AMC681-557 CLIP (10)
AMC596-521 AMC596-521 CLIP (10)
AMC596-219 AMC596-219 CONNECTOR (10)
AMC701-614 AMC701-614 CORD
AMC732-254 AMC732-254 COUPLING
AMC415-2877 AMC415-2877 COUPLING
AMC414-7032 AMC414-7032 COVER
AMC701-213 AMC701-213 FILTER
AMC732-185 AMC732-185 FUSE
AMC701-180 AMC701-180 GASKET
AMC701-098 AMC701-098 GASKET
AMC414-8436 AMC414-8436 HANDLE
AMC596-610 AMC596-610 HOUSING
MCH1150 MCH1150 KIT
AMC414-7041 AMC414-7041 LEAD
AMC744-237 AMC744-237 LENS
AMC744-119 AMC744-119 LENS
AMC742-013 AMC742-013 LIFTER
AMC7474-489 AMC7474-489 LOWER WAND

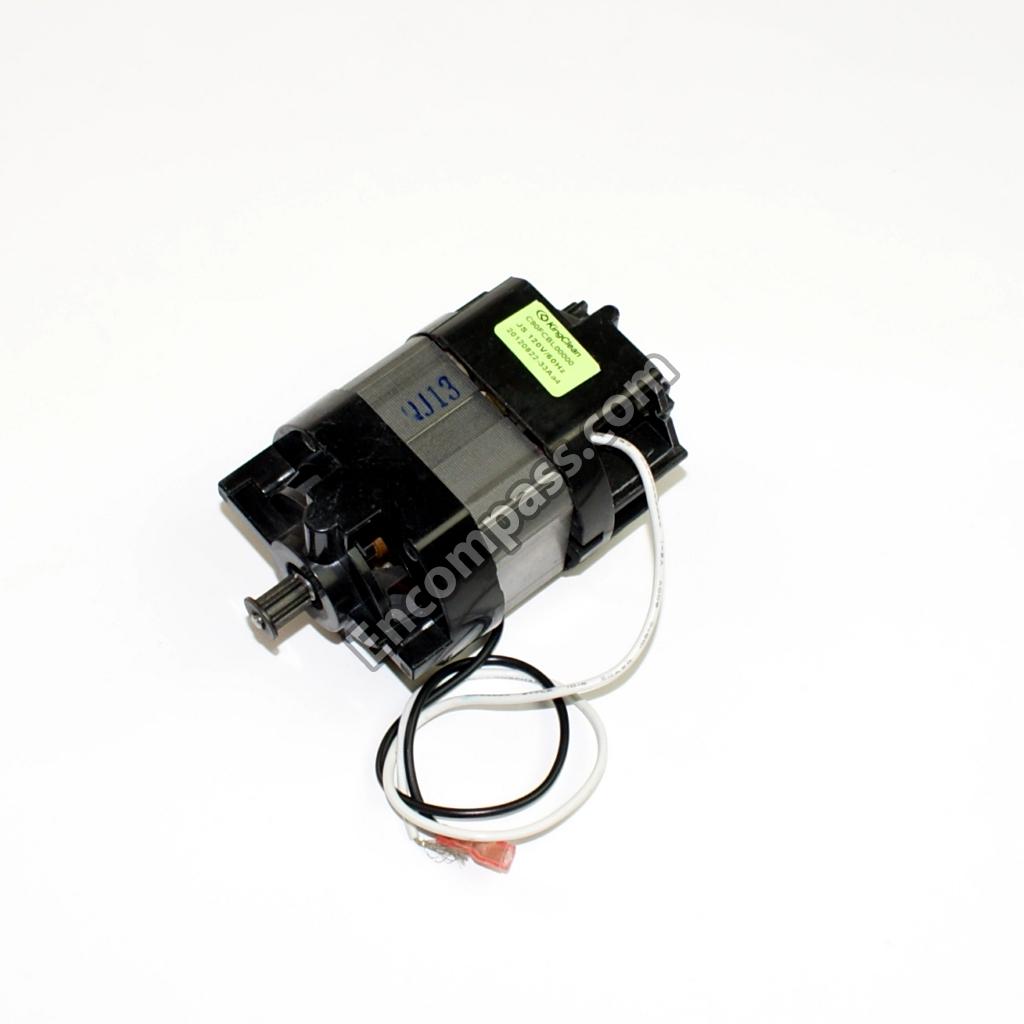

AMC732-172 AMC732-172 MOTOR
AC90FVH100 AC90FVH100 MOTOR
AMC415-0107 AMC415-0107 MUFFLER
AMC681-642 AMC681-642 NUT
AMC680-697 AMC680-697 NUT (10)
AMC21T-ZZZ0U AMC21T-ZZZ0U ORNAMENT
MCH2000_EX MCH2000_EX OTC VACUUM
AMC415-3045 AMC415-3045 PACKING
AMC414-8421 AMC414-8421 PAD
AMC414-7061 AMC414-7061 PLATE
AMC742-332 AMC742-332 PROTECTOR
AMC415-5721 AMC415-5721 RECEPTACLE
AMC415-3176 AMC415-3176 RECEPTACLE
AMC705-093 AMC705-093 RECTIFIER
AMC415-3095 AMC415-3095 RELAY
AMC701-101 AMC701-101 RETAINER
AMC414-8419 AMC414-8419 ROLLER
AMC681-637 AMC681-637 SCREW (10)
AMC681-632 AMC681-632 SCREW (10)
AMC681-605 AMC681-605 SCREW (10)
AMC681-568 AMC681-568 SCREW (10)
AMC681-550 AMC681-550 SCREW (10)
AMC681-297 AMC681-297 SCREW (10)
AMC681-036 AMC681-036 SCREW (10)
AMC742-968 AMC742-968 SEAL
AMC742-019 AMC742-019 SEAL
AMC732-191 AMC732-191 SEAL
AMC701-425 AMC701-425 SEAL
AMC745-004 AMC745-004 SOCKET
AMC732-133 AMC732-133 SPACER (10)
AMC742-002 AMC742-002 SPRING
AMC725-775 AMC725-775 SPRING
AMC725-419 AMC725-419 SPRING (10)
AMC681-634 AMC681-634 SPRING (10)
AMC732-162 AMC732-162 SWITCH
AMC414-8418 AMC414-8418 SWIVEL
AMC415-2777 AMC415-2777 TRANSFORMER
AMC732-144 AMC732-144 TUBING
AMC747-120 AMC747-120 UPPER WAND
AMC414-7059 AMC414-7059 VALVE
AMC725-635 AMC725-635 WASHER (10)
AMC722-909 AMC722-909 WASHER (10)
AMC680-690 AMC680-690 WASHER (10)
AMC595-385 AMC595-385 WASHER (10)
AMC732-196 AMC732-196 WIRE
AMC732-195 AMC732-195 WIRE
